Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 3 illustrations

Illustrations

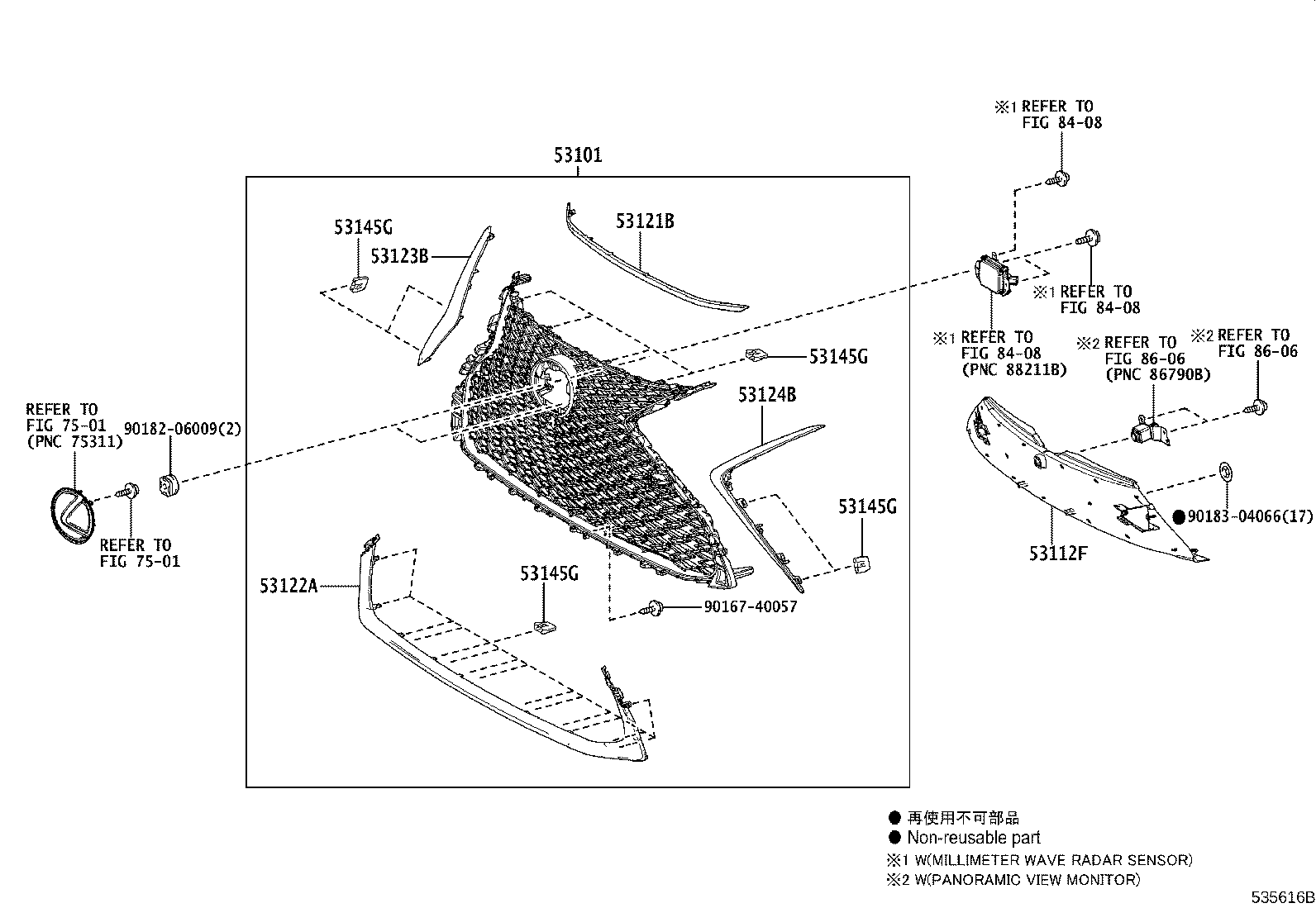

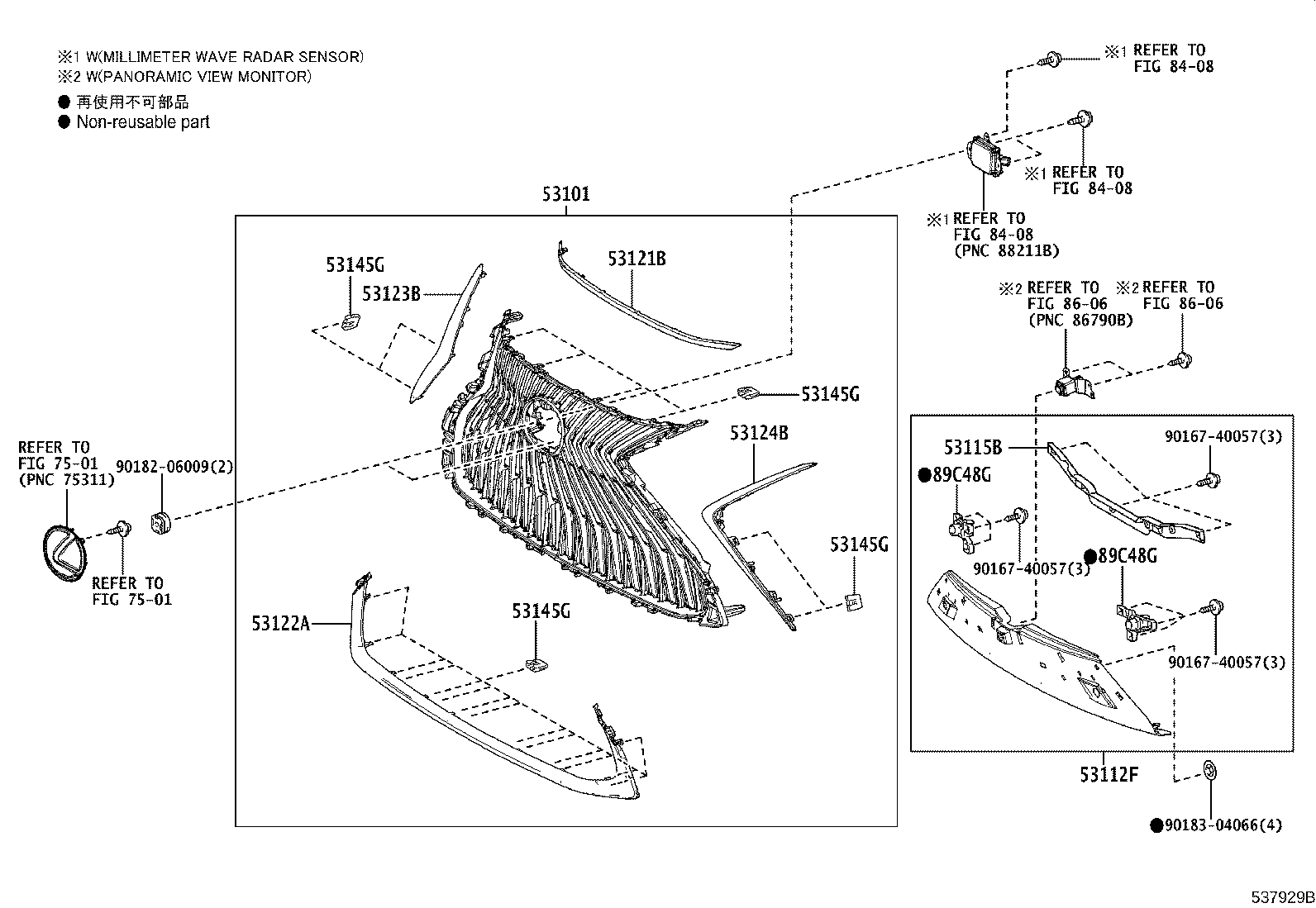

Figure 535615B 535615B 2018-06 → 2021-08 Figure 535616B 535616B 2018-06 → — Figure 537929B 537929B 2021-08 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53112F Grille, Radiator, Inside
53115B Bracket, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53122A Moulding, Radiator Grille, Lower
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53145G Clip, Radiator Grille
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
