Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

61 part groups · 16 illustrations

Illustrations

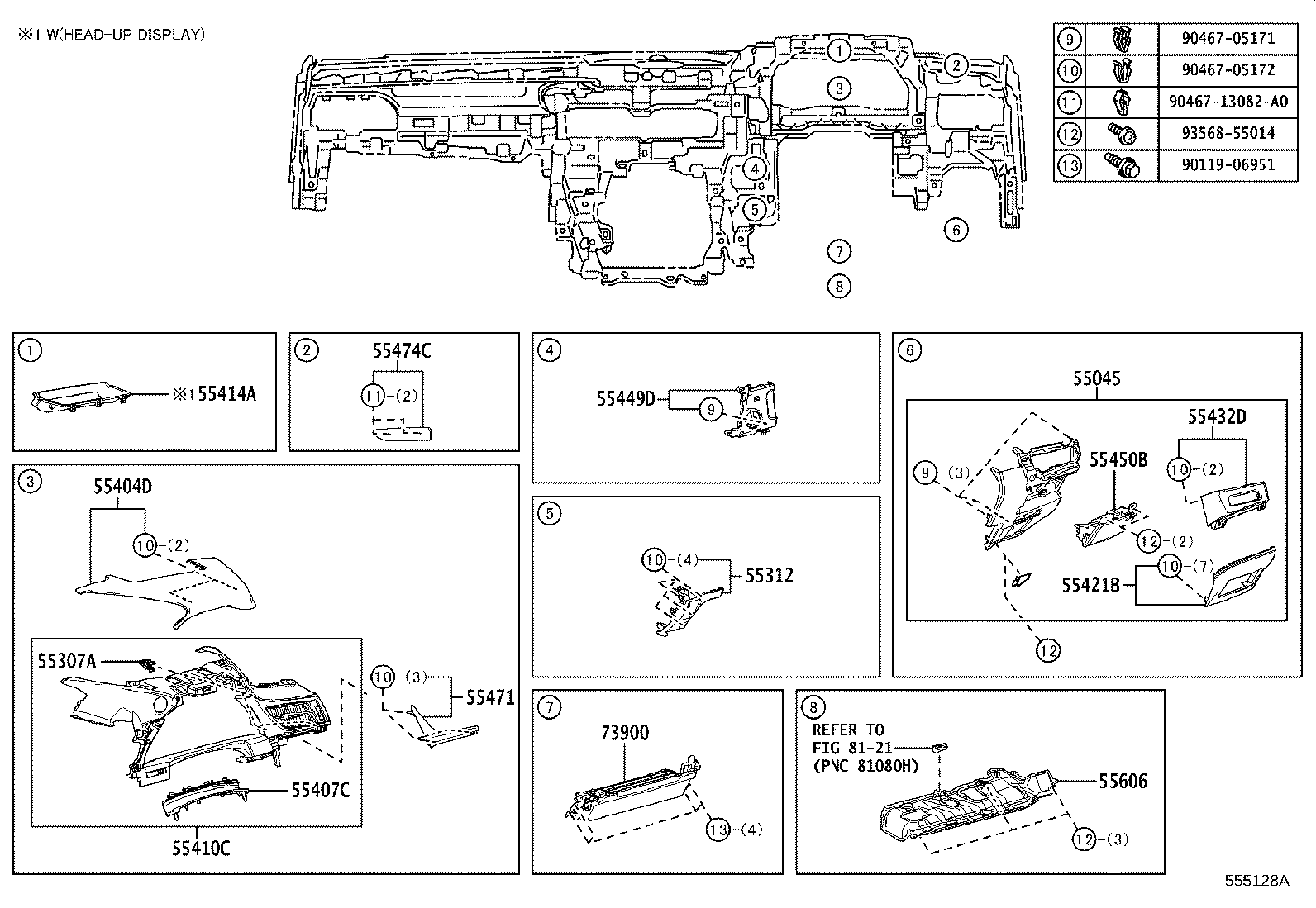

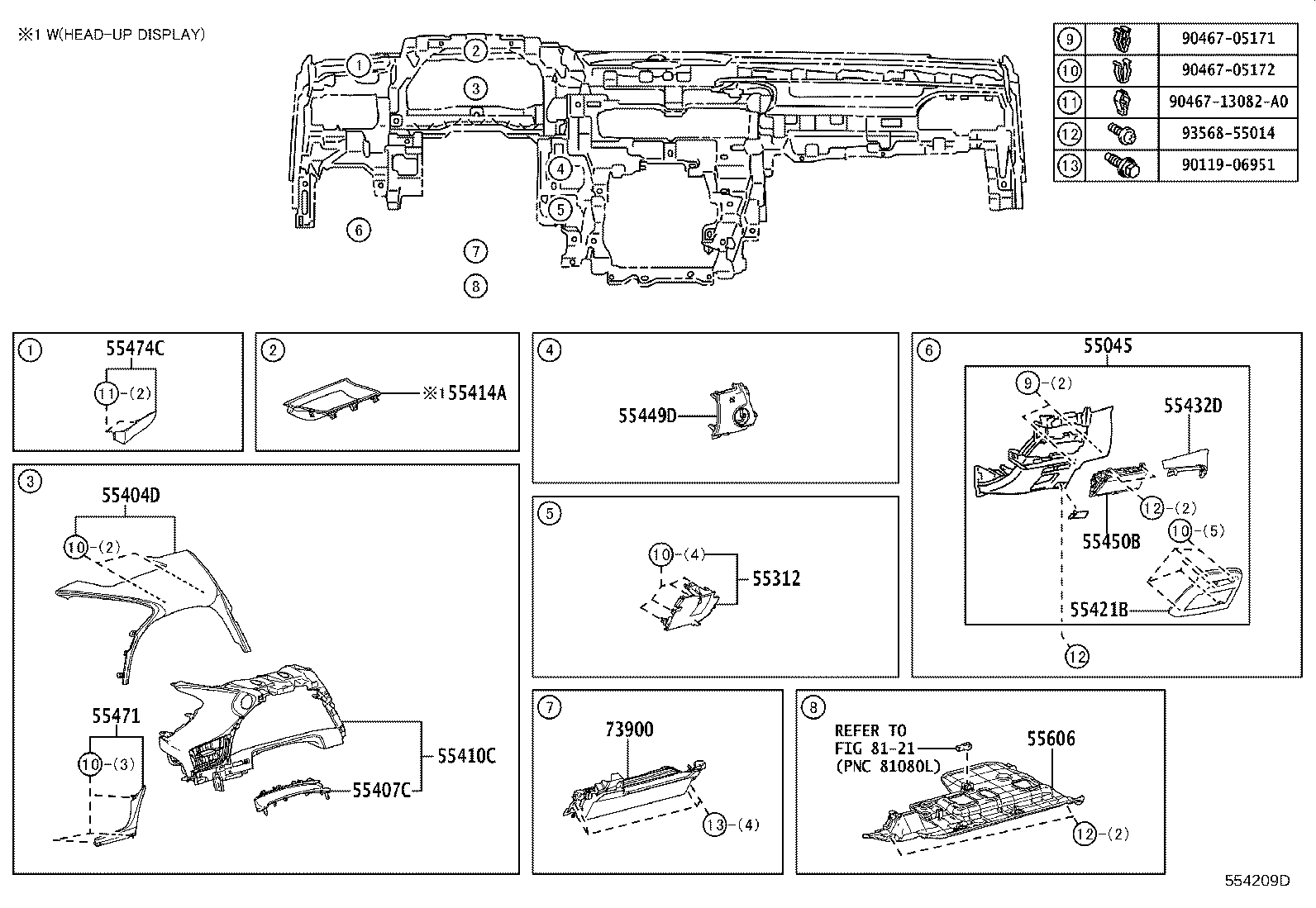

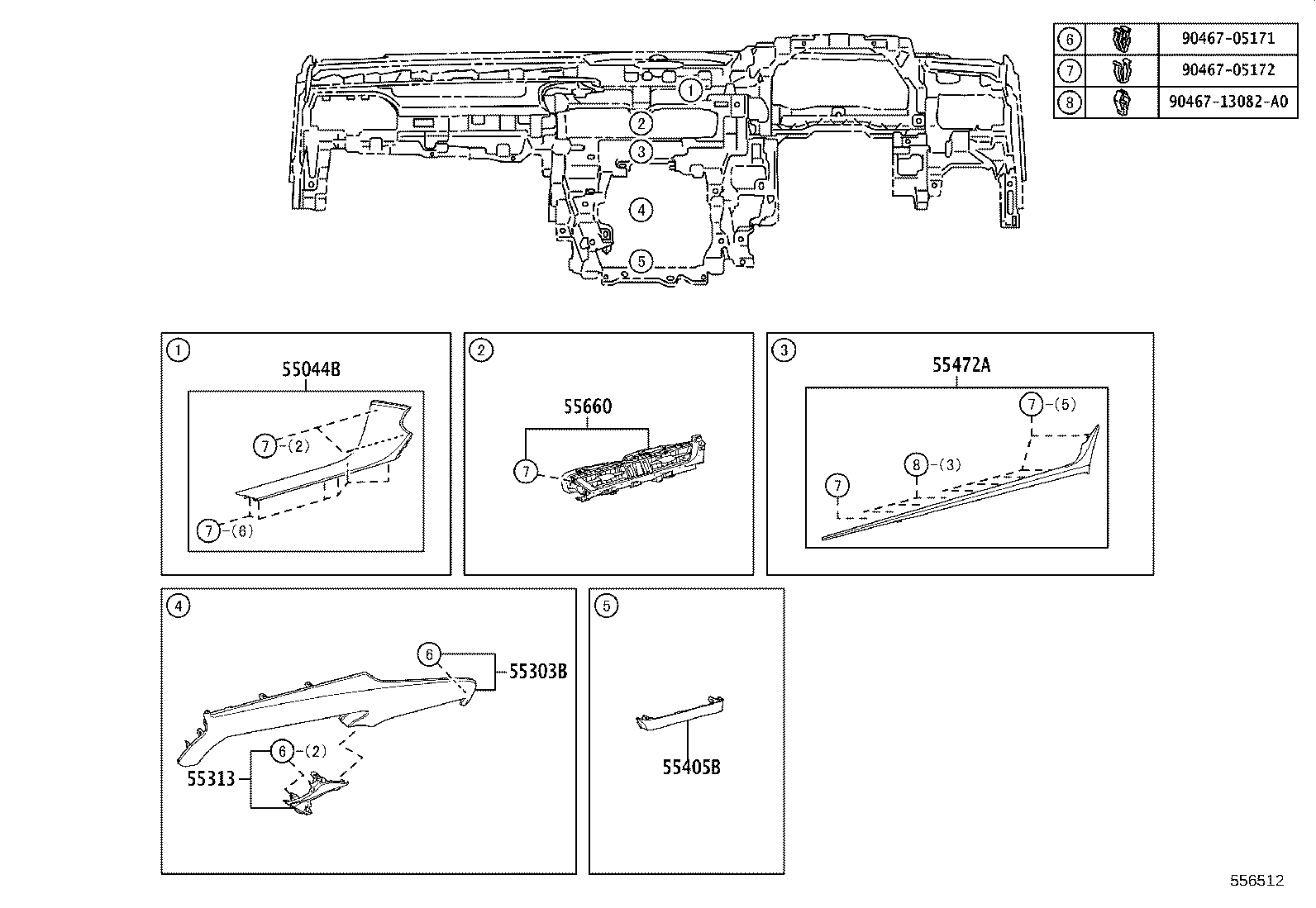

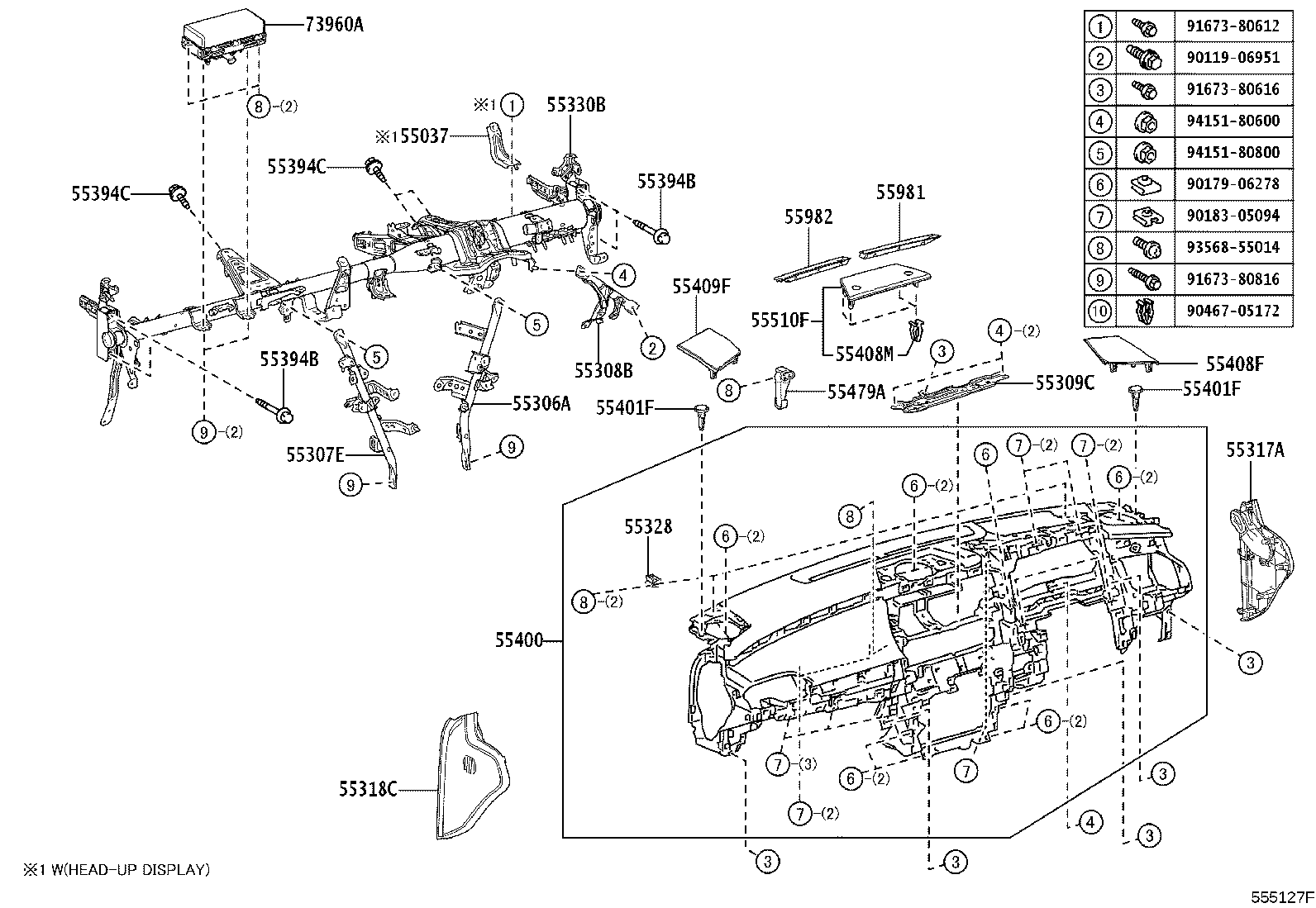

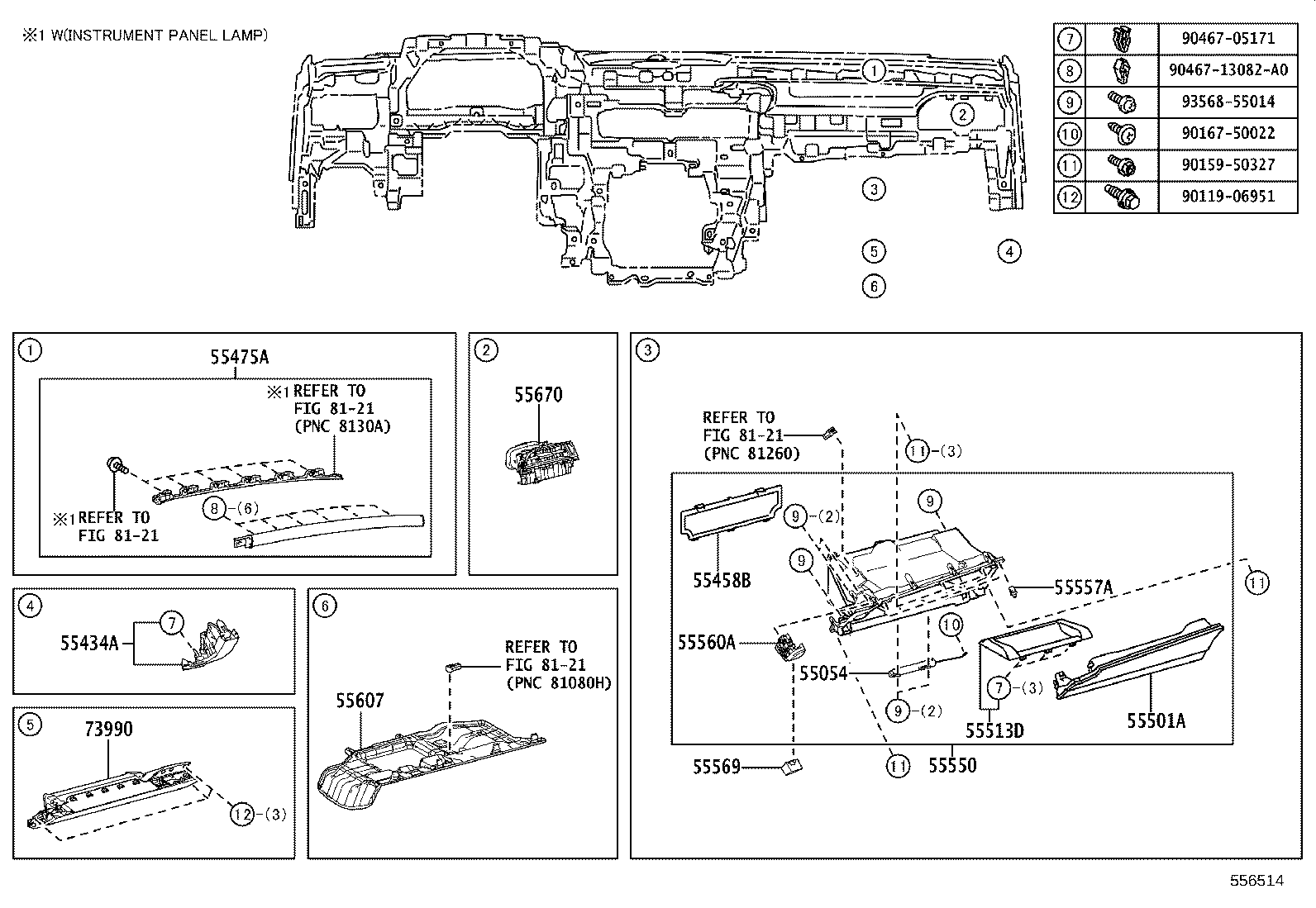

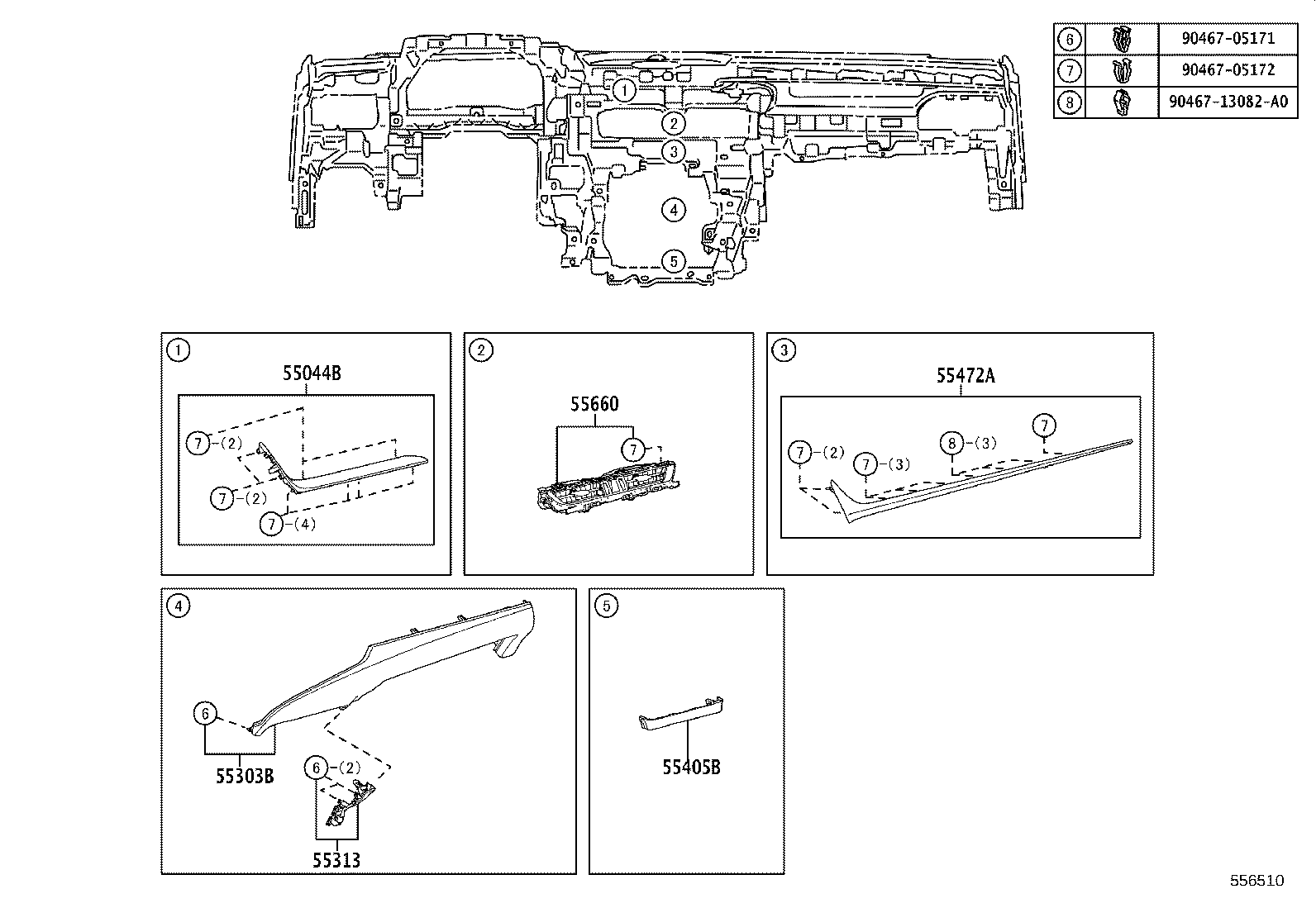

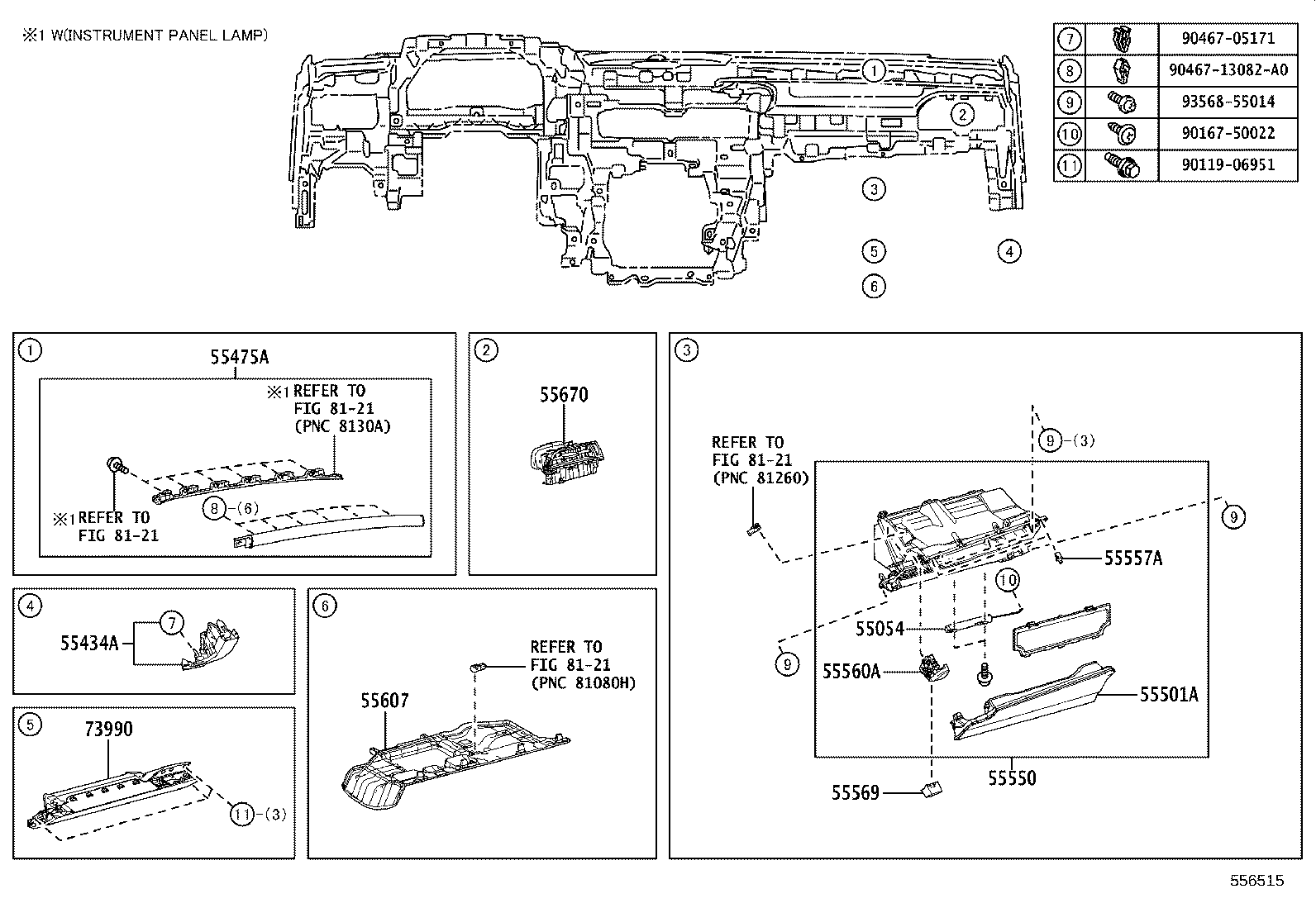

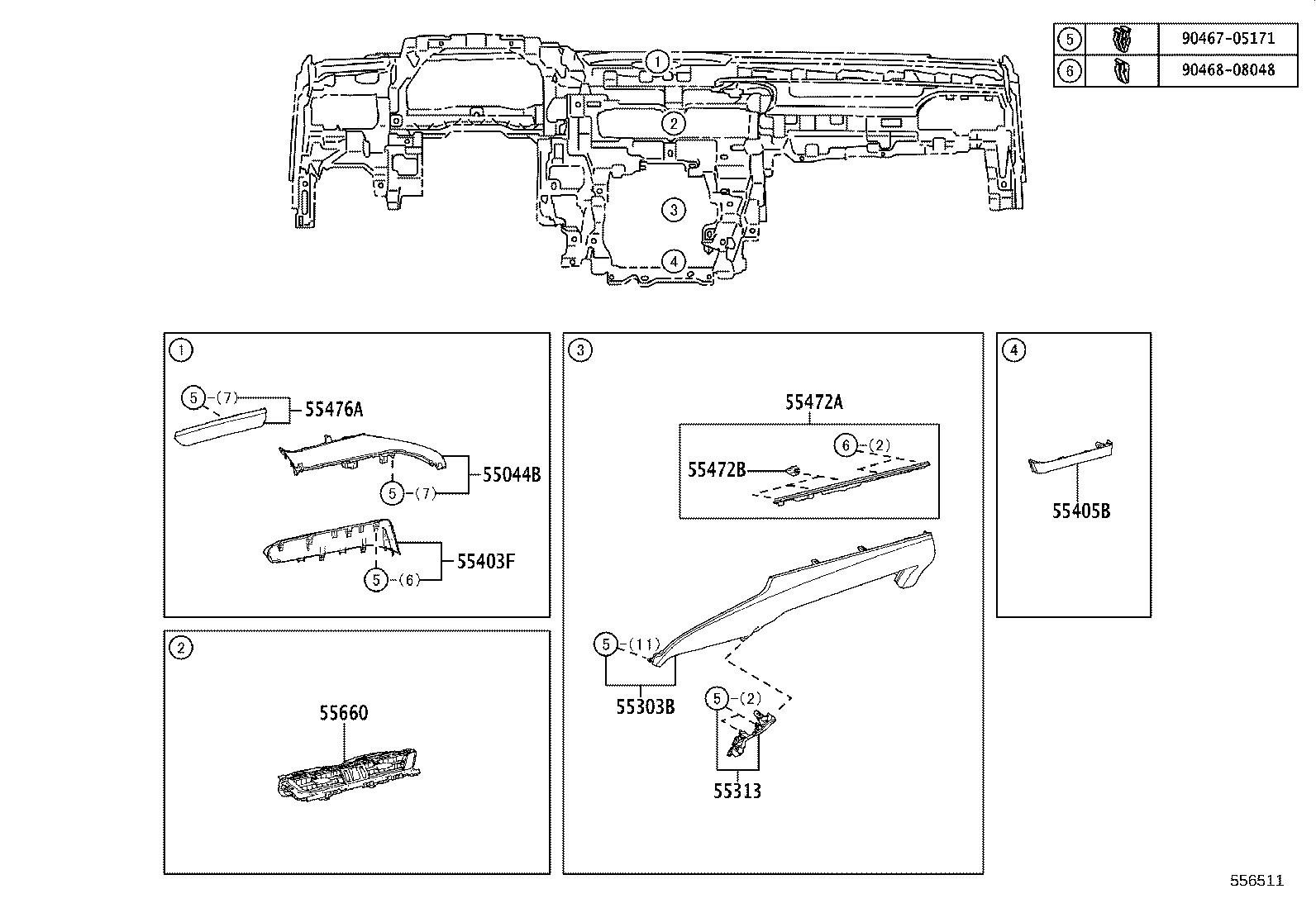

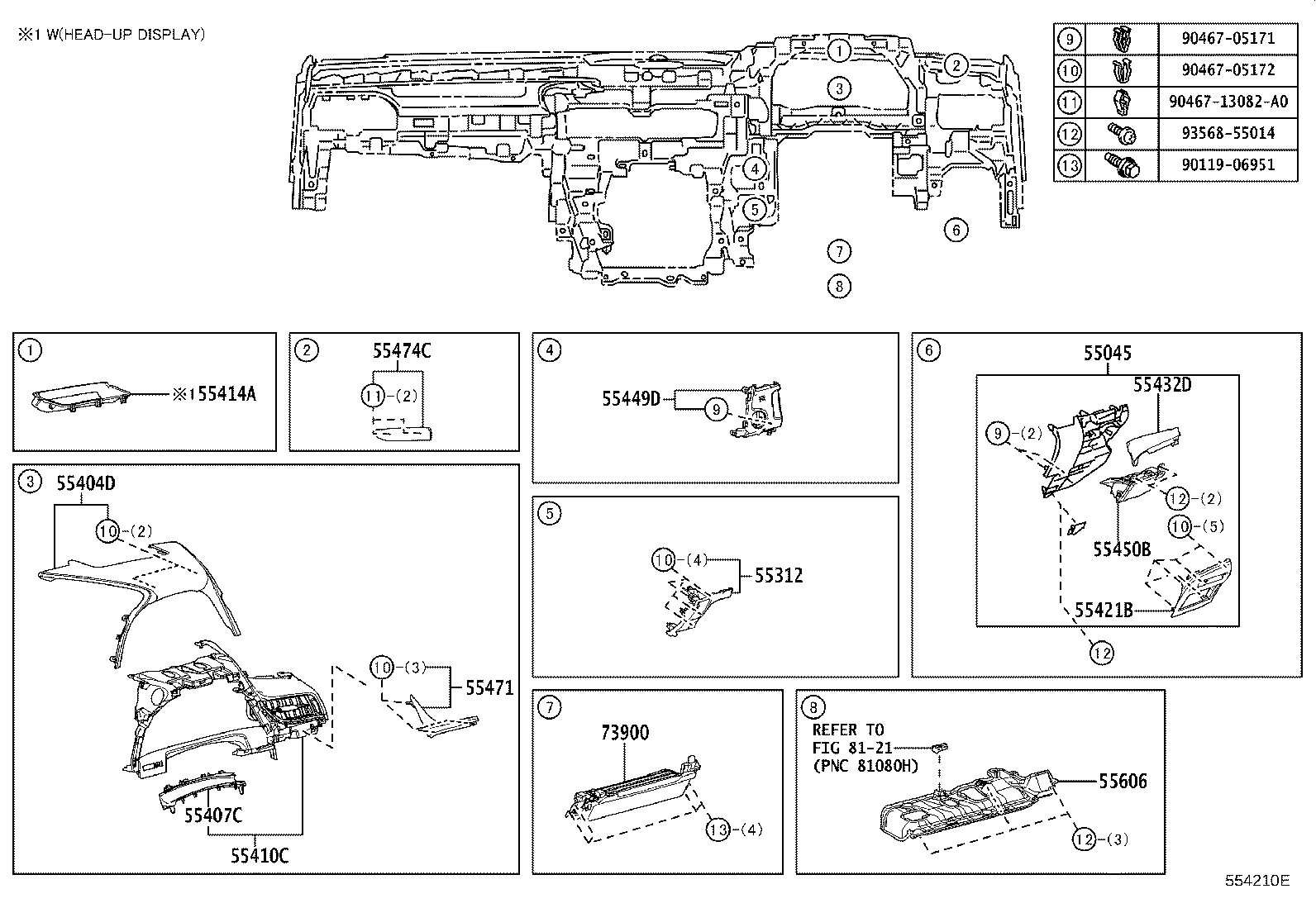

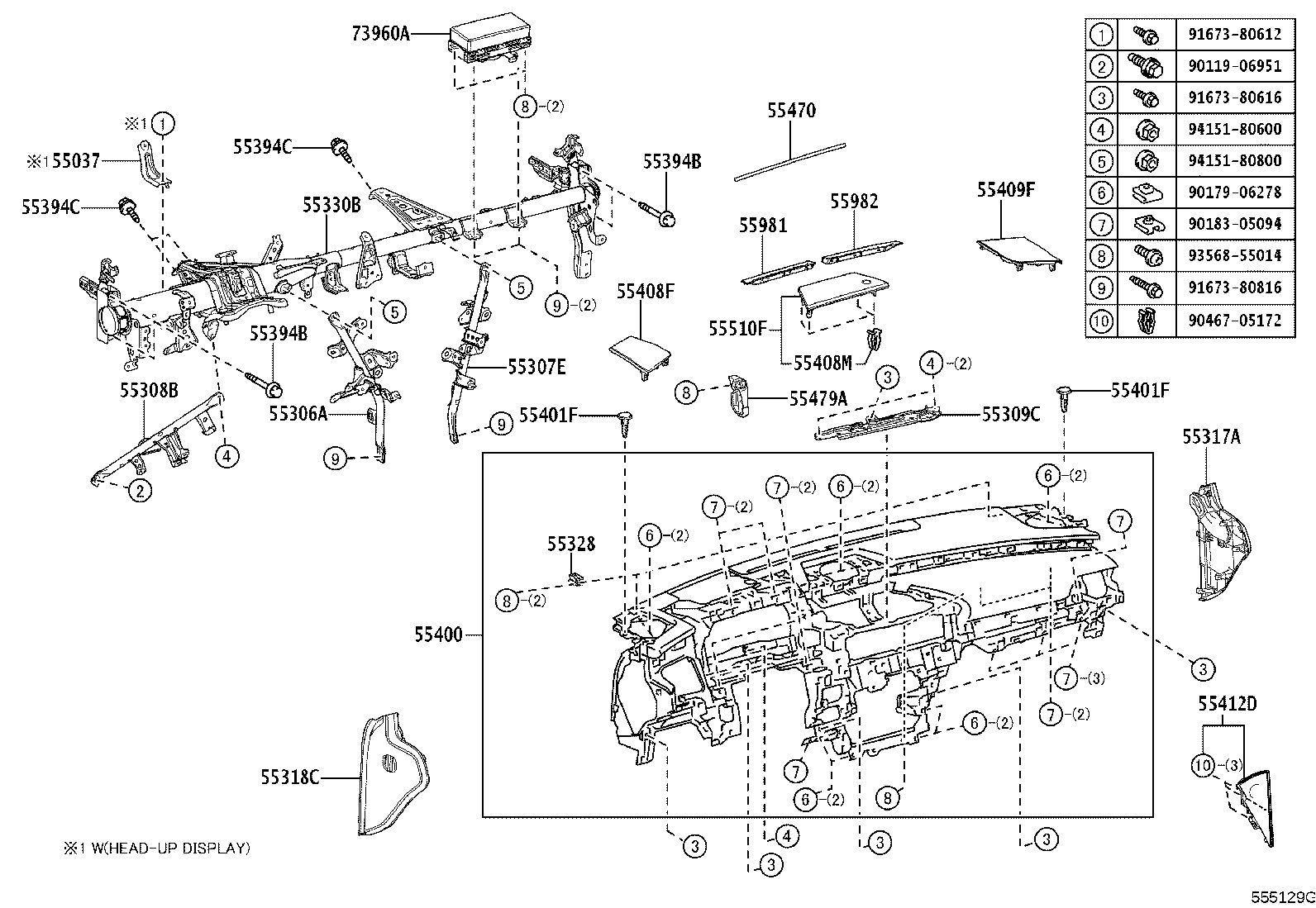

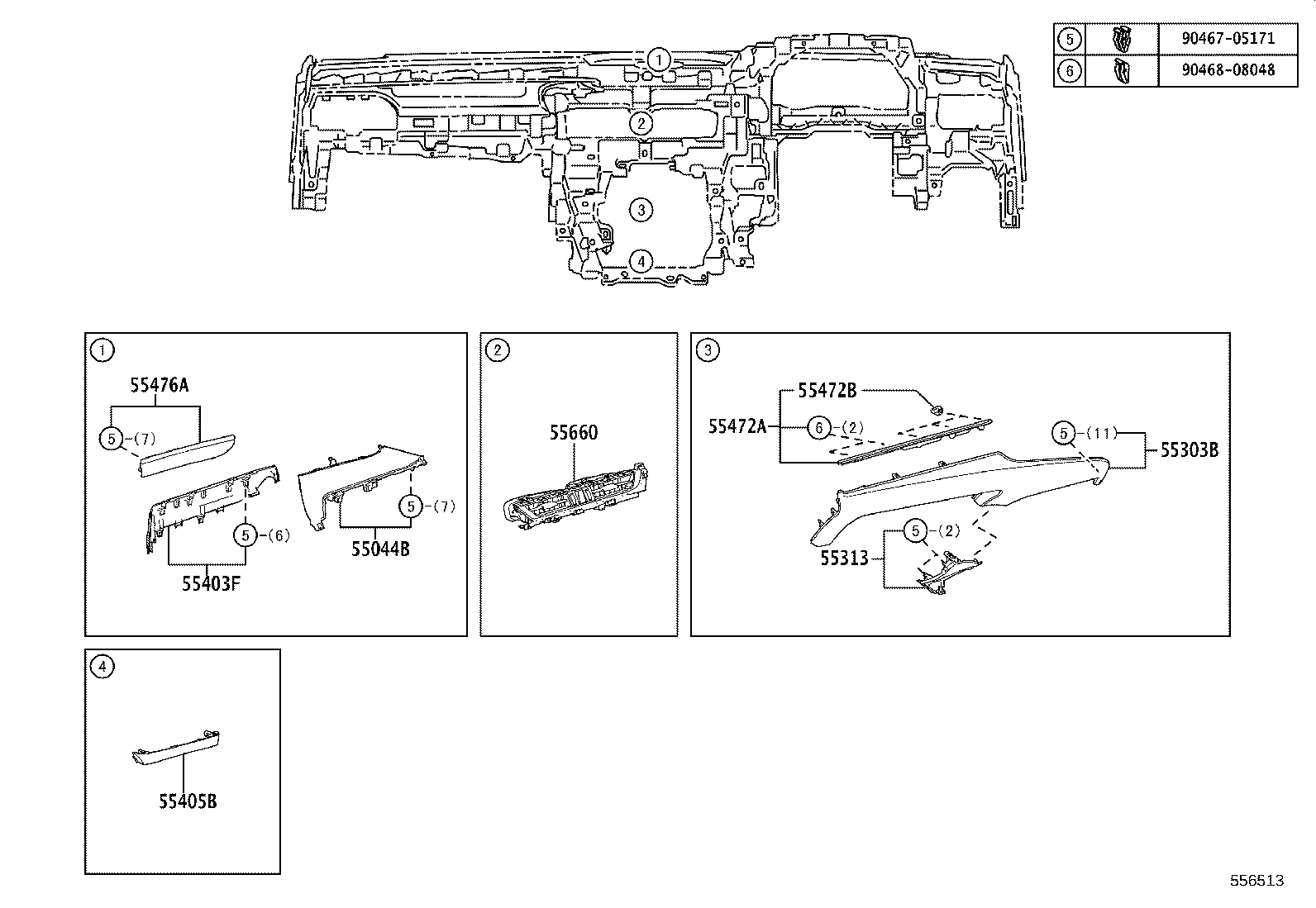

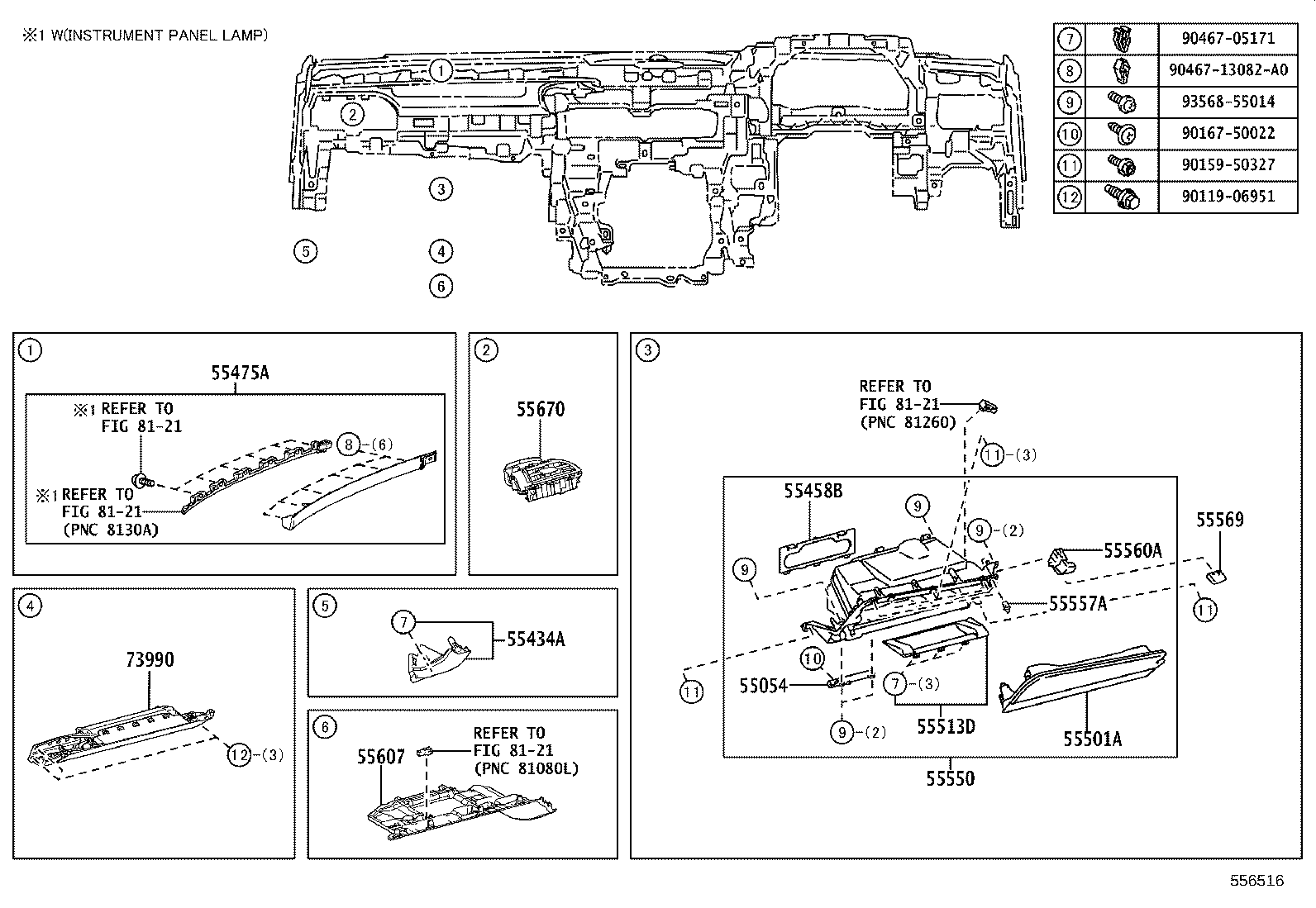

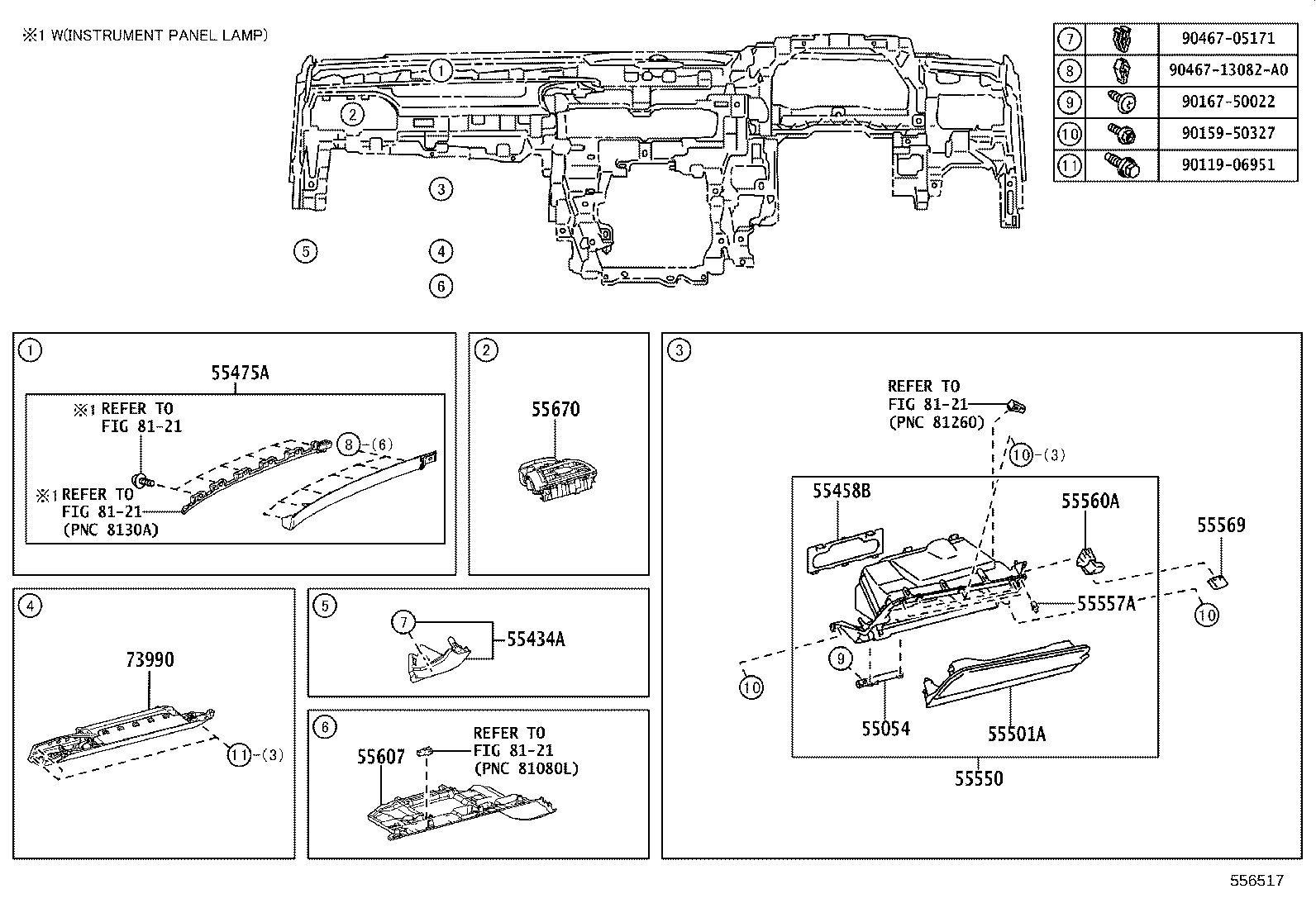

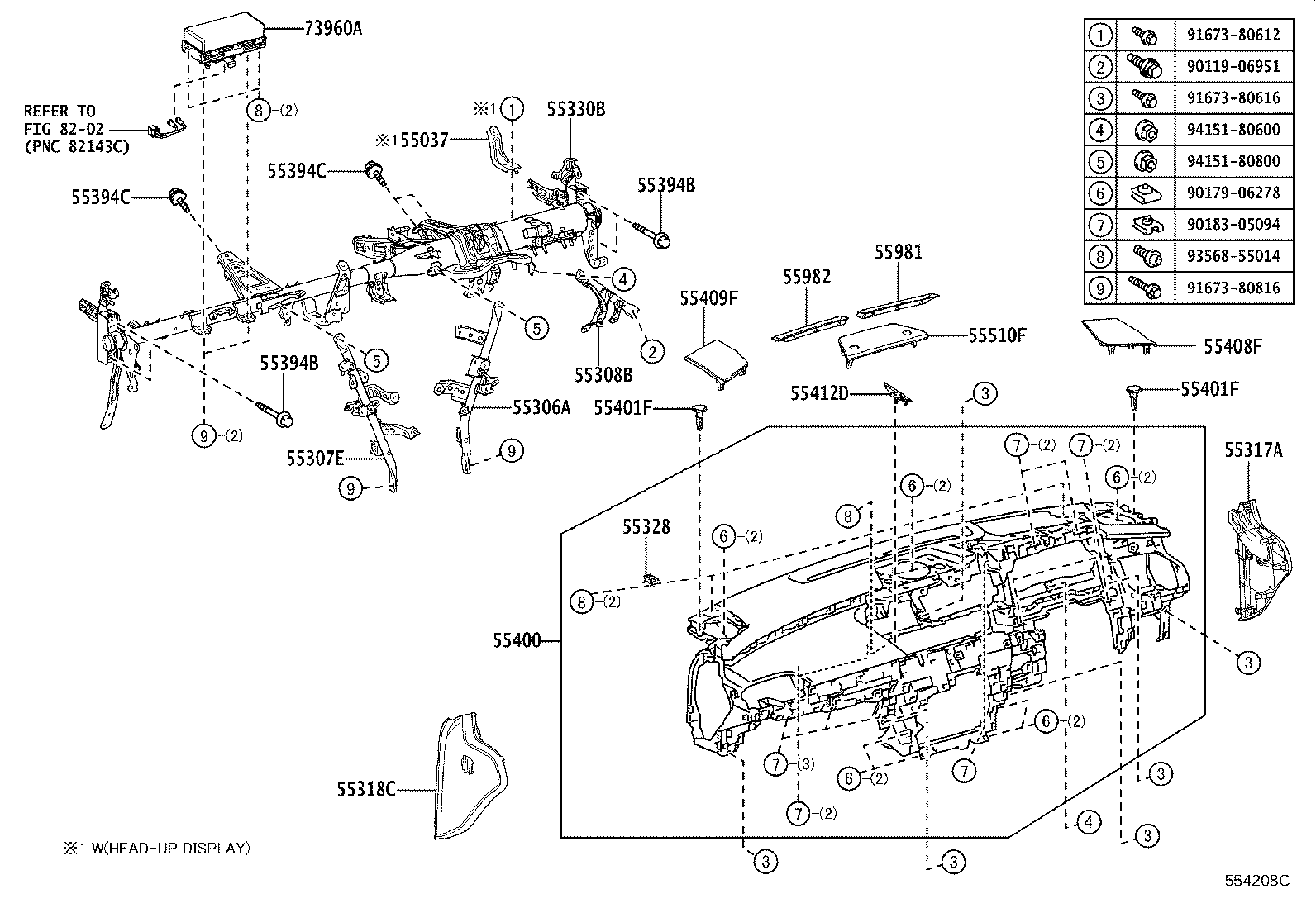

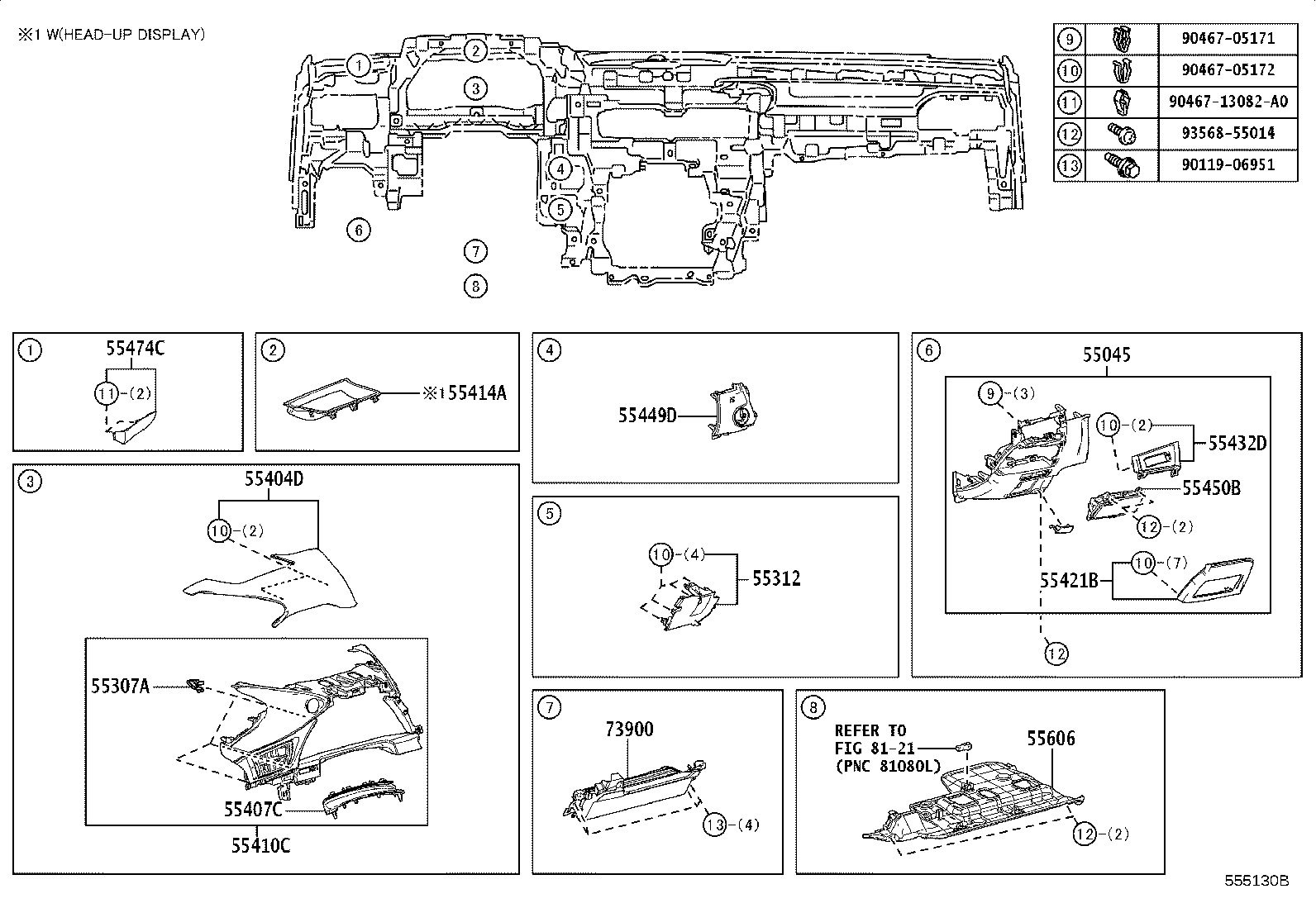

Figure 554207C 554207C 2018-06 → 2021-08 Figure 555129G 555129G 2021-08 → — Figure 554208C 554208C 2018-06 → 2021-08 Figure 555127F 555127F 2021-08 → — Figure 554209D 554209D 2018-06 → 2021-08 Figure 555130B 555130B 2021-08 → — Figure 554210E 554210E 2018-06 → 2021-08 Figure 555128A 555128A 2021-08 → — Figure 556510 556510 2018-06 → 2021-08 Figure 556511 556511 2021-08 → — Figure 556512 556512 2018-06 → 2021-08 Figure 556513 556513 2021-08 → — Figure 556514 556514 2018-06 → 2021-08 Figure 556515 556515 2021-08 → — Figure 556516 556516 2018-06 → 2021-08 Figure 556517 556517 2021-08 → —

Part groups

PNCDescription
55037 Bracket Sub-assy, Instrument Panel Meter
55044B Panel Sub-assy, Instrument Panel Finish, Upper
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307A Clip(FOR LOWER SIDE SAFETY PAD SET)
55307E Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55309C Reinforcement Sub-assy, Instrument Panel, Center
55312 Panel, Instrument, Lower
55313 Panel, Instrument, Lower LH
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55400 Pad Assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55403F Panel Sub-assy, Instrument Panel Finish
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55407C Cover Sub-assy, Instrument, Lower
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55408M Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55412D Panel, Instrument Cluster Finish, Center
55414A Panel, Instrument Cluster Finish, End
55421B Panel, Instrument Cluster Finish, Upper
55432D Panel, Instrument Panel Finish, Lower NO.1
55434A Panel, Instrument Finish, Lower Sub
55449D Base, Switch
55450B Box Assy, Coin
55458B Cover, Instrument, Lwr
55470 Garnish Assy, Instrument Cluster Finish Panel
55471 Moulding, Instrument Cluster, NO.1
55472A Moulding, Instrument Cluster, NO.2
55472B Clip, Instrument Cluster Moulding
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55479A Retainer, Instrument Panel Safety Pad, NO.5
55501A Door Sub-assy, Glove Compartment
55510F Cover Assy, Speaker Opening, NO.1
55513D Plate, Glove Compartment, NO.2
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55569 Cover, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55981 Garnish, Defroster Nozzle, NO.1
55982 Garnish, Defroster Nozzle, NO.2
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
