Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

21 part groups · 2 illustrations

Illustrations

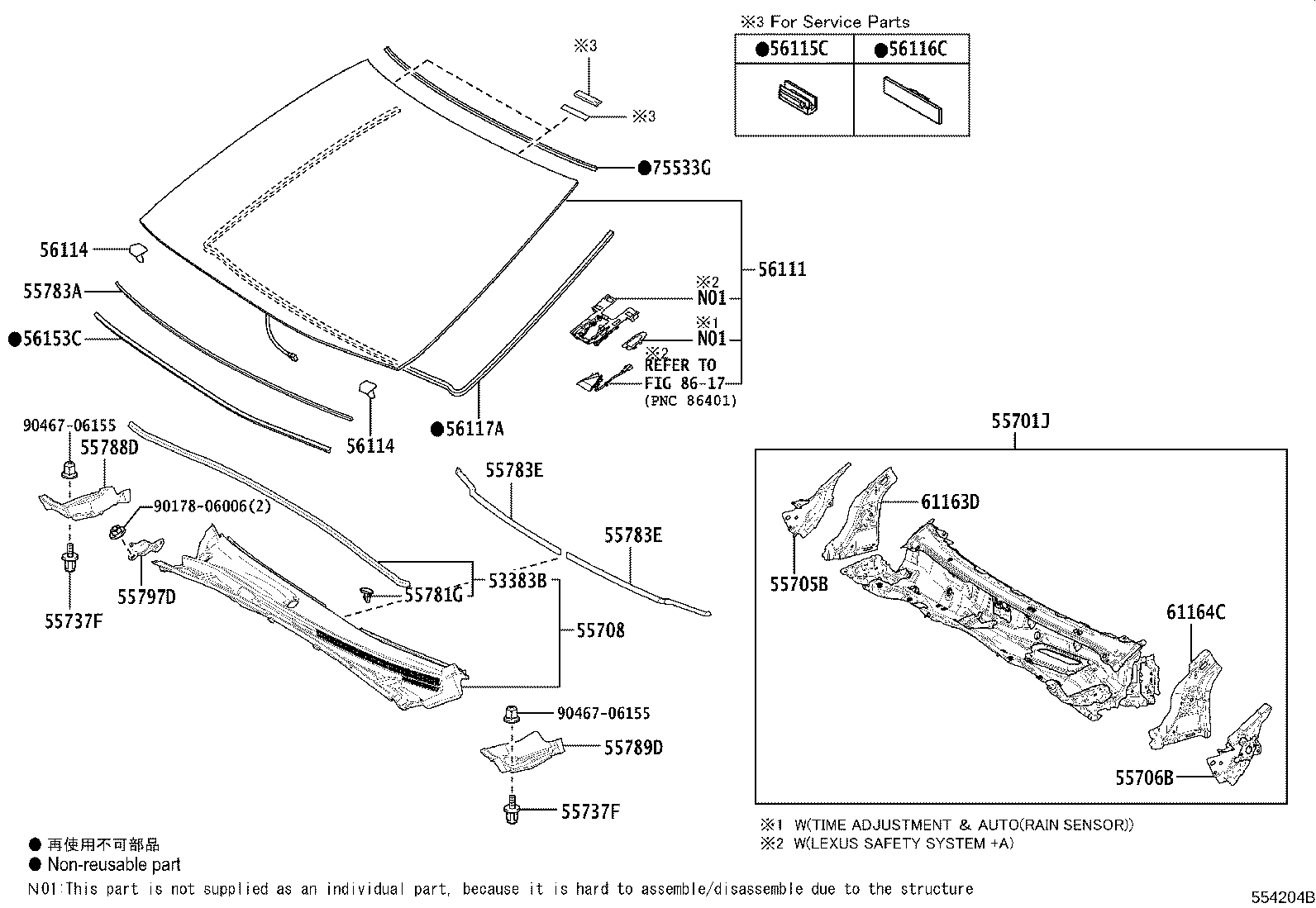

Figure 554203B 554203B 2018-06 → — Figure 554204B 554204B 2018-06 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55701J Panel Sub-assy, Cowl Top, Outer
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55708 Louver Sub-assy, Cowl Top Ventilator
55737F Stopper, Cowl Body Mounting Bolt
55781G Clip, Cowl Top Ventilator Louver
55783A Pad, Cowl Top Silencer
55783E Louver, Cowl Top Ventilator, Center
55788D Insulator, Cowl Top Panel, NO.2
55789D Insulator, Cowl Top Panel, NO.3
55797D Retainer, Front Panel Wiper Motor Bracket
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115C Stopper, Windshield Glass
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
61163D Pillar, Front Body, Lower Inner RH
61164C Pillar, Front Body, Lower Inner LH
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
