Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

5 part groups · 4 illustrations

Illustrations

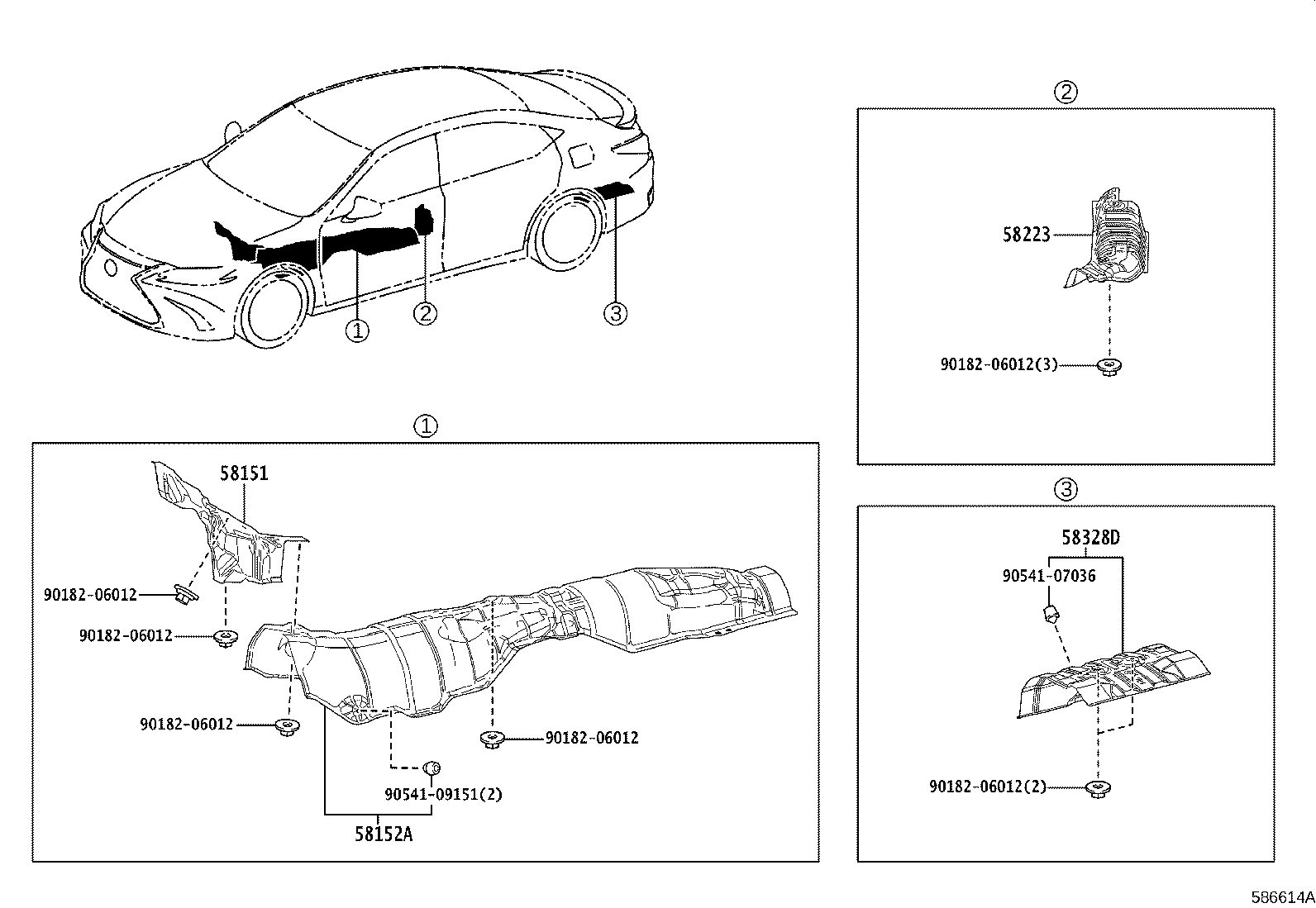

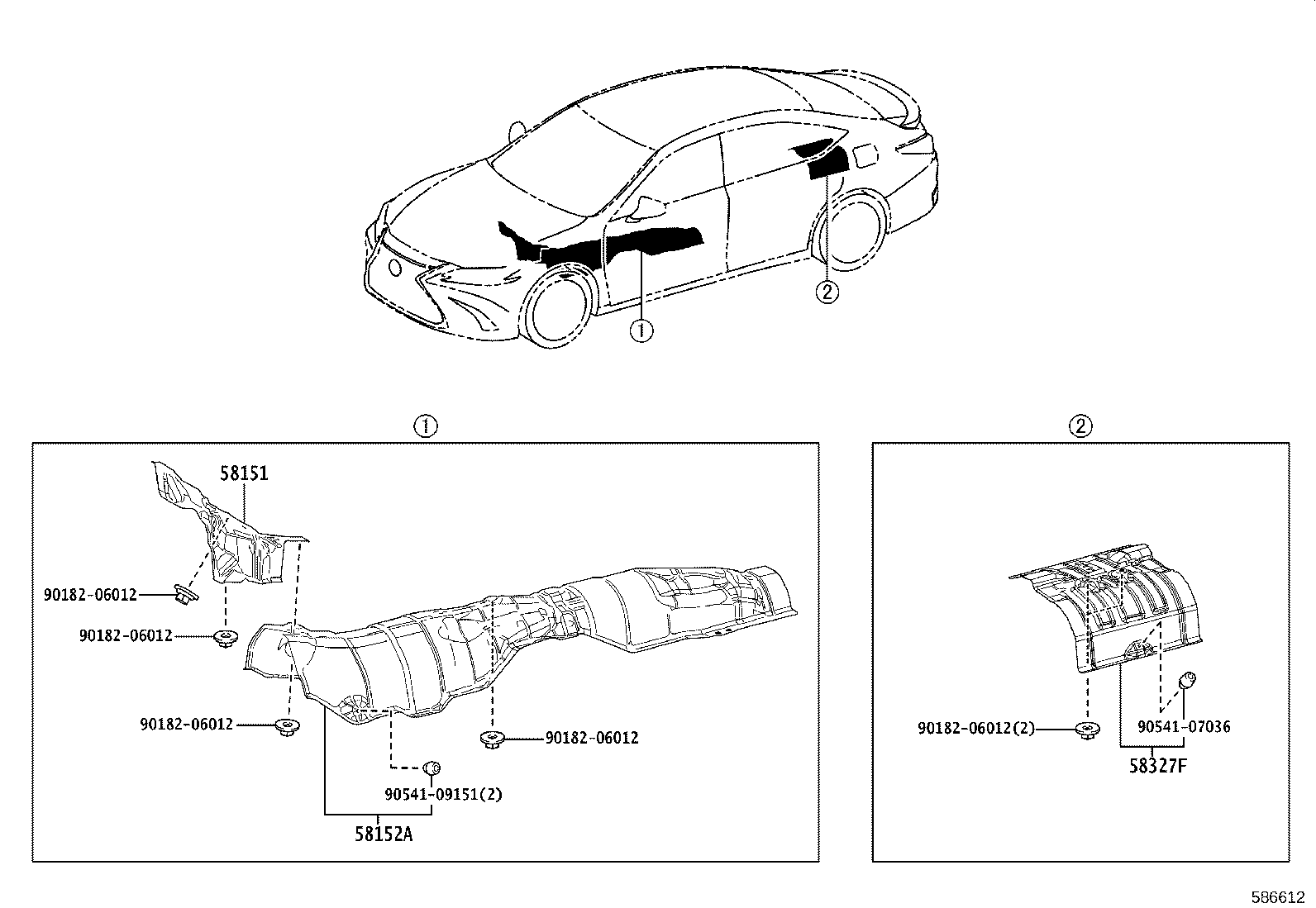

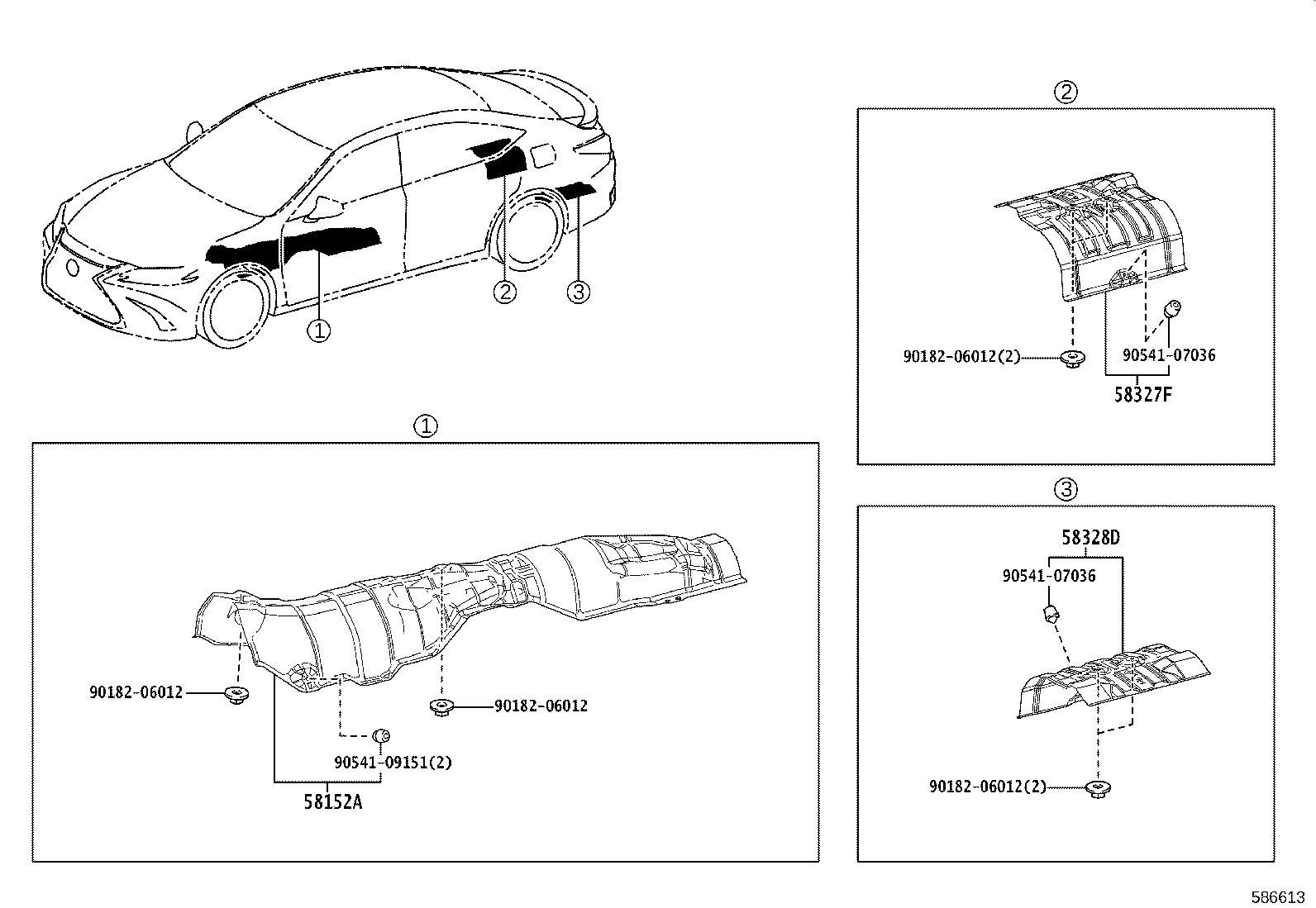

Figure 586611 586611 2018-06 → — Figure 586612 586612 2018-06 → — Figure 586613 586613 2018-06 → — Figure 586614A 586614A 2018-07 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58152A Insulator, Front Floor Heat, NO.1 Lower
58223 Insulator, Center Floor Heat, NO.2
58327F Insulator, Main Muffler Heat, RH
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
