Toyota Lexus ES350/300H/2##
2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe
Supported model
Data version 2021-09

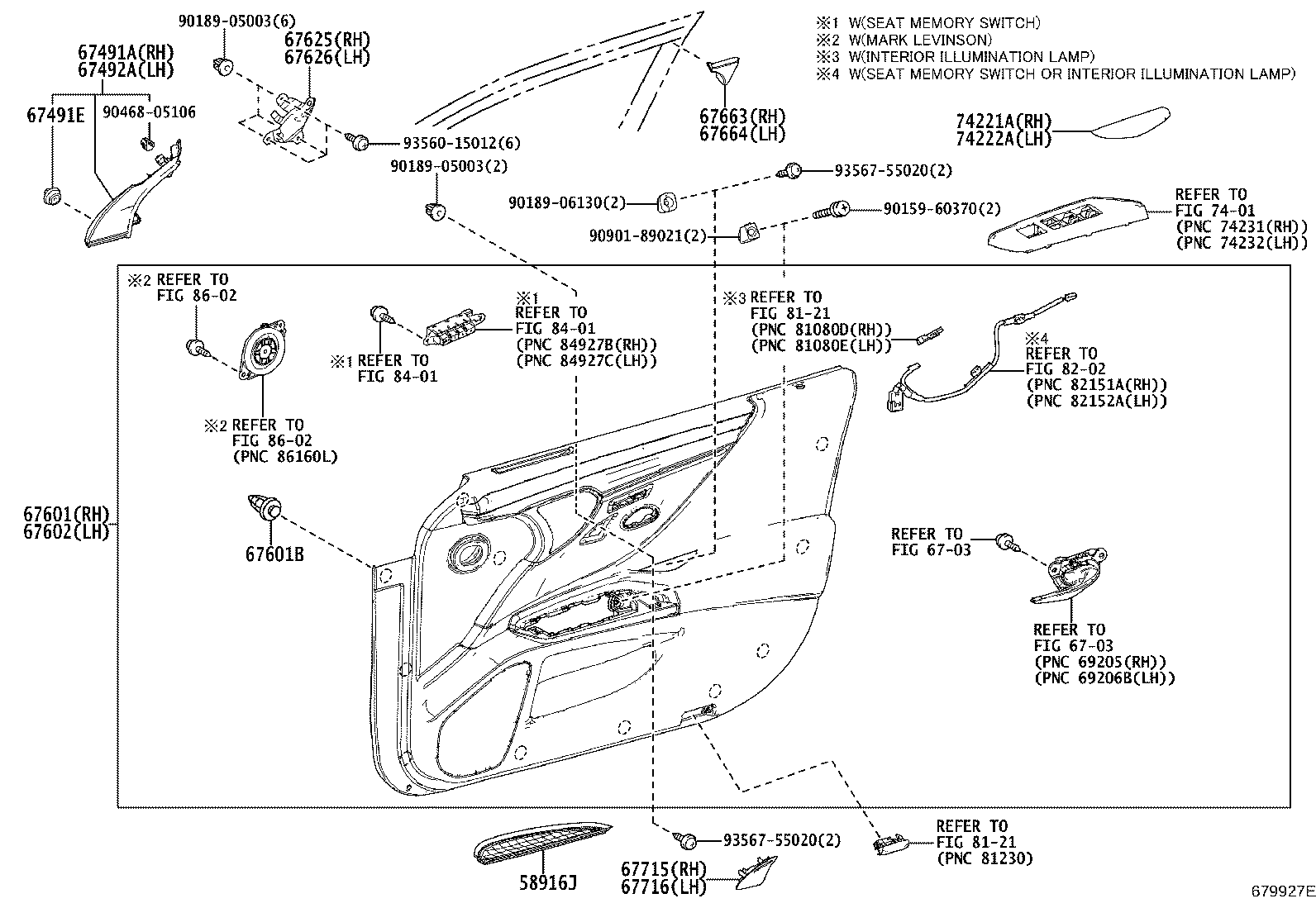

Front Door Panel & Glass
63 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58916J | Mat, Box Bottom |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491E | Retainer, Door Trim |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625 | Bracket, Front Door Trim, RH |
| 67626 | Bracket, Front Door Trim, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67715 | Pad, Door Trim, NO.1 |
| 67716 | Pad, Door Trim, NO.2 |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837A | Seal, Front Door Vent, RH |
| 67838A | Seal, Front Door Vent, LH |
| 67839A | Cover, Front Door Service Hole, Lower |
| 67851D | Seal, Front Door Rear Outside, RH |
| 67852D | Seal, Front Door Rear Outside, LH |
| 67855D | Protector, Front Door Panel, RH |
| 67856D | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67861A | Retainer(FOR FRONT DOOR WEATHERSTRIP) |
| 67862 | Weatherstrip, Front Door, LH |
| 67863D | Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) |
| 67863G | Retainer, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) |
| 67863H | Weatherstrip, Front Door, NO.2 RH |
| 67864B | Weatherstrip, Front Door, NO.2 LH |
| 67865G | Weatherstrip, Front Door, NO.3 RH |
| 67866F | Weatherstrip, Front Door, NO.3 LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 75925D | Tape, Black Out, Inner Front RH |
| 75926D | Tape, Black Out, Inner Front LH |
| 75968 | Tape, Black Out Front Door, Inner Rear RH |
| 75969 | Tape, Black Out Front Door, Inner Rear LH |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
