Toyota Lexus ES350/300H/2##
2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe
Supported model
Data version 2021-09

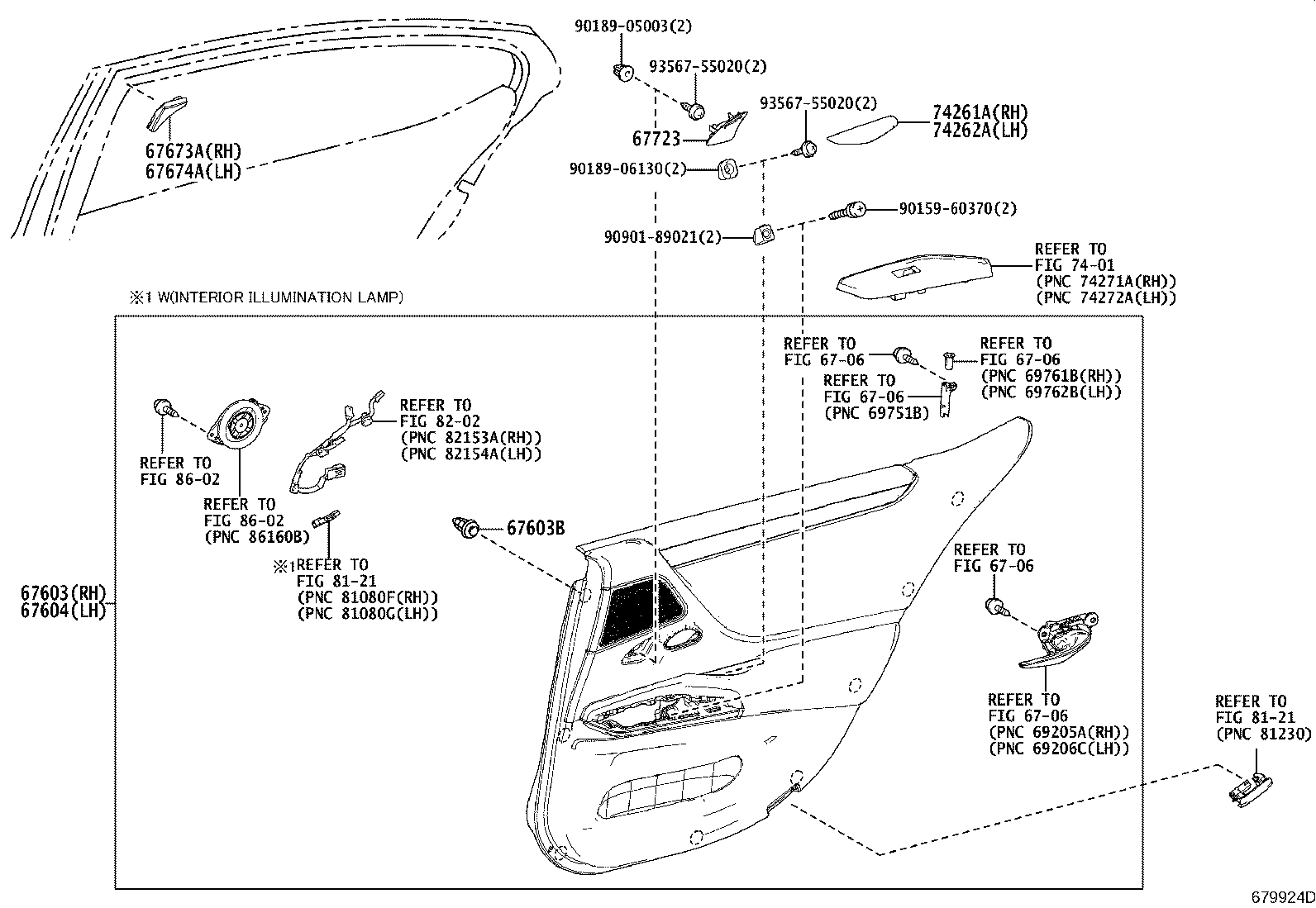

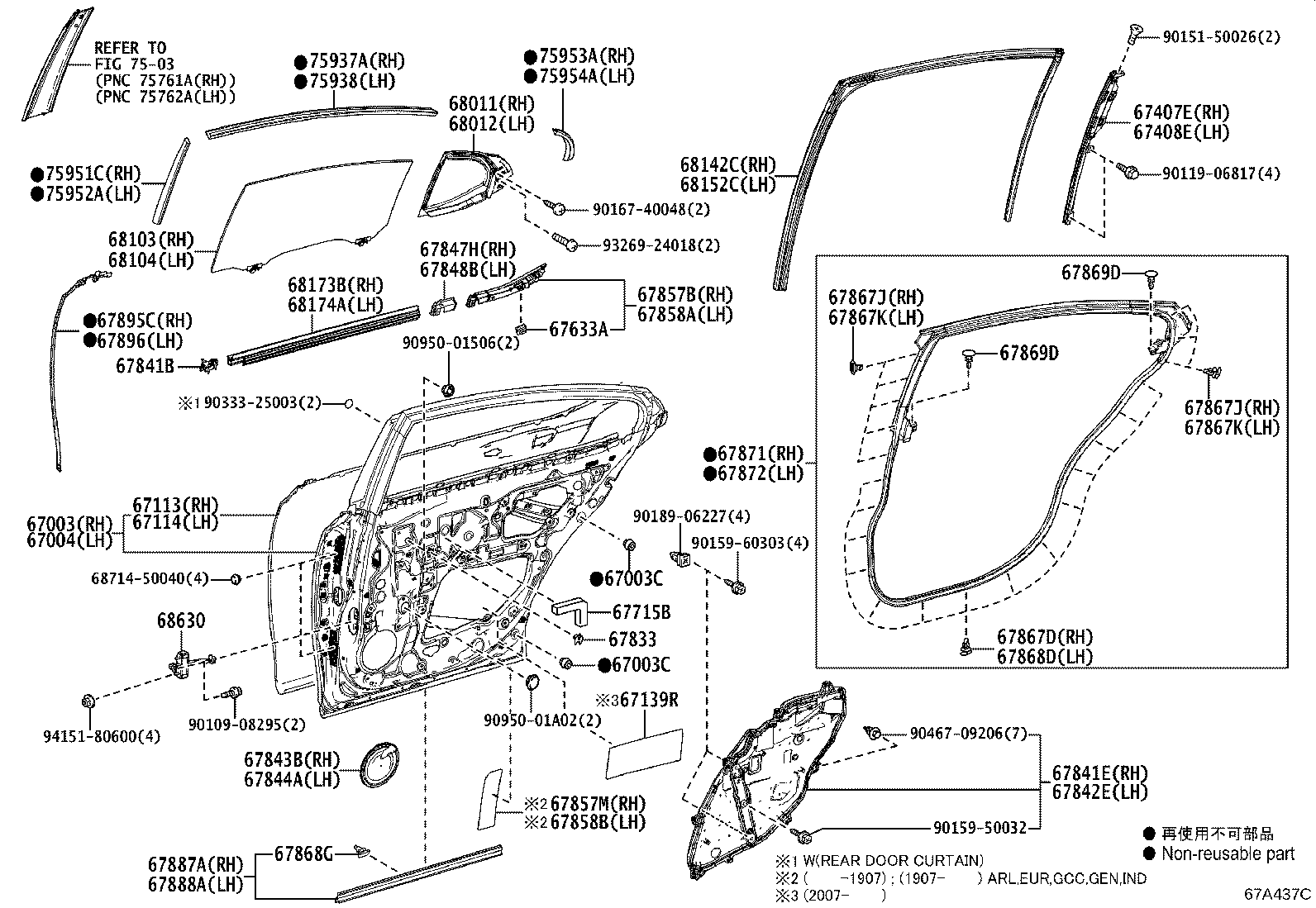

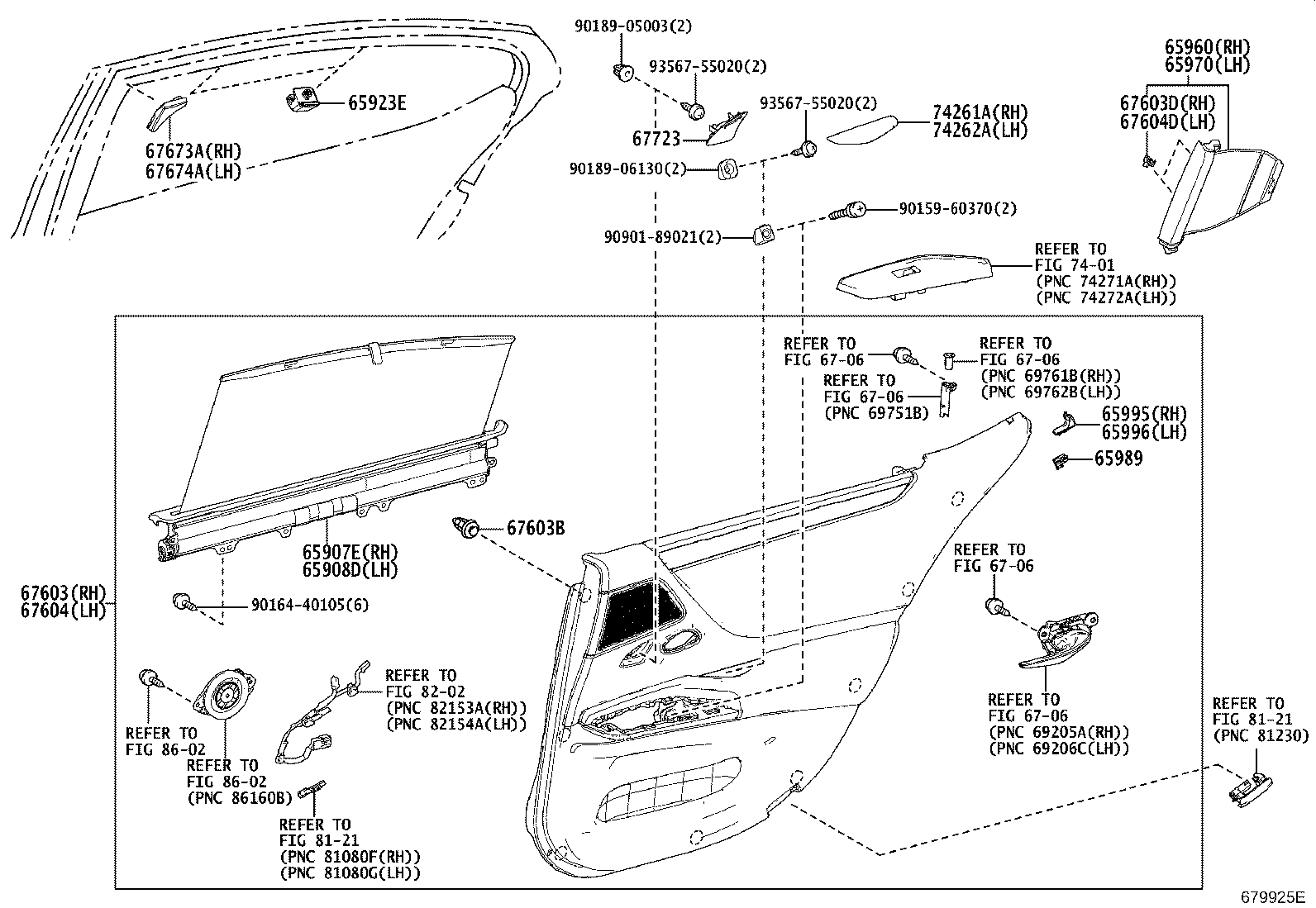

Rear Door Panel & Glass
67 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65923E | Hook, Curtain |
| 65960 | Curtain Assy, Side, Rear RH |
| 65970 | Curtain Assy, Side, Rear LH |
| 65989 | Cap, Curtain Rail |
| 65995 | Clamp, Curtain Rail, NO.1 |
| 65996 | Clamp, Curtain Rail, NO.2 |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67139R | Lining, Door Outside Panel Reinforcement |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603D | Retainer, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67633A | Retainer, Rear Door Trim, Upper |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67715B | Pad, Rear Door Trim |
| 67723 | Pad, Rear Door Trim, Upper |
| 67833 | Cover, Rear Door Service Hole |
| 67841B | Cover, Rear Door Service Hole |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67843B | Cover, Rear Door Service Hole, NO.2 RH |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67847H | Seal, Rear Door Vent, RH NO.2 |
| 67848B | Seal, Rear Door Vent, LH NO.2 |
| 67857B | Protector, Rear Door Panel, RH |
| 67857M | Protector, Rear Door Panel, RH |
| 67858A | Protector, Rear Door Panel, LH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67868G | Retainer, Door Weatherstrip |
| 67869D | Clip, Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 68011 | Glass Sub-assy, Rear Door Quarter Window, RH |
| 68012 | Glass Sub-assy, Rear Door Quarter Window, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68630 | Check Assy, Rear Door |
| 74261A | Cover, Rear Door Armrest, RH |
| 74262A | Cover, Rear Door Armrest, LH |
| 75937A | Tape, Black Out, Inner Upper RH |
| 75938 | Tape, Black Out, Inner Upper LH |
| 75951C | Tape, Black Out, Inner Front RH |
| 75952A | Tape, Black Out, Inner Front LH |
| 75953A | Tape, Black Out, Inner Rear RH |
| 75954A | Tape, Black Out, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
