Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

77 part groups · 20 illustrations

Illustrations

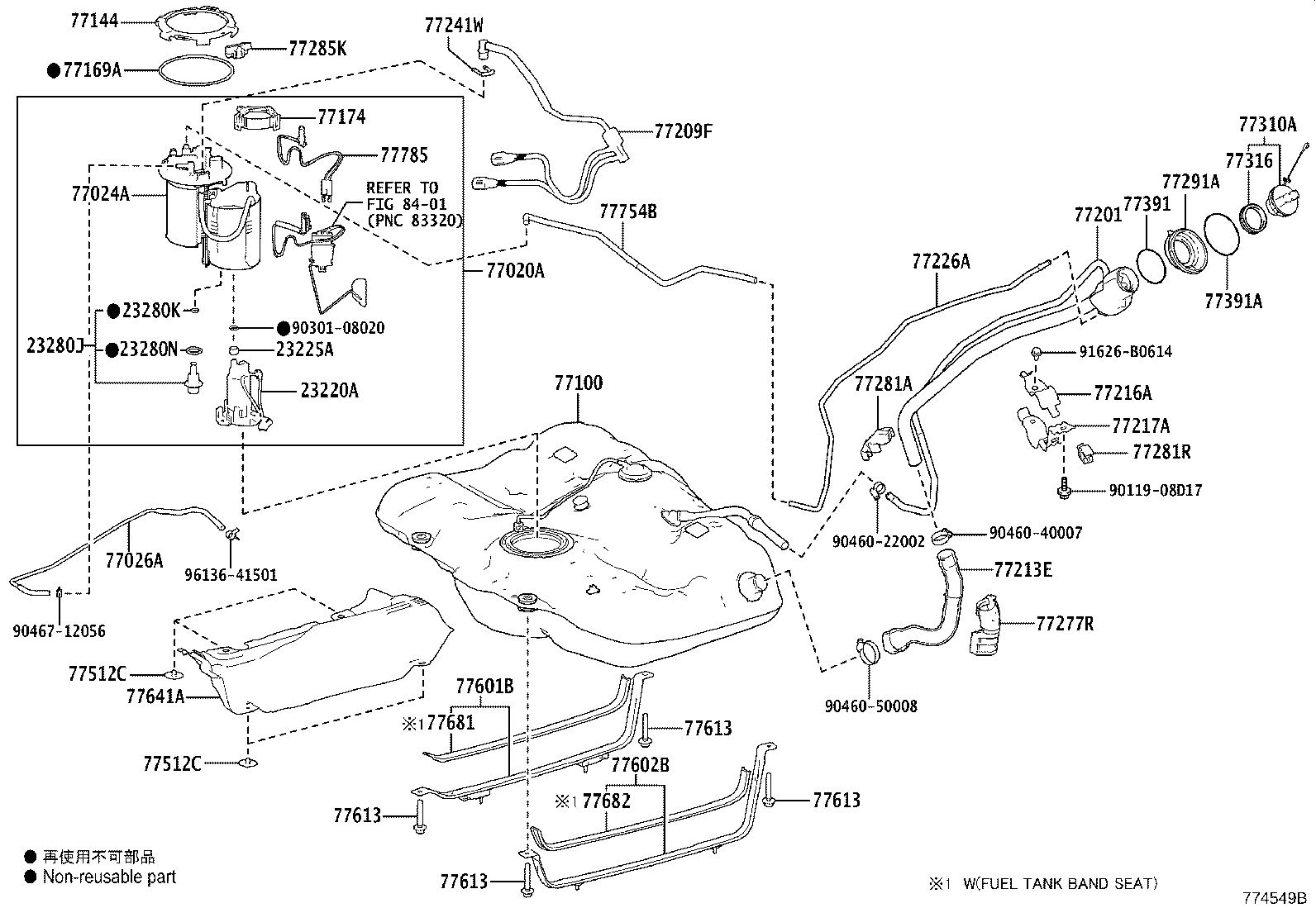

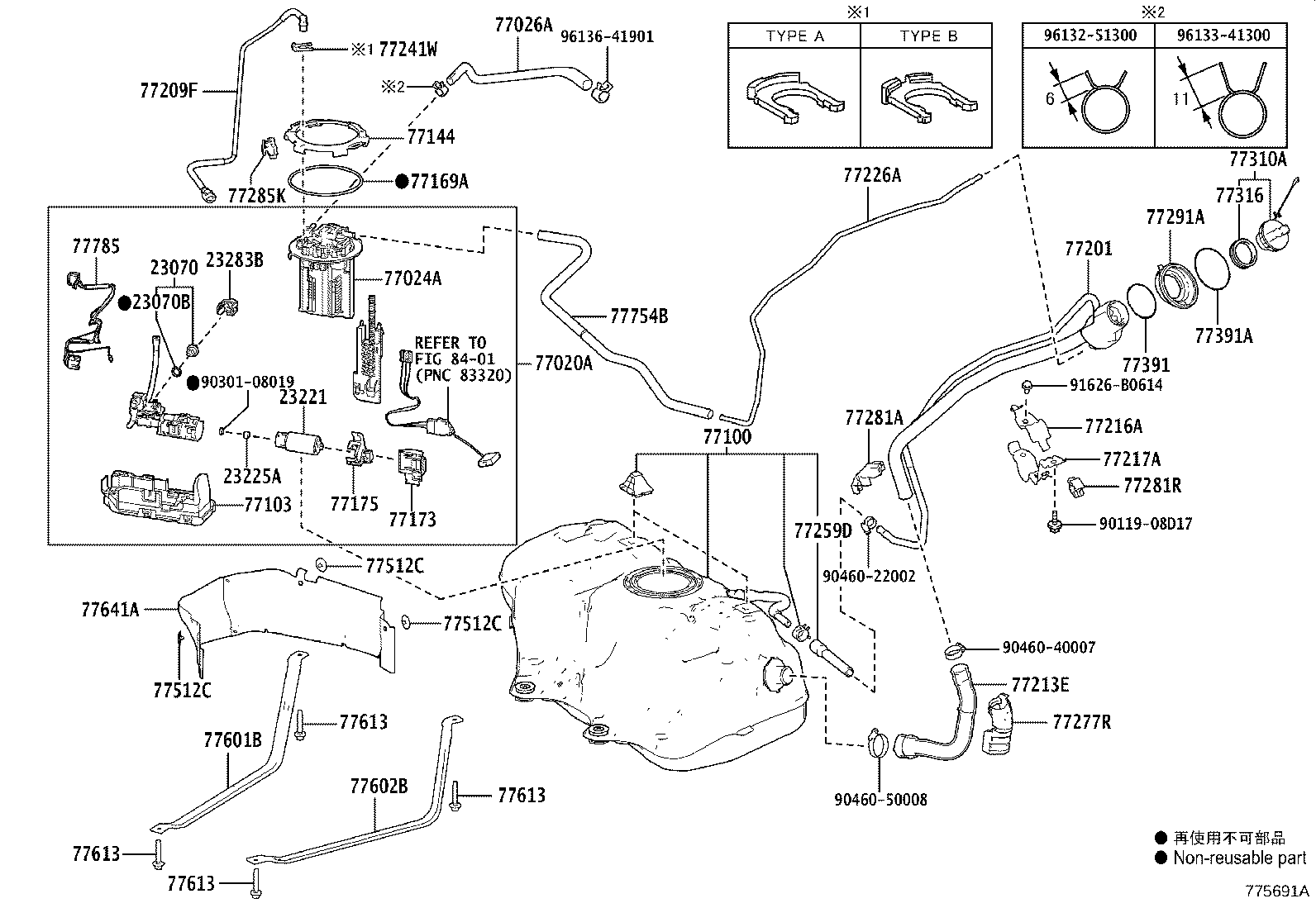

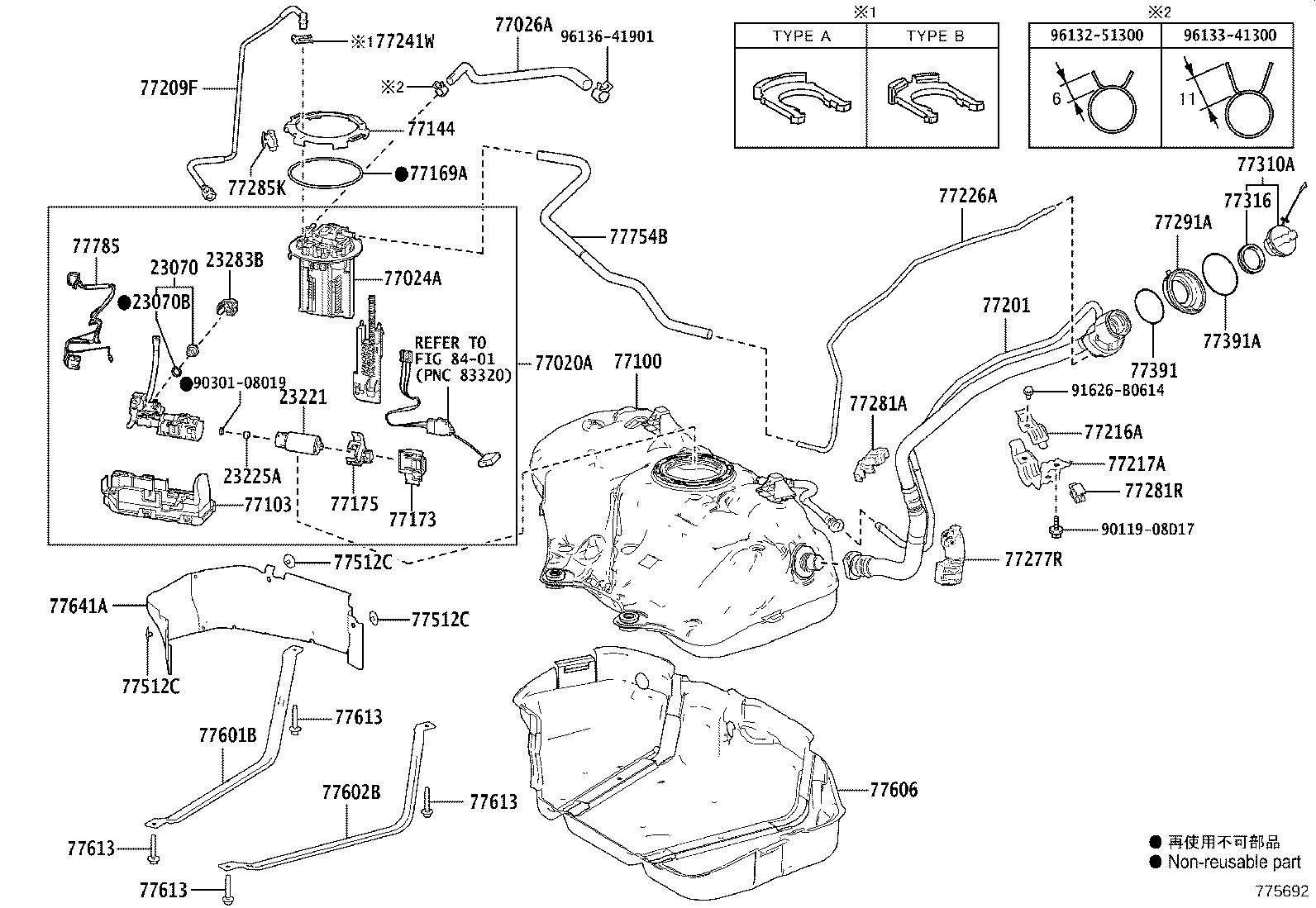

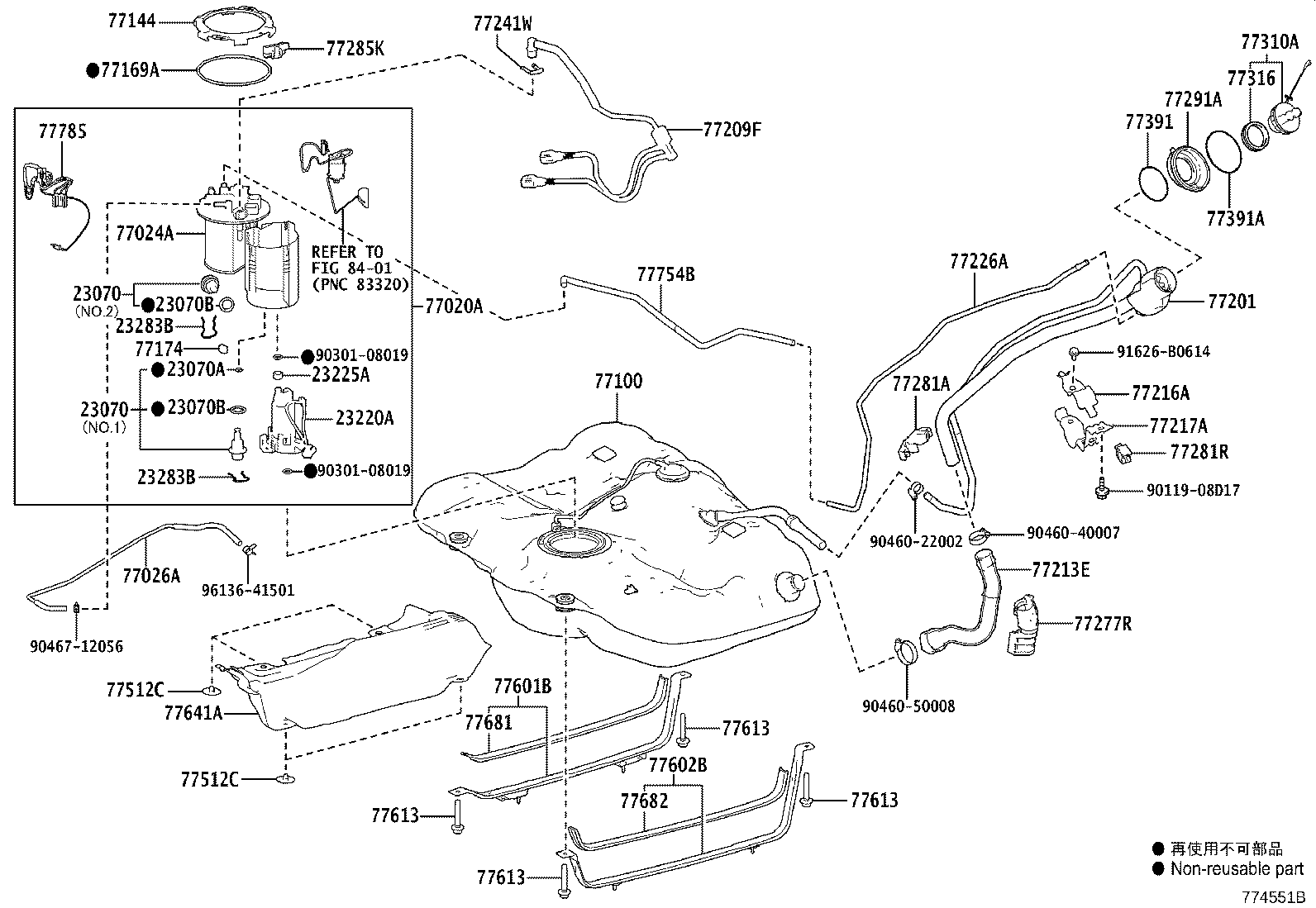

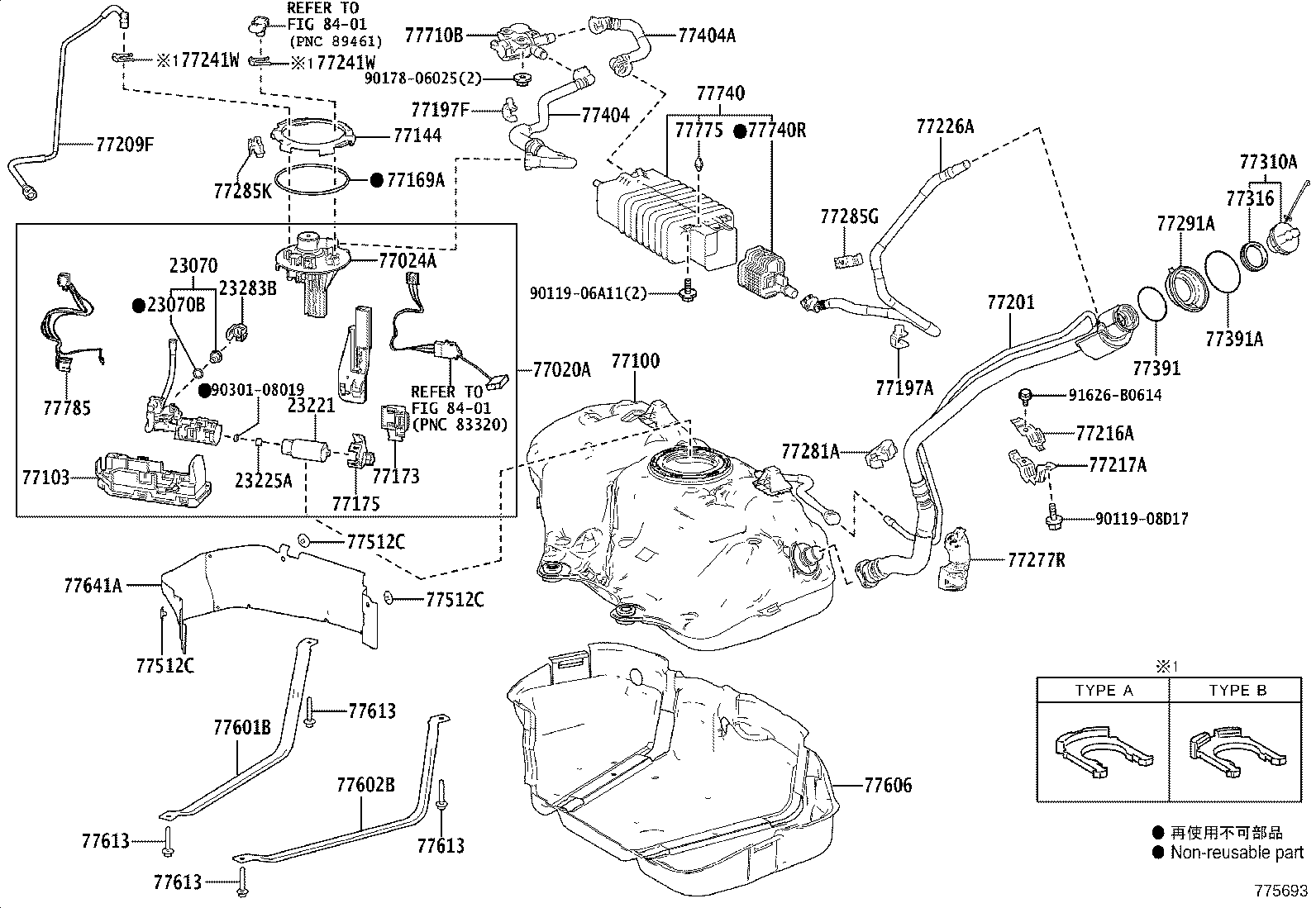

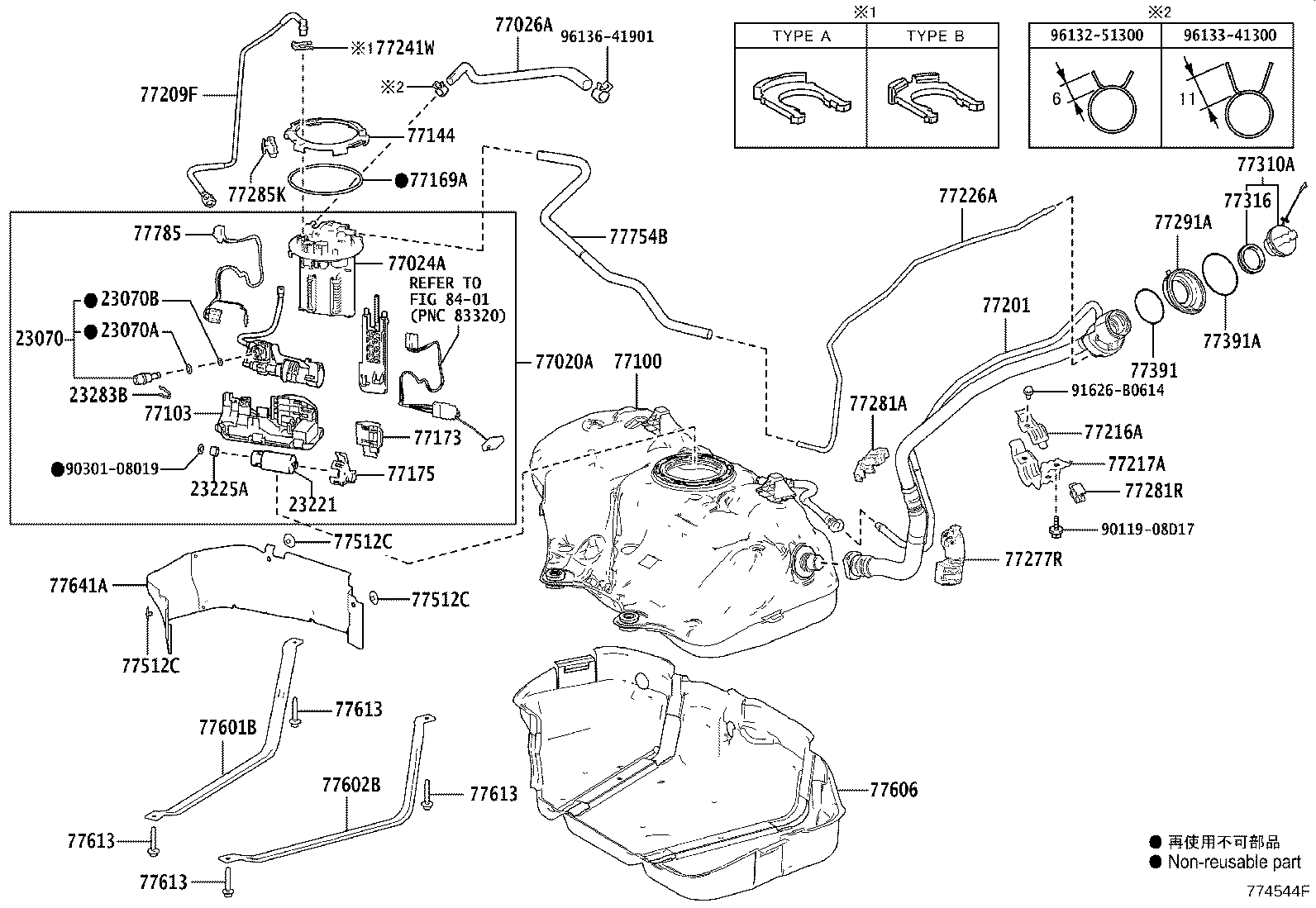

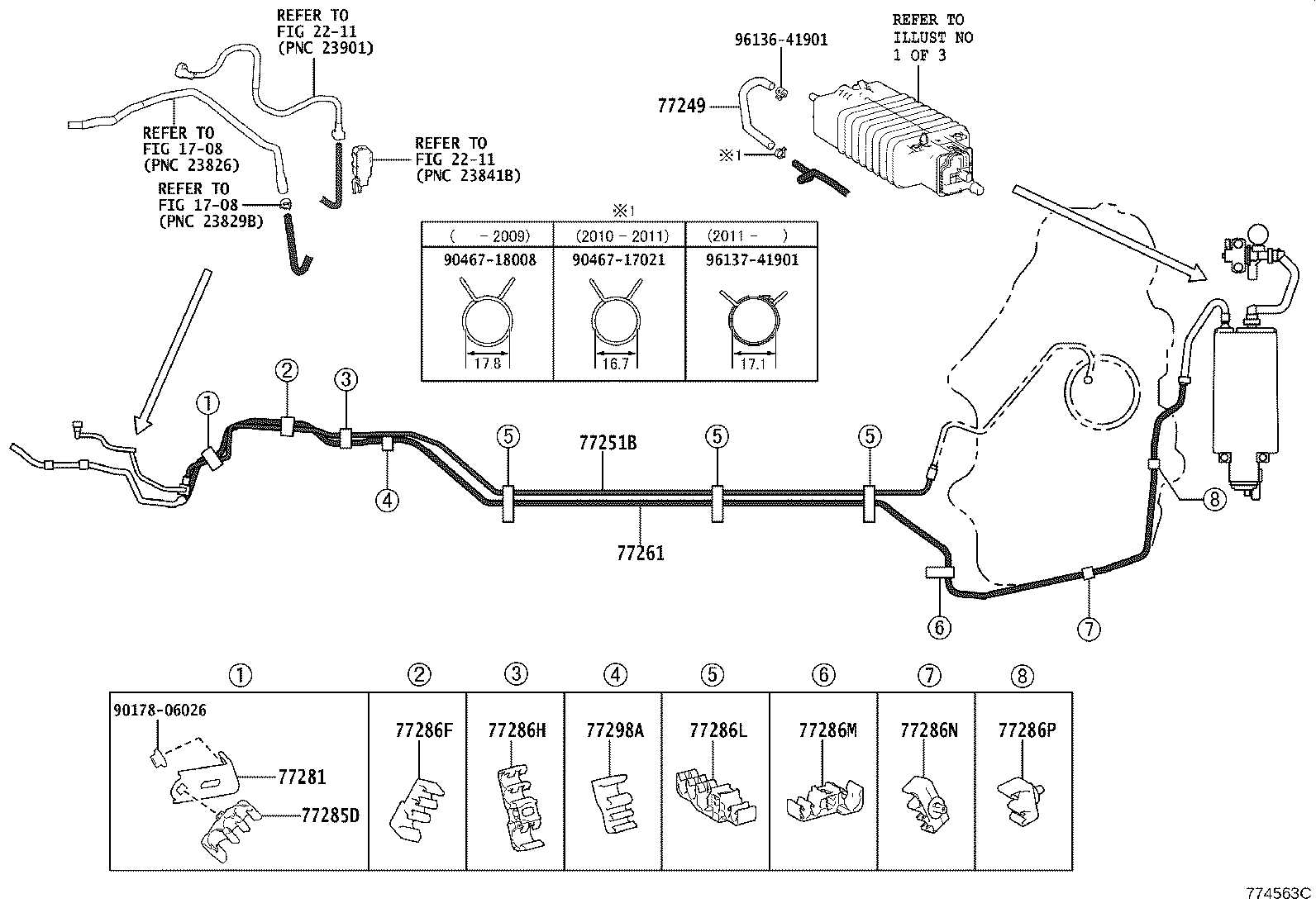

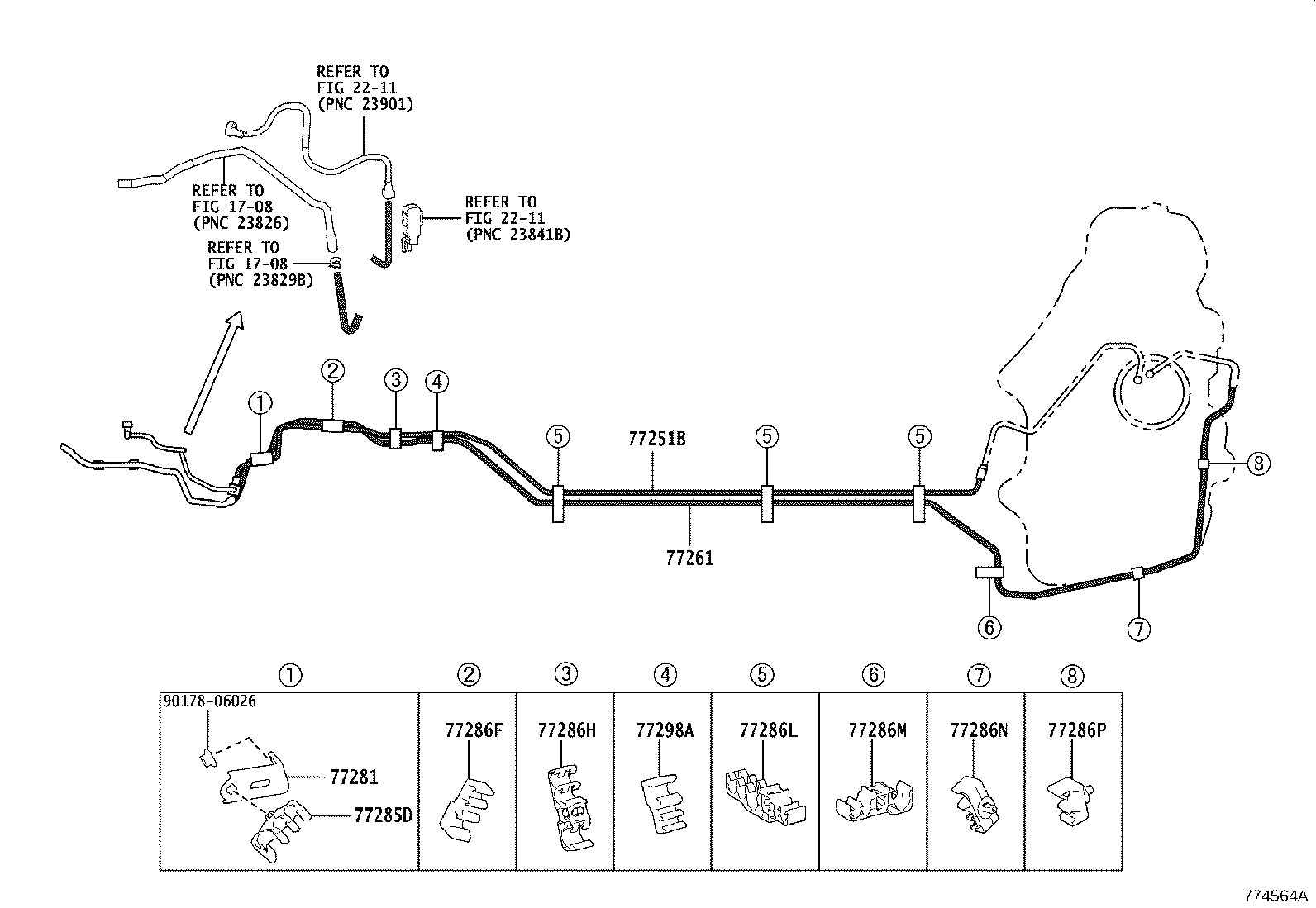

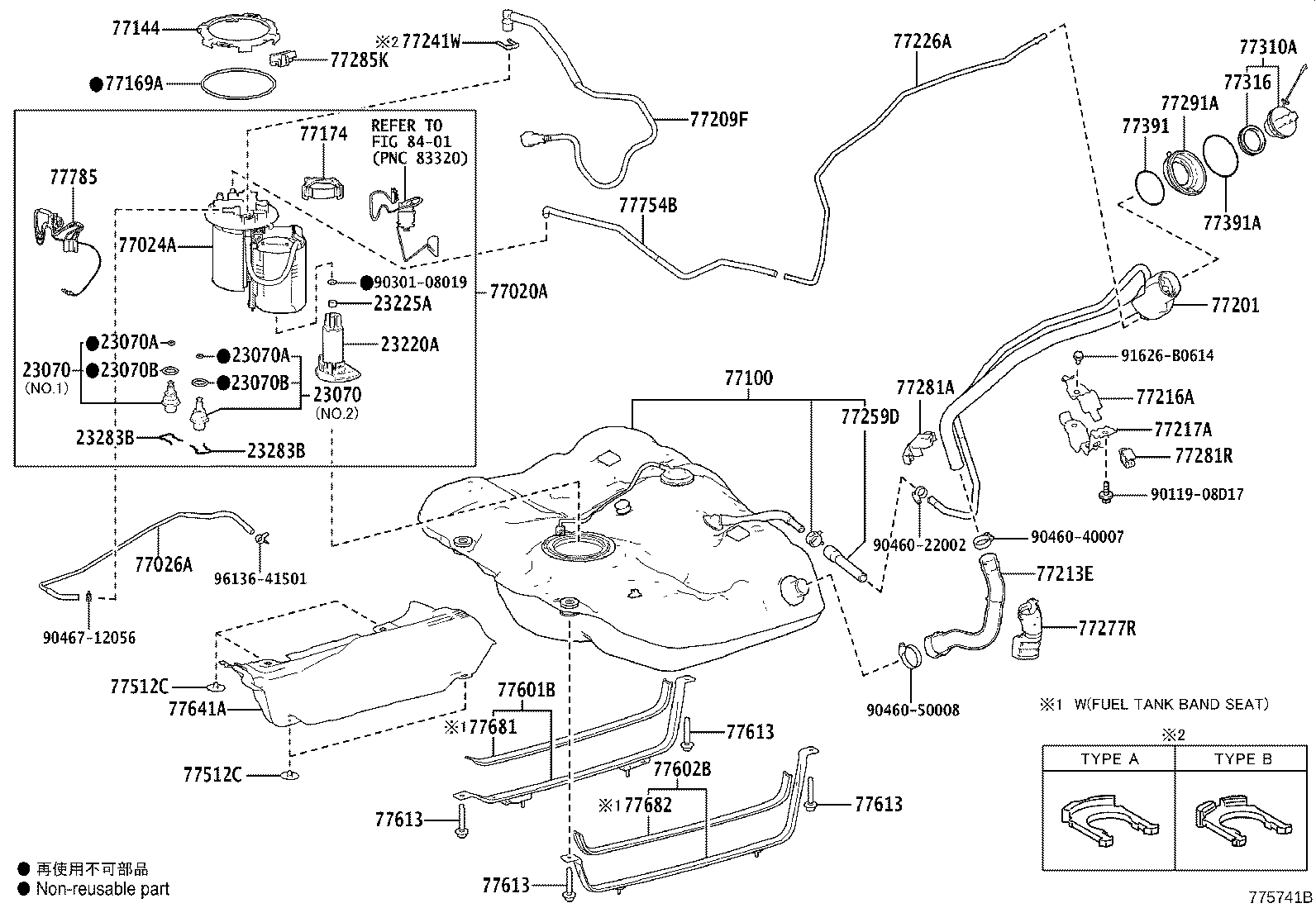

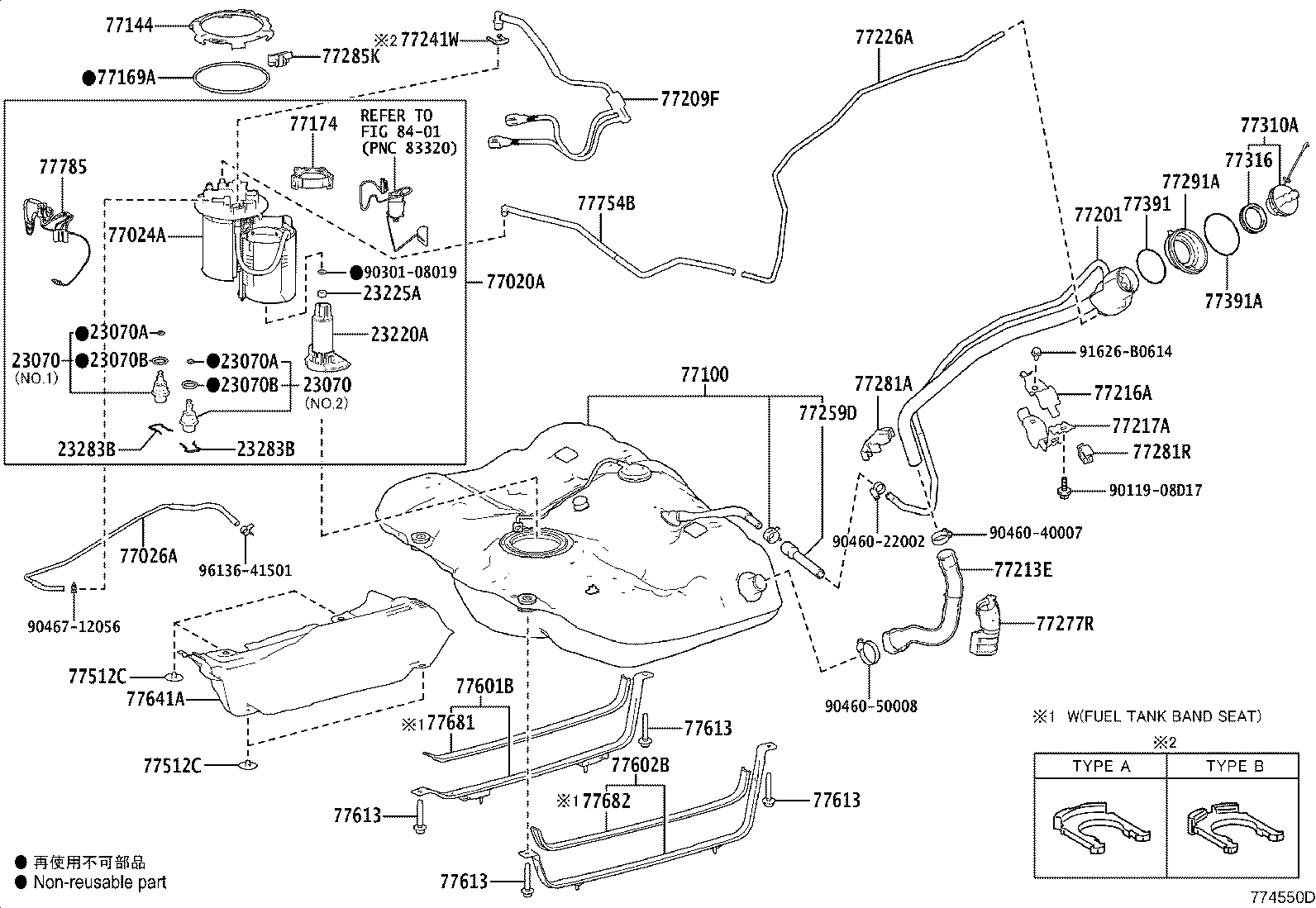

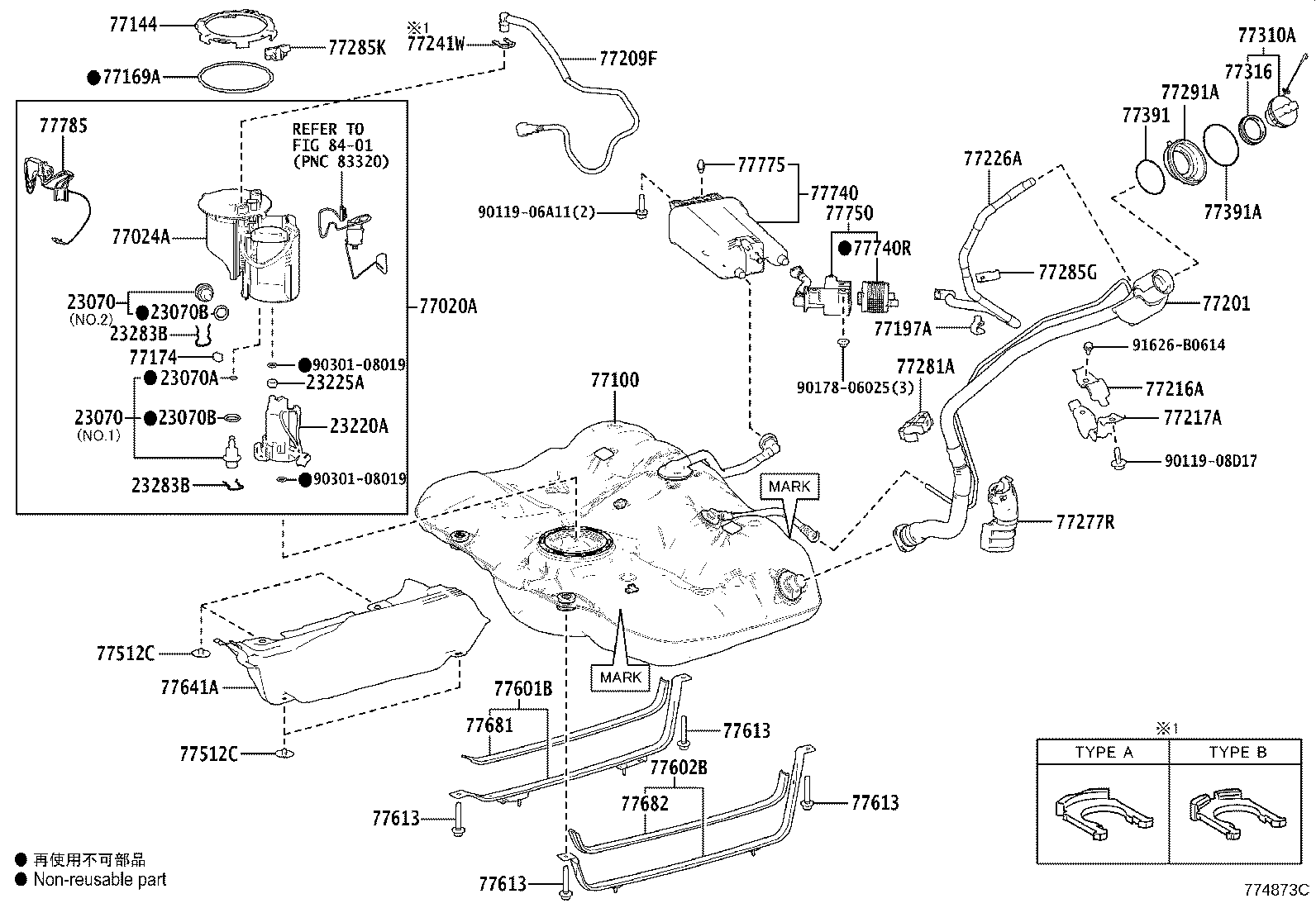

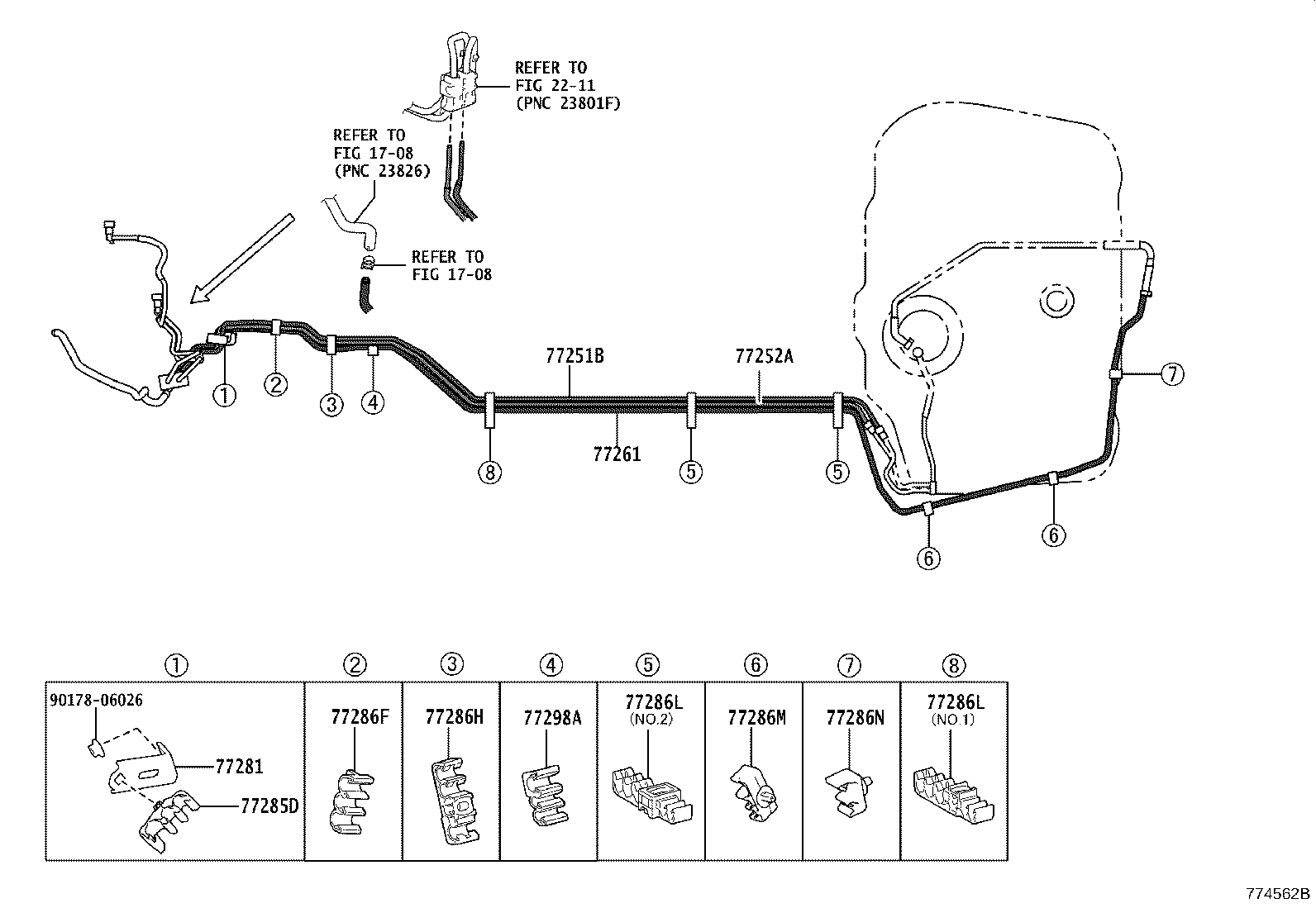

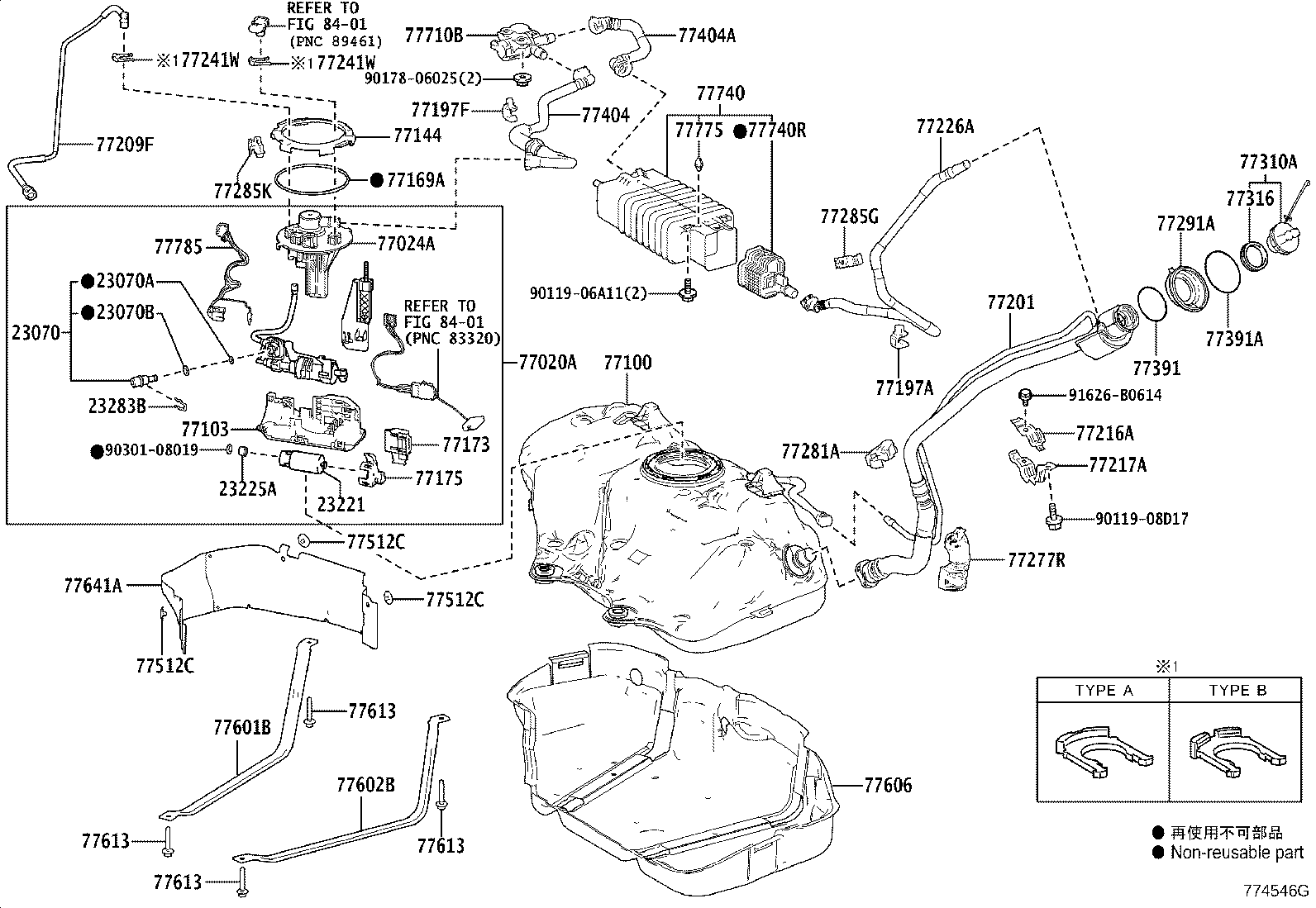

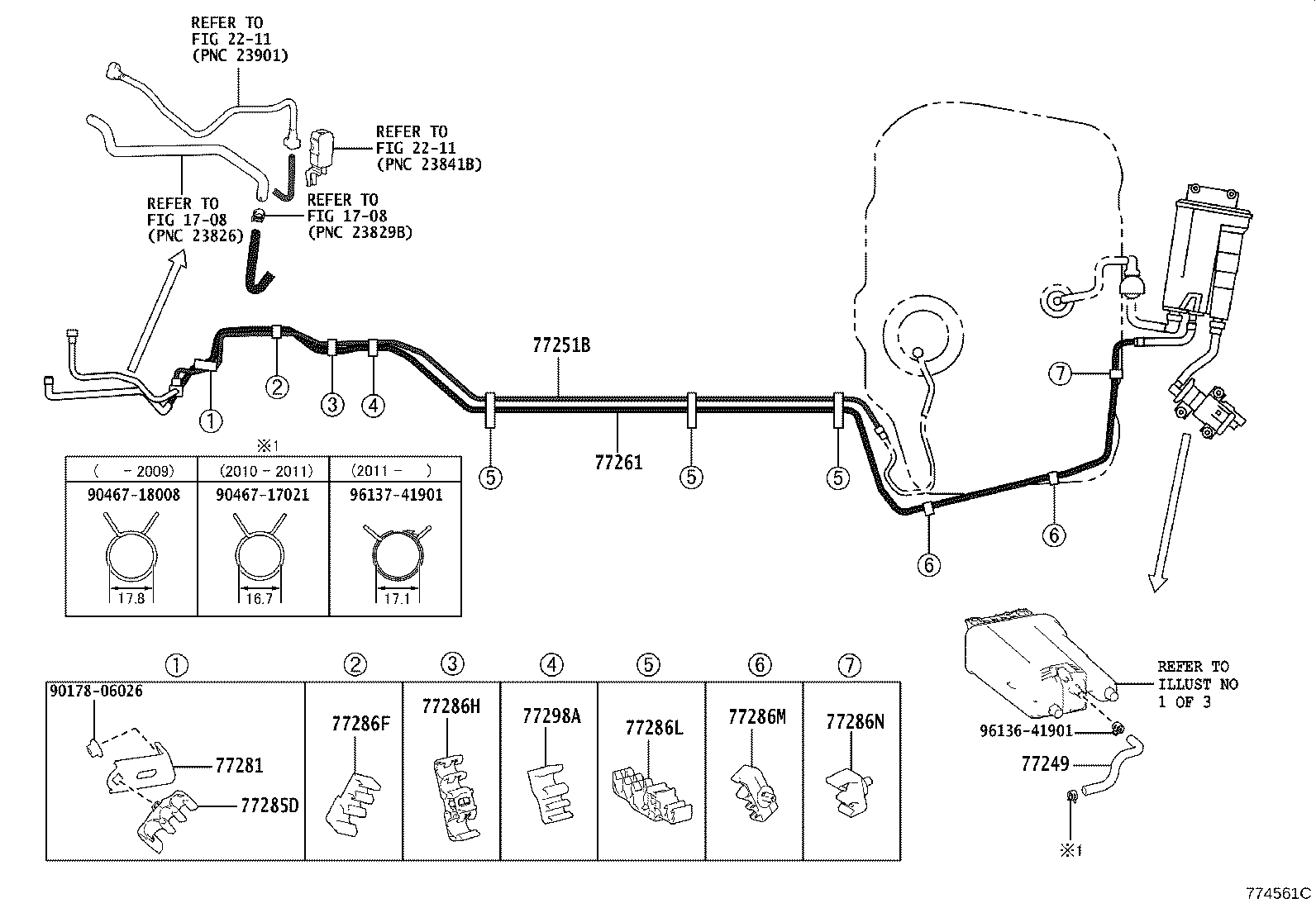

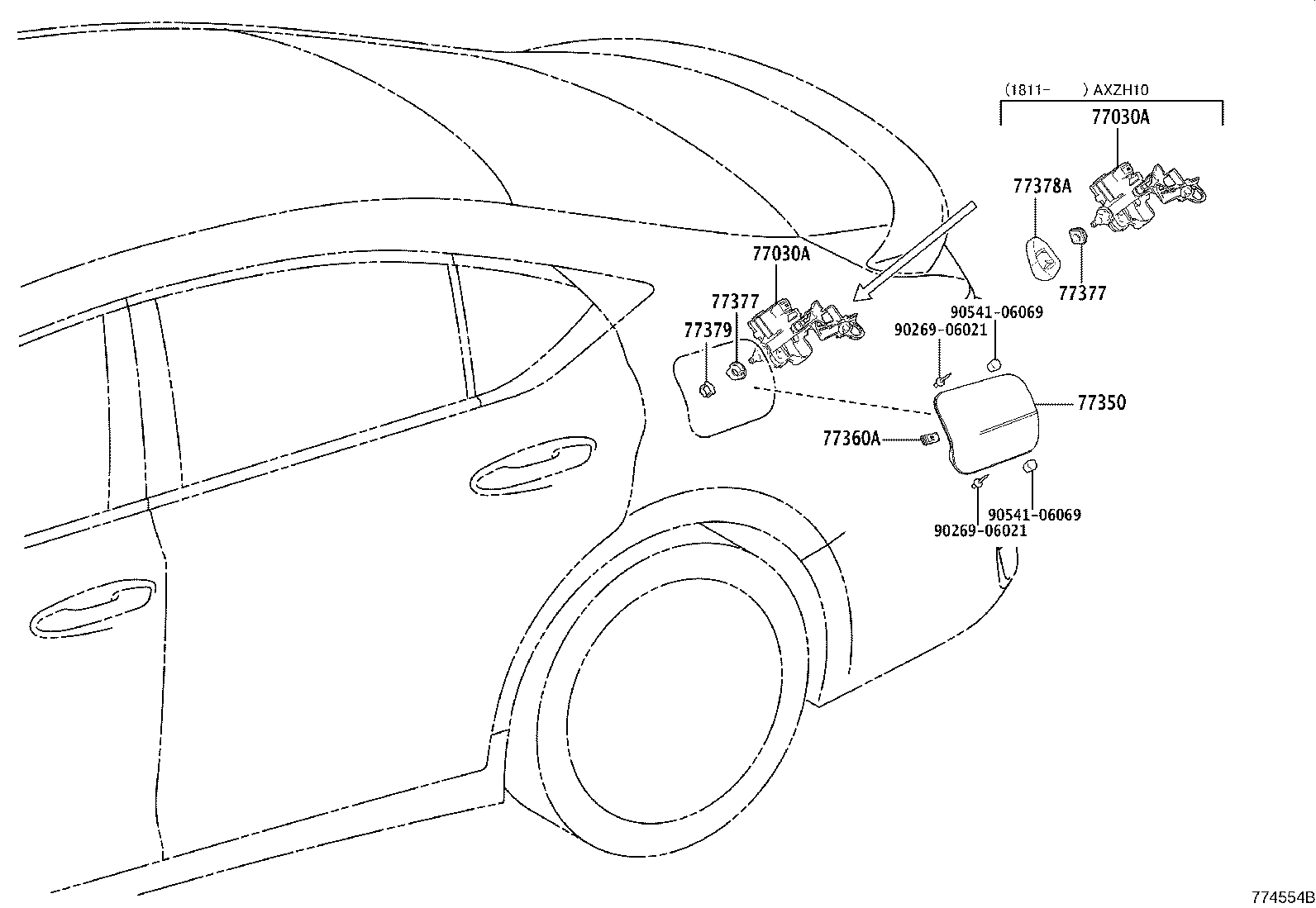

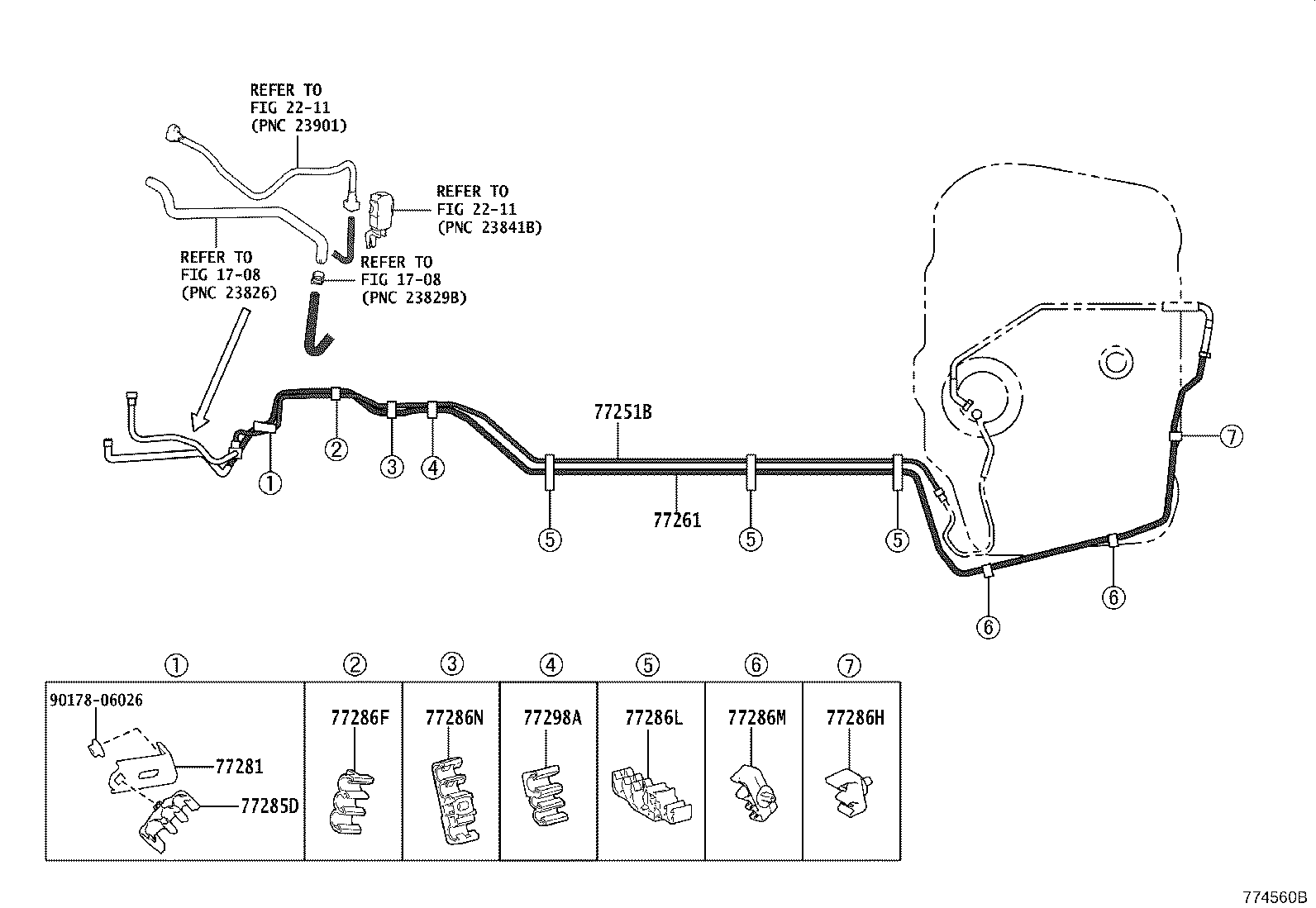

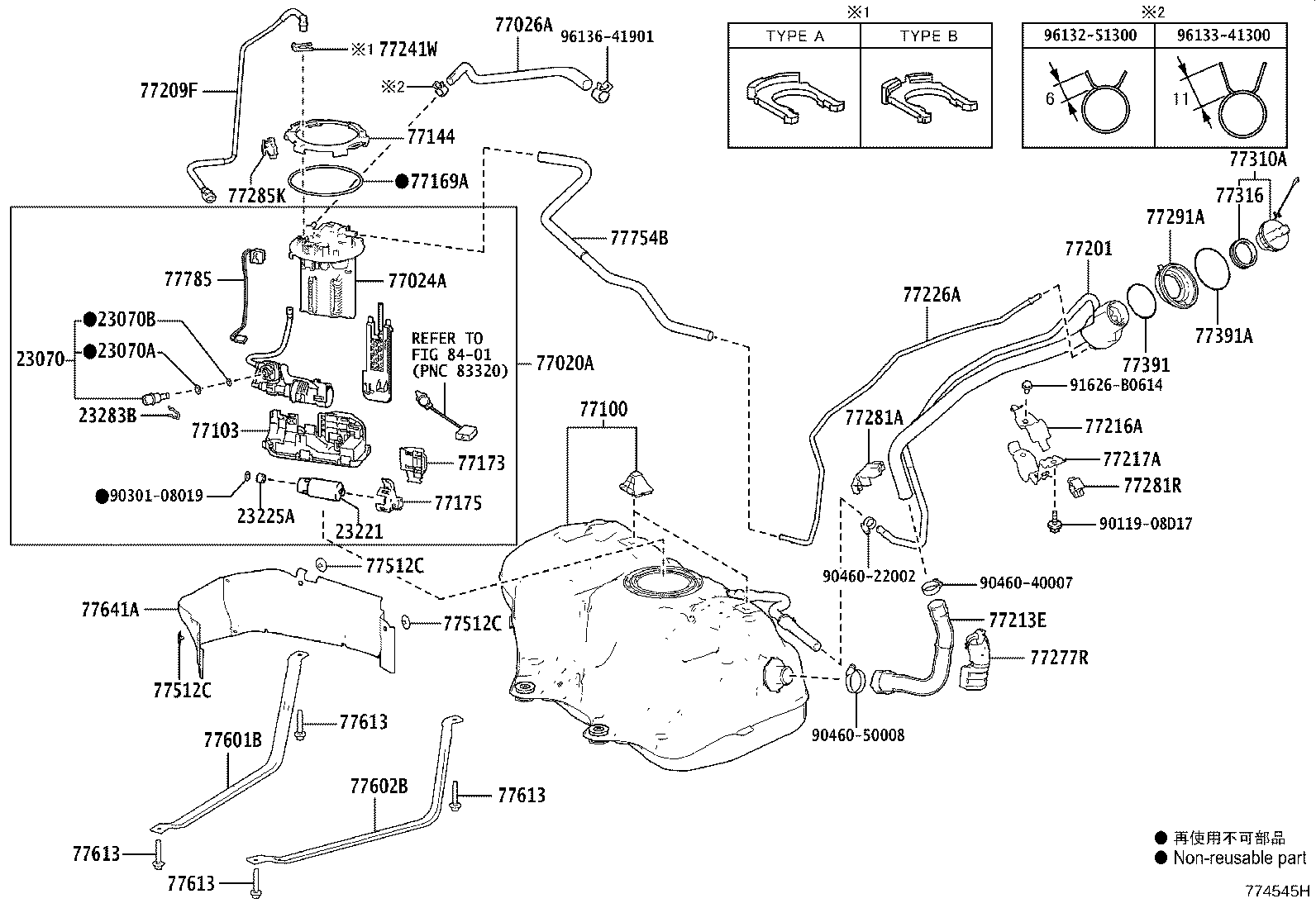

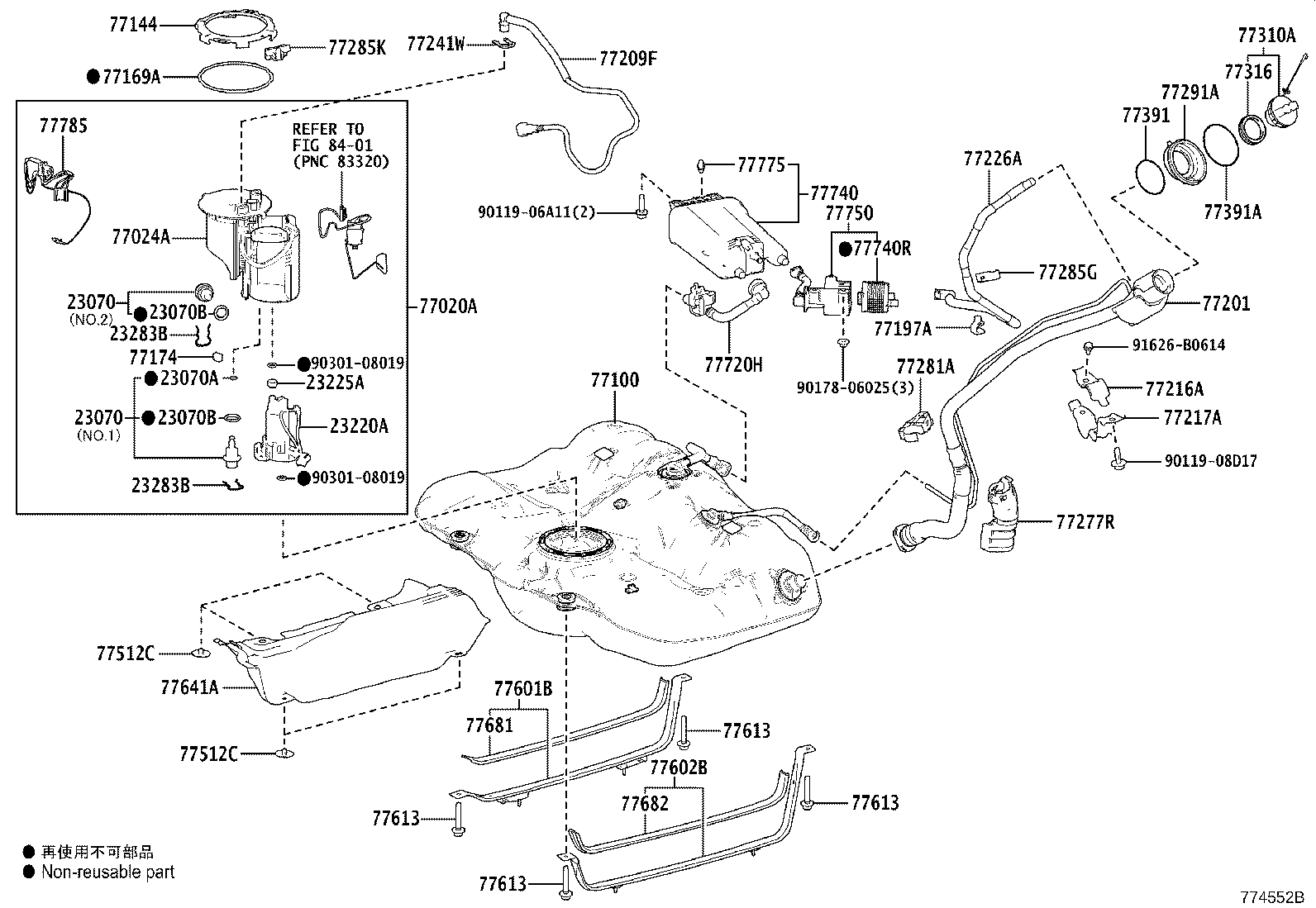

Figure 774548F 774548F 2018-06 → 2021-11 Figure 774548F 774548F 2021-12 → — Figure 775741B 775741B 2021-11 → 2021-12 Figure 774552B 774552B 2018-07 → 2019-08 Figure 774873C 774873C 2019-08 → — Figure 774549B 774549B 2018-06 → — Figure 774551B 774551B 2018-06 → — Figure 774550D 774550D 2018-06 → — Figure 774545H 774545H 2018-07 → 2020-01 Figure 775691A 775691A 2020-01 → — Figure 774544F 774544F 2018-07 → 2020-01 Figure 775692 775692 2020-01 → — Figure 774546G 774546G 2018-07 → 2020-01 Figure 775693 775693 2020-01 → — Figure 774560B 774560B 2018-06 → — Figure 774561C 774561C 2018-06 → — Figure 774562B 774562B 2018-06 → — Figure 774564A 774564A 2018-07 → — Figure 774563C 774563C 2018-07 → — Figure 774554B 774554B 2018-06 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23070B Ring, O, NO.2(FOR FUEL MAIN VALVE)
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283B Holder, Fuel Pressure Regulator
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77030A Lock Assy, Fuel Lid W/Motor
77100 Tank Assy, Fuel
77103 Sub-tank Sub-assy, Fuel
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77173 Bracket, Fuel Gage
77174 Support, Fuel Suction, NO.1
77175 Support, Fuel Suction, NO.2
77197A Clamp, Evaporation Vent Tube, NO.2
77197F Clamp, Evaporation Vent Tube, NO.2
77201 Pipe Sub-assy, Fuel Tank Inlet
77209F Tube Sub-assy, Fuel Tank Main
77213E Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77226A Tube, Fuel Tank Breather, NO.6
77241W Clip, Tube Joint
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77259D Hose, Fuel, NO.1
77261 Tube Sub-assy, Fuel Emission
77277R Protector, Fuel Tank Filler Pipe
77281 Bracket, Fuel Main Tube, NO.1
77281A Clamp, Fuel Filler Pipe
77281R Clamp, Fuel Filler Pipe, NO.2
77285D Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77291A Shield, Fuel Tank Filler Pipe
77298A Clamp, Fuel Tube, NO.4
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77360A Spring Assy, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77378A Cover, Fuel Filler Opening Lid Lock
77379 Spacer, Fuel Inlet Box Cover, NO.2
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77512C Bracket, Fuel Tank
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77613 Bolt, Fuel Tank Band Set
77641A Protector, Fuel Tank, NO.1
77681 Seat, Fuel Tank Band, RH
77682 Seat, Fuel Tank Band, LH
77710B Valve Assy, Fuel Tank Solenoid Main
77720H Valve Assy, Fuel Outlet
77740 Canister Assy, Charcoal
77740R Pump Sub-assy, Leak Detection
77750 Canister Assy, Charcoal
77754B Hose, Charcoal Canister Outlet
77775 Guide, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
