Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

4 part groups · 2 illustrations

Illustrations

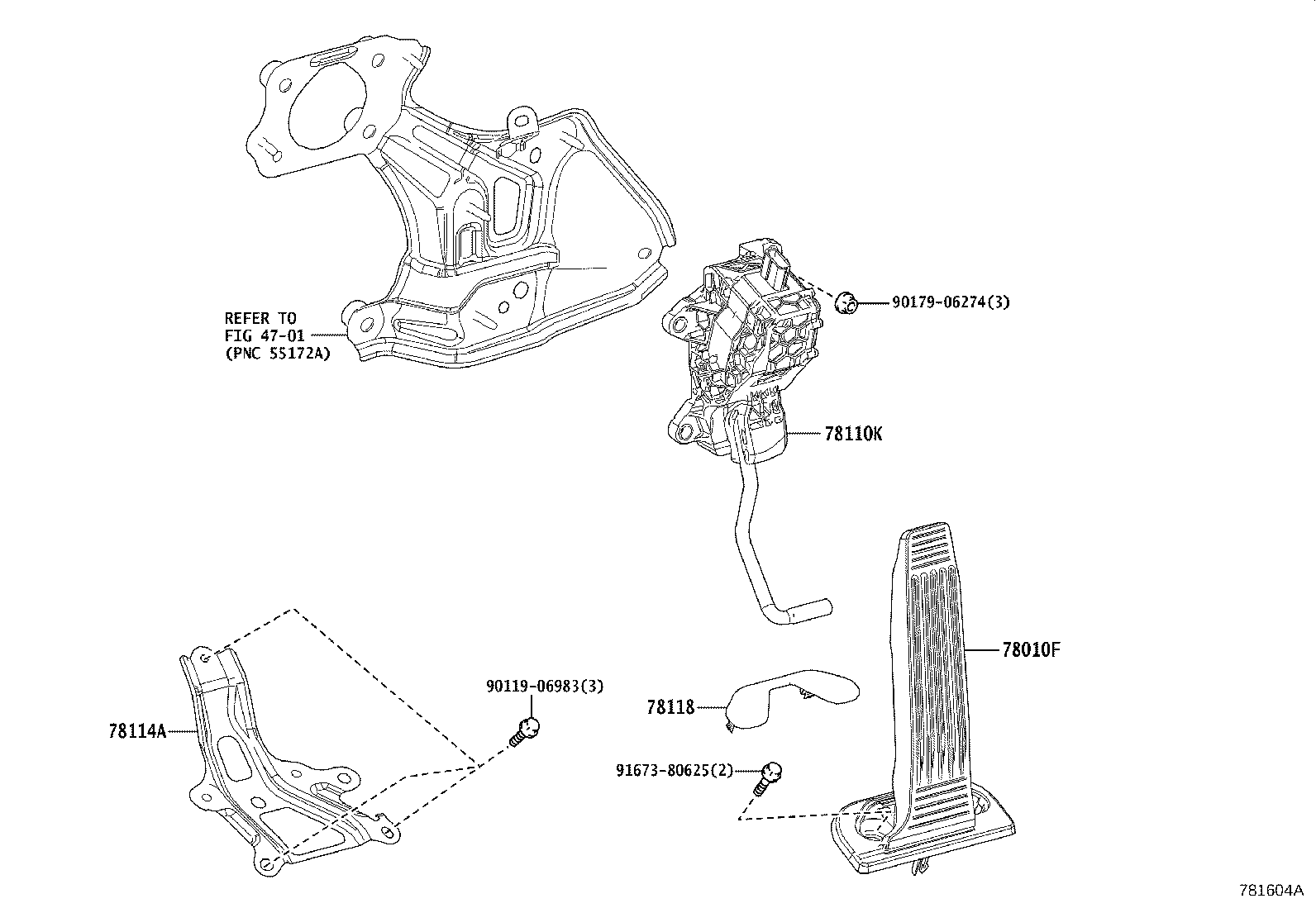

Figure 781603A 781603A 2018-06 → — Figure 781604A 781604A 2018-06 → —

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78114A Bracket, Accelerator Pedal Support
78118 Pad, Accelerator Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
