Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

49 part groups · 13 illustrations

Illustrations

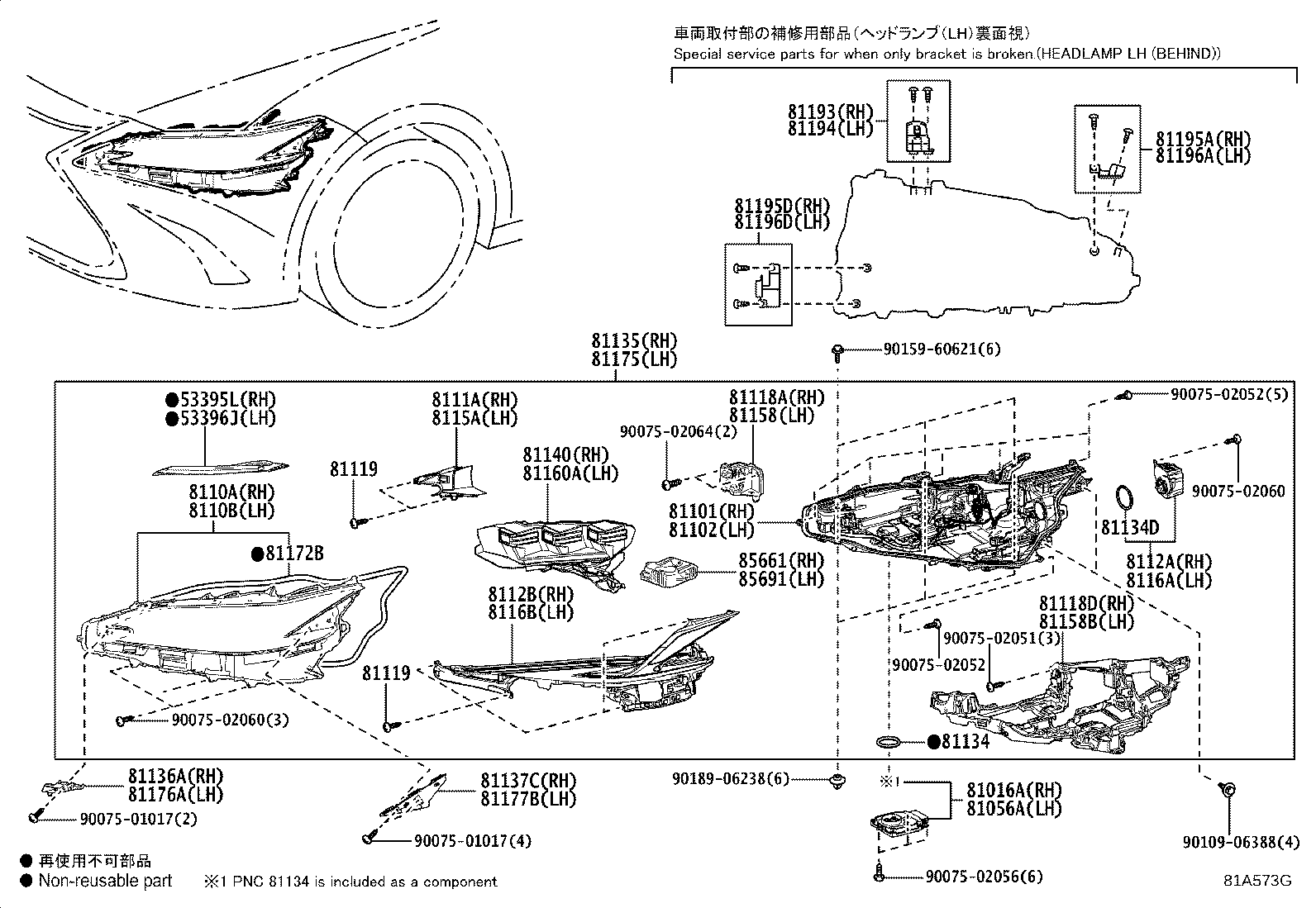

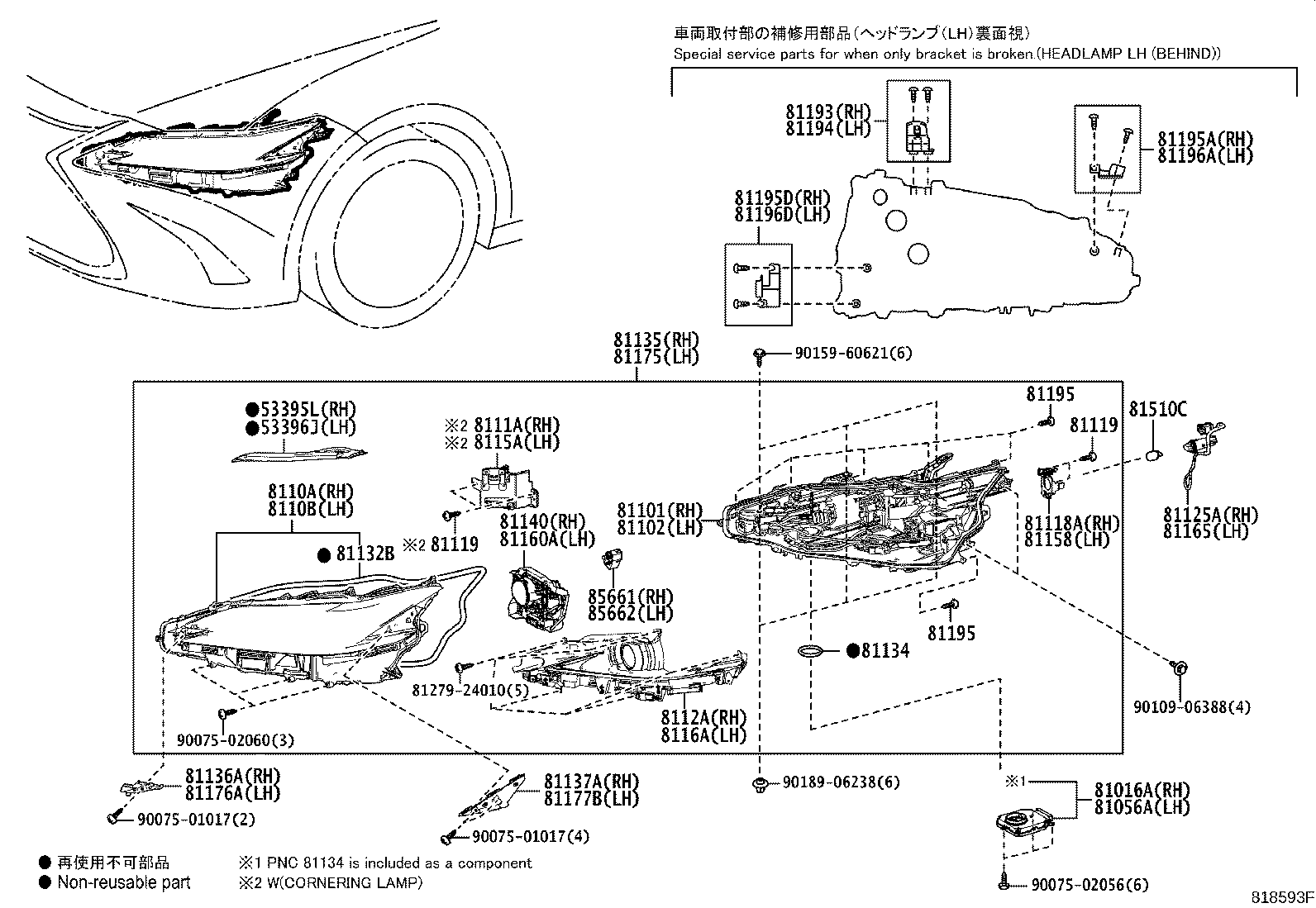

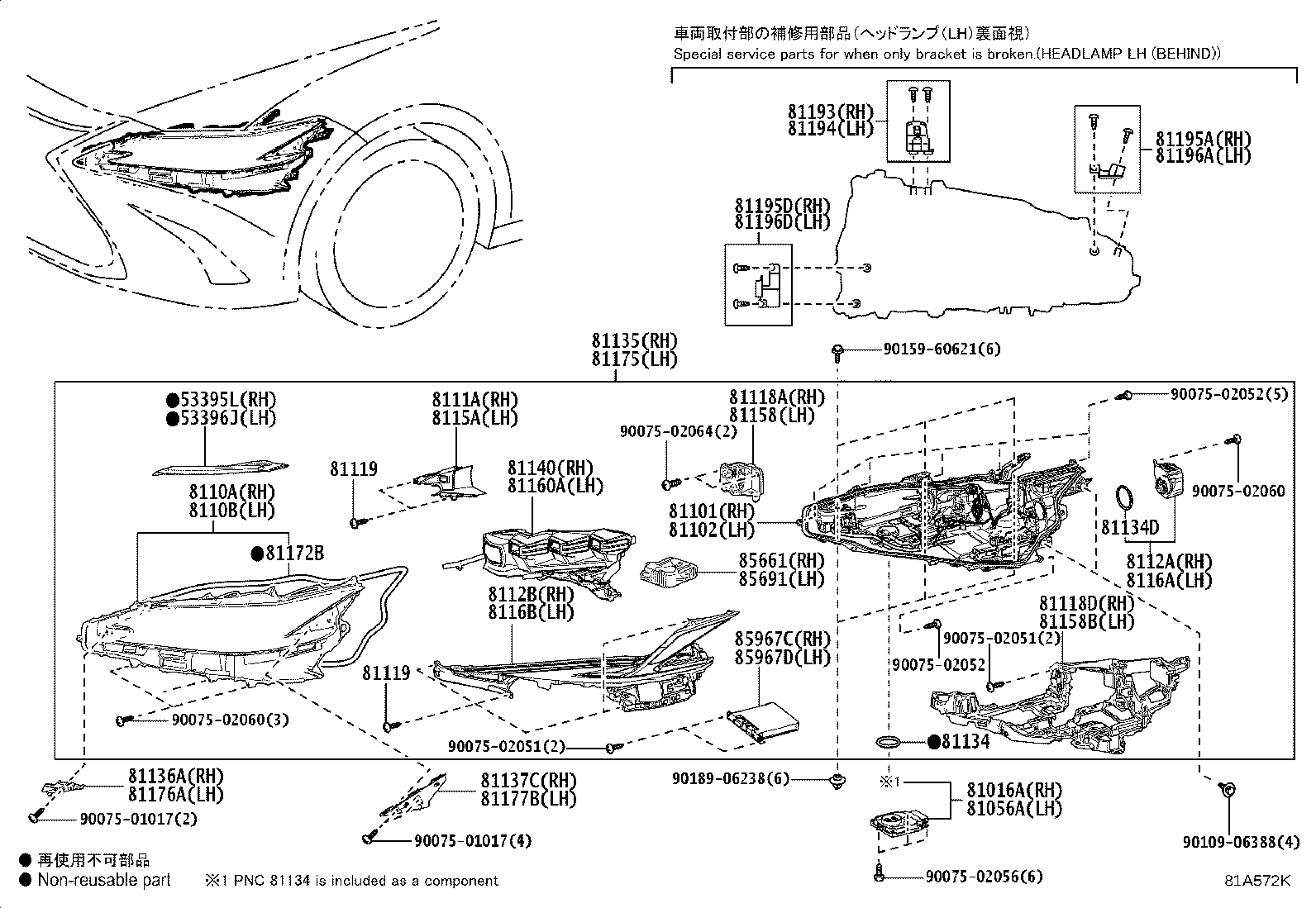

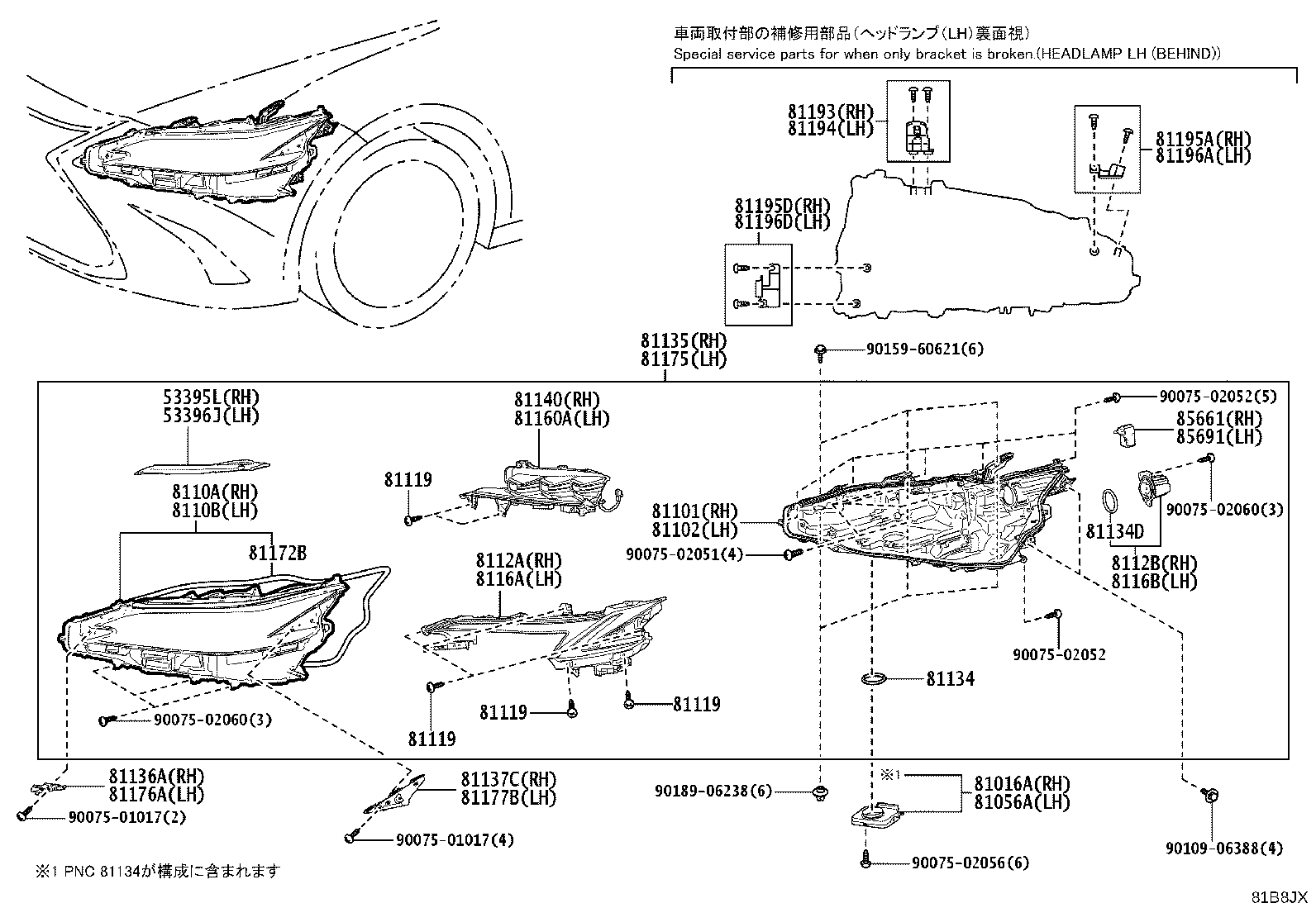

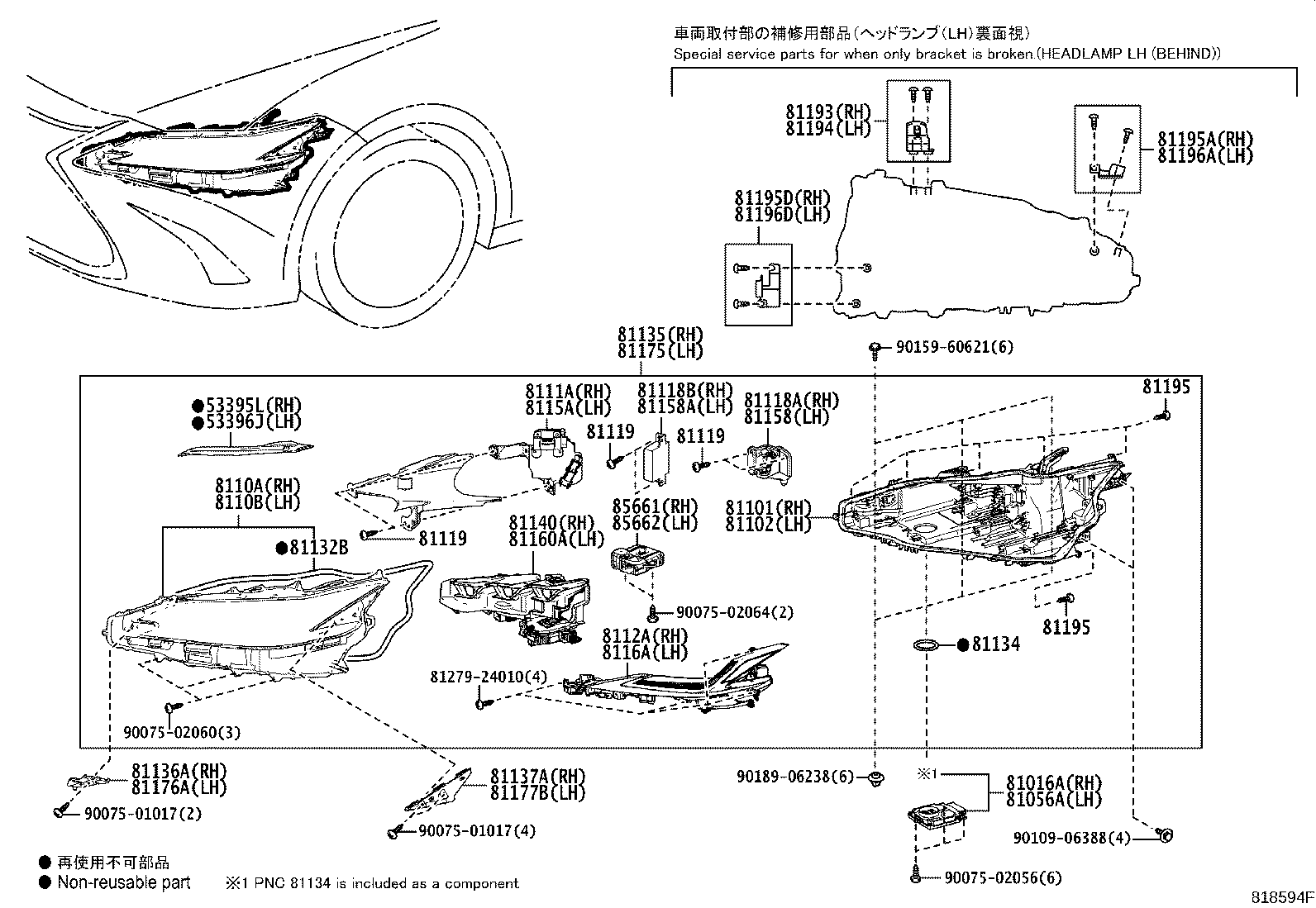

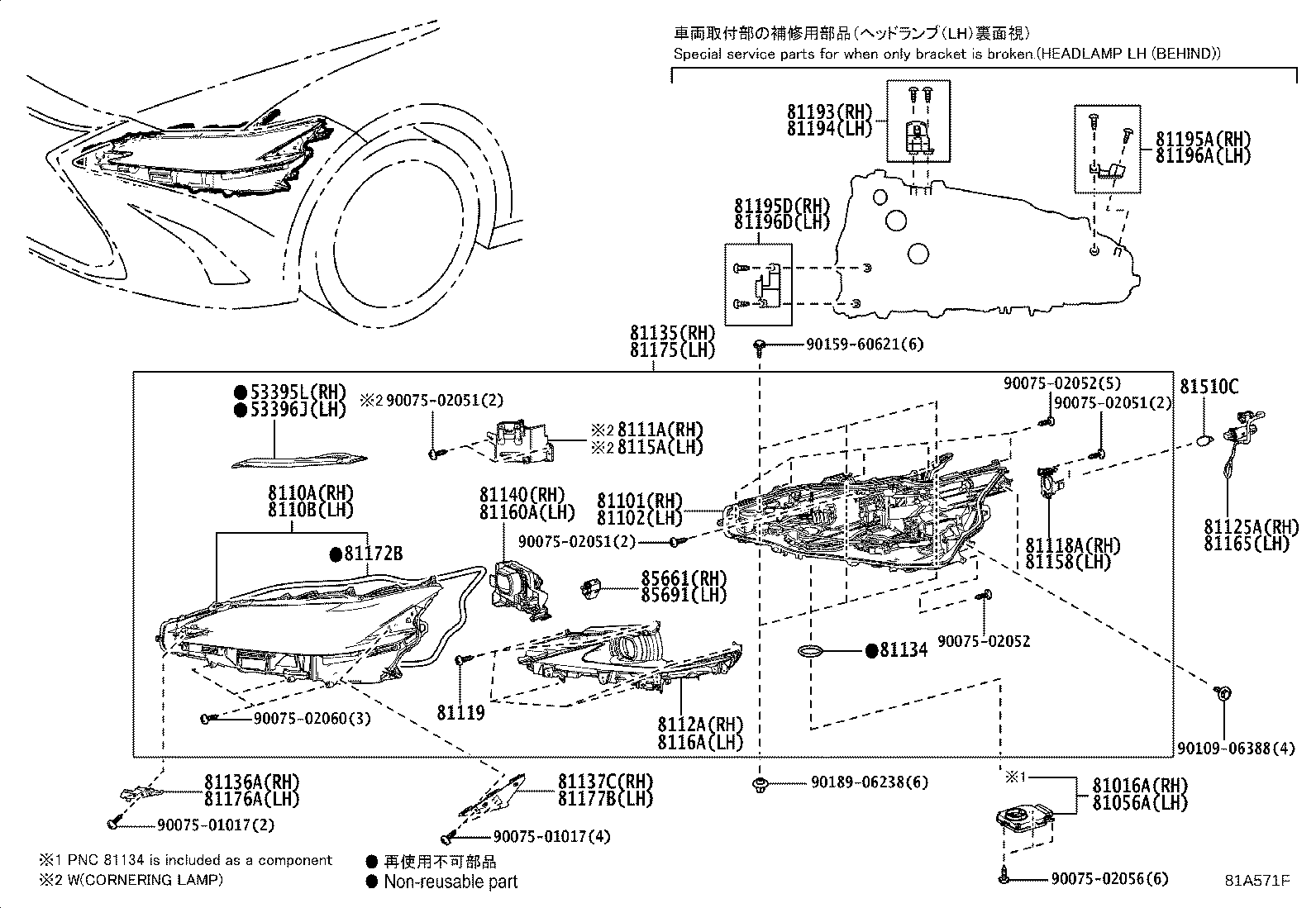

Figure 818592E 818592E 2018-06 → 2021-08 Figure 818592E 818592E 2018-06 → 2021-10 Figure 818594F 818594F 2018-06 → 2021-08 Figure 818594F 818594F 2018-06 → 2021-10 Figure 818593F 818593F 2018-06 → 2021-08 Figure 818593F 818593F 2018-06 → 2021-10 Figure 81A572K 81A572K 2021-08 → — Figure 81A572K 81A572K 2021-10 → — Figure 81A573G 81A573G 2021-08 → — Figure 81A573G 81A573G 2021-10 → — Figure 81A571F 81A571F 2021-08 → — Figure 81A571F 81A571F 2021-10 → — Figure 81B8JX 81B8JX 2024-10 → —

Part groups

PNCDescription
53395L Seal, Headlamp, RH
53396J Seal, Headlamp, LH
81016A Computer Sub-assy, Headlamp, RH
81056A Computer Sub-assy, Headlamp, LH
81101 Housing Sub-assy, Headlamp, RH
81102 Housing Sub-assy, Headlamp, LH
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81118A Bracket, Headlamp, RH
81118B Bracket, Headlamp, RH NO.1
81118D Bracket, Headlamp, RH NO.2
81119 Screw, Headlamp
8111A Unit, Headlamp Cornering Led, RH
81125A Cord, Headlamp, RH
8112A Unit, Headlamp Clearance Led, NO.1 RH
8112B Unit, Headlamp Clearance Led, NO.2 RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81134D Gasket, Headlamp, NO.2
81135 Unit Assy, Headlamp, RH
81136A Rim, Headlamp, RH
81137A Rim, Headlamp, RH
81137C Rim, Headlamp Fitting, RH NO.2
81140 Unit Assy, Headlamp Led, RH
81158 Bracket, Headlamp, LH
81158A Bracket, Headlamp, LH NO.1
81158B Bracket, Headlamp, LH NO.2
8115A Unit, Headlamp Cornering Led, LH
81160A Unit Assy, Headlamp Led, LH
81165 Cord, Headlamp, LH
8116A Unit, Headlamp Clearance Led, NO.1 LH
8116B Unit, Headlamp Clearance Led, NO.2 LH
81172B Gasket, Headlamp Lens
81175 Unit Assy, Headlamp, LH
81176A Rim, Headlamp, LH
81177B Rim, Headlamp Fitting, LH NO.2
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195 Screw, Headlamp
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85691 Motor, Headlamp Leveling, LH
85967C Computer, Light Control Led, RH
85967D Computer, Light Control Led, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
