Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

5 part groups · 2 illustrations

Illustrations

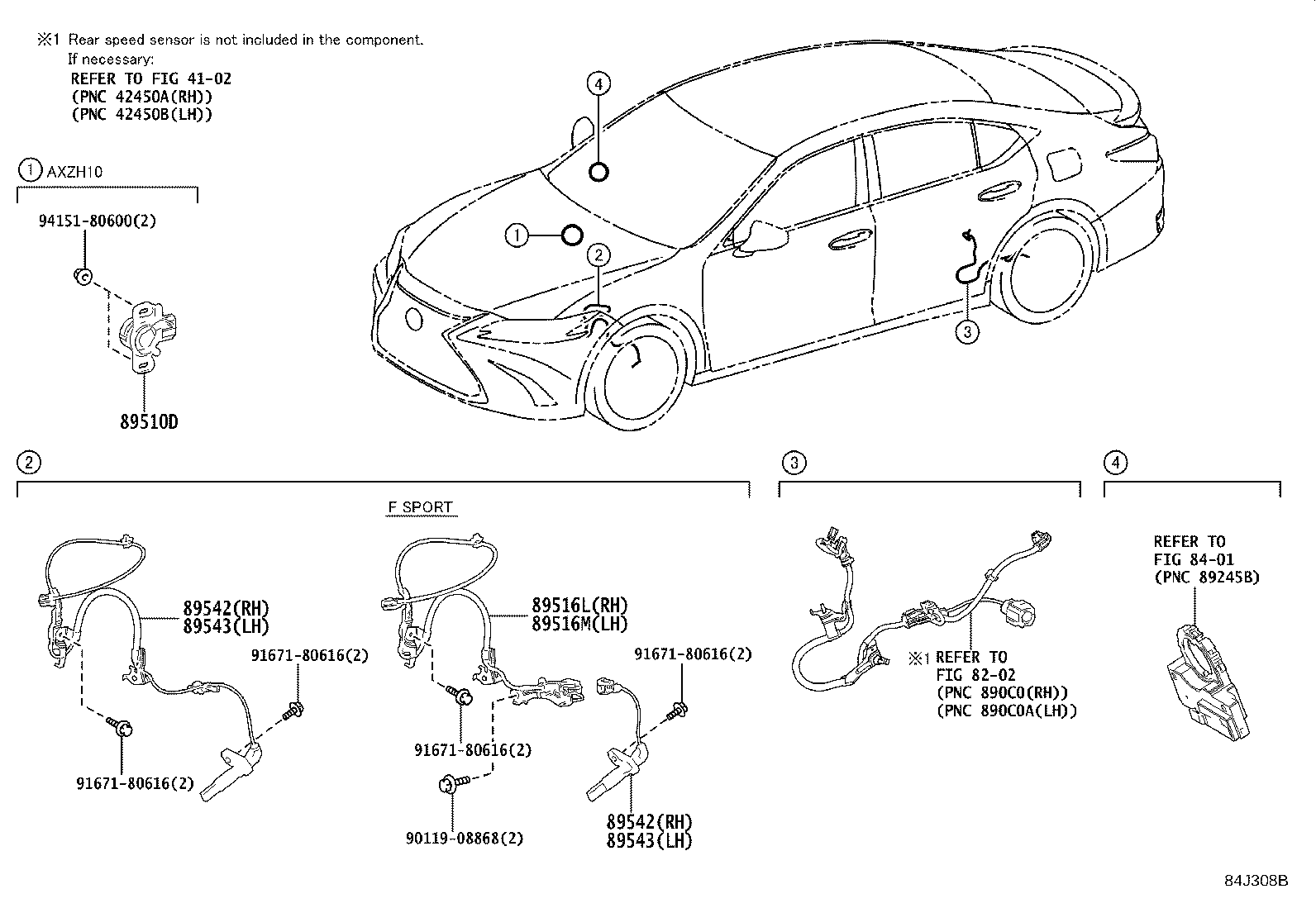

Figure 84J198C 84J198C 2018-06 → — Figure 84J308B 84J308B 2018-06 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516L Wire, Skid Control Sensor W/Suspension Control, RH
89516M Wire, Skid Control Sensor W/Suspension Control, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
