Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 3 illustrations

Illustrations

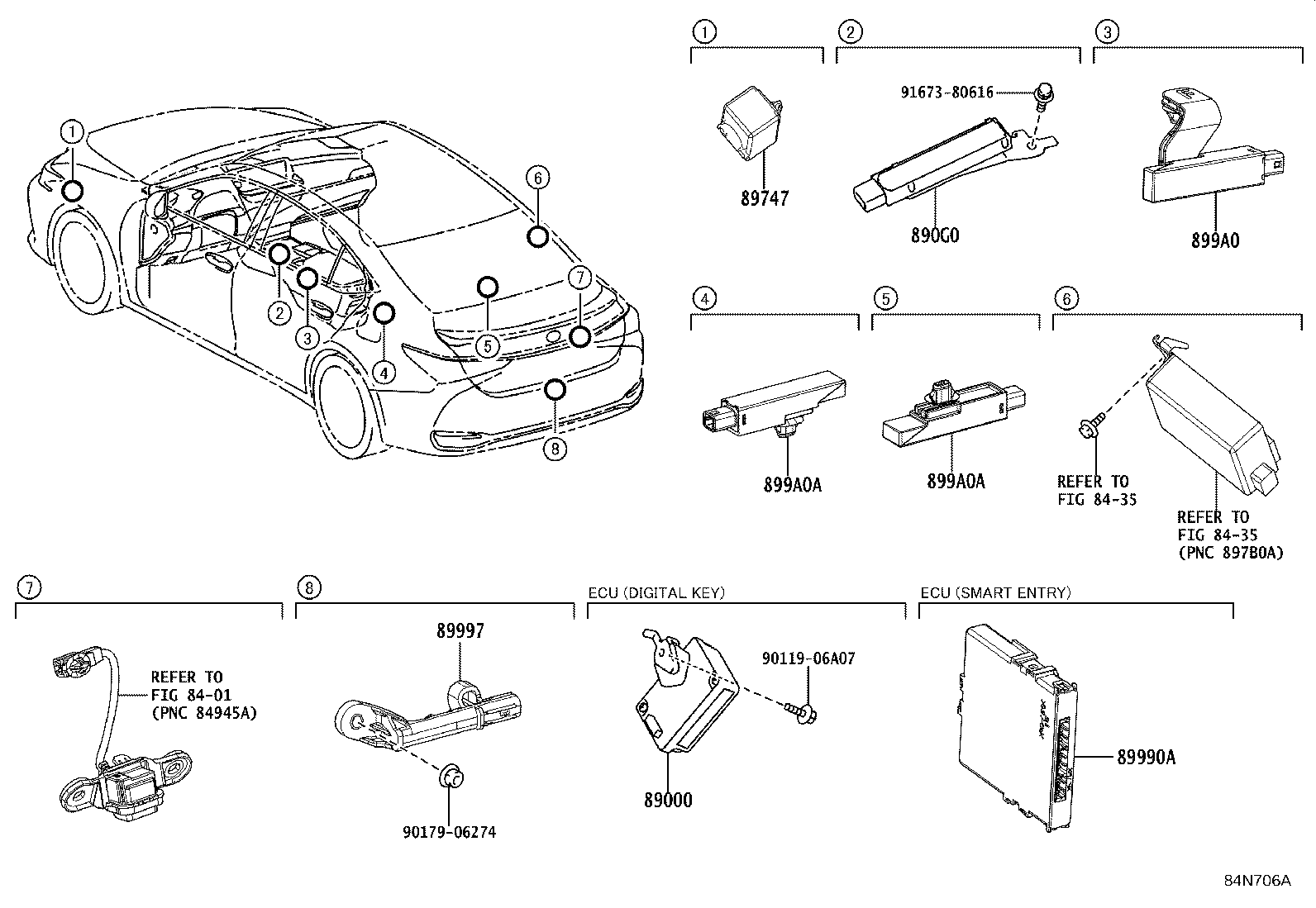

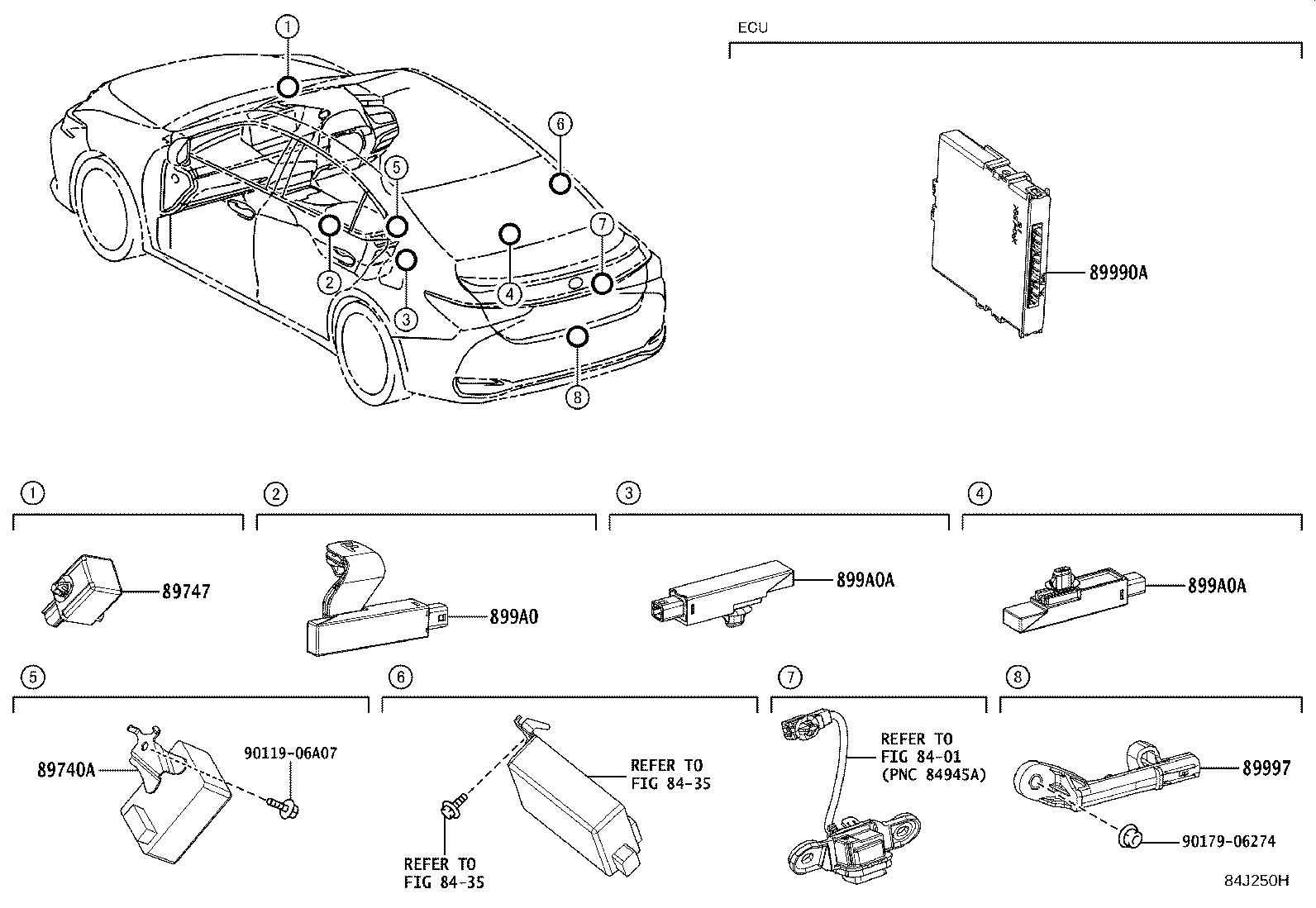

Figure 84J176H 84J176H 2018-06 → 2021-08 Figure 84N706A 84N706A 2021-08 → — Figure 84J250H 84J250H 2018-06 → —

Part groups

PNCDescription
89000 Computer Assy, Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89740A Receiver Assy, Smart Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
