Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

17 part groups · 5 illustrations

Illustrations

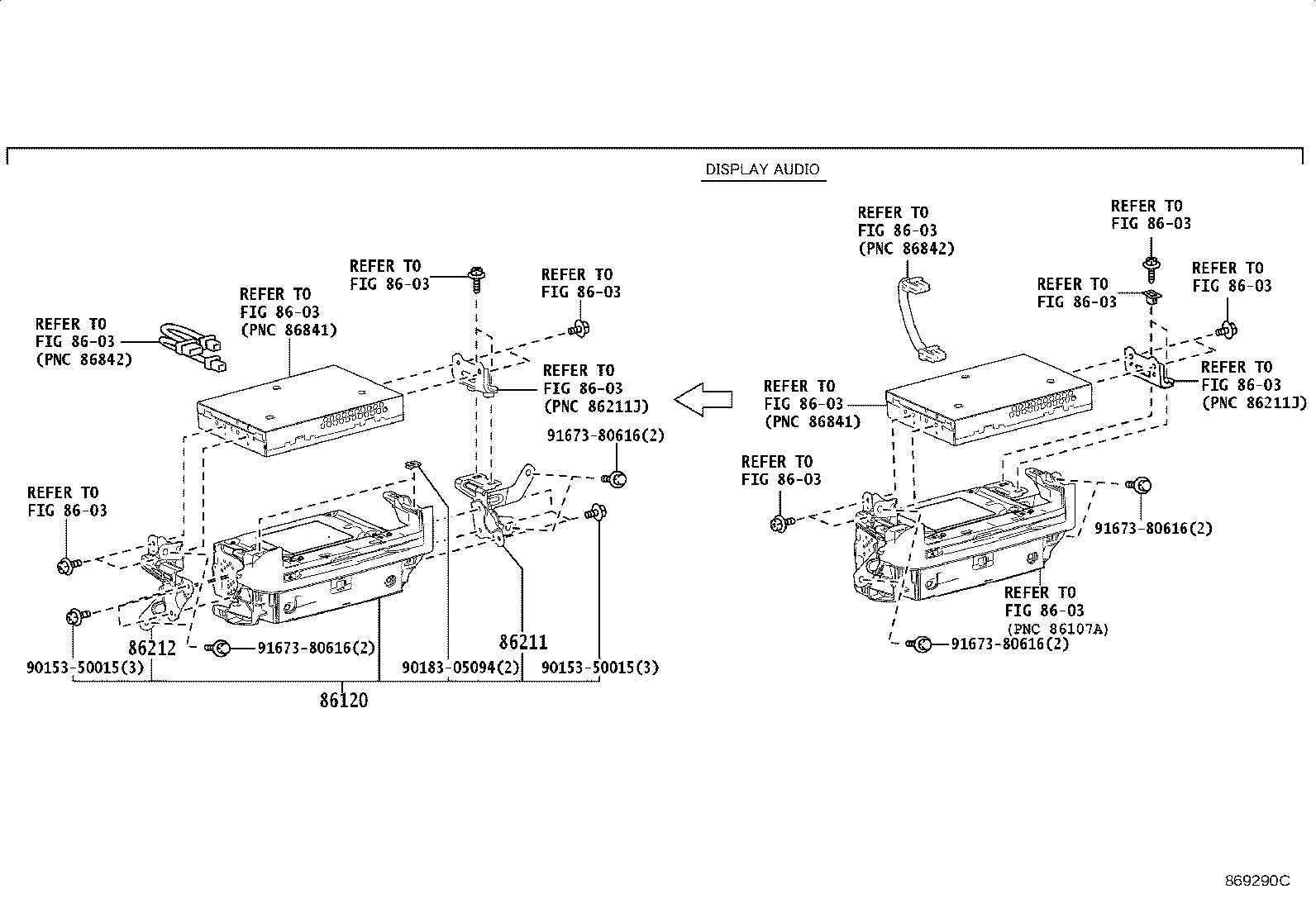

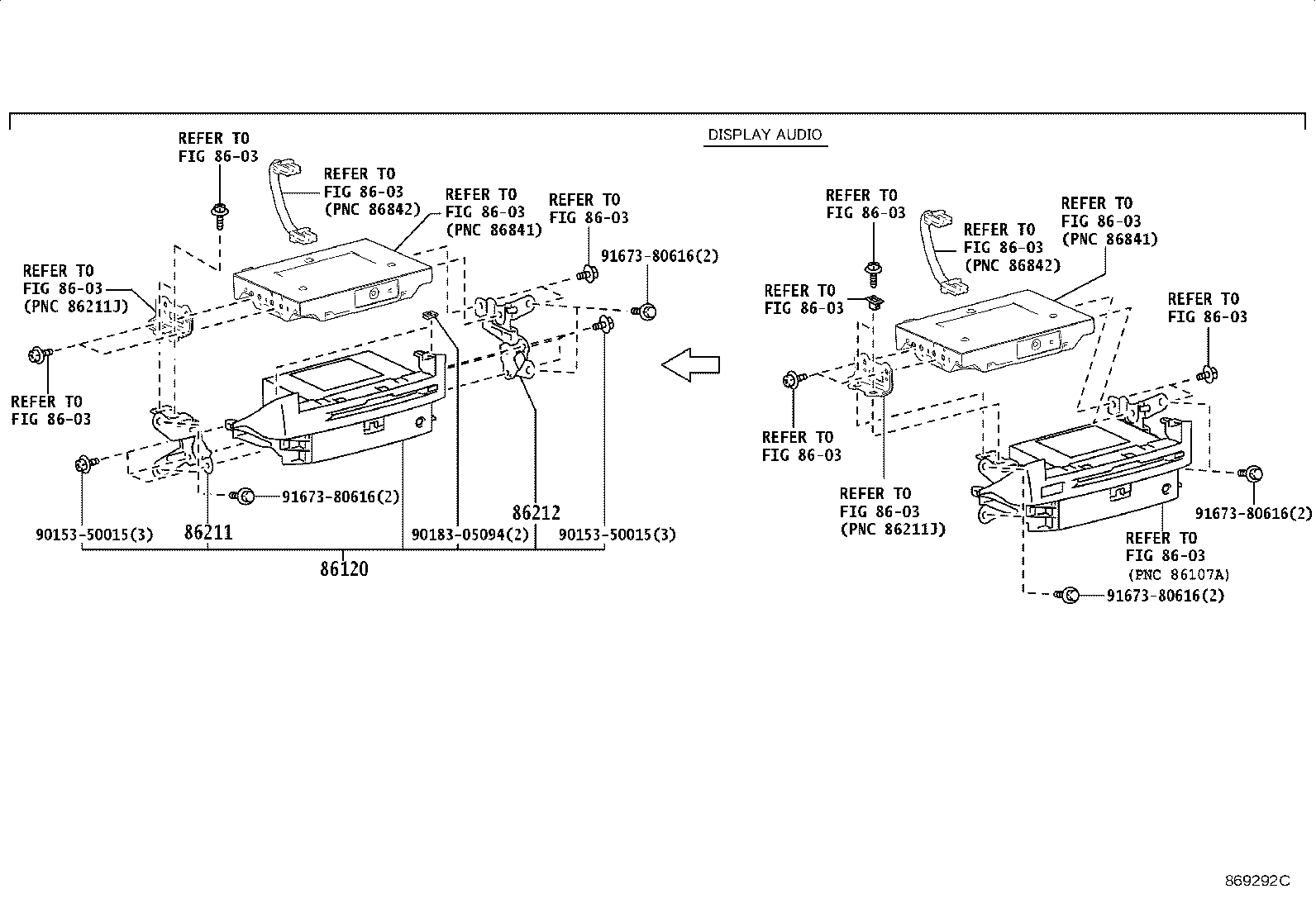

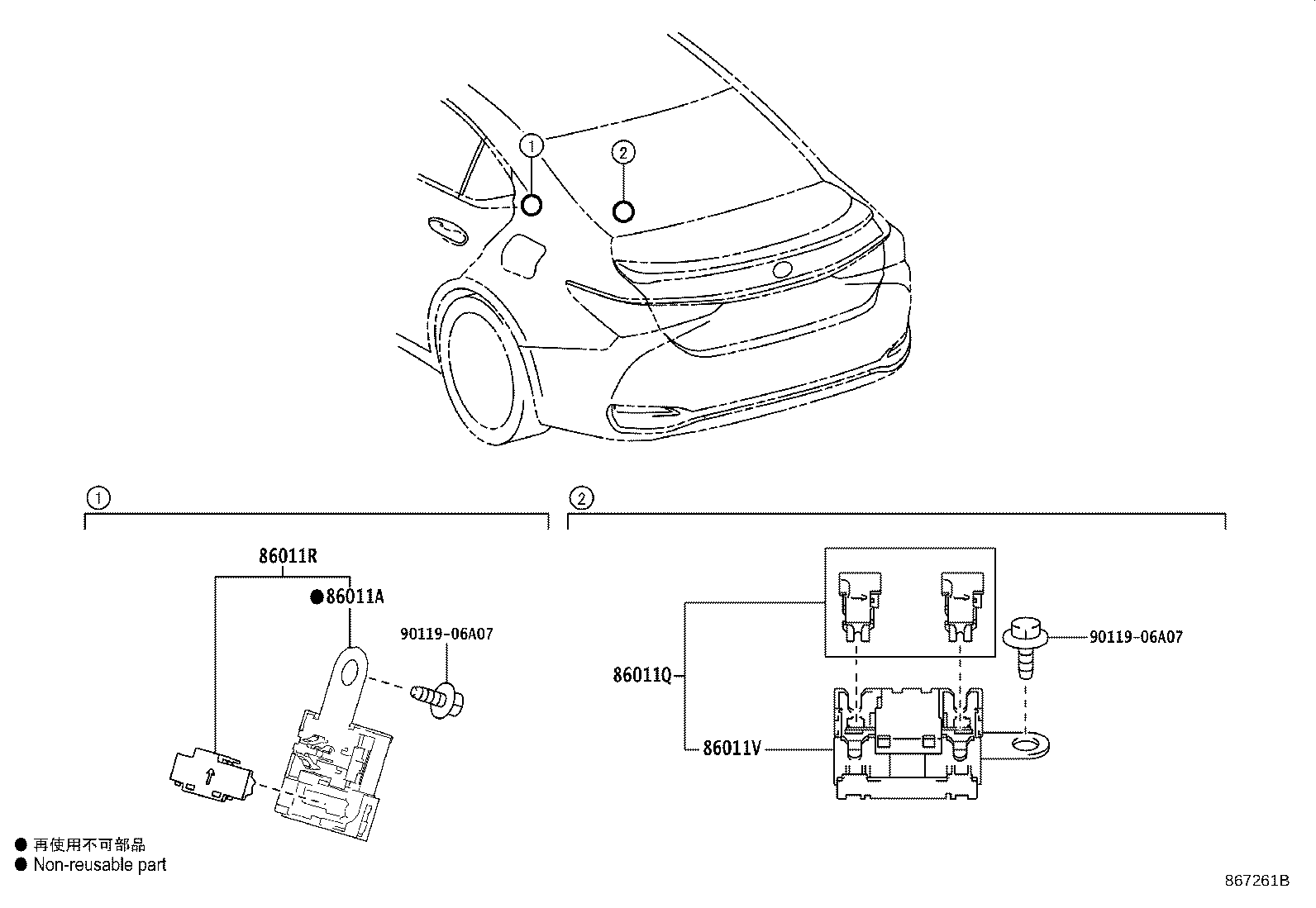

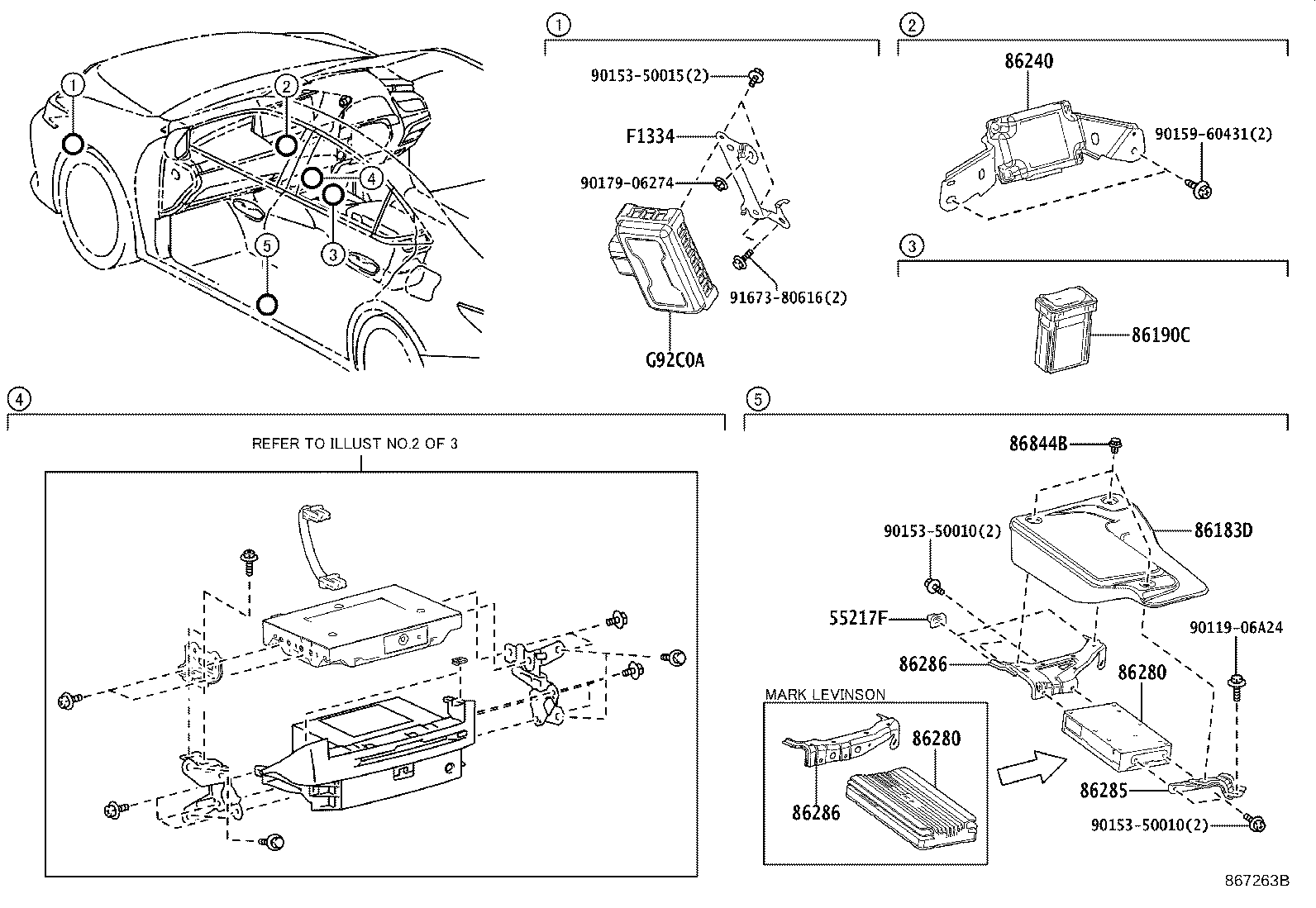

Figure 867262B 867262B 2018-06 → — Figure 869290C 869290C 2018-06 → — Figure 867263B 867263B 2018-06 → — Figure 869292C 869292C 2018-06 → — Figure 867261B 867261B 2018-06 → —

Part groups

PNCDescription
55217F Retainer, Audio Amplifier
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86240 Equalizer Assy,Stereo Component
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86844B Retainer, Audio Amplifier Cover
F1334 Bracket, Converter Control, NO.1
G92C0A Converter Assy, Eco-run Vehicle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
