Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

24 part groups · 11 illustrations

Illustrations

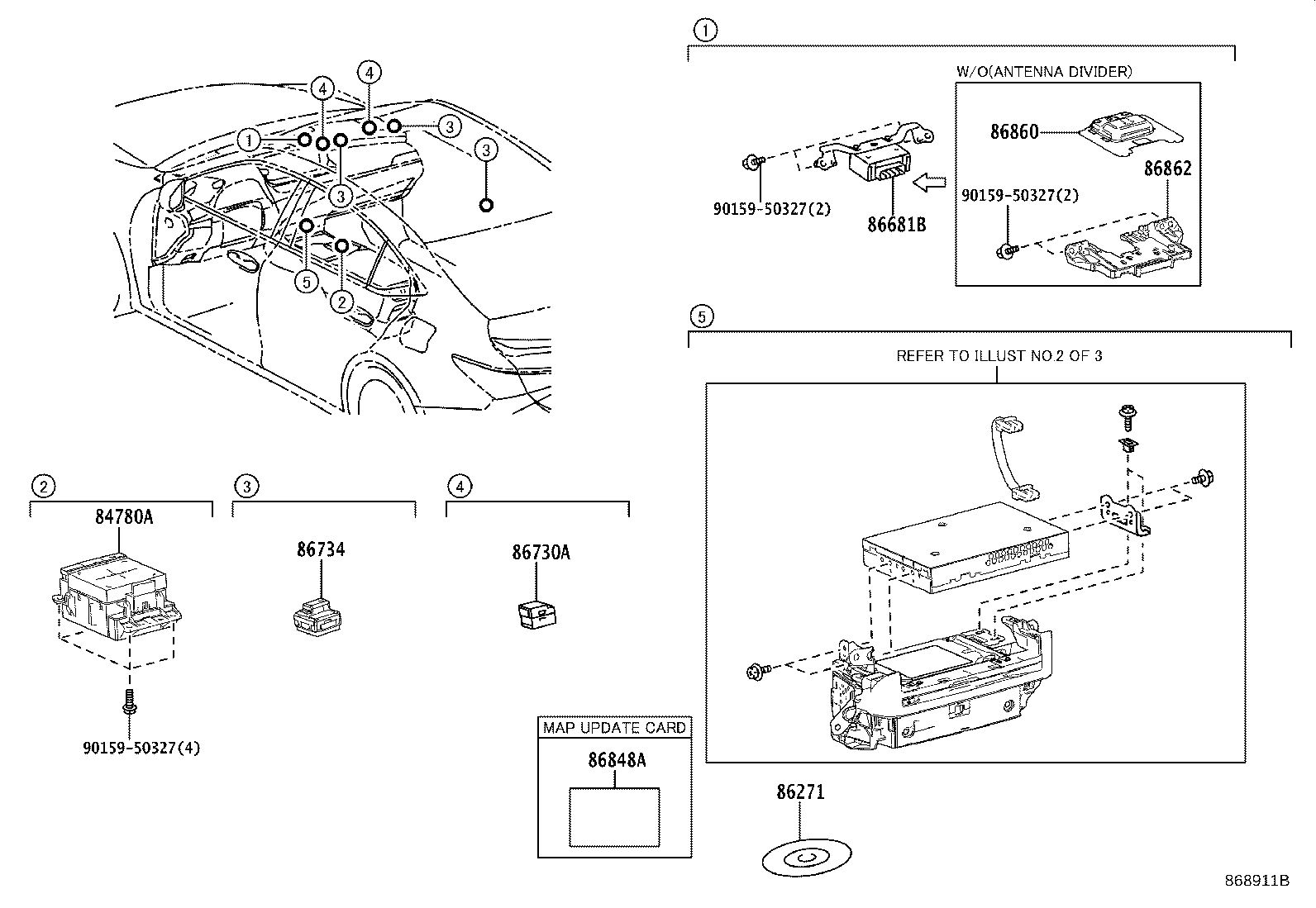

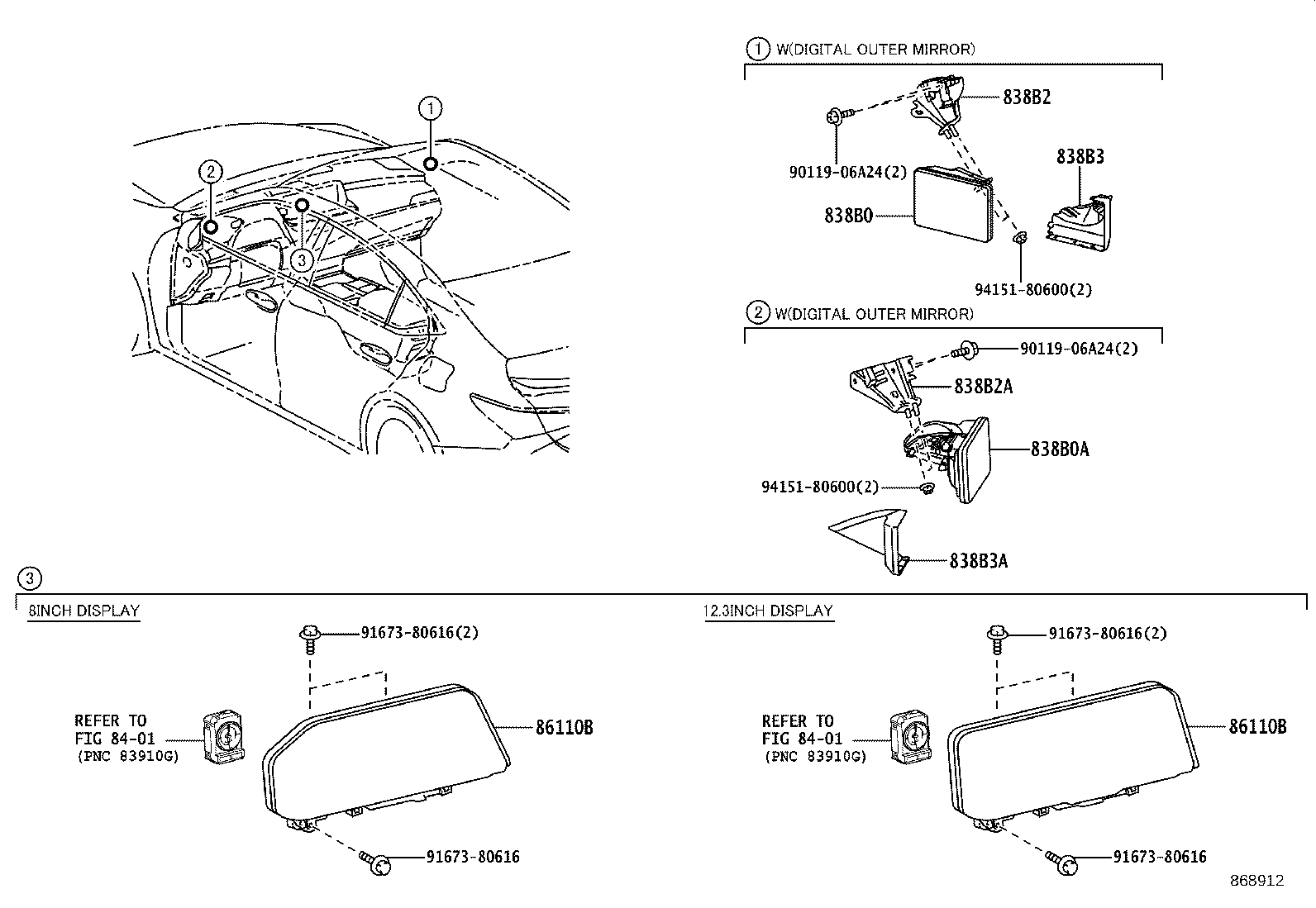

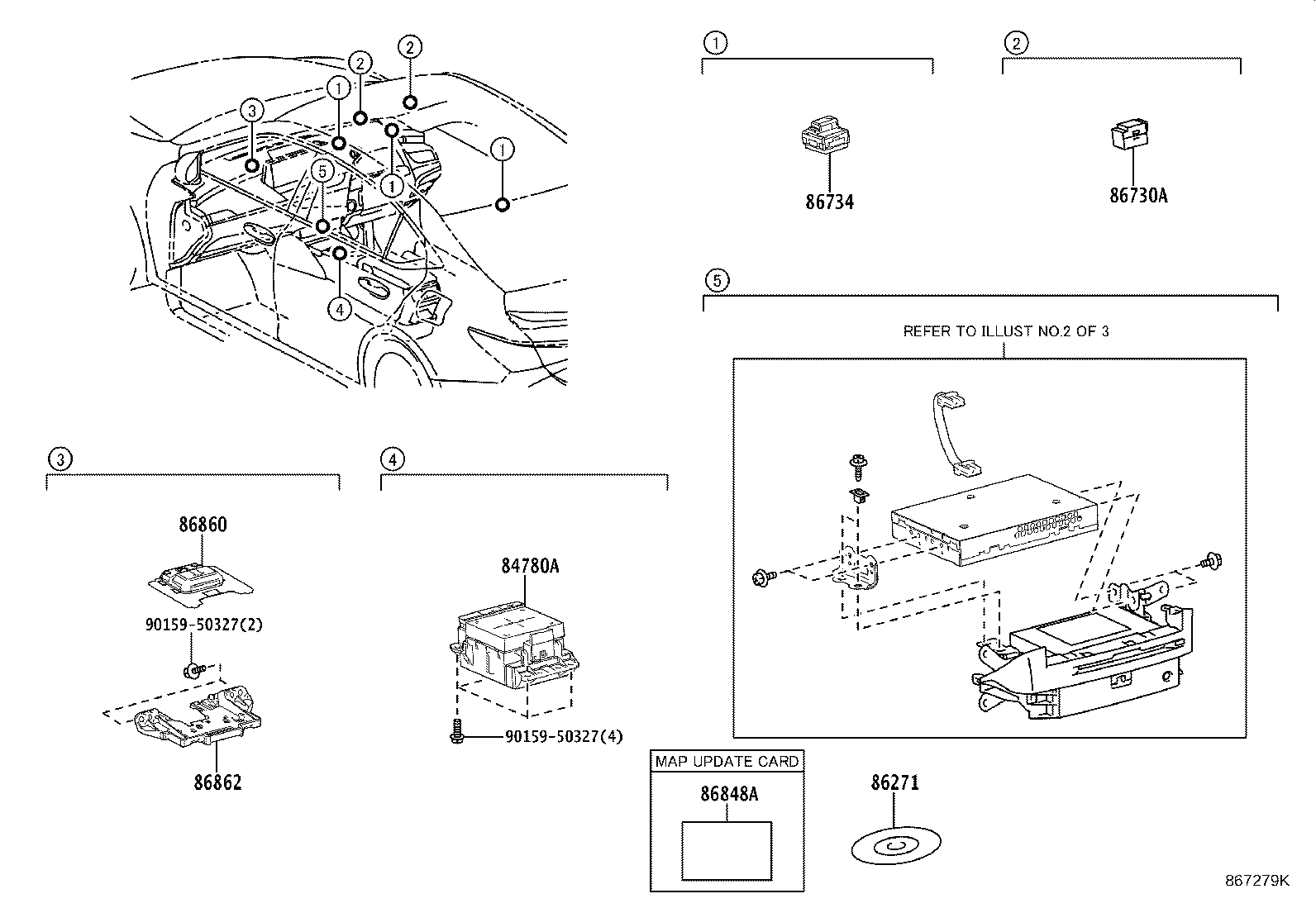

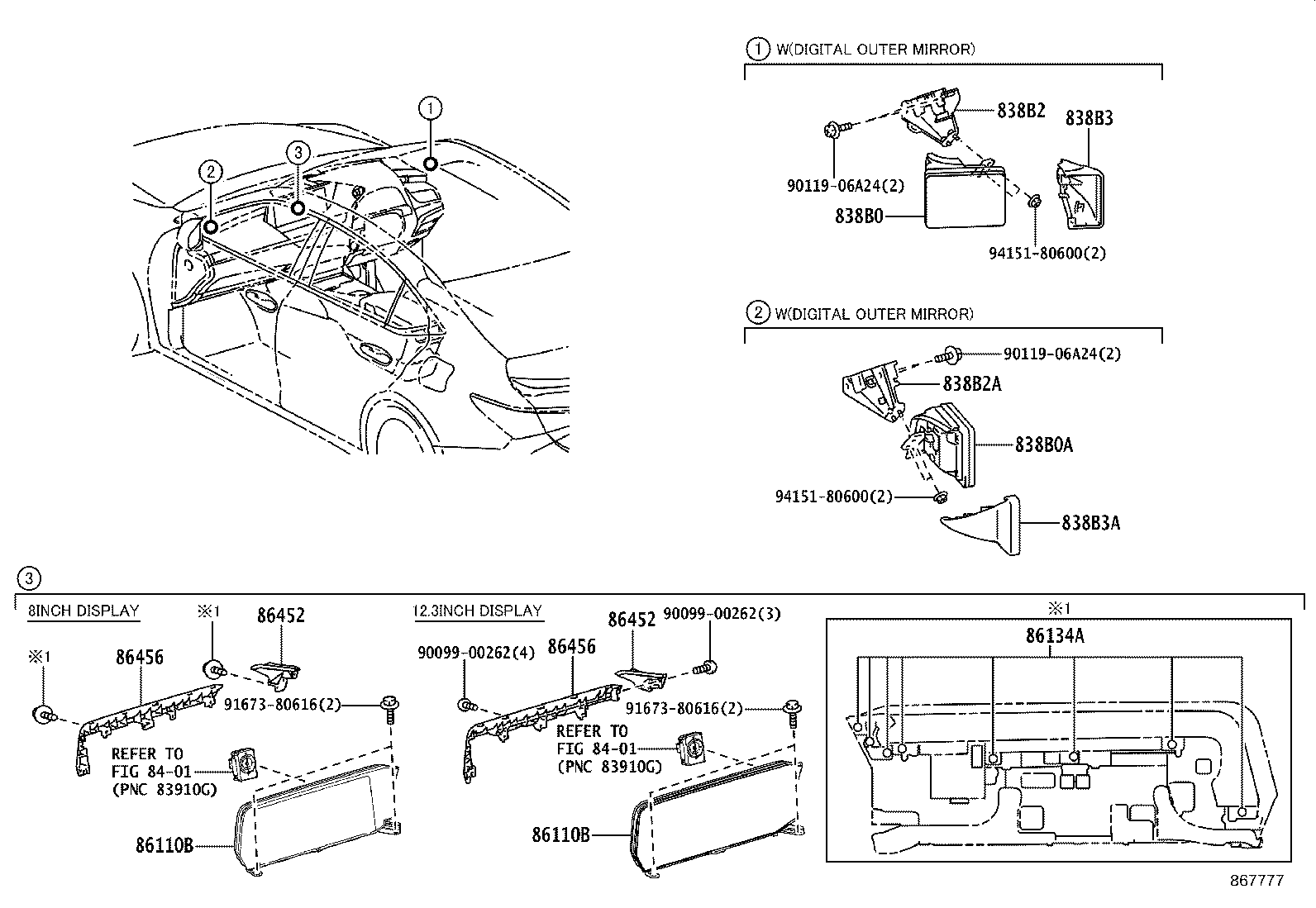

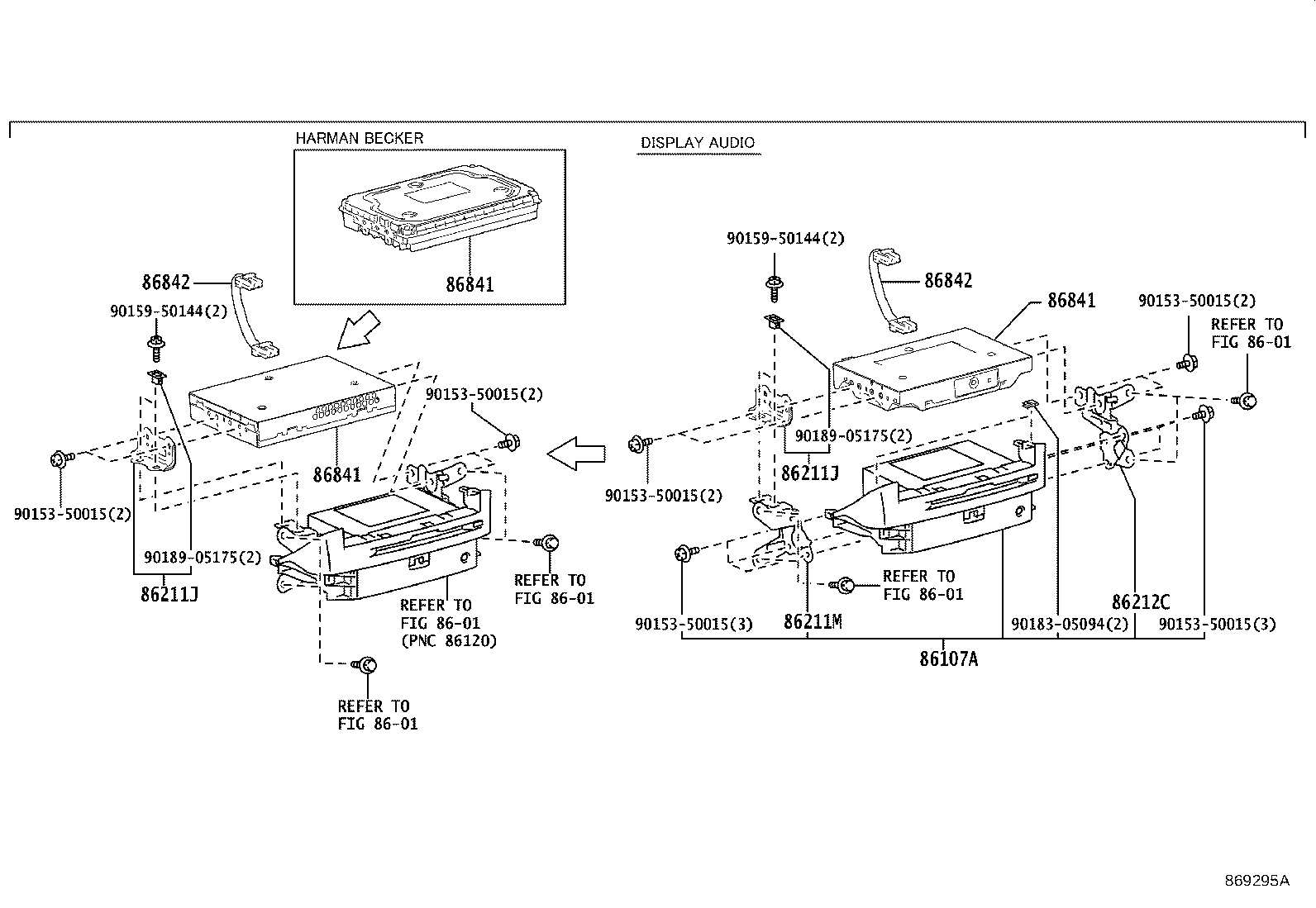

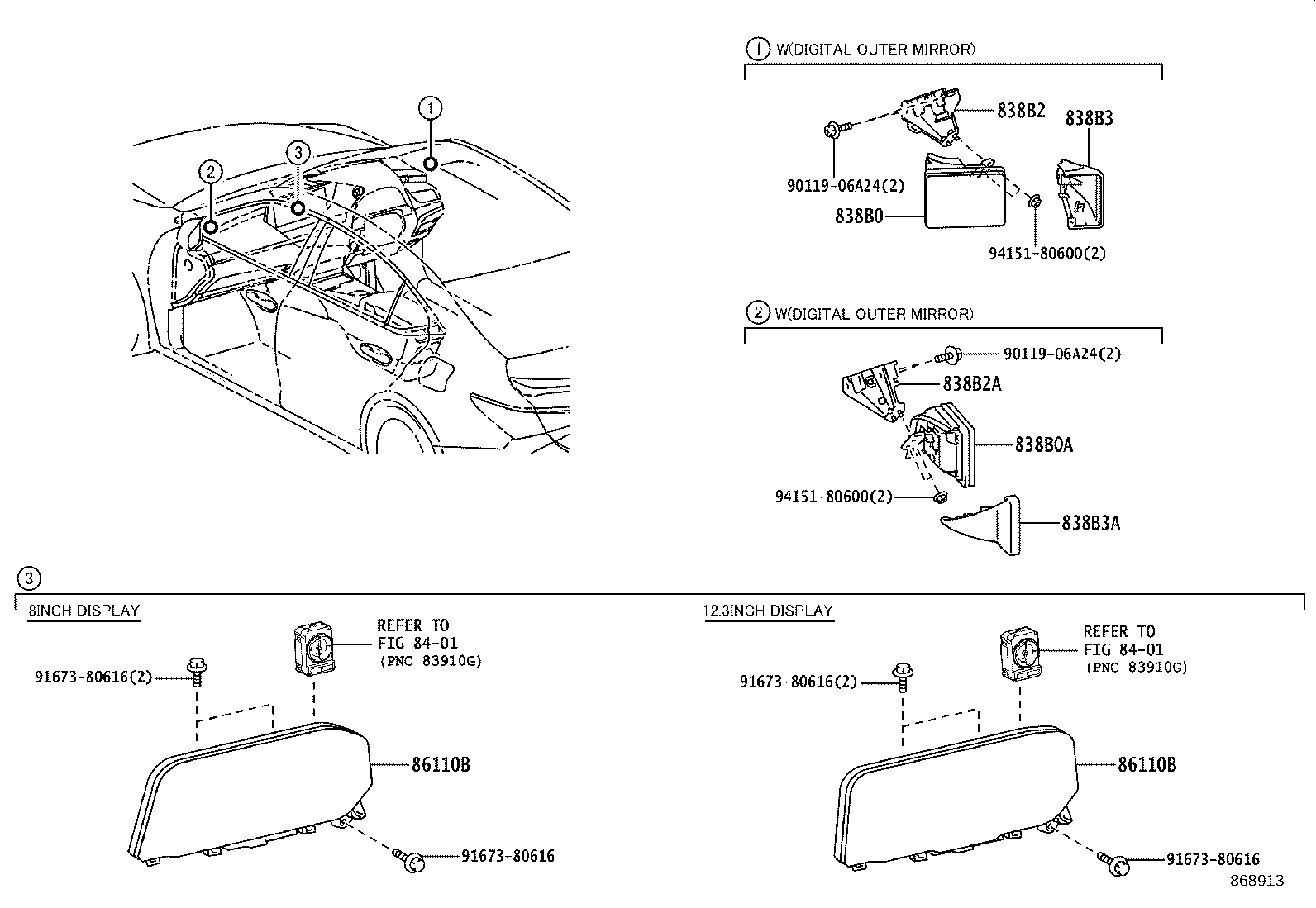

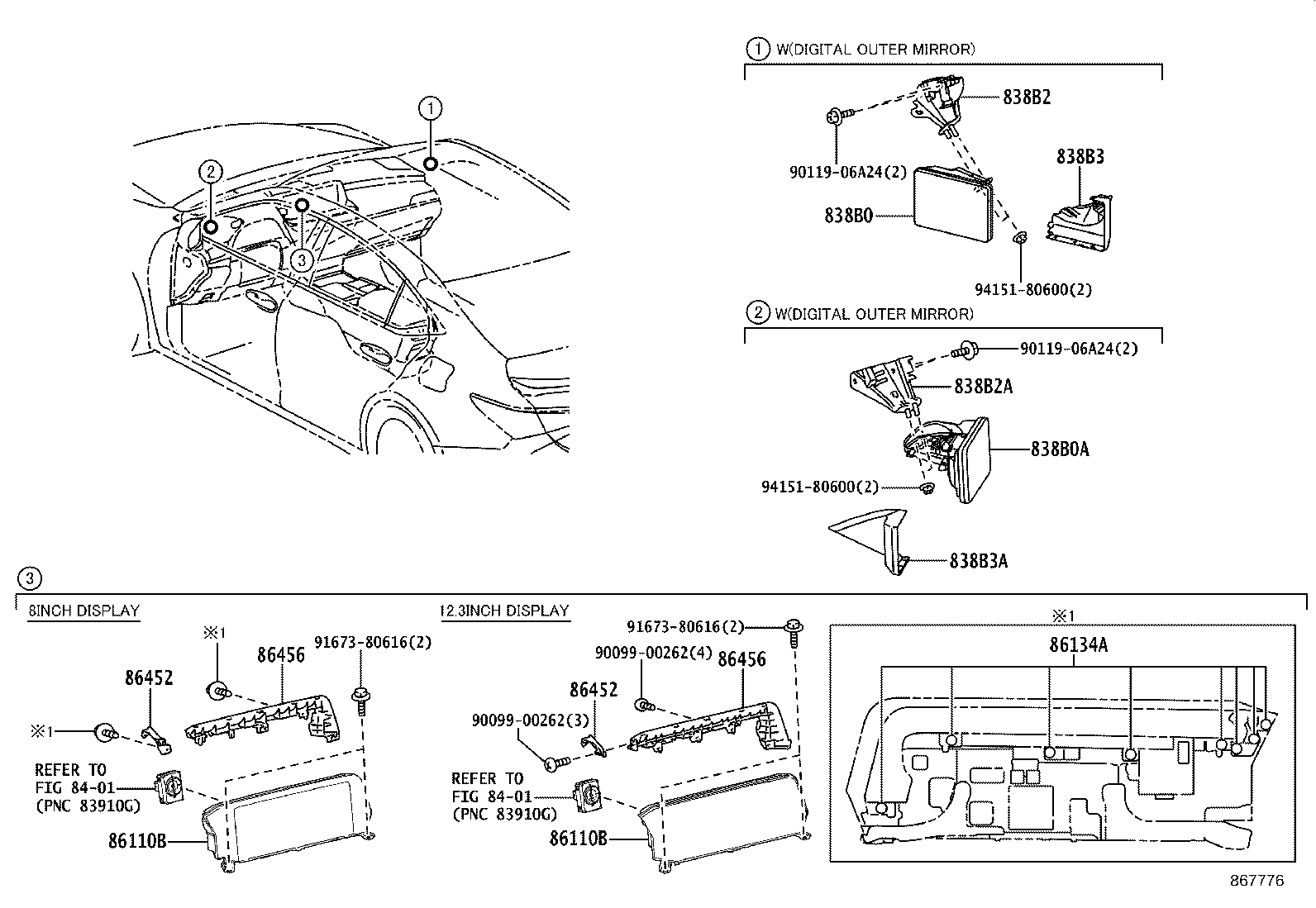

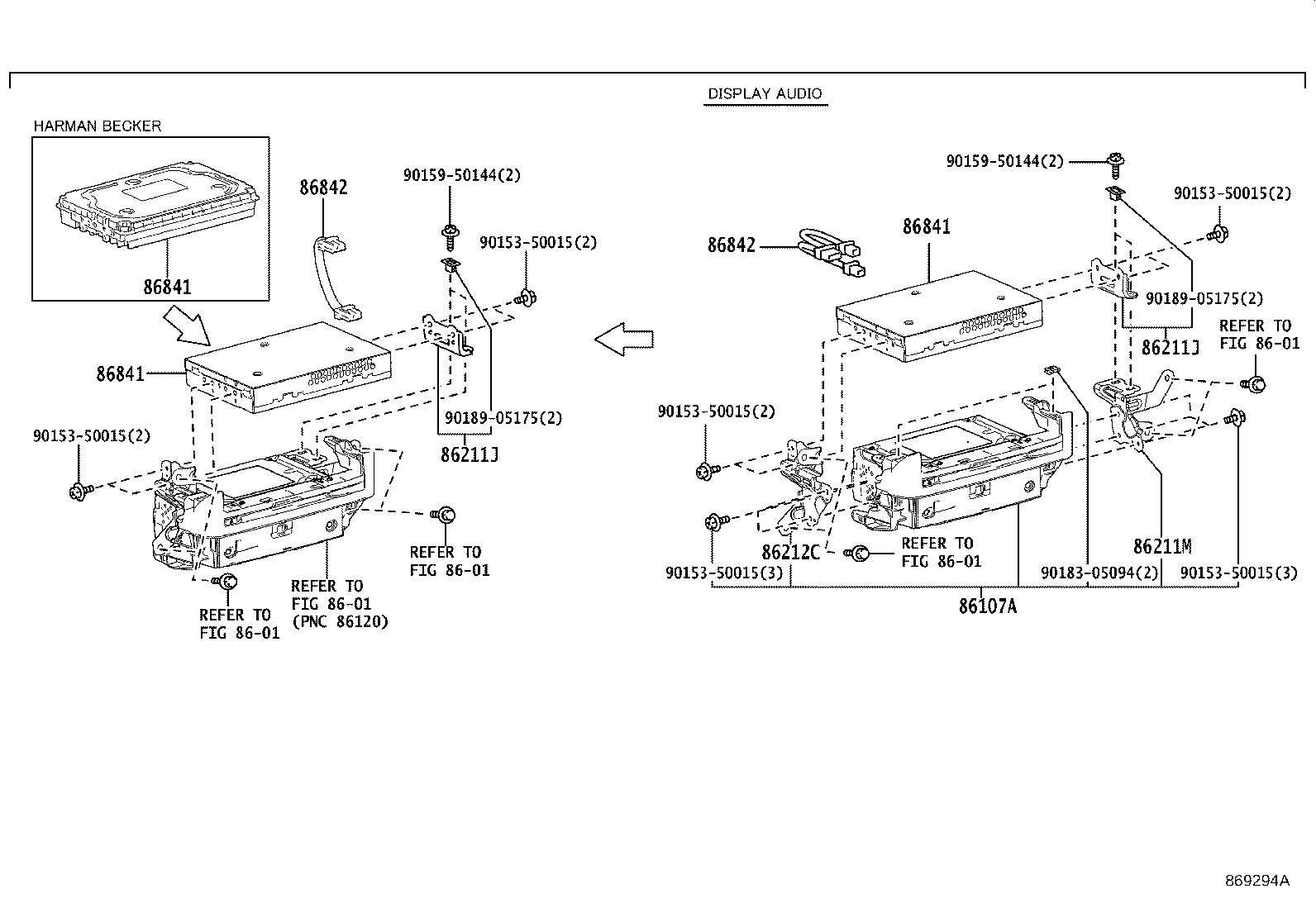

Figure 867278K 867278K 2018-06 → 2021-08 Figure 868911B 868911B 2021-08 → — Figure 869294A 869294A 2021-08 → — Figure 867279K 867279K 2018-06 → — Figure 869295A 869295A 2018-06 → — Figure 867776 867776 2018-06 → 2021-08 Figure 868912 868912 2021-08 → — Figure 867777 867777 2018-06 → 2021-08 Figure 867777 867777 2020-01 → 2021-10 Figure 868913 868913 2021-08 → — Figure 868913 868913 2021-10 → —

Part groups

PNCDescription
838B0 Display Assy, Outer Mirror, RH
838B0A Display Assy, Outer Mirror, LH
838B2 Bracket, Outer Mirror Display, RH
838B2A Bracket, Outer Mirror Display, LH
838B3 Cover, Outer Mirror Display, RH
838B3A Cover, Outer Mirror Display, LH
84780A Controller Assy, Remote Operation
86107A Receiver Sub-assy, Multi-media Module
86110B Multi-display Assy
86134A Parts, Multi-display
86211J Bracket, Radio Receiver, NO.1
86211M Bracket, Radio Receiver, NO.3
86212C Bracket, Radio Receiver, NO.2
86271 Disc, Disc Player
86452 Panel, Sub-cluster Module, NO.1
86456 Cover, Multi-media Module
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86734 Microphone, Active Noise Control
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
