Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

11 part groups · 9 illustrations

Illustrations

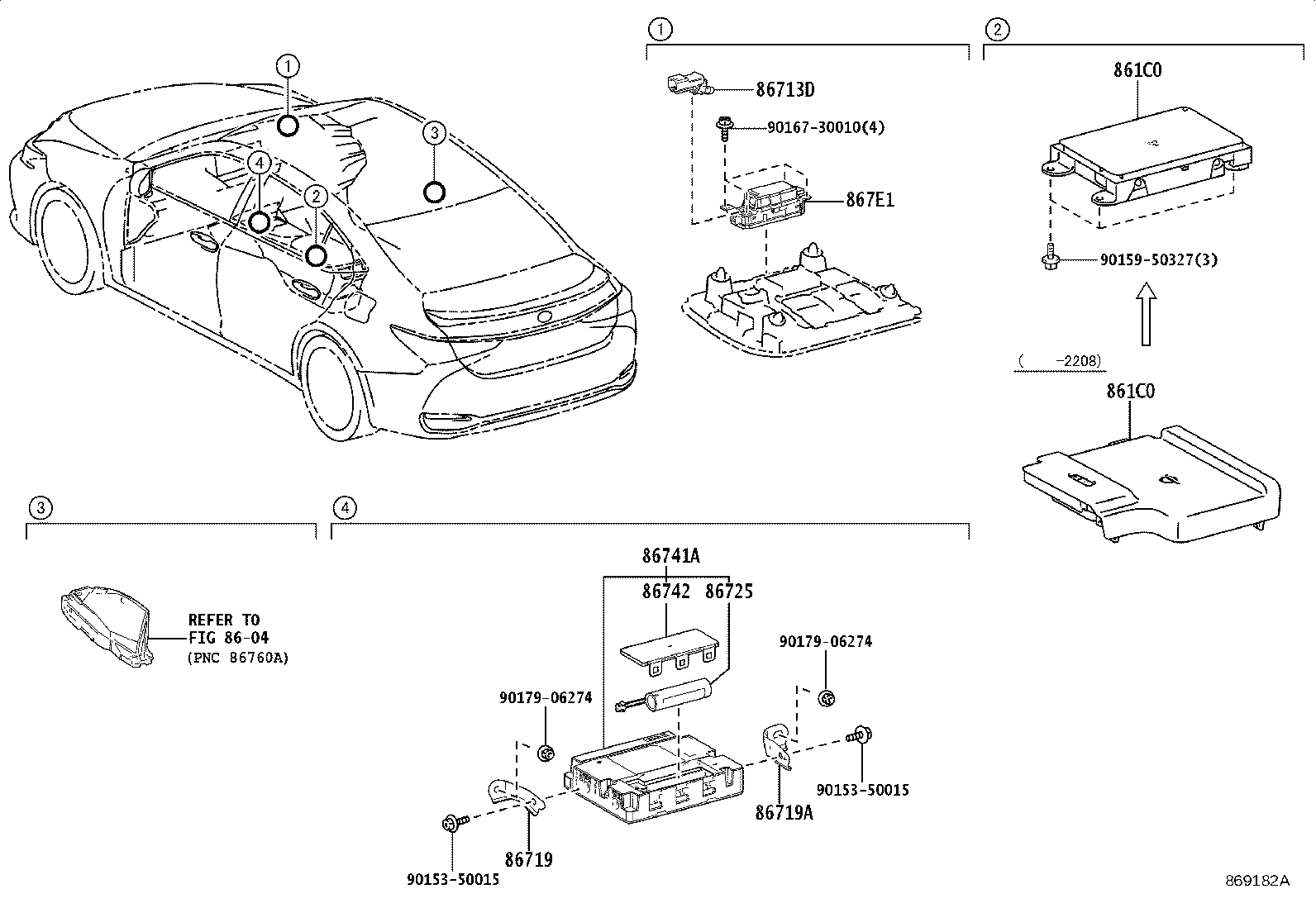

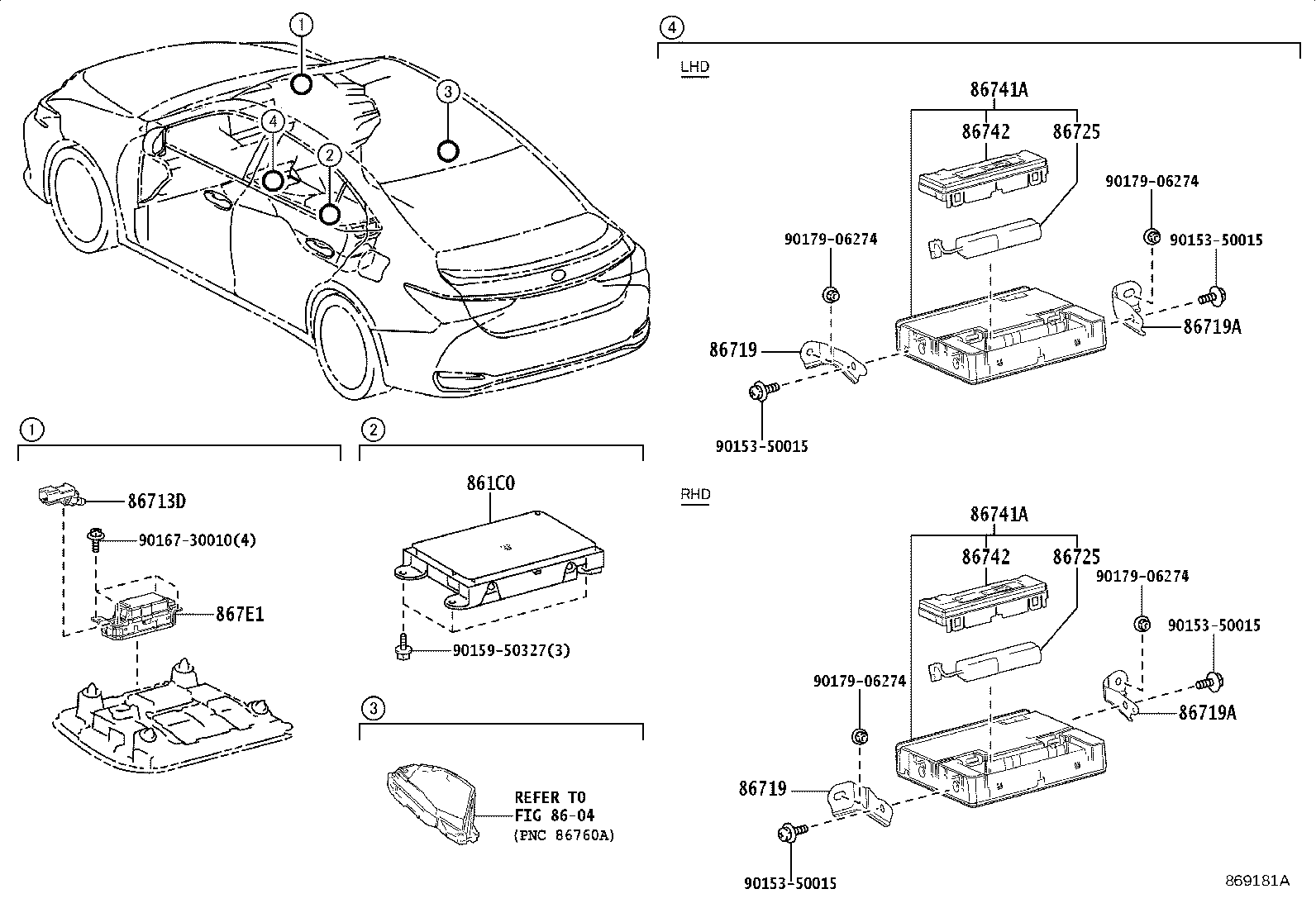

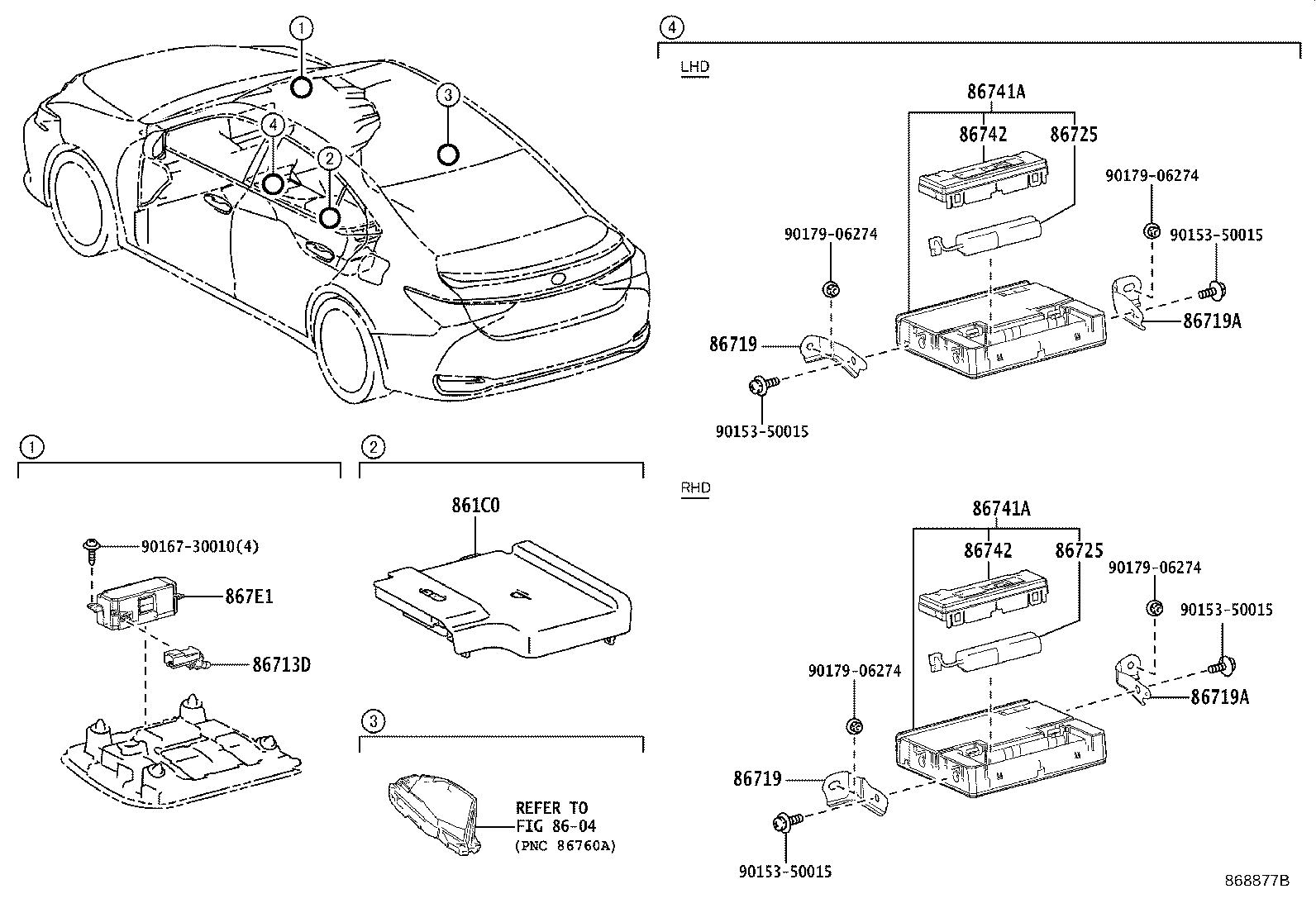

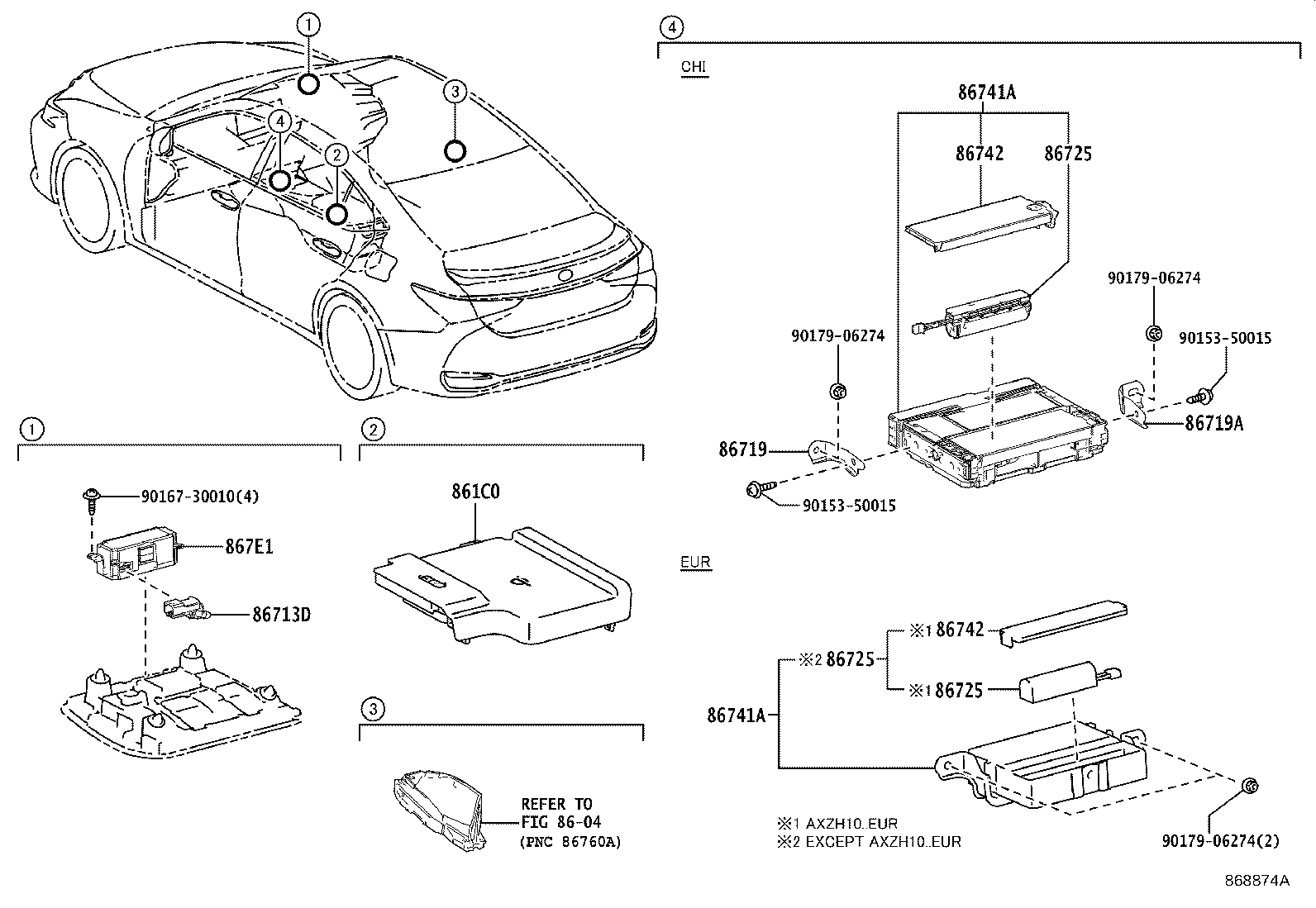

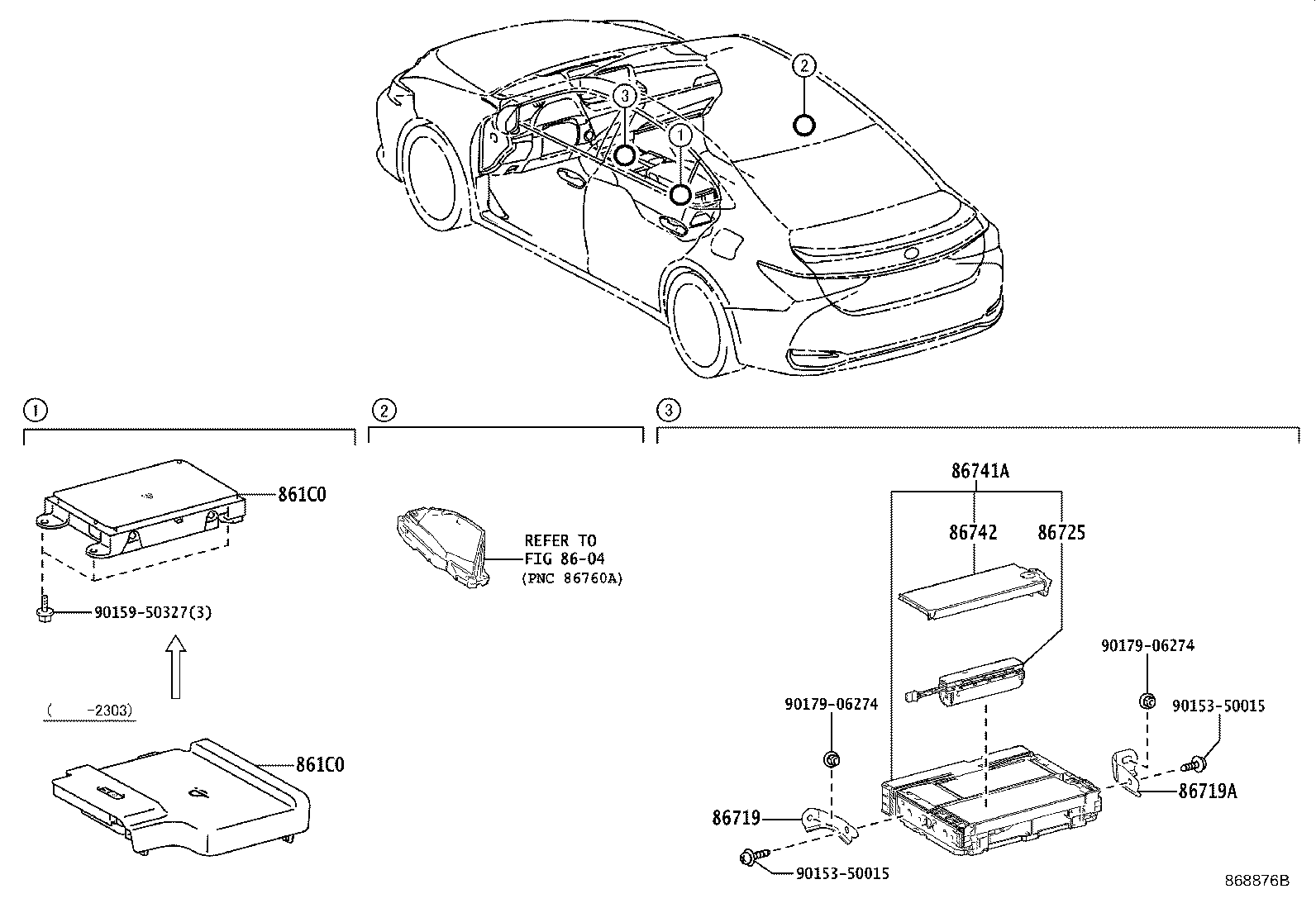

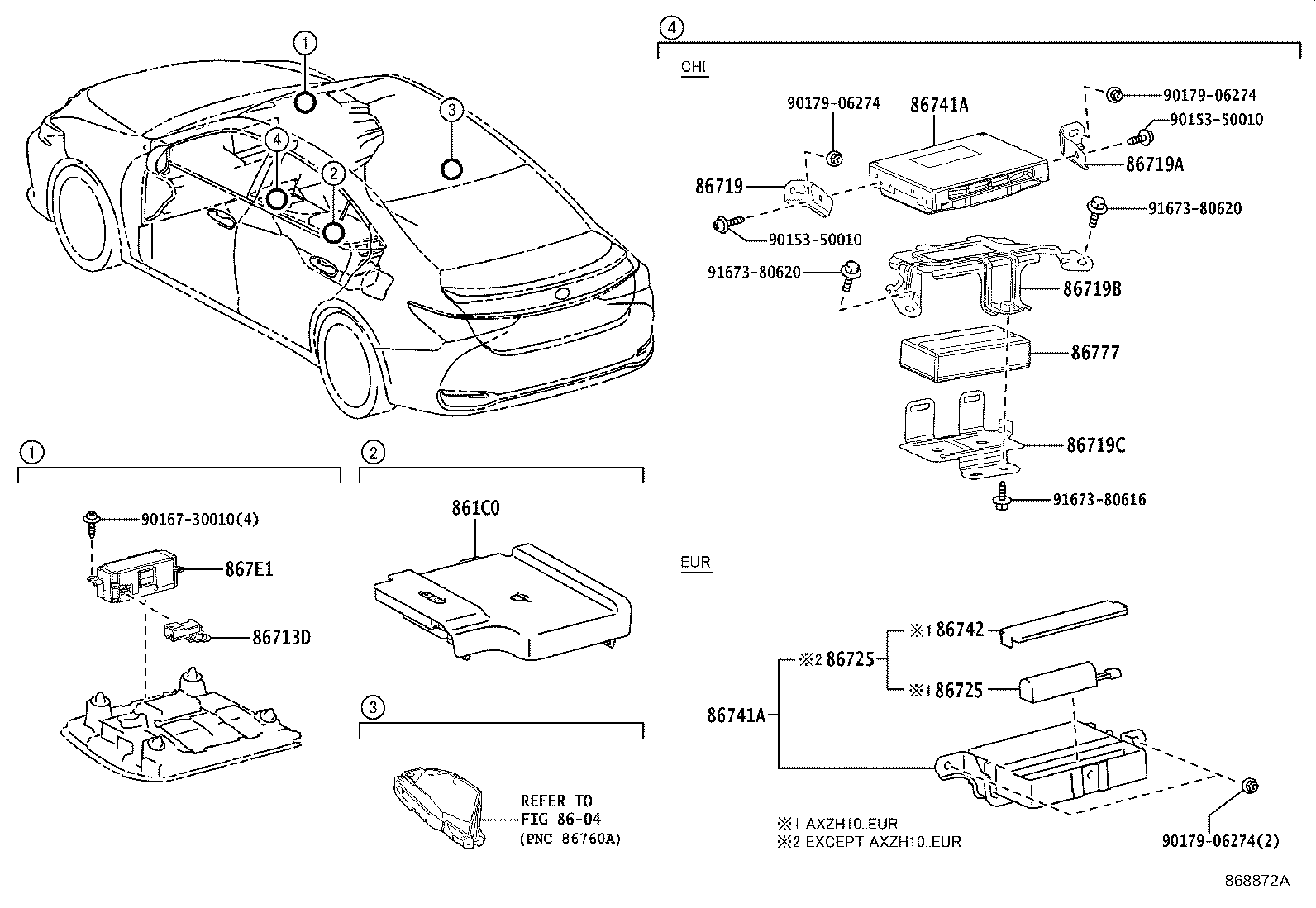

Figure 867277E 867277E 2018-06 → 2019-07 Figure 868872A 868872A 2019-07 → 2019-10 Figure 868874A 868874A 2019-10 → 2021-08 Figure 868876B 868876B 2021-08 → — Figure 869182A 869182A 2021-08 → — Figure 868877B 868877B 2021-08 → 2022-08 Figure 868877B 868877B 2021-08 → 2022-10 Figure 869181A 869181A 2022-08 → — Figure 869181A 869181A 2022-10 → —

Part groups

PNCDescription
861C0 Cradle Assy, Mobile Wireless Charger
86713D Wire, Mayday
86719 Bracket, Telephone
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86725 Battery, Mobilephone
86741A Transceiver, Telematics
86742 Cover, Transceiver
86777 Battery, Mayday
867E1 Box, Communication Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
