Heating & Air Conditioning - Control & Air Duct

26 part groups · 8 illustrations

Illustrations

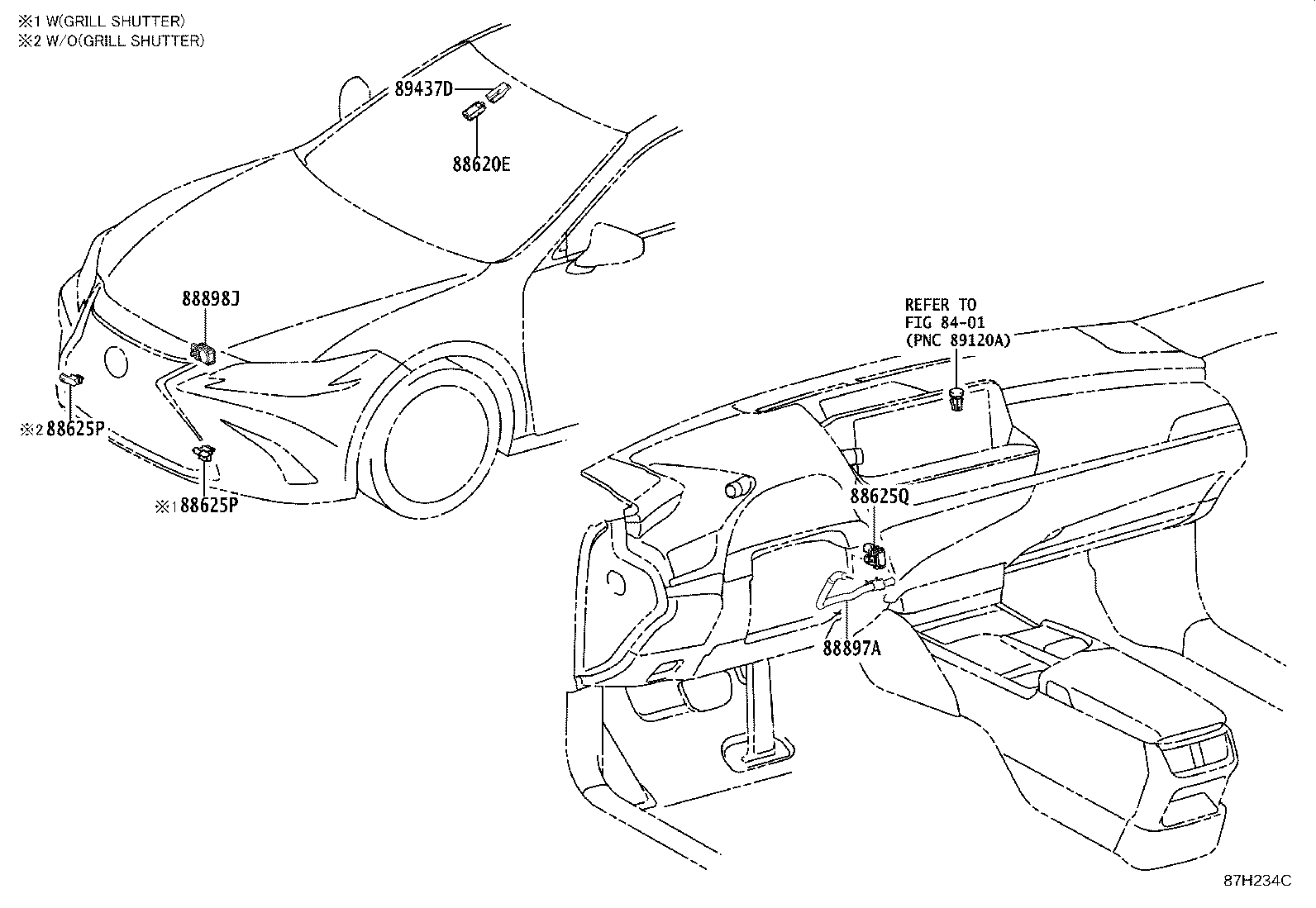

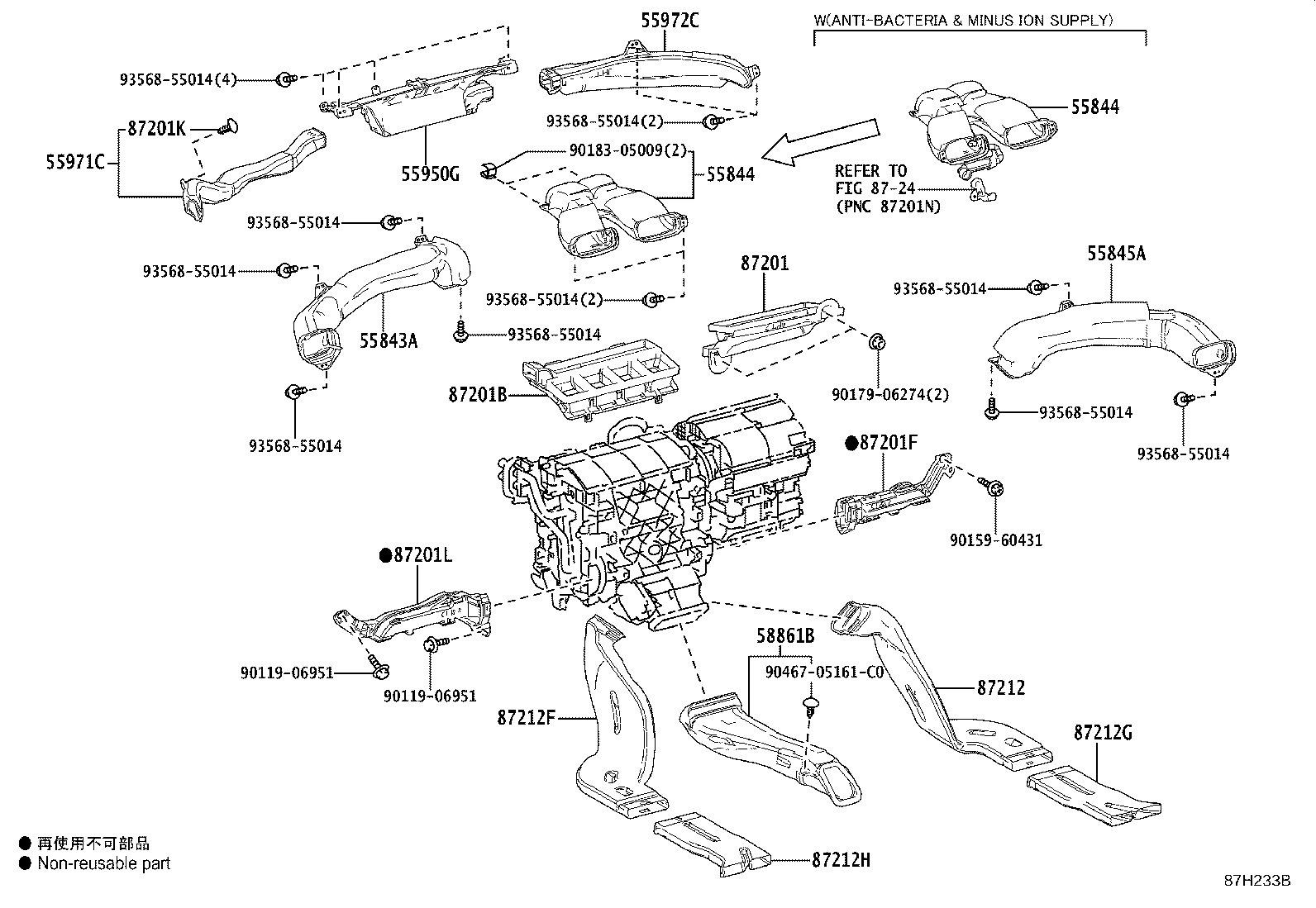

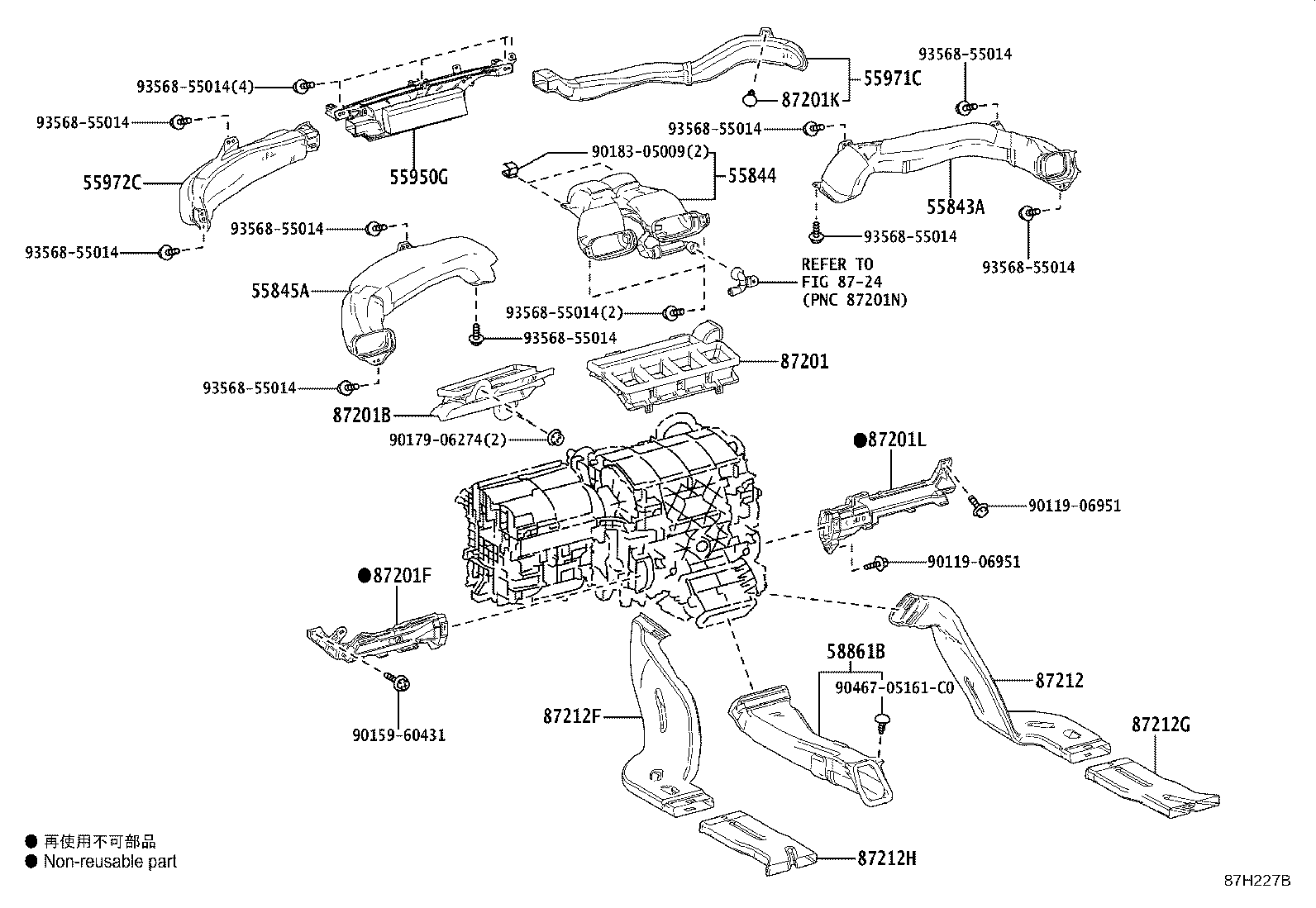

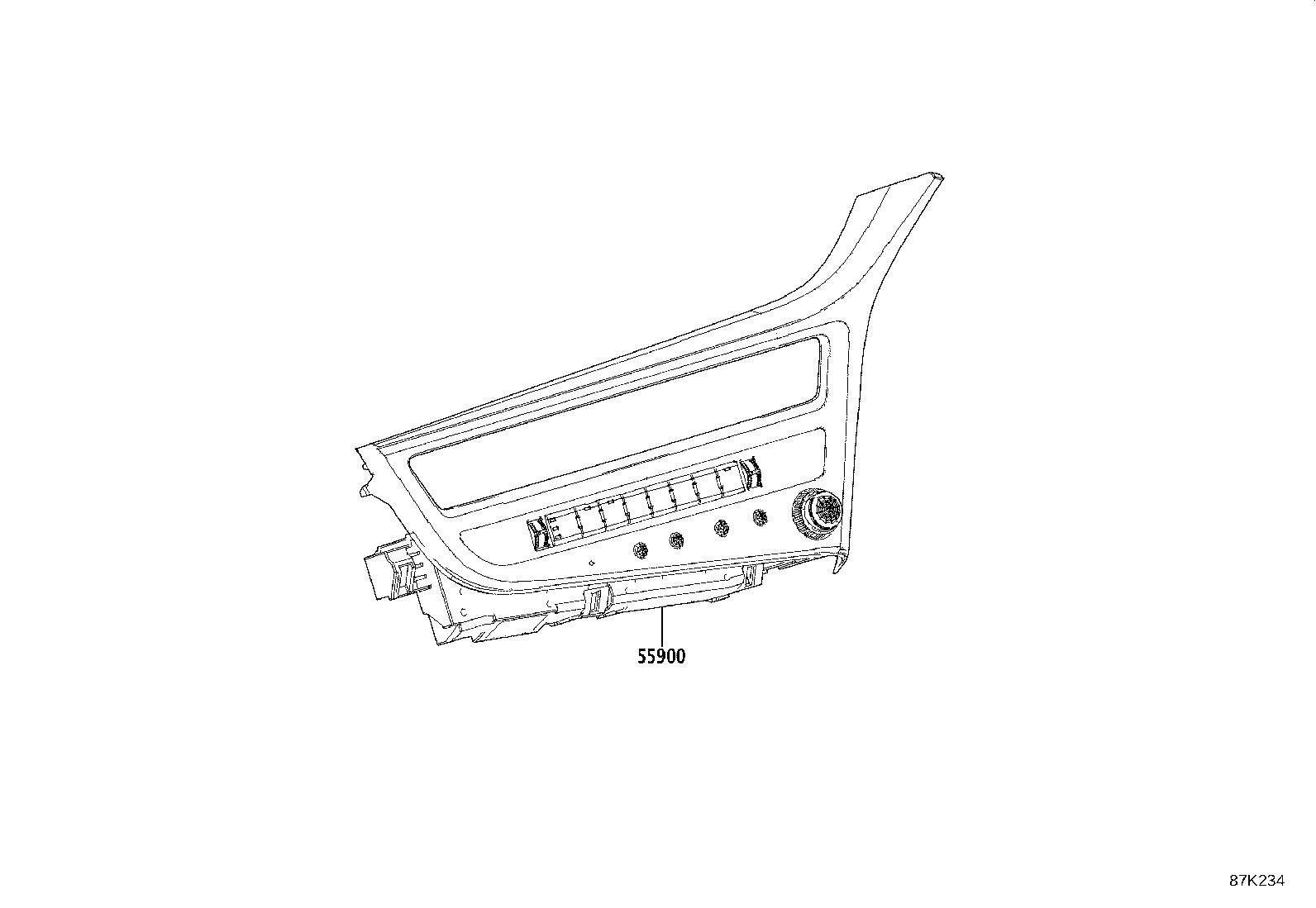

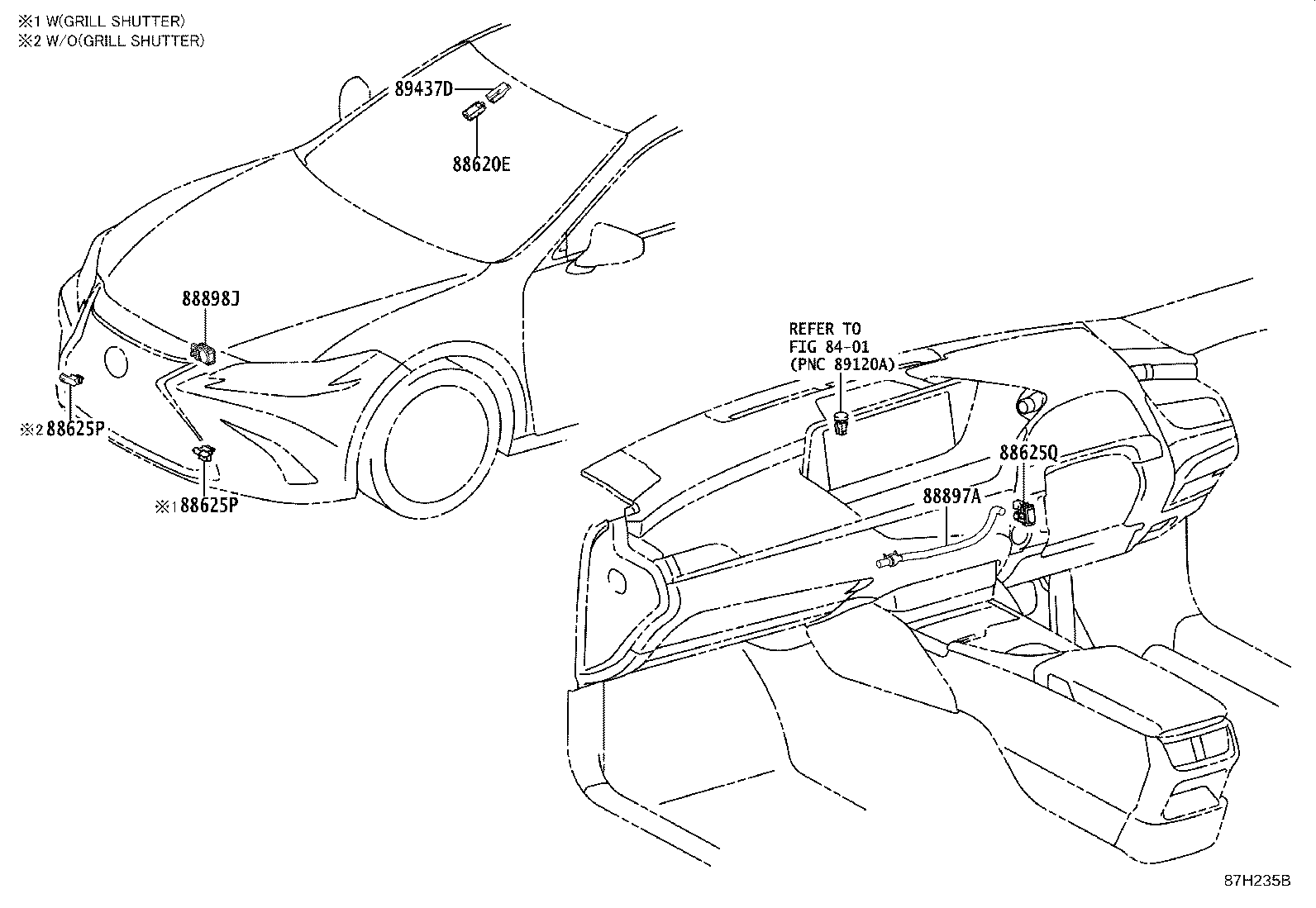

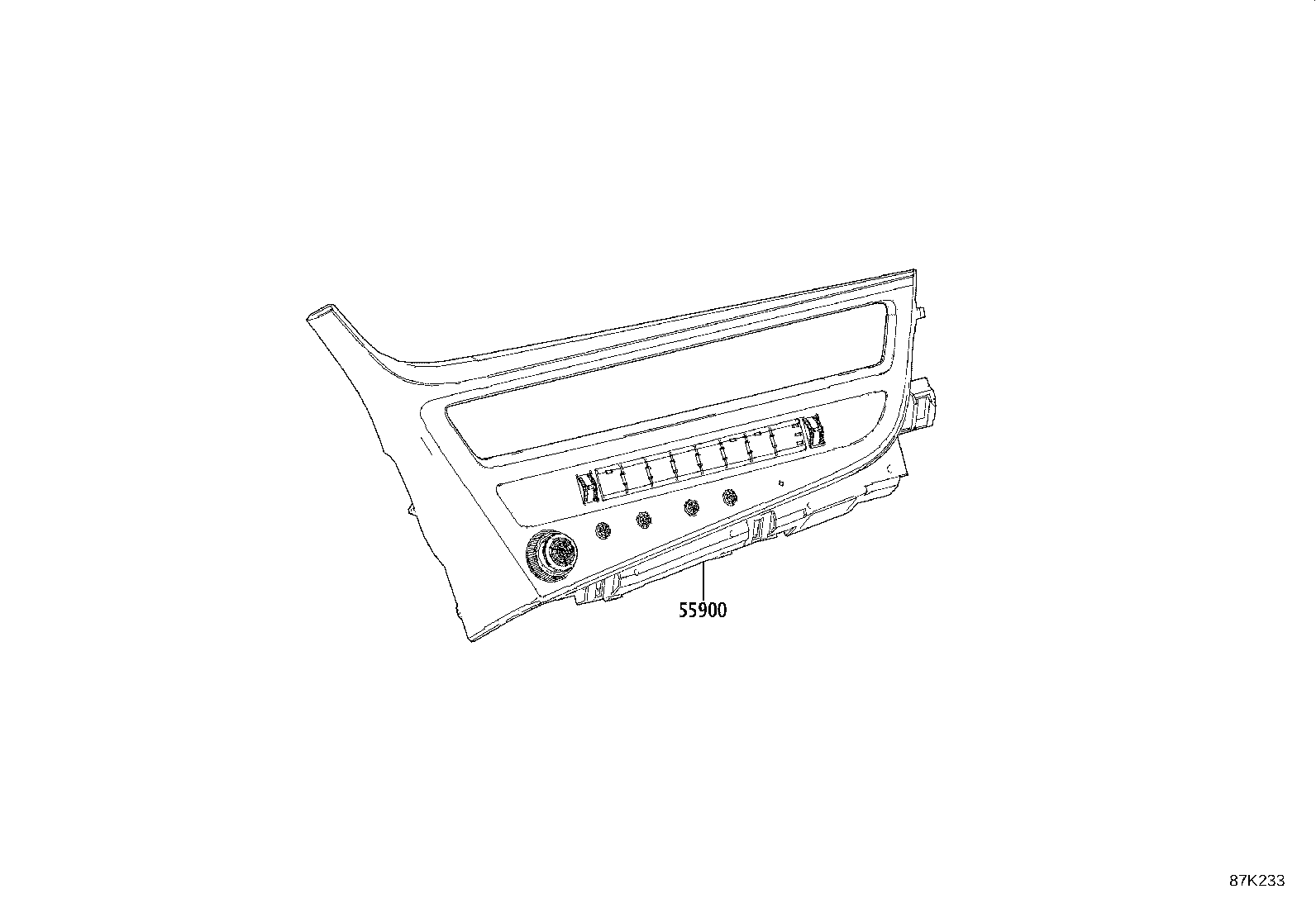

Figure 87H229A 87H229A 2018-06 → 2021-08 Figure 87K233 87K233 2021-08 → — Figure 87H226A 87H226A 2018-06 → 2021-08 Figure 87K234 87K234 2021-08 → — Figure 87H233B 87H233B 2018-06 → — Figure 87H227B 87H227B 2018-06 → — Figure 87H234C 87H234C 2018-06 → — Figure 87H235B 87H235B 2018-06 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87201L Duct Sub-assy, Air, NO.4
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897A Pipe, Aspirator
88898J Sensor, Smog Ventilation
89437D Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
