Toyota Lexus ES350/300H/2##
2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe
Supported model
Data version 2021-09
Heating & Air Conditioning - Compressor
8 part groups · 4 illustrations
Part groups

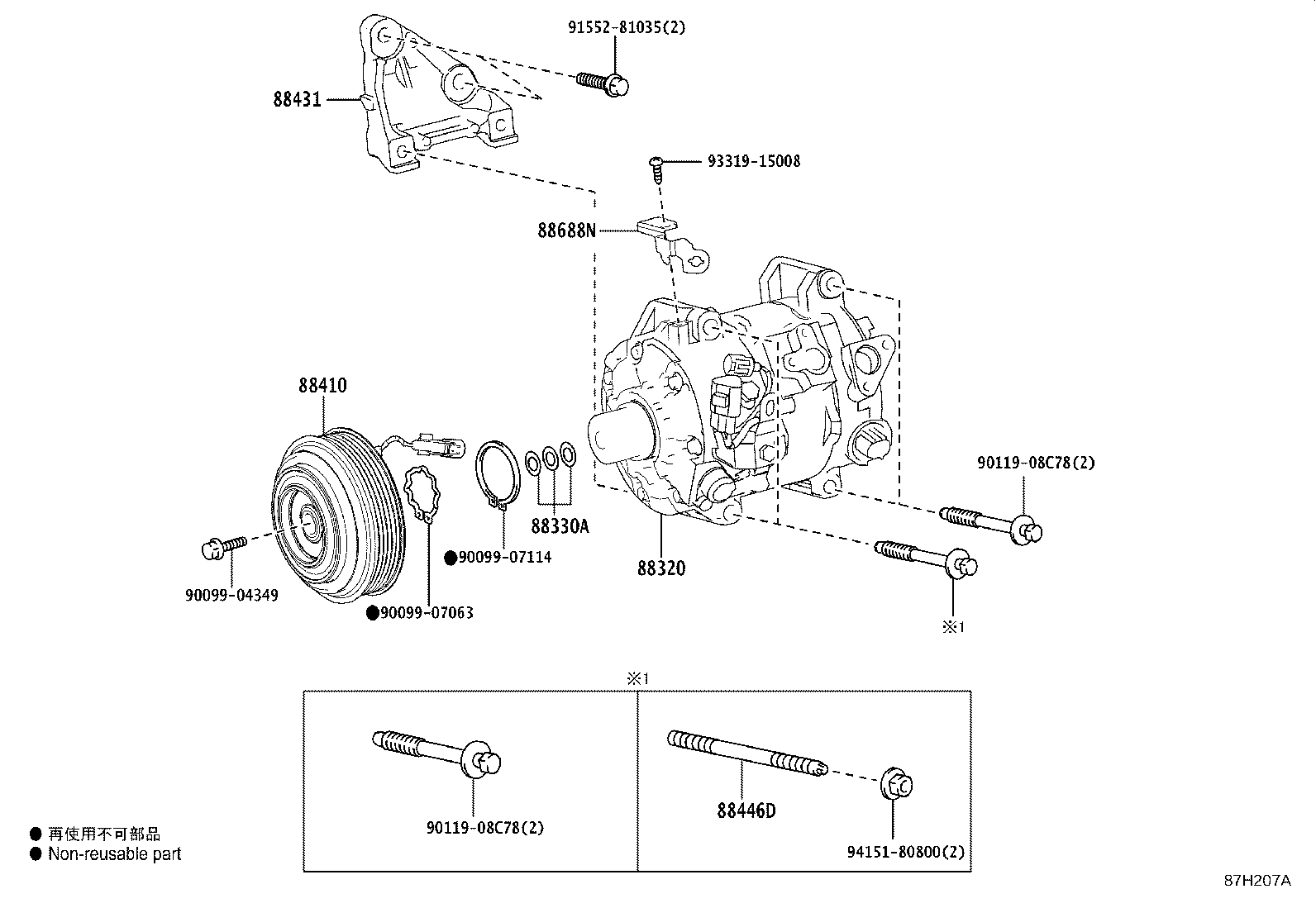

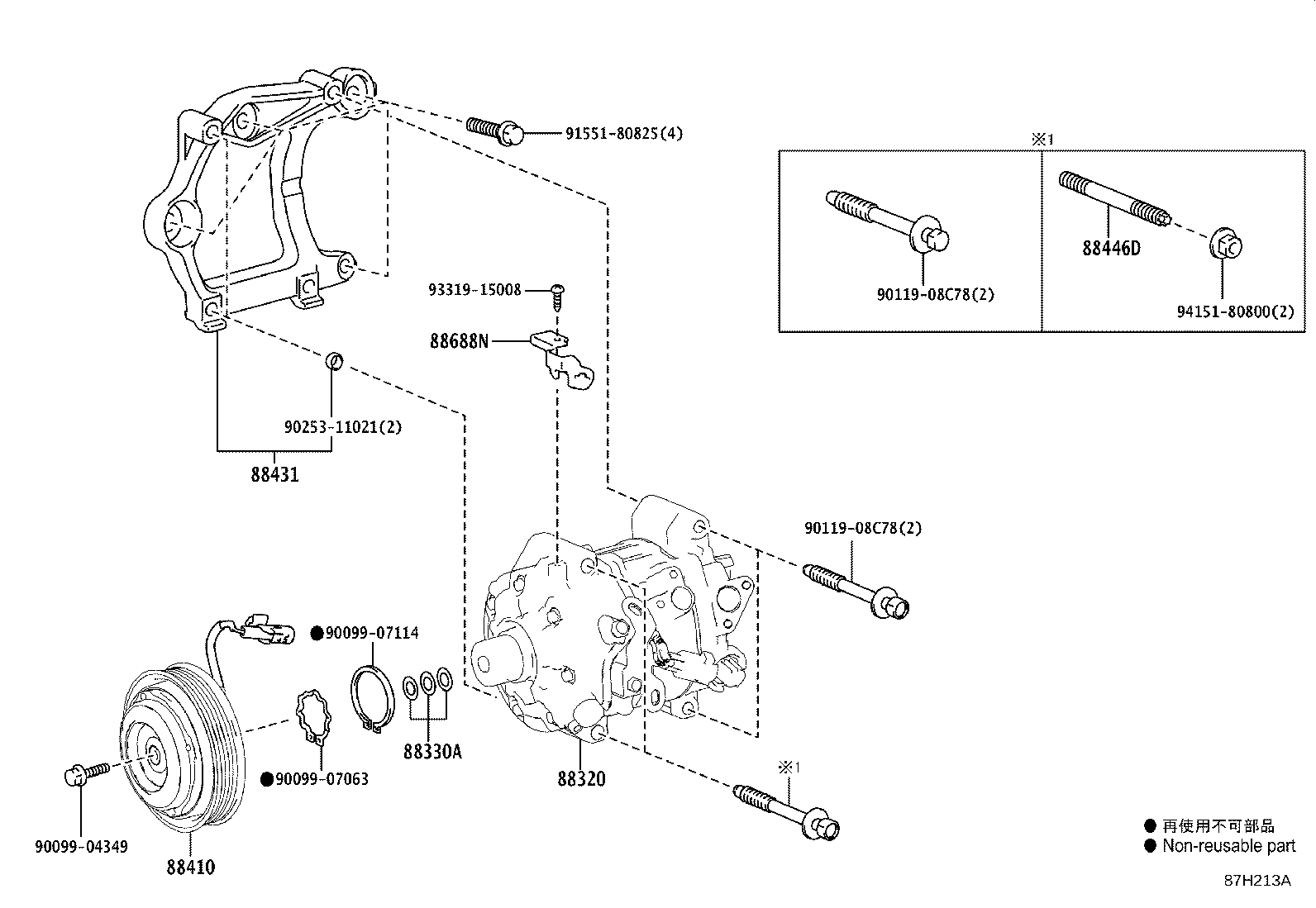

| PNC | Description |
|---|---|

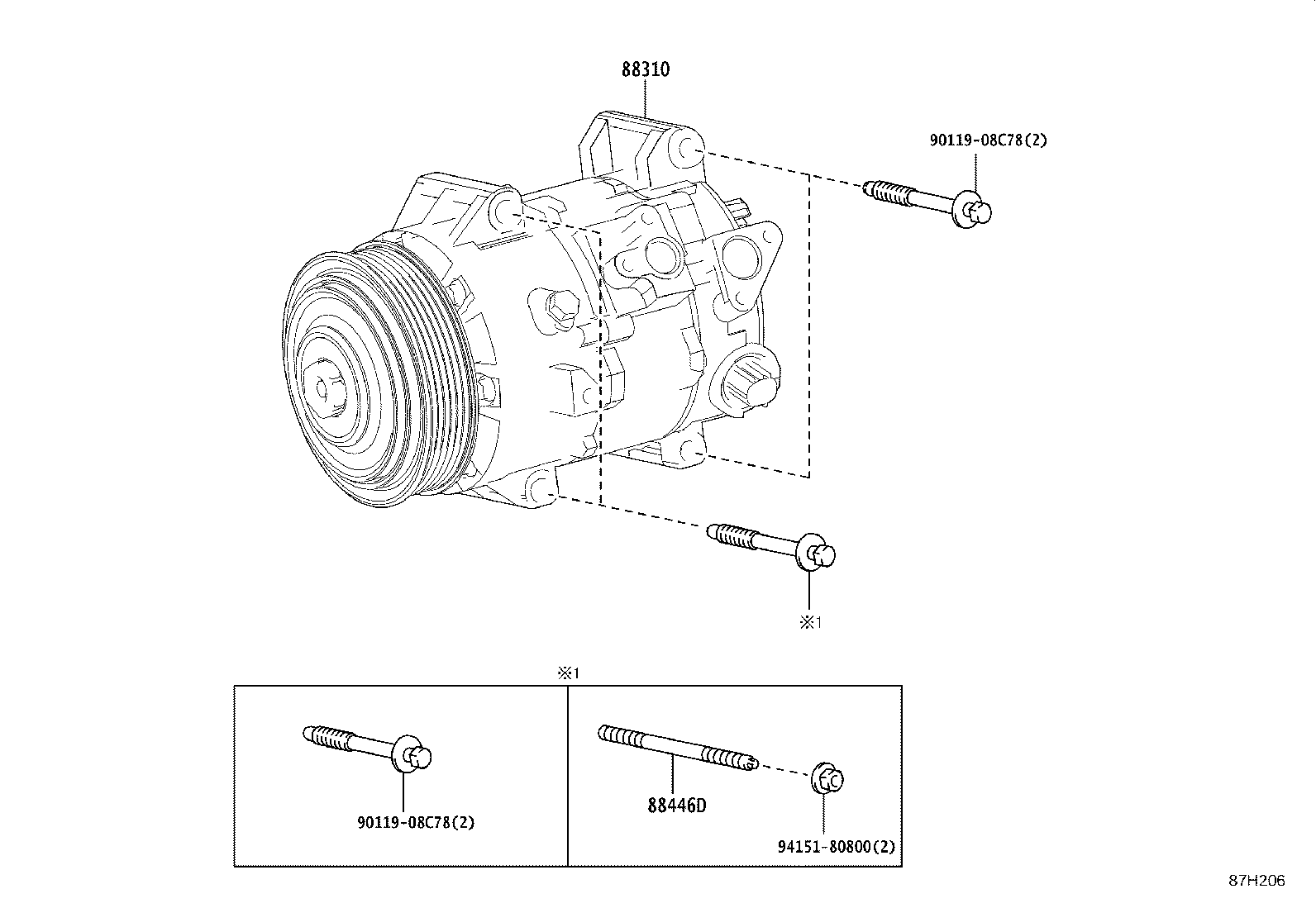

| 88310 | Compressor Assy, W/Pulley |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88446D | Bolt, Cooler |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
