Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

3 part groups · 2 illustrations

Illustrations

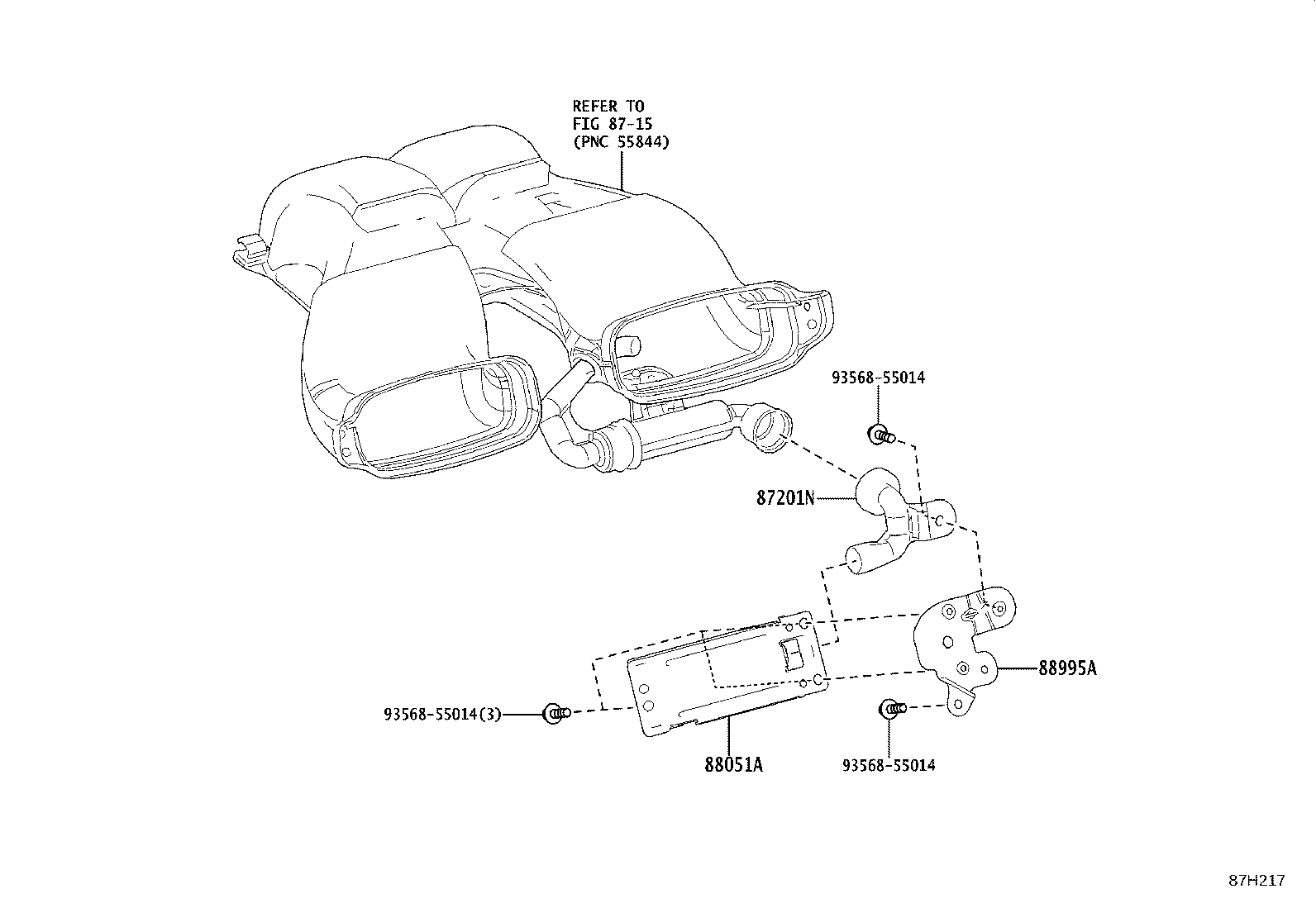

Figure 87H221 87H221 2018-06 → — Figure 87H217 87H217 2018-06 → —

Part groups

PNCDescription
87201N Duct Sub-assy, Air
88051A Generator Sub-assy,Ion
88995A Bracket,Ion Generator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
