Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

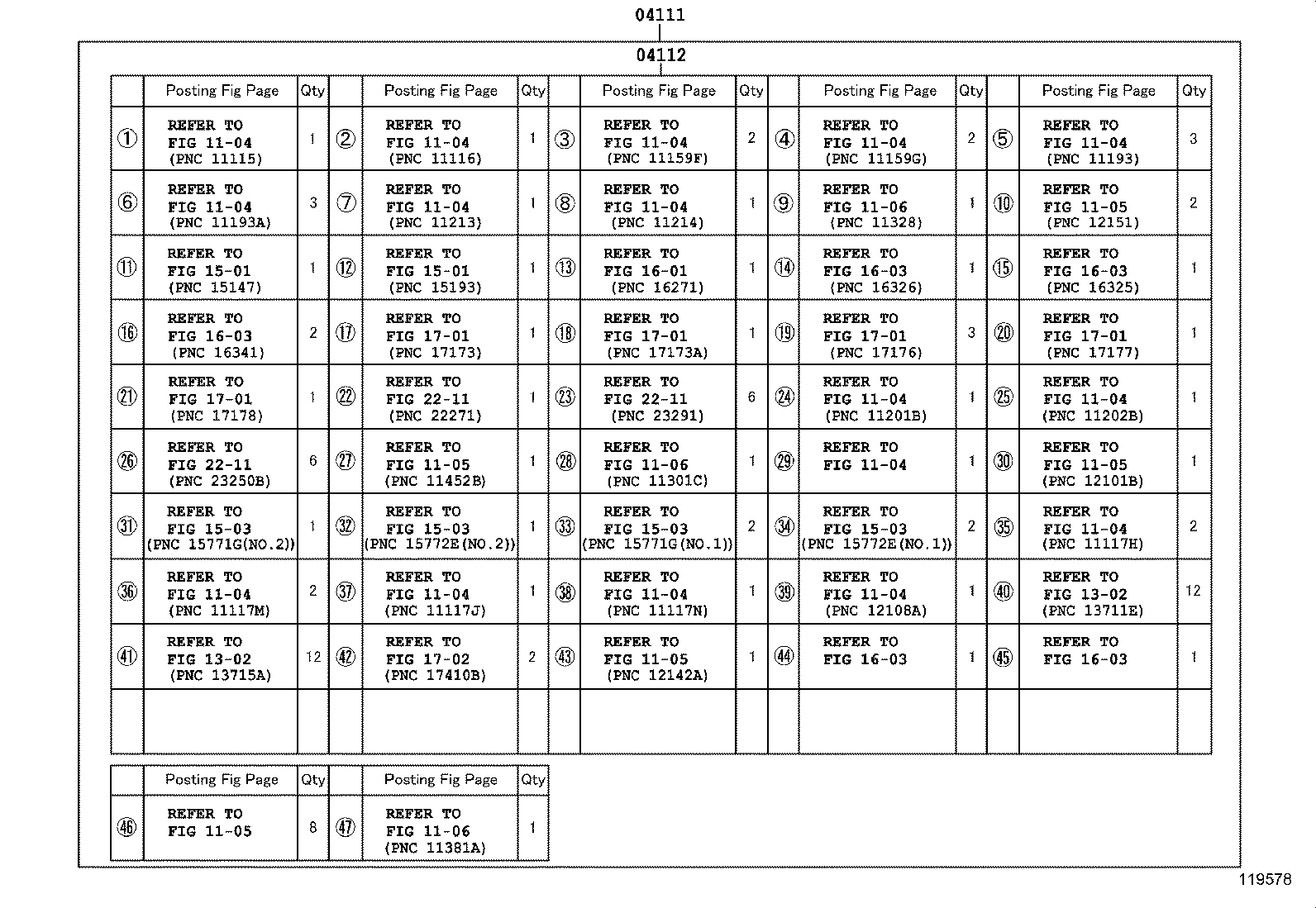

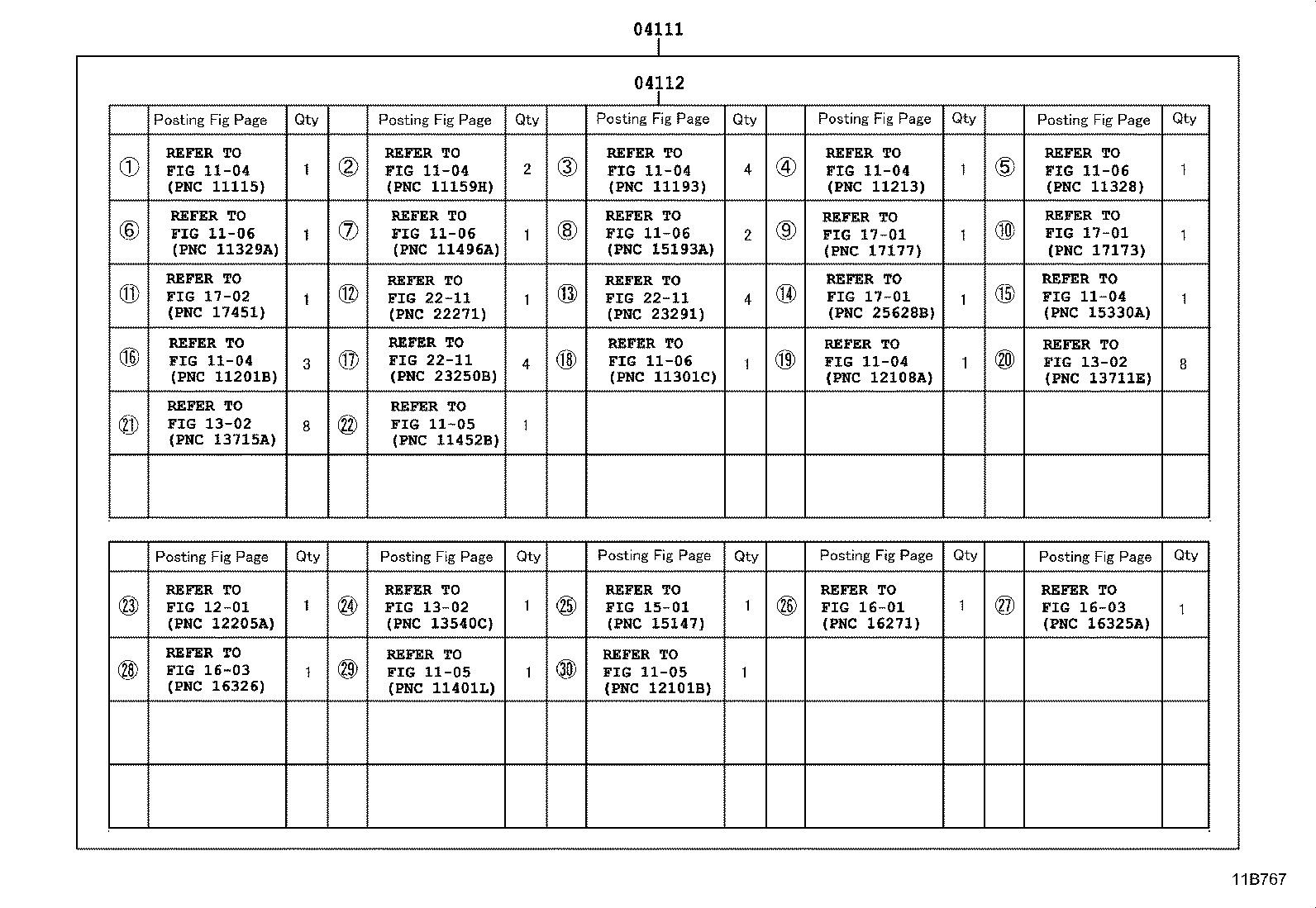

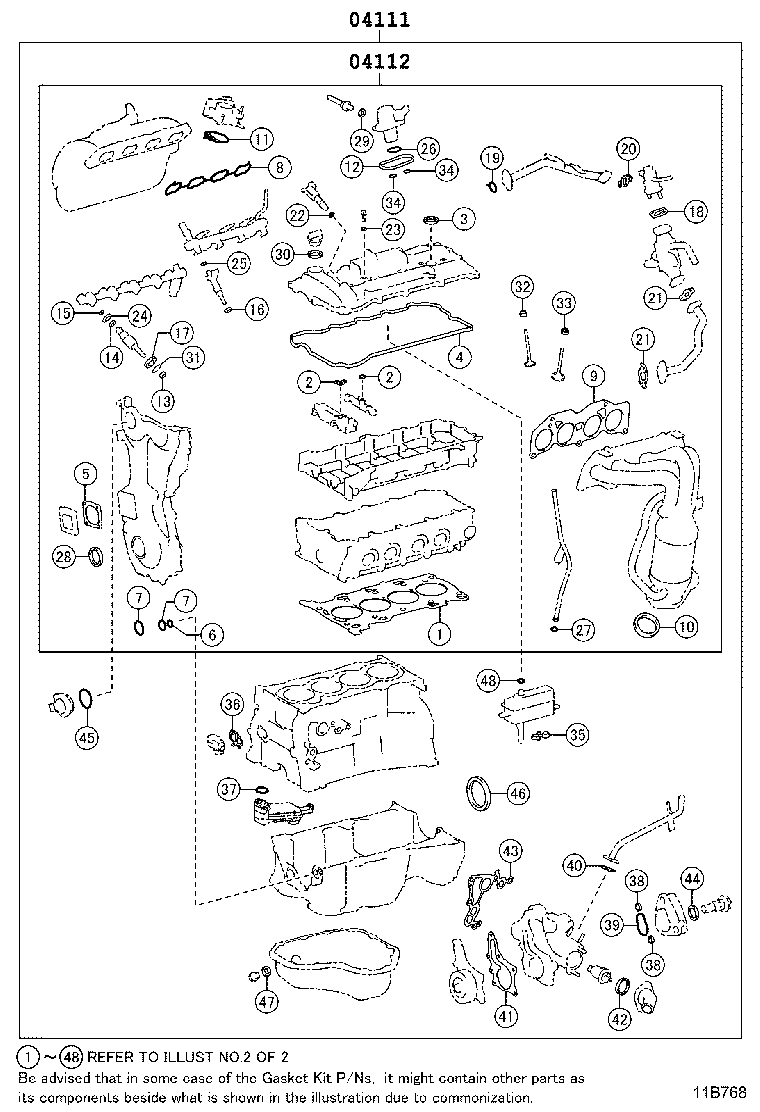

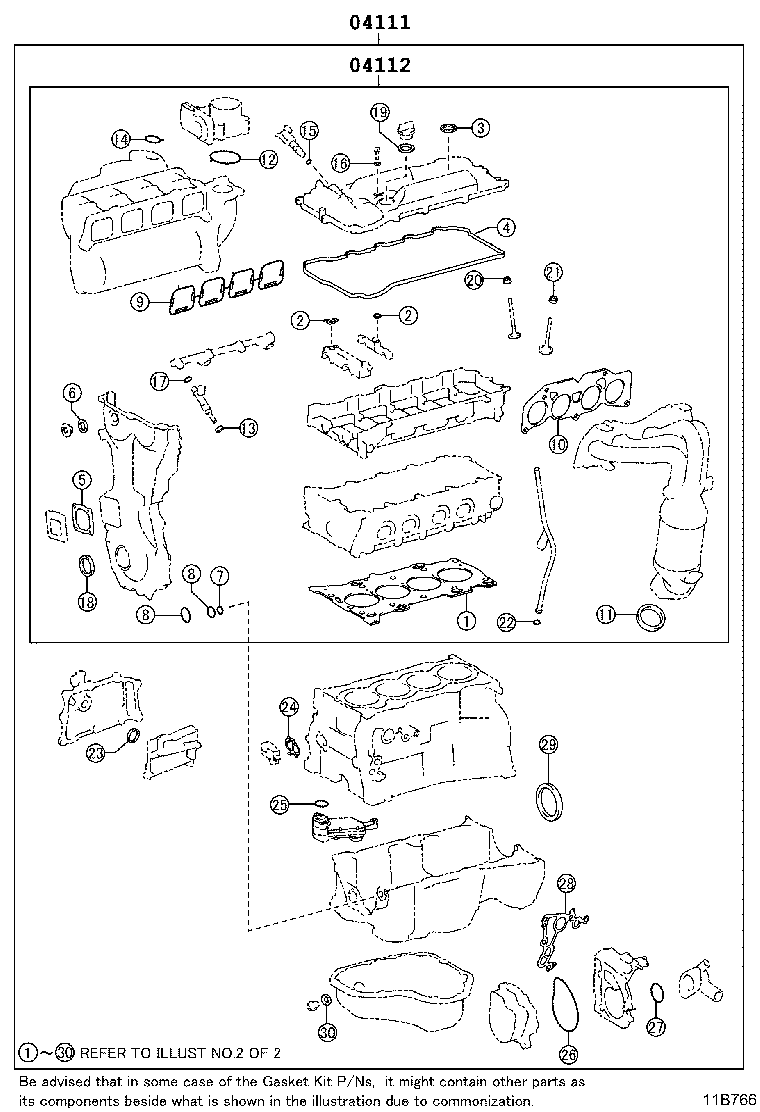

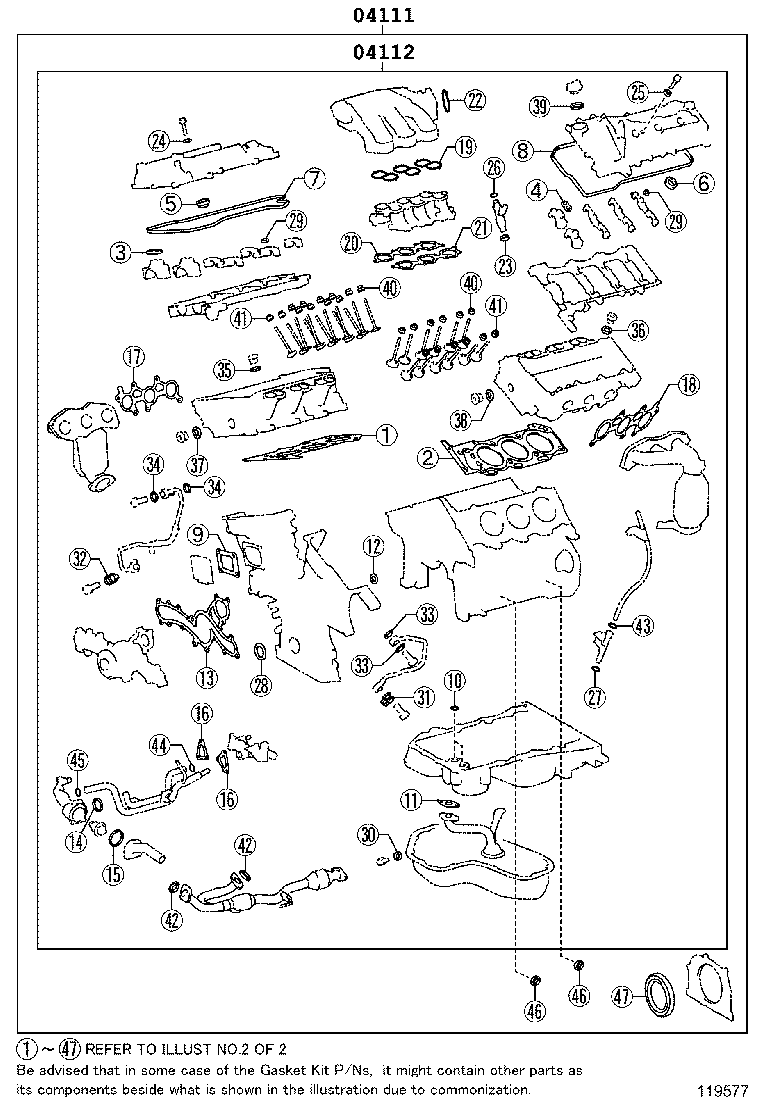

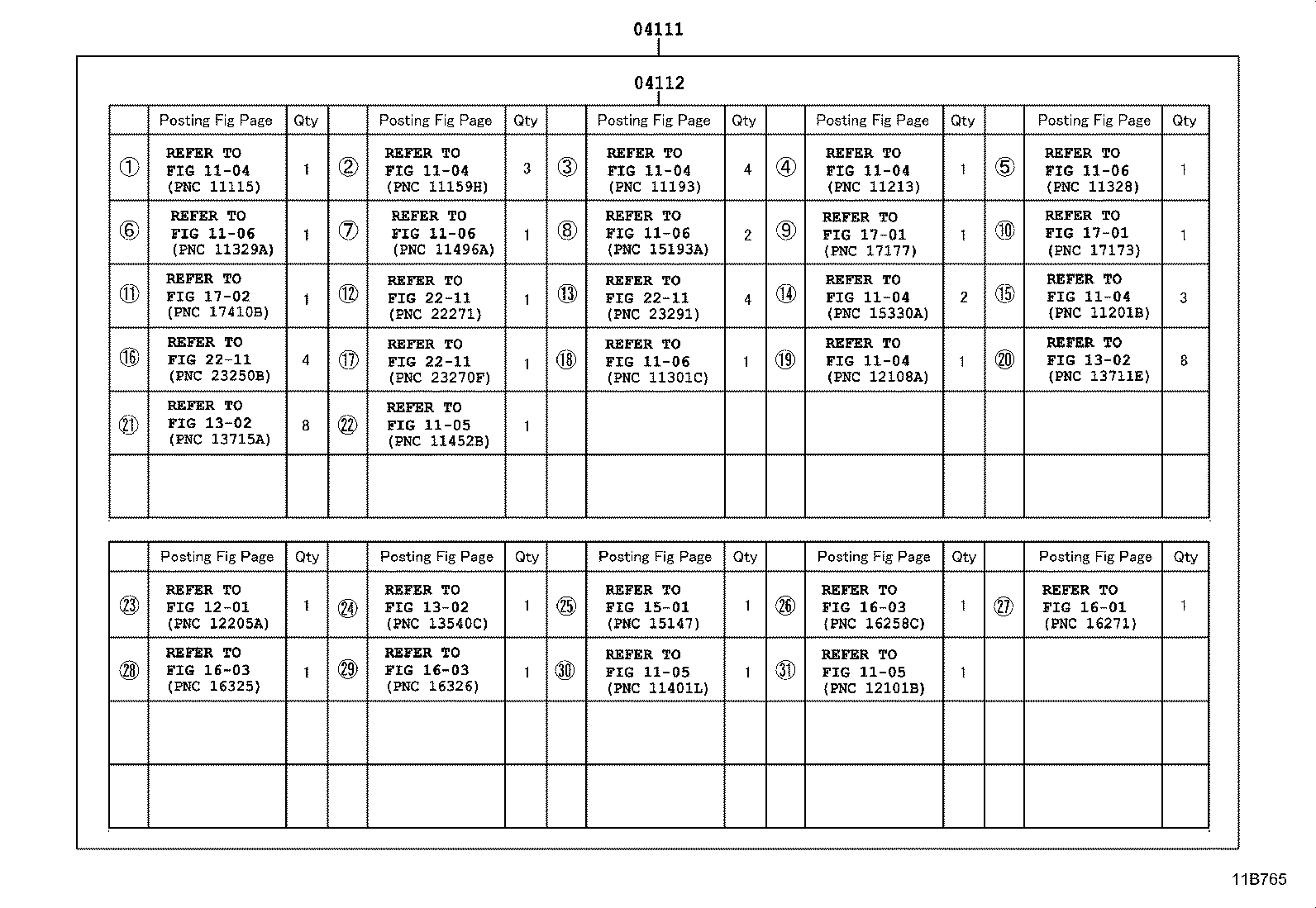

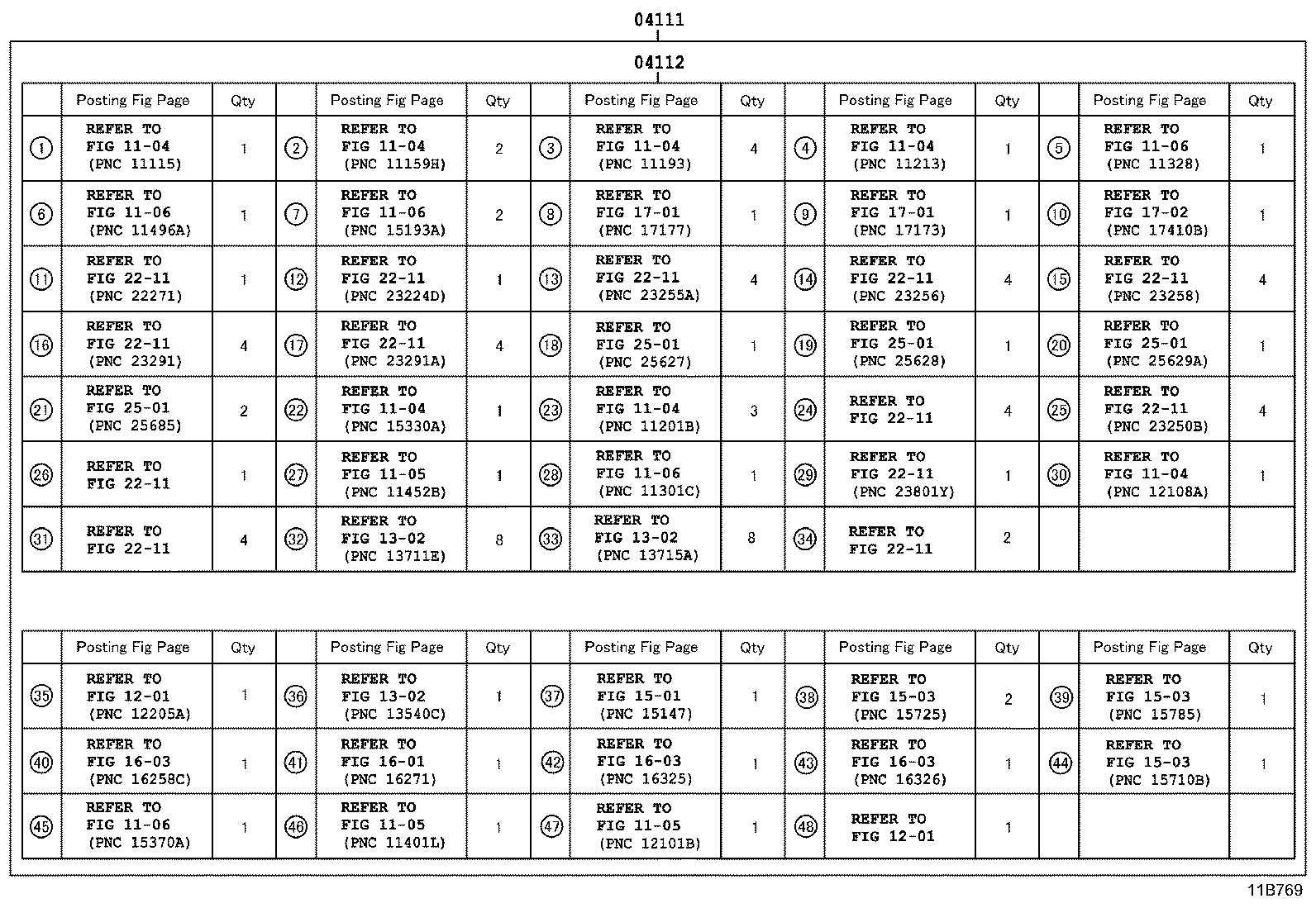

Figure 11B764 11B764 2012-06 → — Figure 11B765 11B765 2012-06 → — Figure 11B766 11B766 2012-06 → — Figure 11B767 11B767 2012-06 → — Figure 11B768 11B768 2015-07 → — Figure 11B769 11B769 2015-07 → — Figure 119577 119577 2012-06 → — Figure 119578 119578 2012-06 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
