Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 2 illustrations

Illustrations

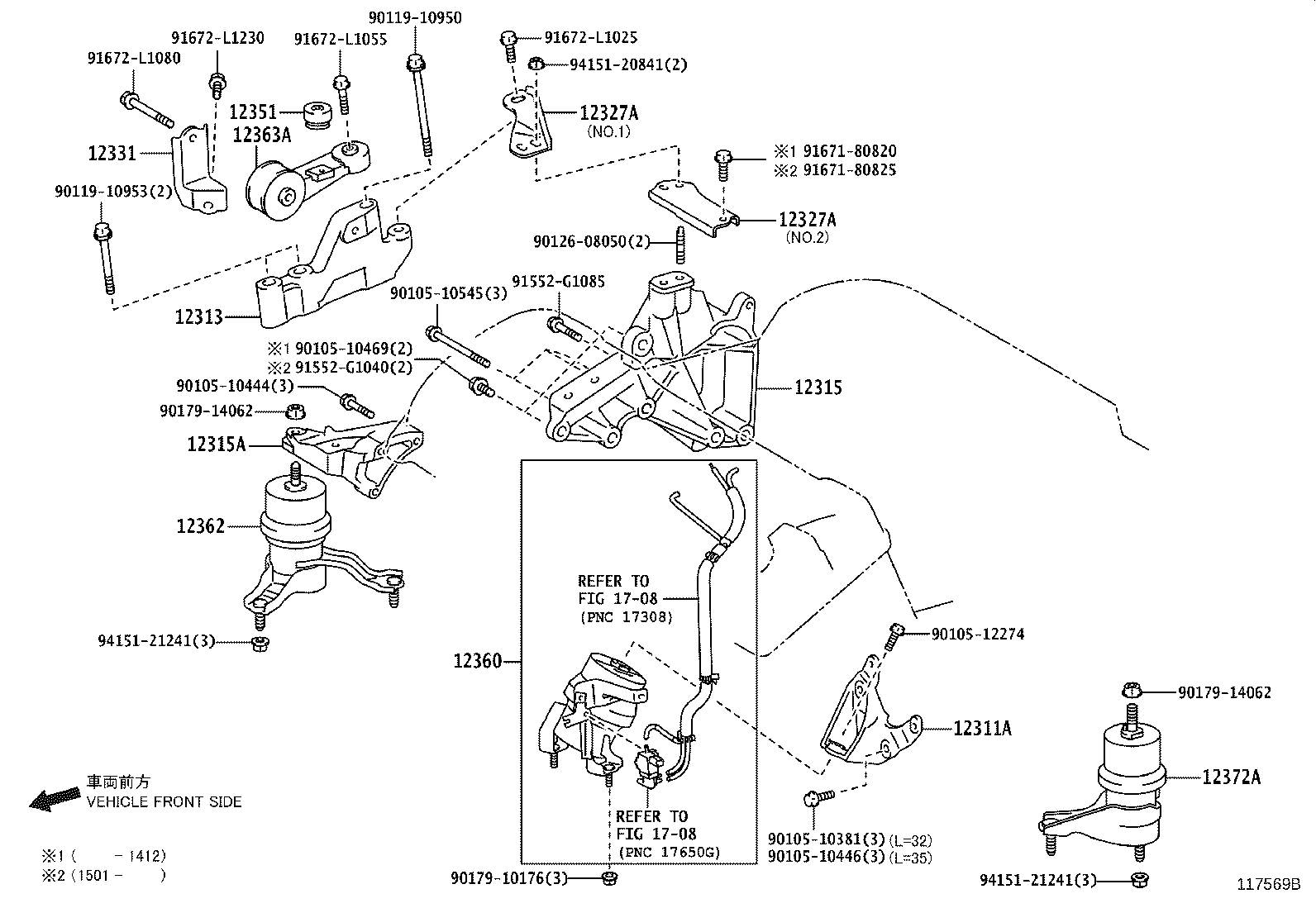

Figure 117560C 117560C 2012-06 → — Figure 117569B 117569B 2012-06 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311D Bracket, Engine Mounting
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12327A Stay, Engine Mounting, NO.2 RH
12331 Stay, Engine Mounting, NO.3 RH
12351 Damper, Engine Mounting
12360 Insulator Assy, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
