Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

25 part groups · 3 illustrations

Illustrations

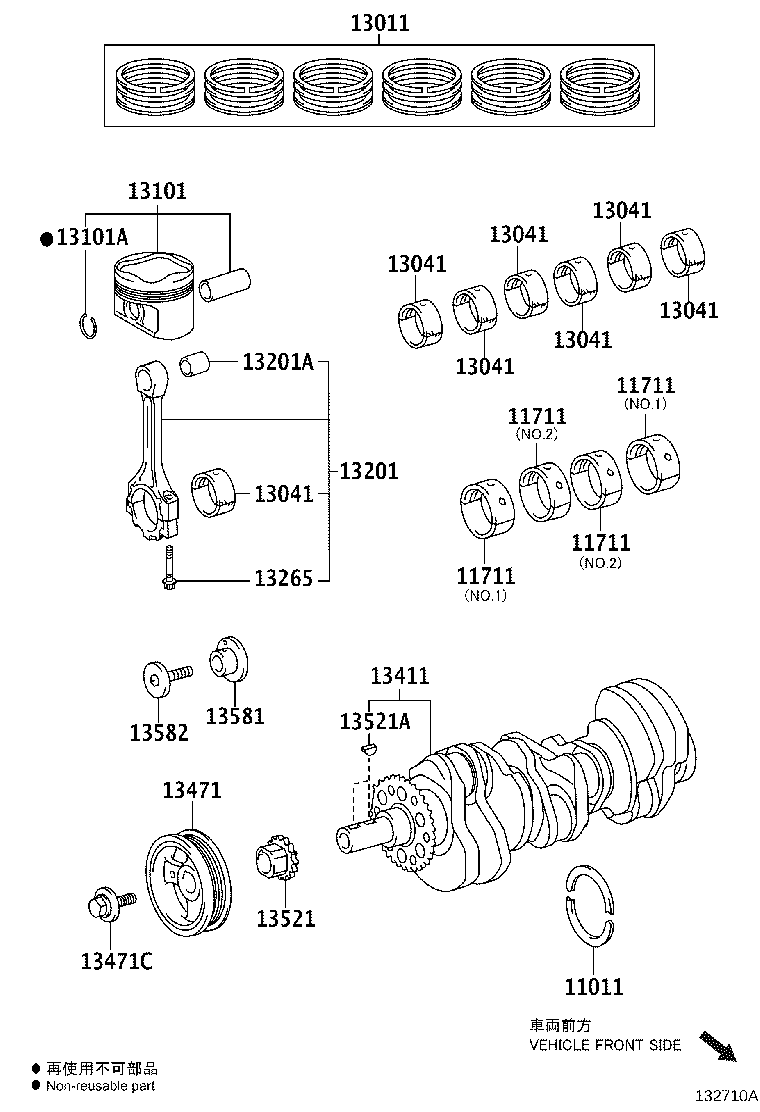

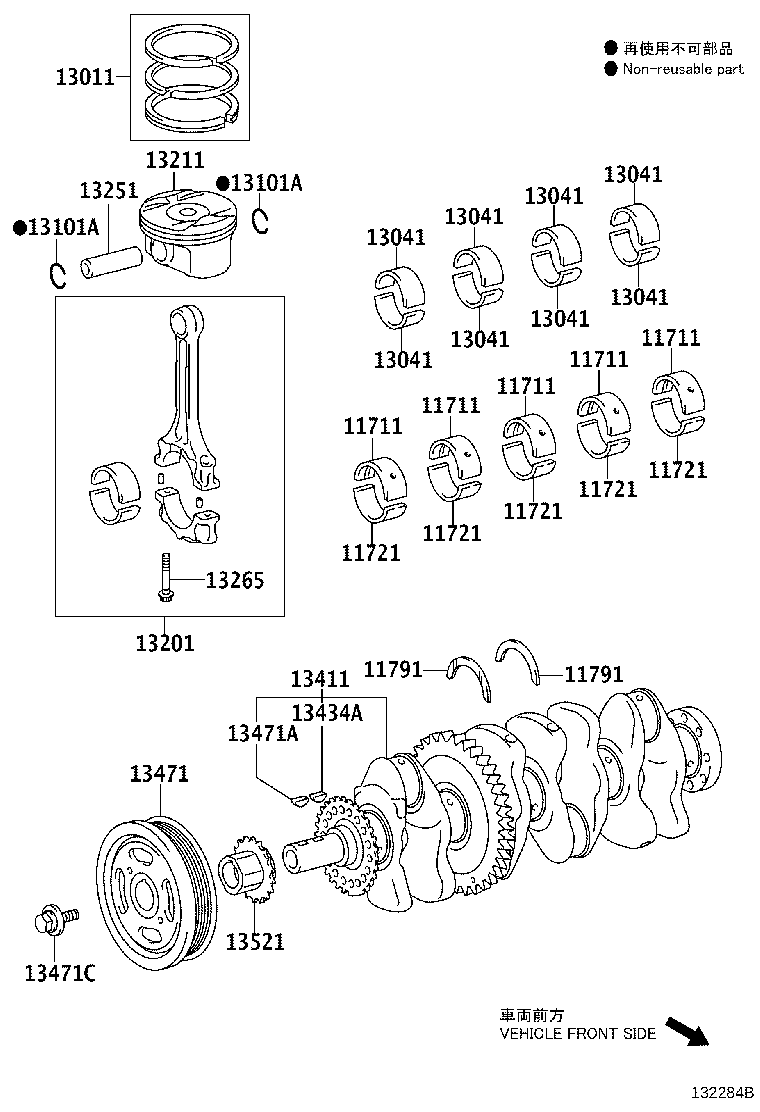

Figure 131900C 131900C 2012-06 → — Figure 132284B 132284B 2015-07 → — Figure 132710A 132710A 2012-06 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11711 Bearing, Crankshaft
11721 Bearing, Crankshaft, NO.2
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13211 Piston
13251 Pin, Piston
13265 Bolt, Connecting Rod
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13411 Crankshaft
13434A Key(FOR OIL PUMP DRIVE SPLINE)
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13581 Shaft, Idle Gear, NO.1
13582 Shaft, Idle Gear, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
