Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 5 illustrations

Illustrations

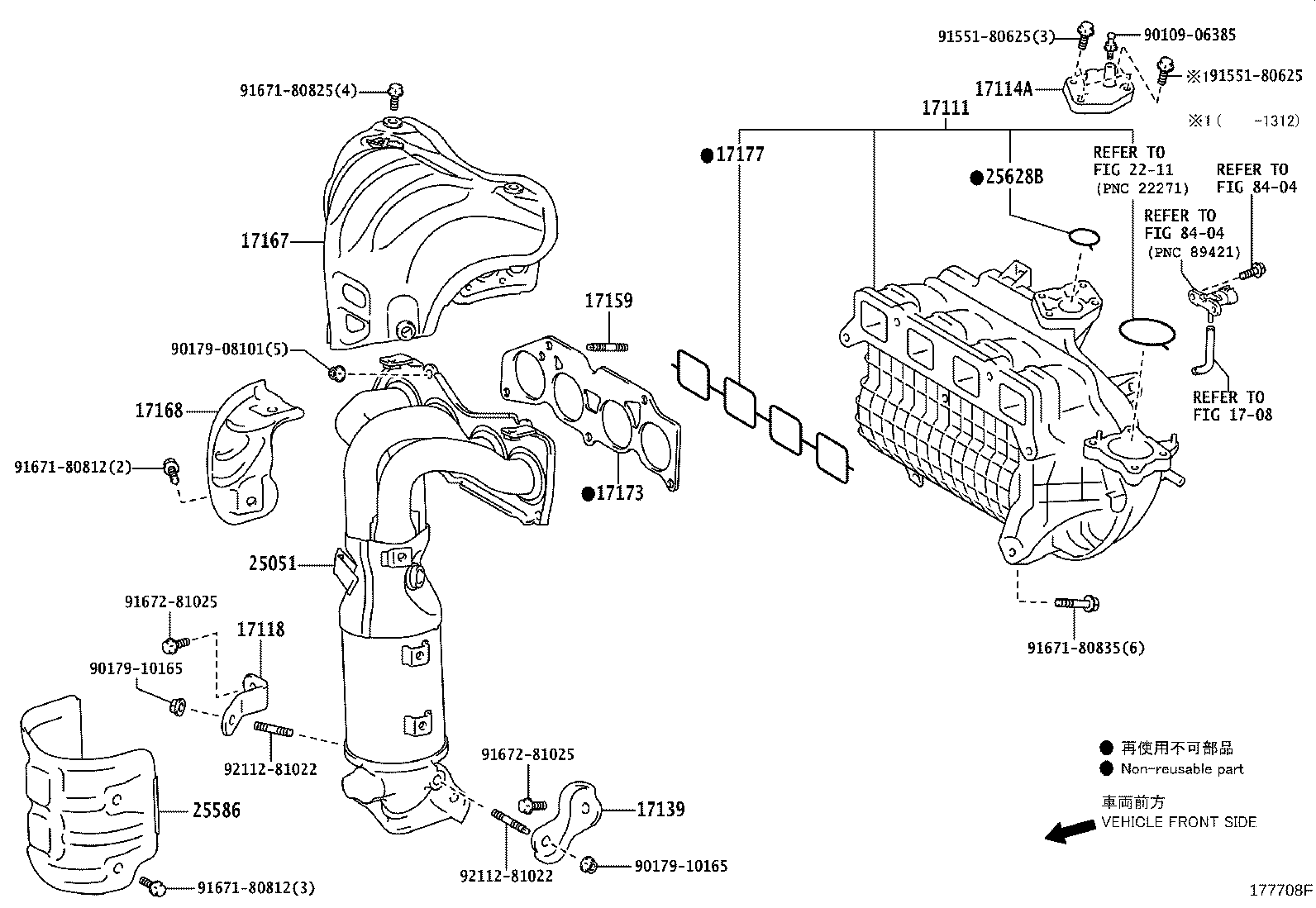

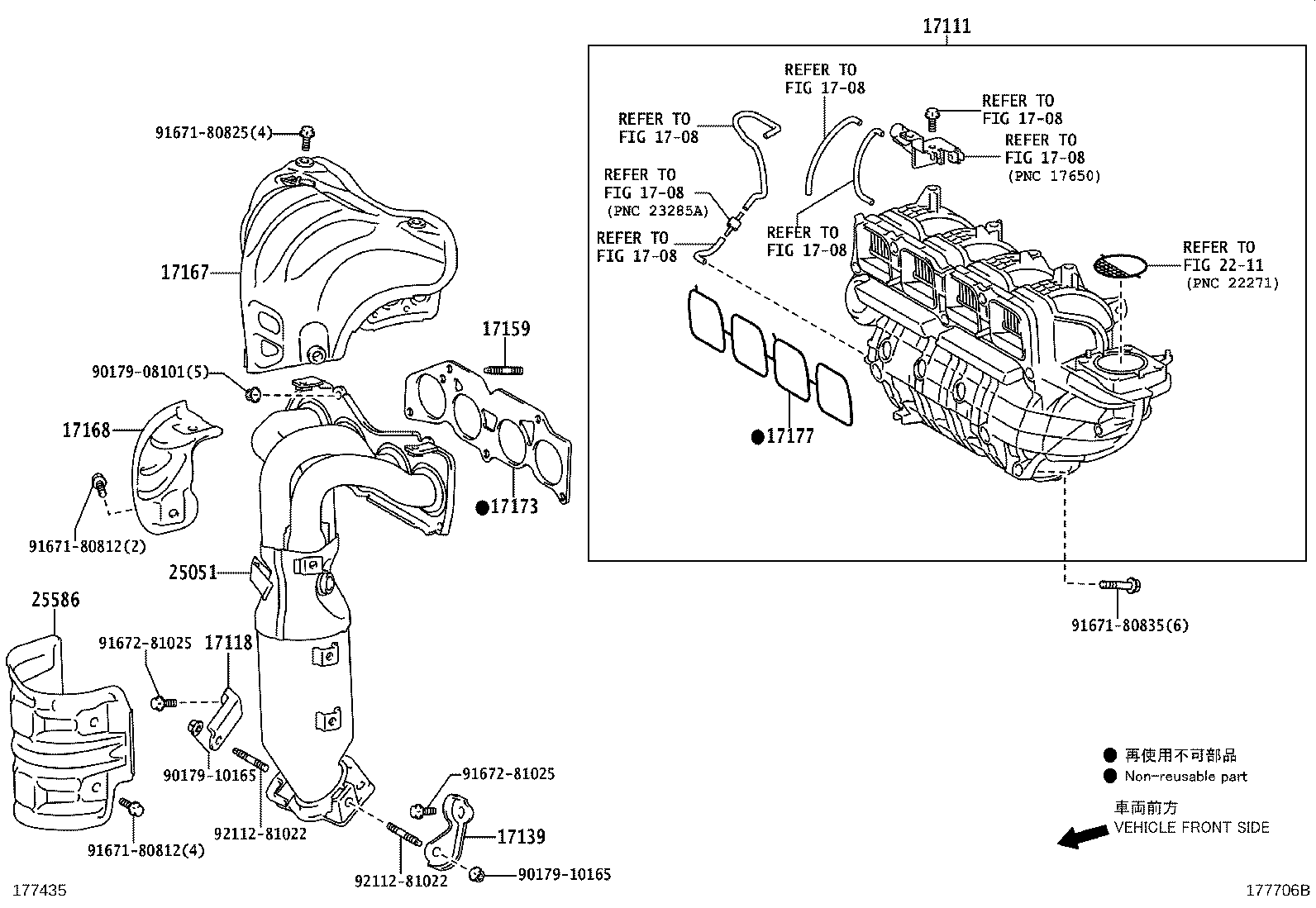

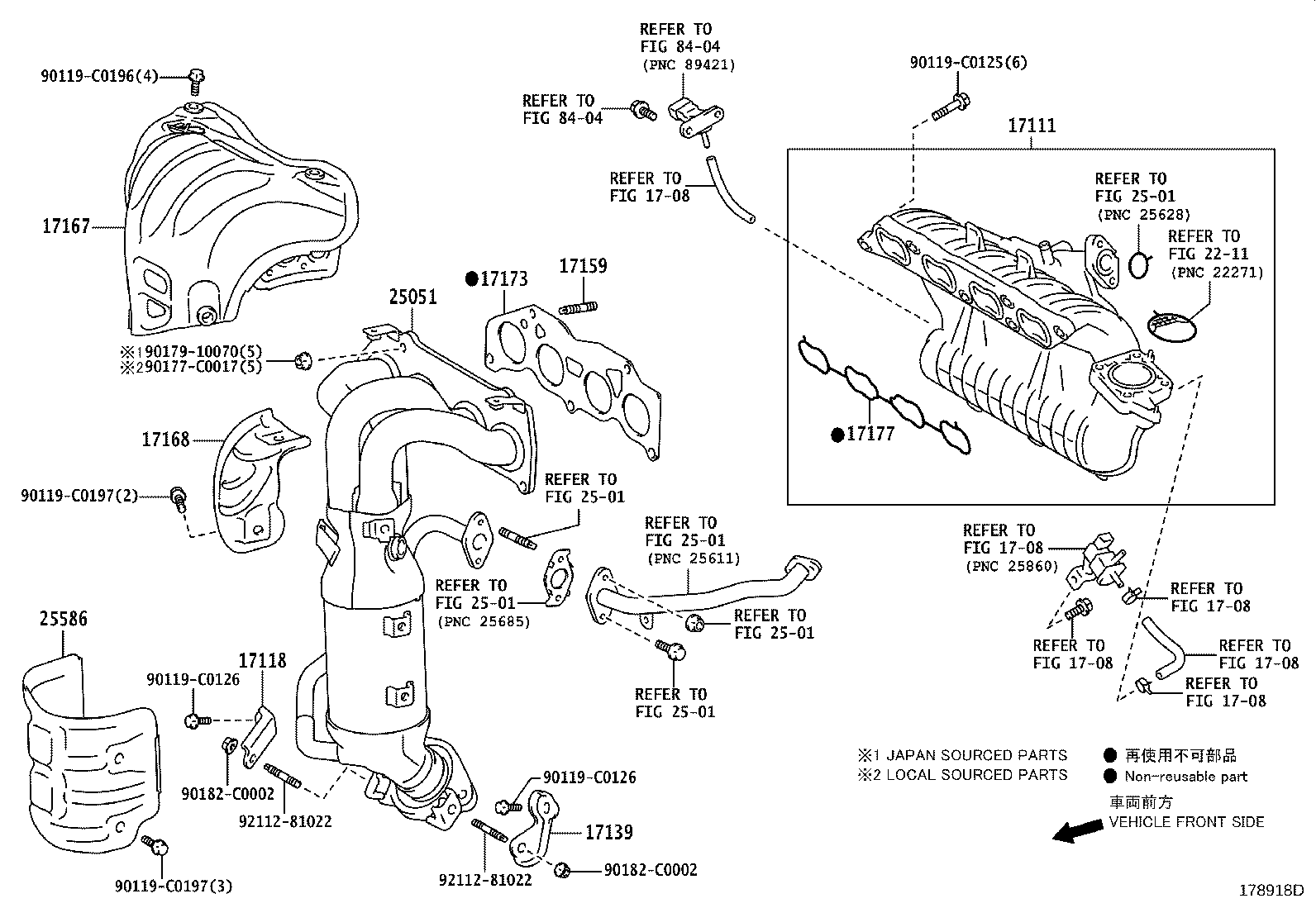

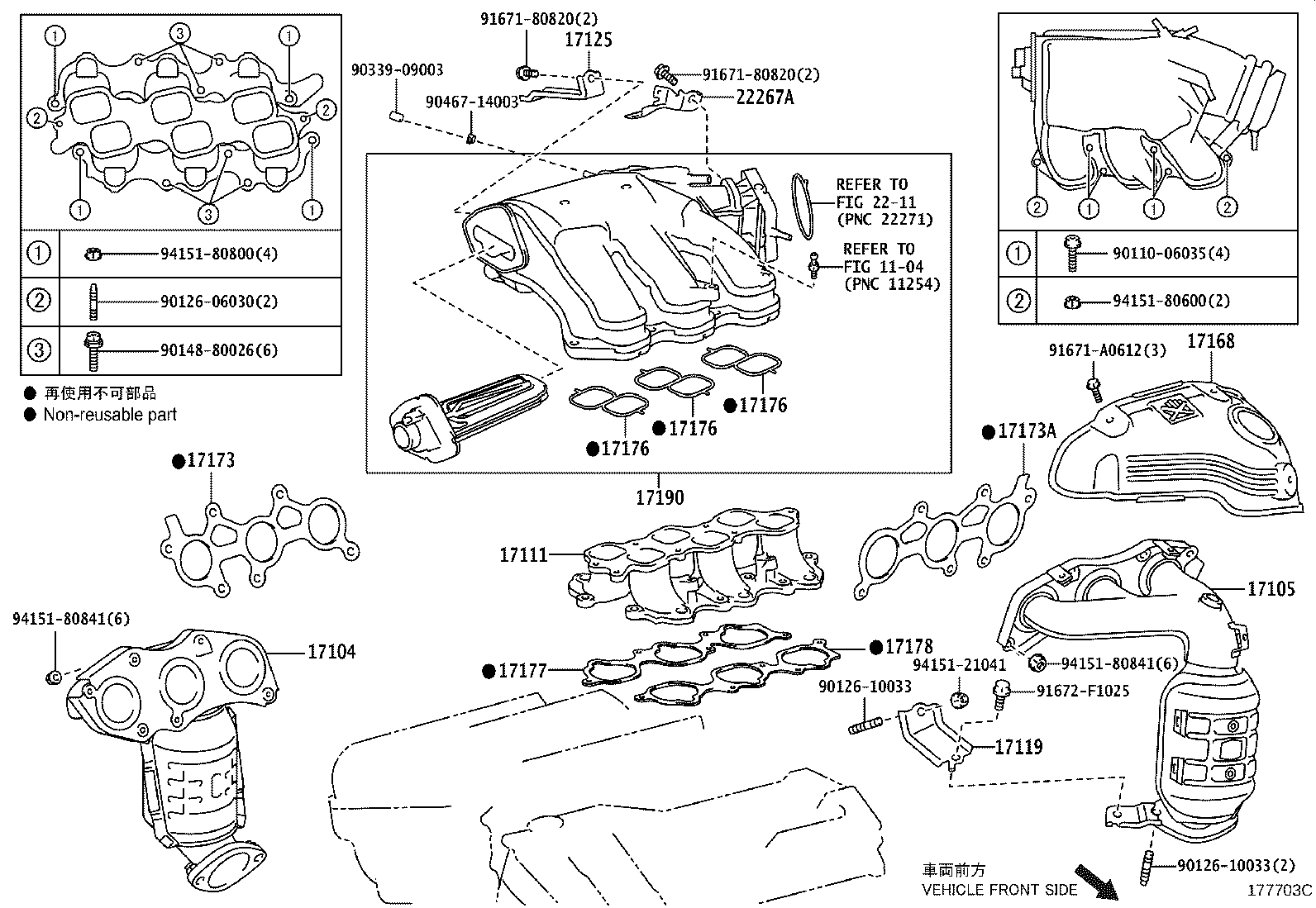

Figure 177707B 177707B 2012-06 → — Figure 177706B 177706B 2012-06 → — Figure 177708F 177708F 2012-06 → — Figure 178918D 178918D 2015-07 → — Figure 177703C 177703C 2012-06 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17114A Flange, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17139 Stay, Manifold, NO.2
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17190 Tank Assy, Intake Air Surge
17335 Actuator, Intake Air Control Valve
22267A Bracket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
