Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 5 illustrations

Illustrations

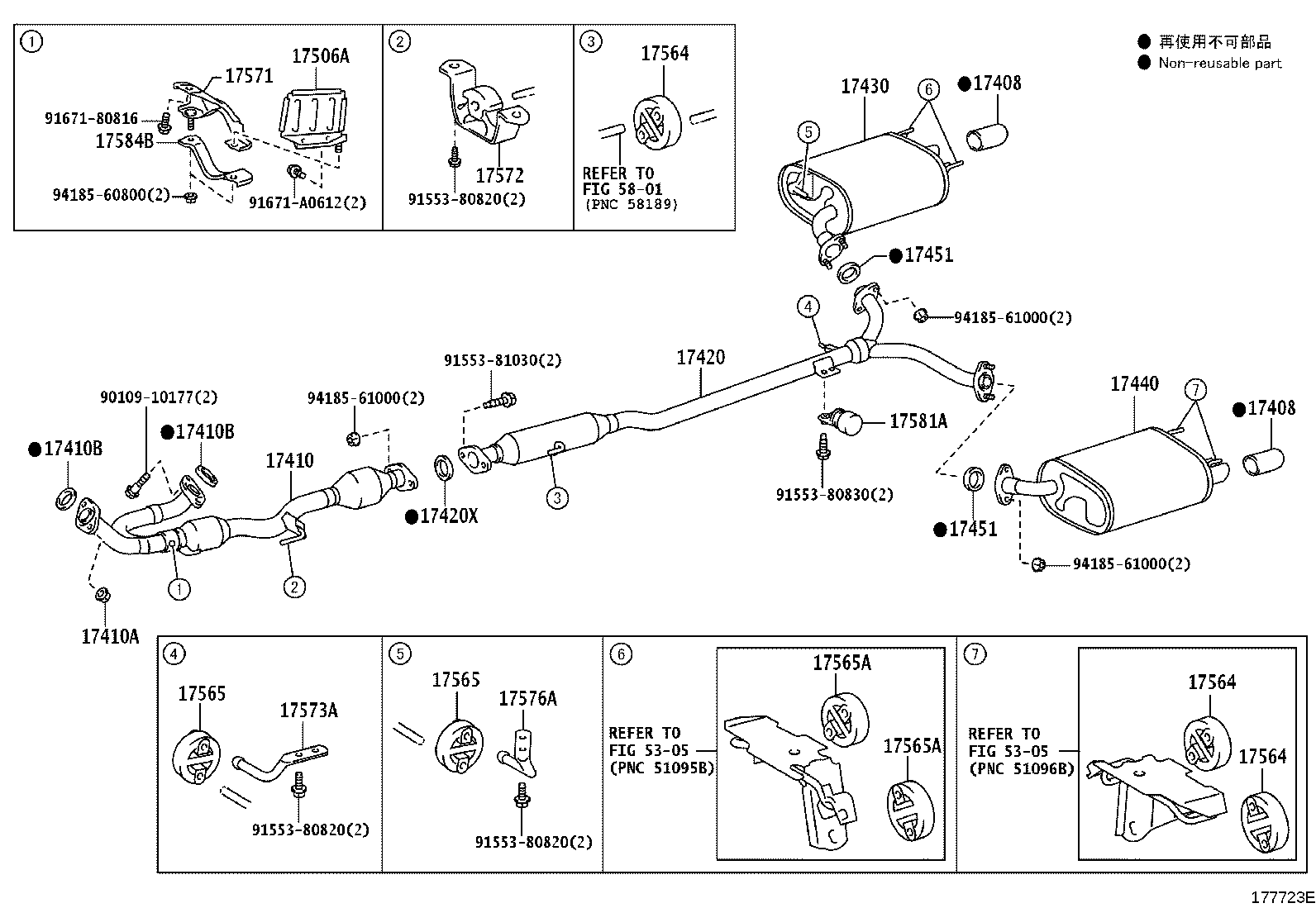

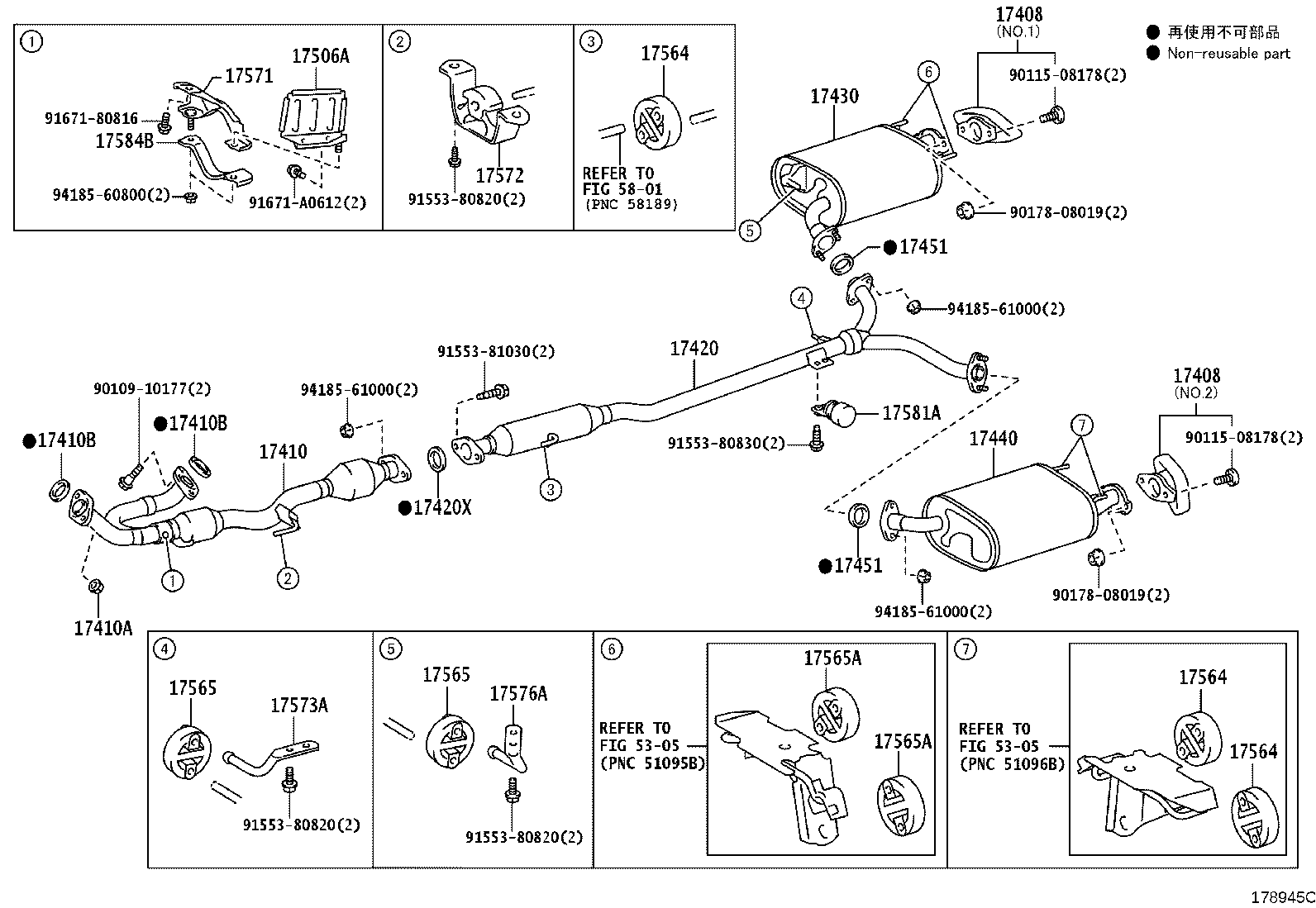

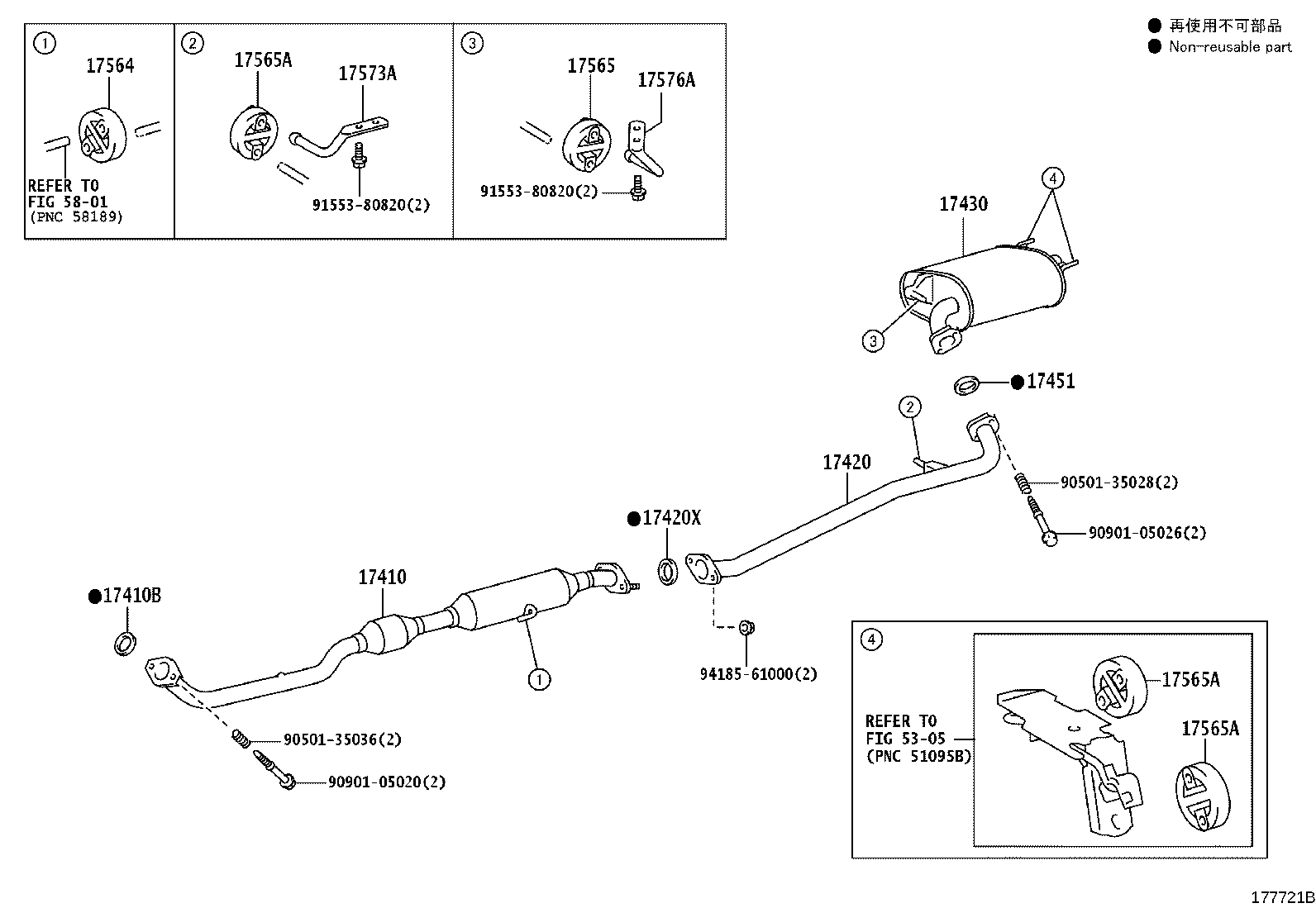

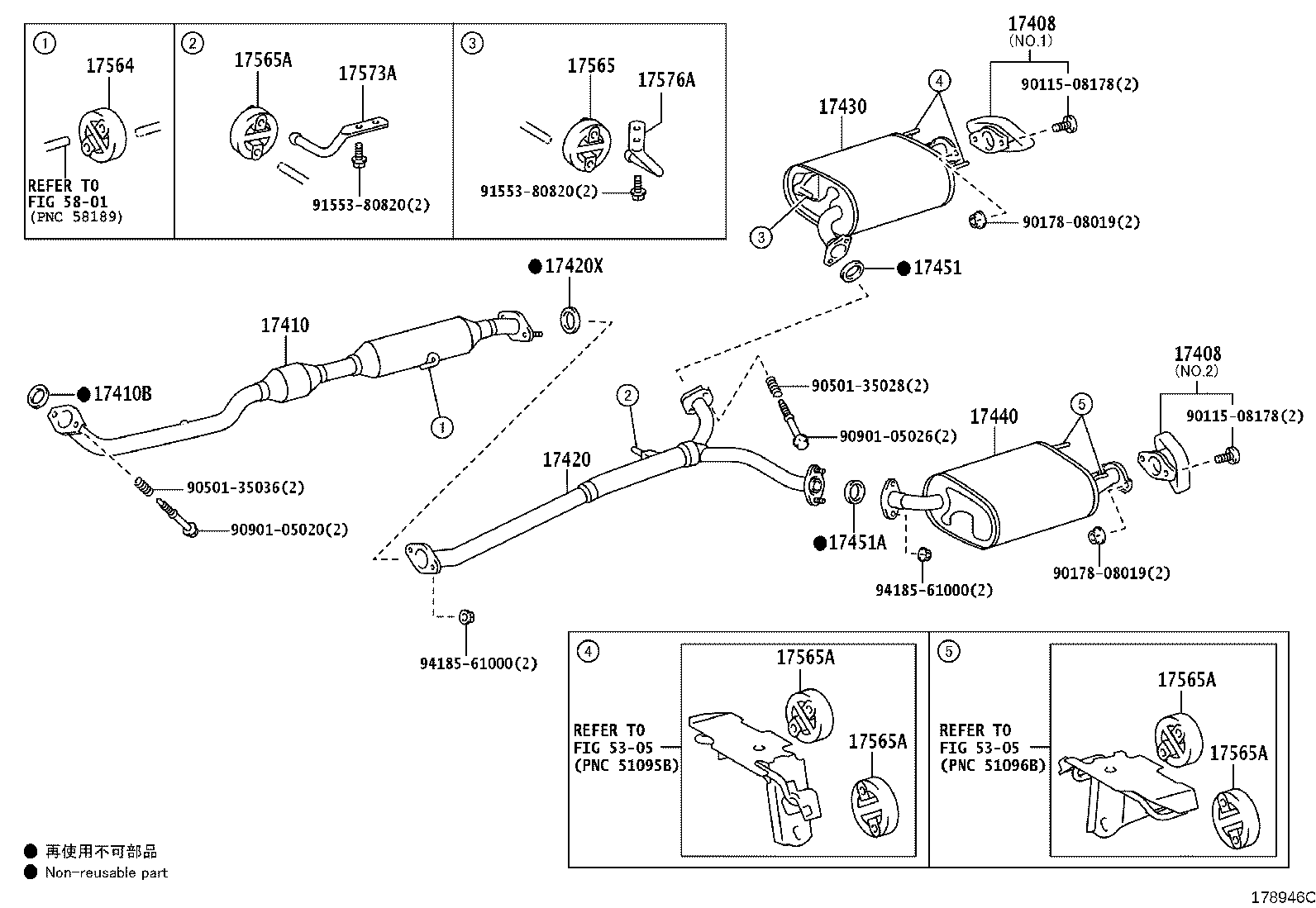

Figure 177724D 177724D 2012-06 → 2015-07 Figure 177723E 177723E 2012-06 → 2015-07 Figure 177721B 177721B 2012-06 → — Figure 178946C 178946C 2015-07 → — Figure 178945C 178945C 2015-07 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573A Bracket, Exhaust Pipe Support, NO.3
17576A Bracket, Exhaust Pipe Support, NO.6
17581A Damper, Exhaust Pipe
17584B Bracket, Exhaust Pipe NO.1 Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
