Planetary Gear, Reverse Piston & Counter Gear(ATM)

15 part groups · 2 illustrations

Illustrations

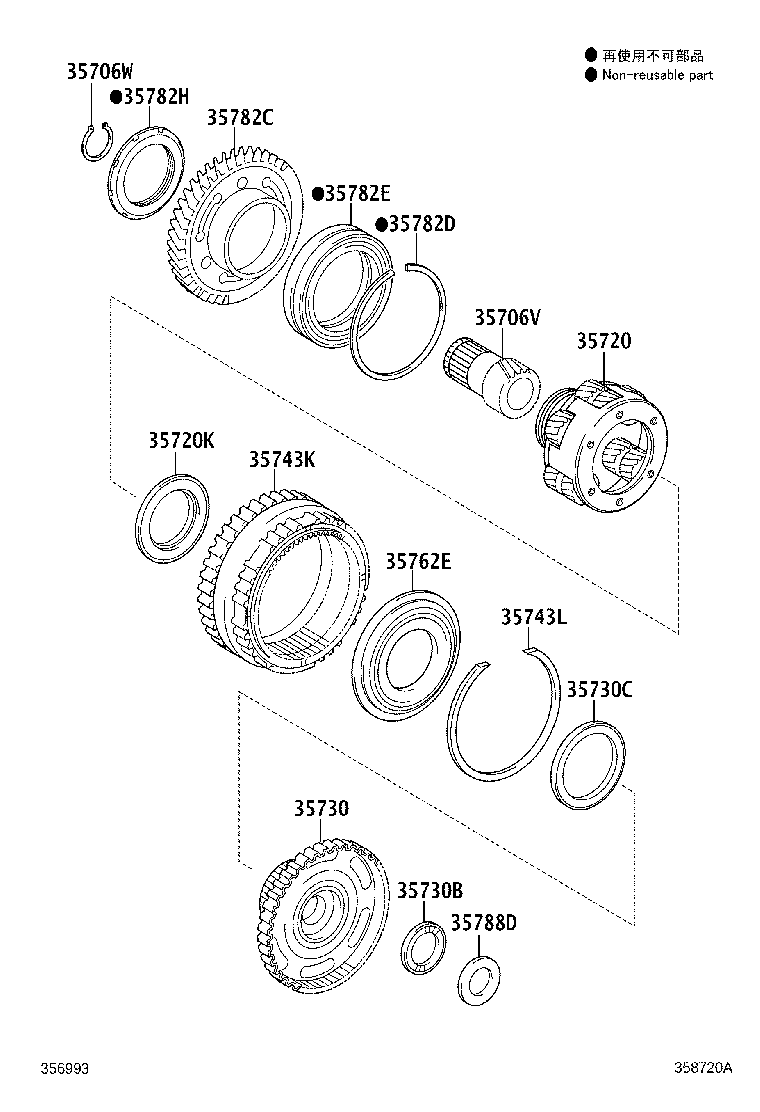

Figure 358721B 358721B 2012-06 → — Figure 358720A 358720A 2012-06 → —

Part groups

PNCDescription
35706V Gear Sub Assy, Planetary Sun
35706W Ring, Snap (FOR PLANETARY SUN GEAR)
35720 Gear Assy, Front Planetary
35720K Bearing, Thrust Needle Roller(FOR PLANETARY GEAR REAR)
35730 Gear Assy, Rear Planetary Sun
35730B Bearing, Thrust Needle Roller (FOR REAR PLANERARY SUN GEAR)
35730C Bearing, Thrust Needle(FOR REAR PLANETARY SUN GEAR, NO.2)
35743K Gear, Planetary Ring
35743L Ring, Snap (FOR PLANETARY RING GEAR)
35762E Flange, Planetary Ring Gear
35782C Gear, Counter Drive
35782D Ring, Hole Snap(FOR COUNTER DRIVE GEAR)
35782E Bearing(FOR COUNTER DRIVE GEAR)
35782H Nut(FOR COUNTER DRIVE GEAR)
35788D Race, Thrust Bearing, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
