Toyota Lexus ES2##/350/300H
2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe
Supported model
Data version 2018-12

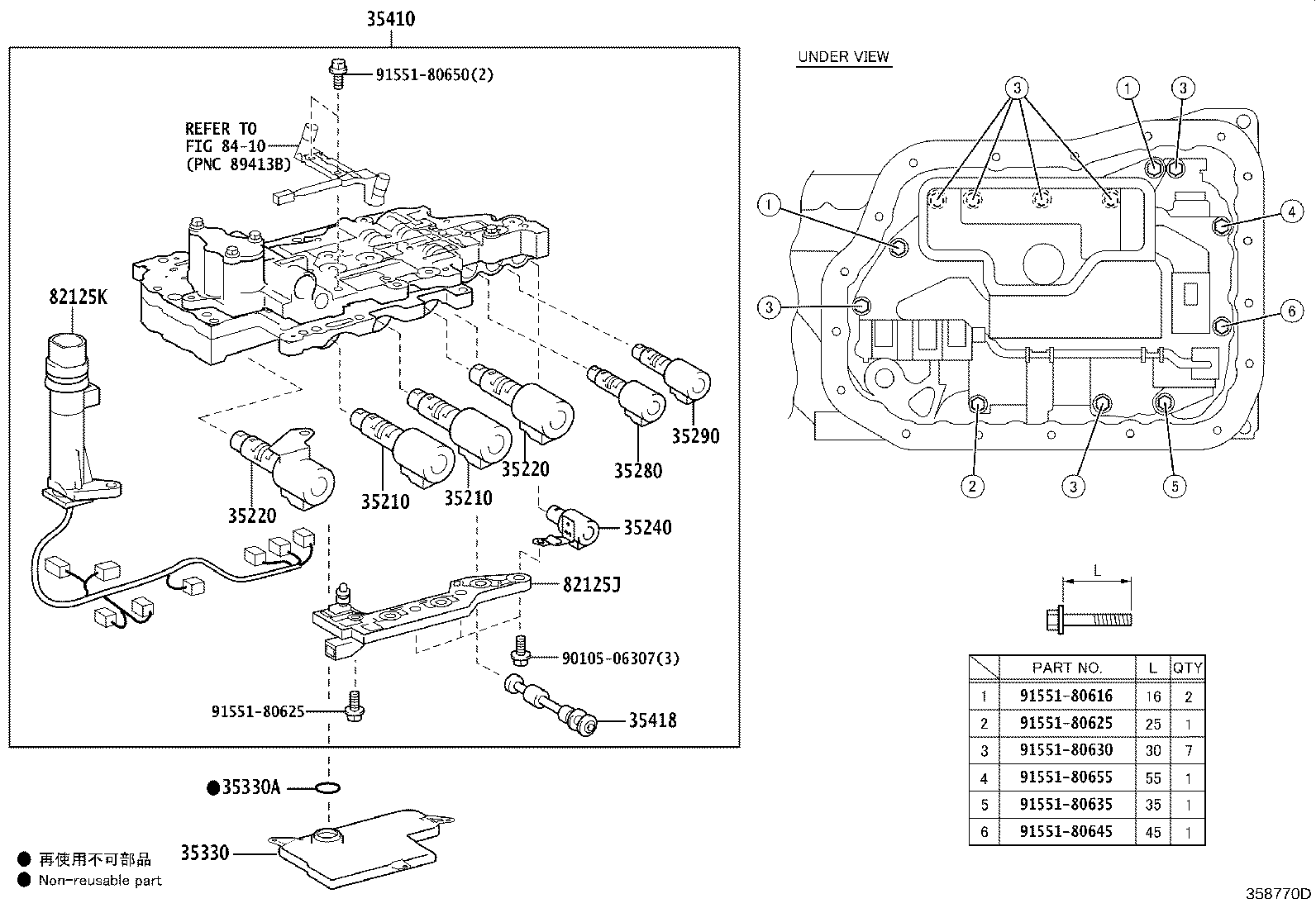

Valve Body & Oil Strainer (ATM)
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35196 | Clamp, Transaxle Apply Tube, NO.2 |
| 35210 | Solenoid Assy, Clutch Control, NO.1 |
| 35220 | Solenoid Assy, Clutch Control, NO.2 |
| 35220A | Valve, Solenoid(SL2) |
| 35220B | Valve, Solenoid(SL4) |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35280 | Solenoid Assy, Lock UP Control |
| 35285 | Plate, Solenoid Lock |
| 35290 | Solenoid Assy, Line Pressure Control |
| 35295 | Plate, Solenoid Lock, NO.2 |
| 35296 | Plate, Solenoid Lock, NO.3 |
| 35297 | Plate, Solenoid Lock, NO.4 |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |
| 35418 | Valve, Manual |
| 35482B | Clamp, Temperature Sensor |
| 35599 | Cover, Manual Detent Spring |
| 35882A | Tube, Differential Gear Lube Apply |
| 82125J | Wire, Transmission |
| 82125K | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
