Toyota Lexus ES2##/350/300H
2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe
Supported model
Data version 2018-12

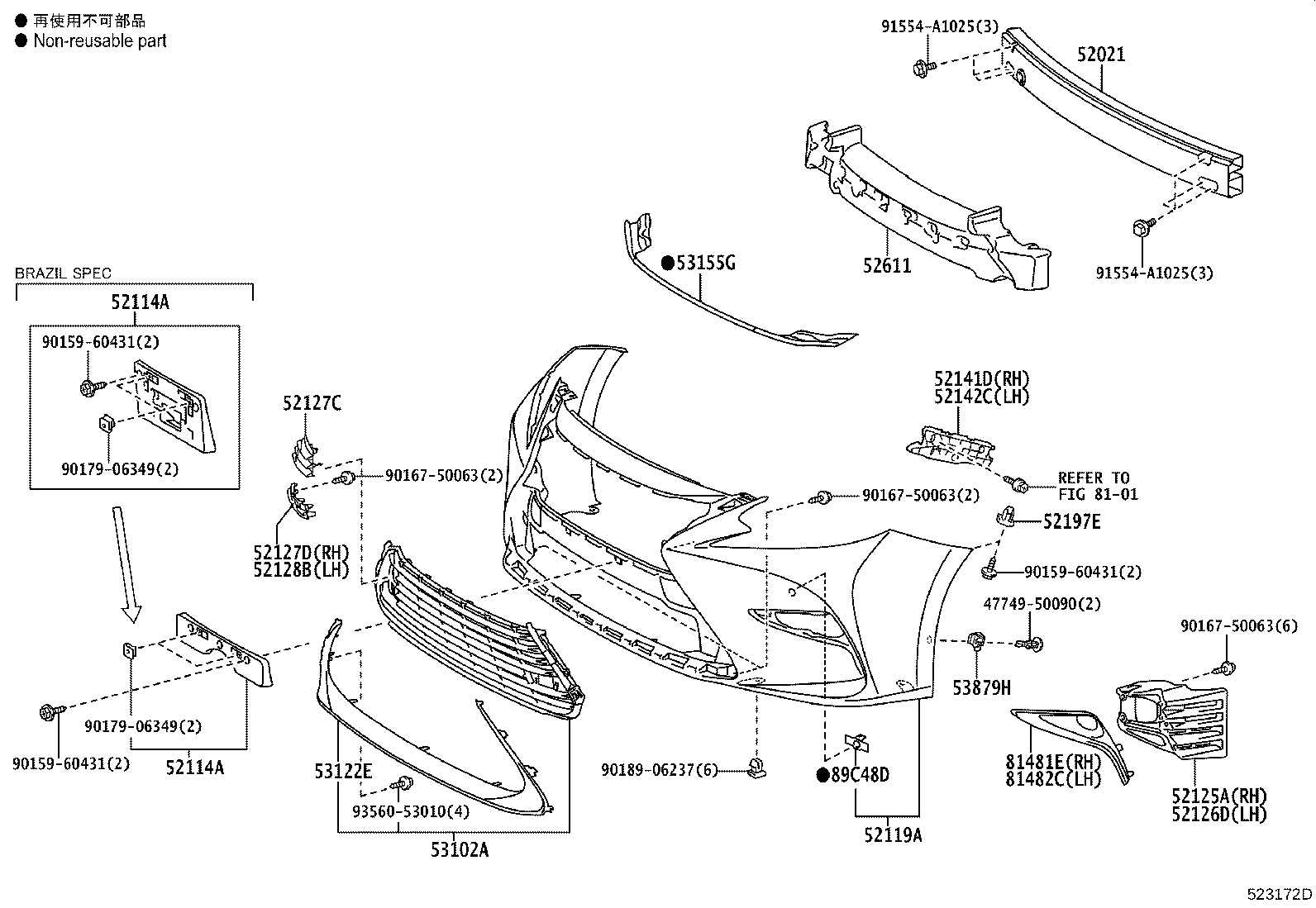

Front Bumper & Bumper Stay
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52161C | Piece, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52197E | Bracket, Front Bumper Seal |
| 52611 | Absorber, Front Bumper Energy |
| 52711 | Moulding, Front Bumper |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53122E | Moulding, Radiator Grille, Lower |
| 53155G | Seal, Radiator Grille |
| 53879H | Retainer, Front Fender Liner |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89346B | Adjuster, Ultrasonic Sensor |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
