Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

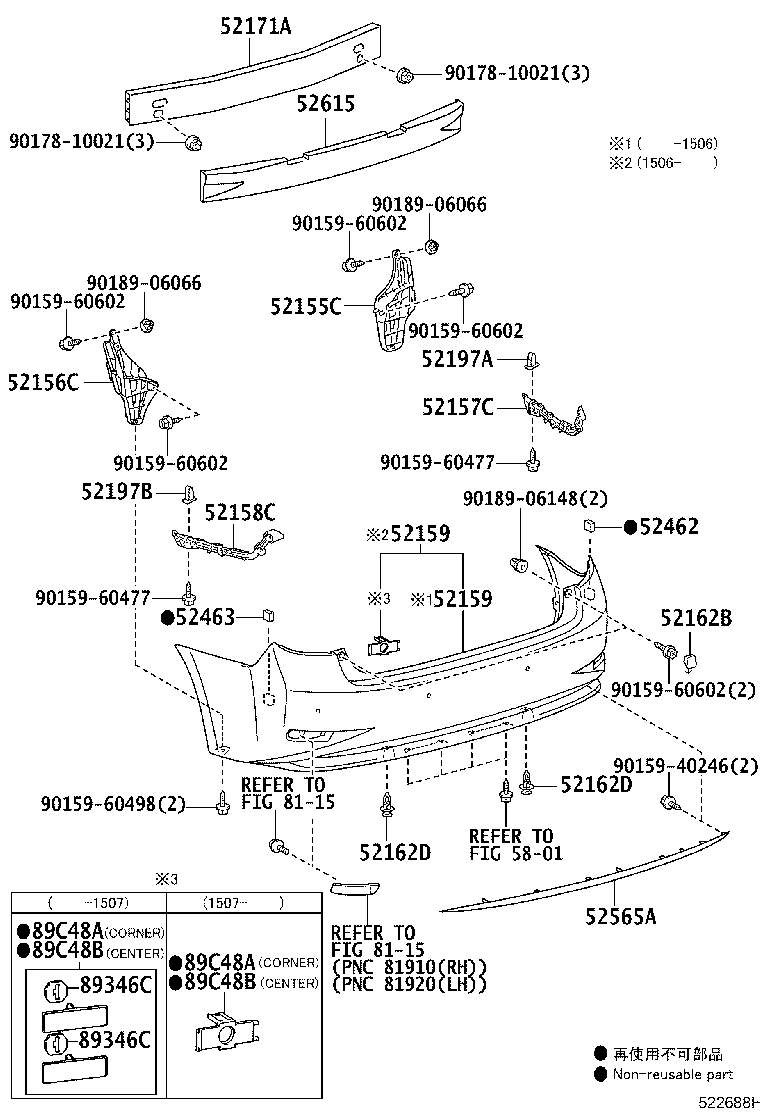

Figure 522687G 522687G 2012-06 → — Figure 522688H 522688H 2012-06 → —

Part groups

PNCDescription
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52162D Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52197A Bracket, Rear Bumper Seal, RH
52197B Bracket, Rear Bumper Seal, LH
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
89346C Adjuster, Ultrasonic Sensor
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
