Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

22 part groups · 2 illustrations

Illustrations

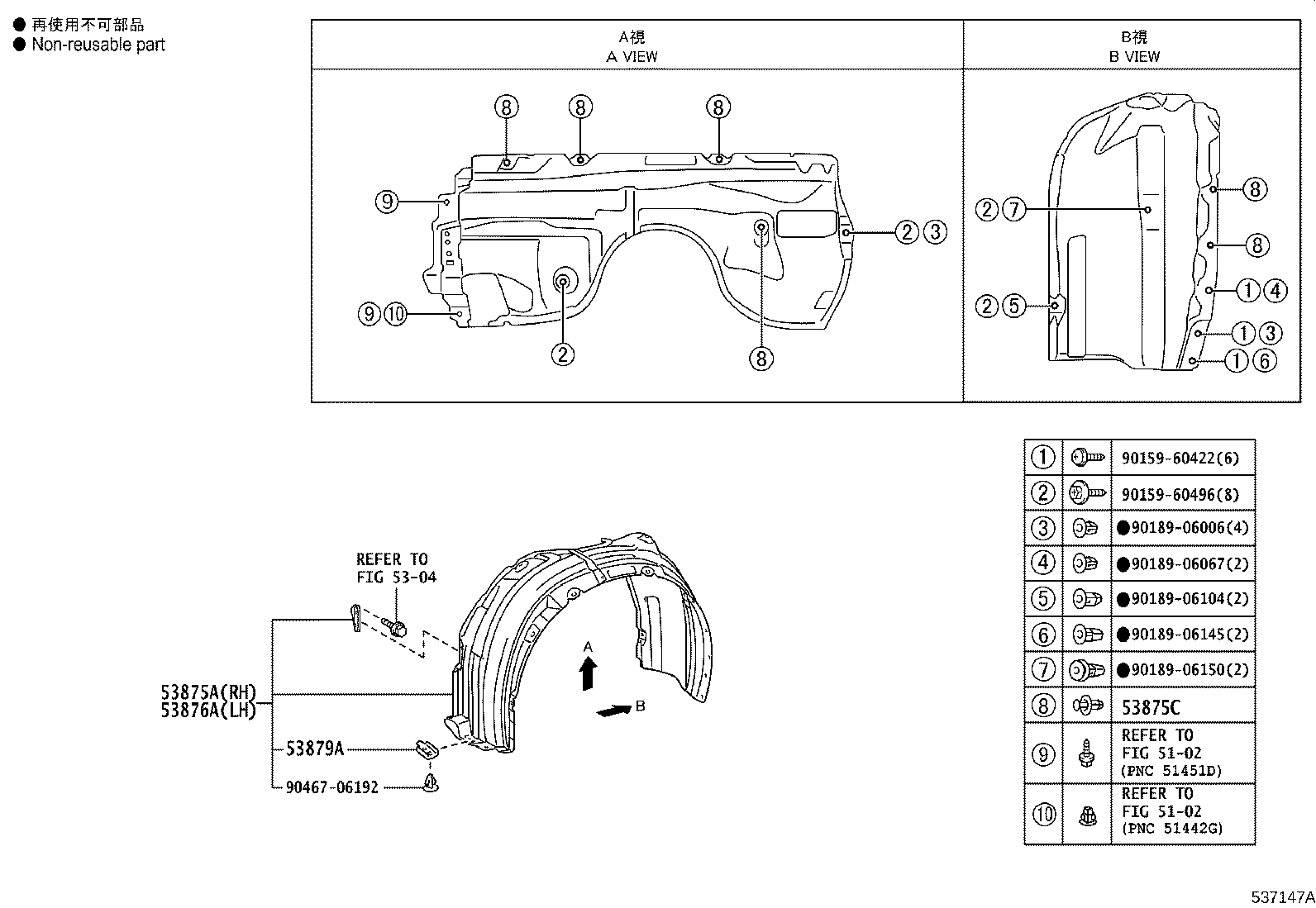

Figure 537146A 537146A 2012-06 → — Figure 537147A 537147A 2012-06 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53326 Clip, Hood Protector
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381E Seal, Hood TO Radiator Support
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53835 Brace, Front Fender TO Extension, RH
53836 Brace, Front Fender TO Extension, LH
53837A Bracket, Front Side Panel, NO.2
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882N Clip(FOR FRONT FENDER SEAL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
