Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

22 part groups · 2 illustrations

Illustrations

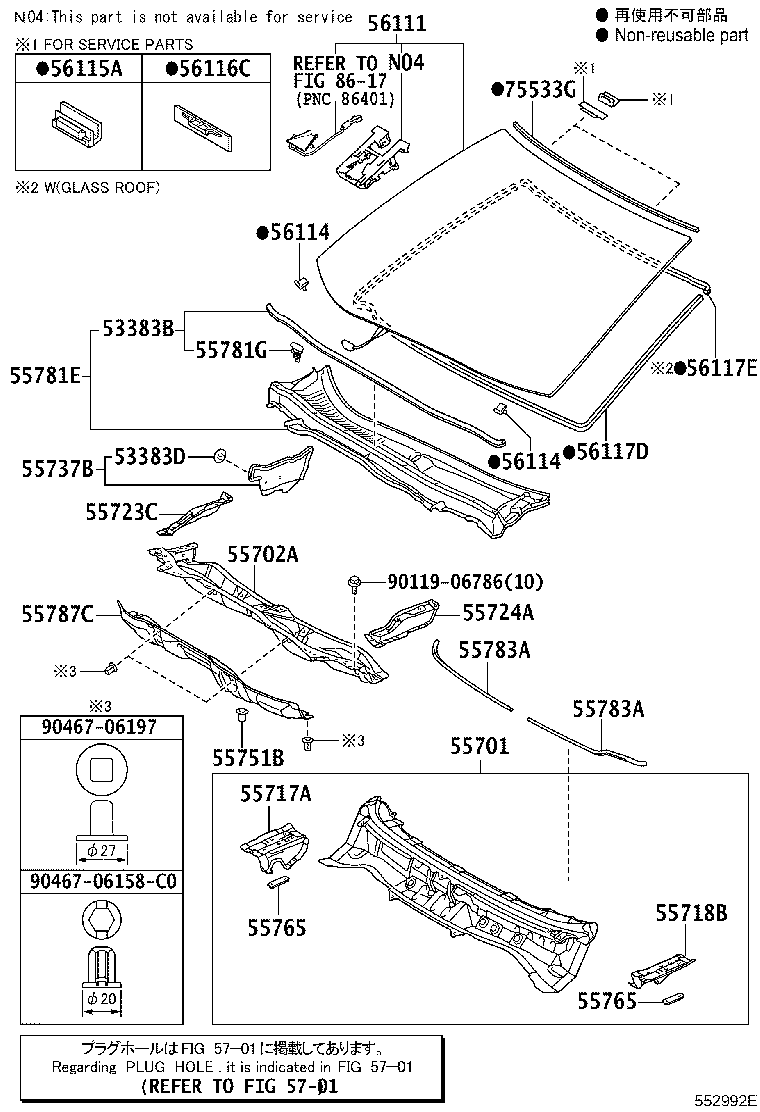

Figure 552991C 552991C 2012-06 → — Figure 552992E 552992E 2012-06 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55701 Panel Sub-assy, Cowl
55702A Panel Sub-assy, Cowl Top, Outer Front
55717A Panel, Cowl Top Side, Inner RH
55718B Panel, Cowl Top Side, Inner LH
55723C Reinforcement, Cowl Top Side, RH
55724A Reinforcement, Cowl Top Side, LH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55751B Hose, Cowl Water Extract, NO.1
55765 Bracket, Hood Damper Mounting
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55783A Pad, Cowl Top Silencer
55787C Insulator, Cowl Top Panel, NO.1
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117D Dam, Windshield Glass Adhesive
56117E Dam, Window Glass Adhesive
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
