Toyota Lexus ES2##/350/300H
2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe
Supported model
Data version 2018-12

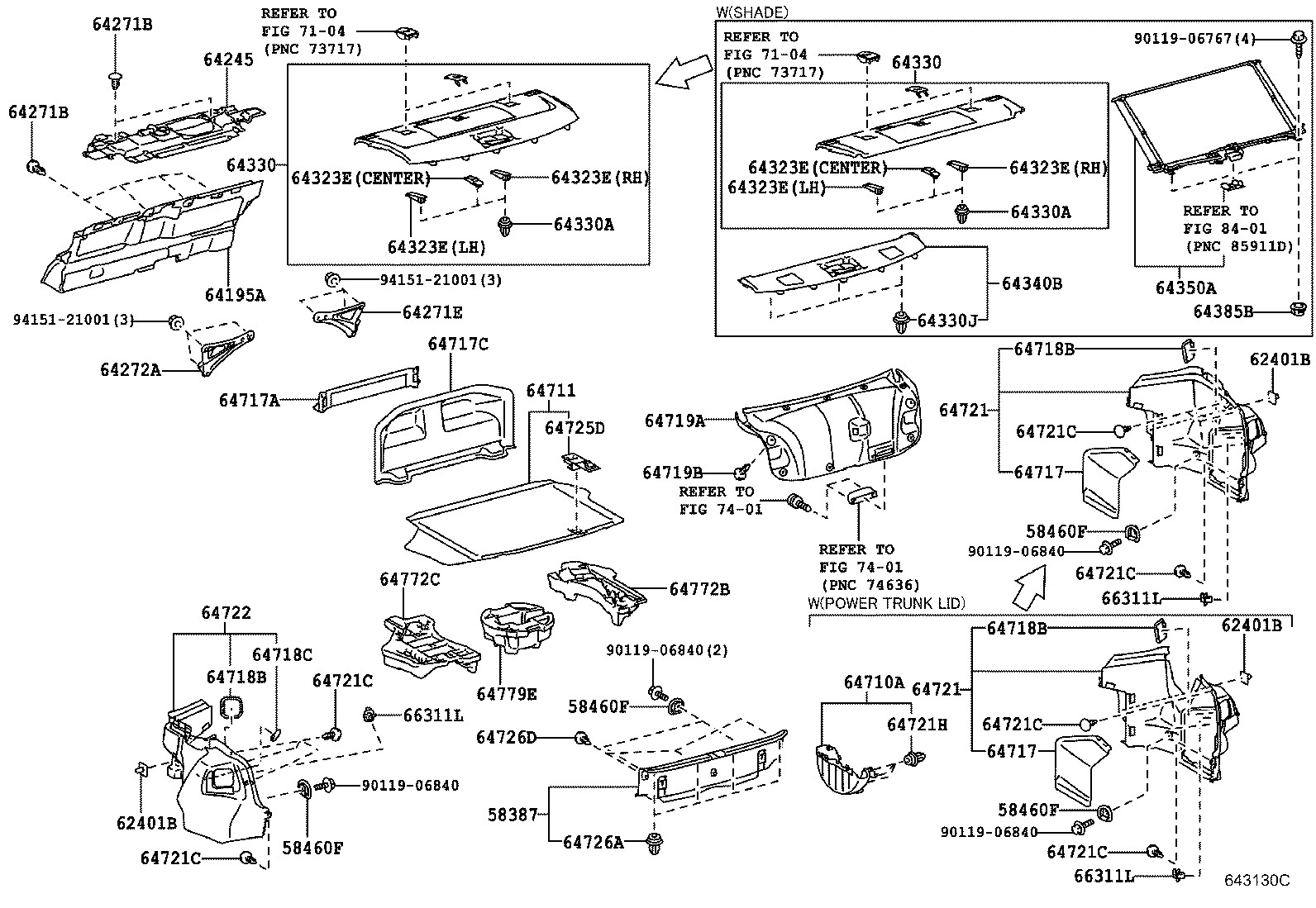

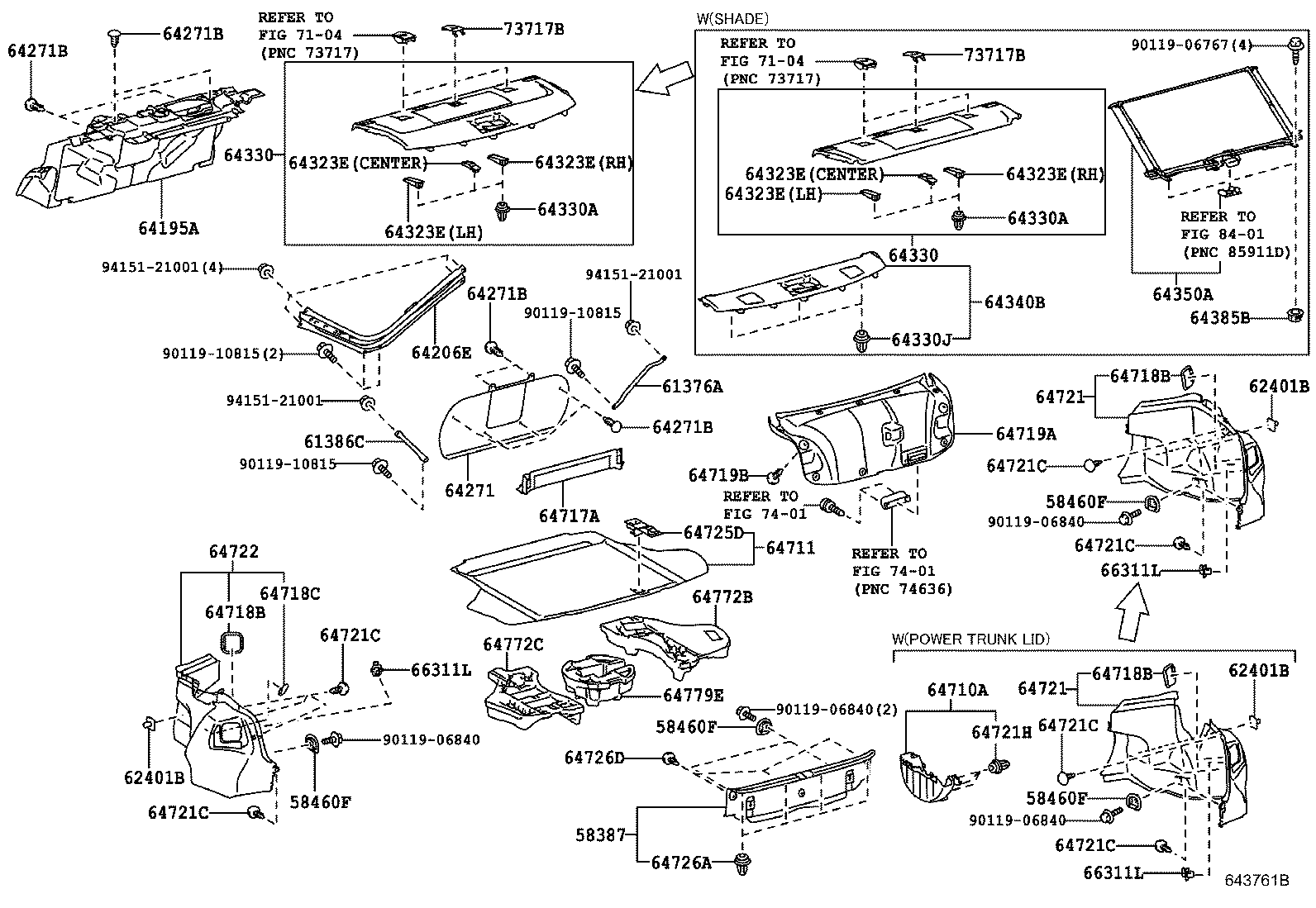

Package Tray Panel & Luggage Compartment Mat
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58460F | Striker Assy, Luggage Hold Belt |
| 61376A | Brace, Rear Wheel, Upper Front RH |
| 61386C | Brace, Rear Wheel, Upper Front LH |
| 62401B | Fastener, Hook |
| 64195A | Insulator, Room Partition Panel |
| 64206E | Panel Sub-assy, Room Partition |
| 64245 | Insulator, Package Tray, Front |
| 64271 | Board, Room Partition, NO.1 |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271E | Panel, Room Partition |
| 64272A | Panel, Room Partition, LH |
| 64323E | Clamp, Package Tray Trim |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64385B | Clip |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64711 | Mat, Luggage Compartment Floor |
| 64717 | Cover, Luggage Compartment Trim, Rear RH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717C | Cover, Luggage Compartment Trim, Front |
| 64718B | Cover, Luggage Trim Service Hole |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64726A | Clip, Luggage Trim, Rear |
| 64726D | Clip, Luggage Trim, Rear |
| 64772B | Pad, Spare Wheel Cover |
| 64772C | Pad, Spare Wheel Cover |
| 64779E | Tray, Spare Wheel Cover |
| 66311L | Hook,Rope |
| 73717B | Cover, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
