Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 2 illustrations

Illustrations

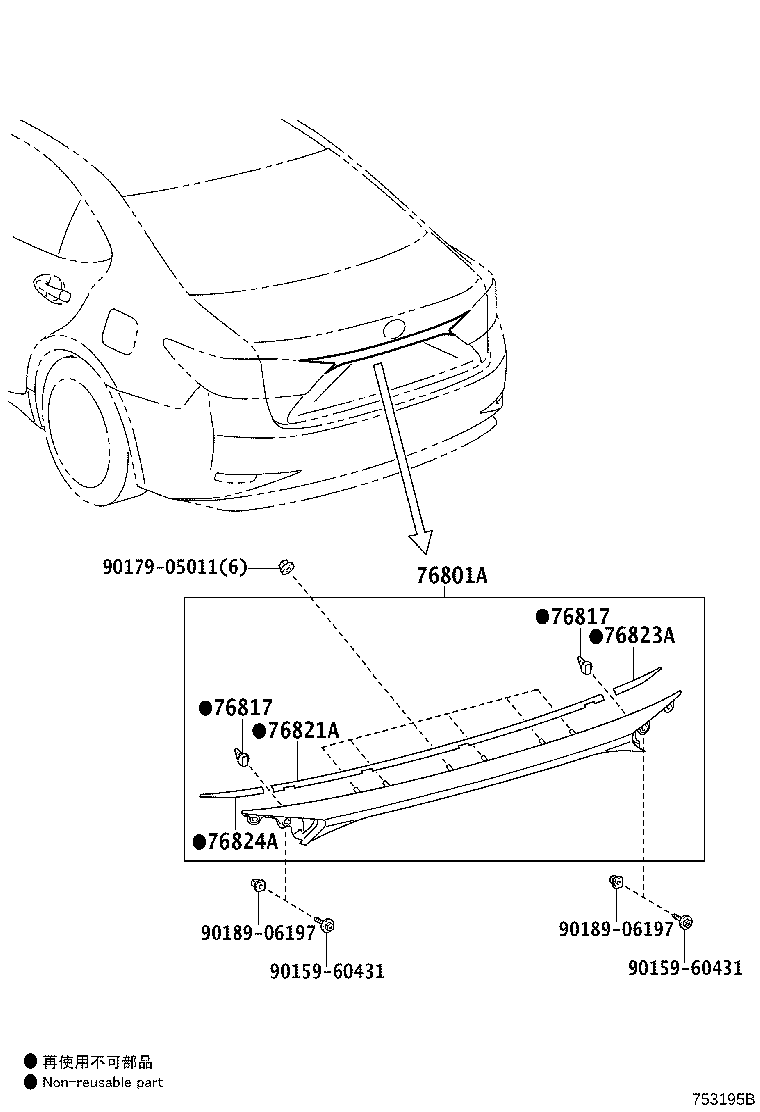

Figure 752735B 752735B 2012-06 → 2015-07 Figure 753195B 753195B 2015-07 → —

Part groups

PNCDescription
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
76823A Protector, Luggage Compartment Door Garnish, Outside RH
76824A Protector, Luggage Compt Door Garnish, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
