Toyota Lexus ES2##/350/300H
2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe
Supported model
Data version 2018-12

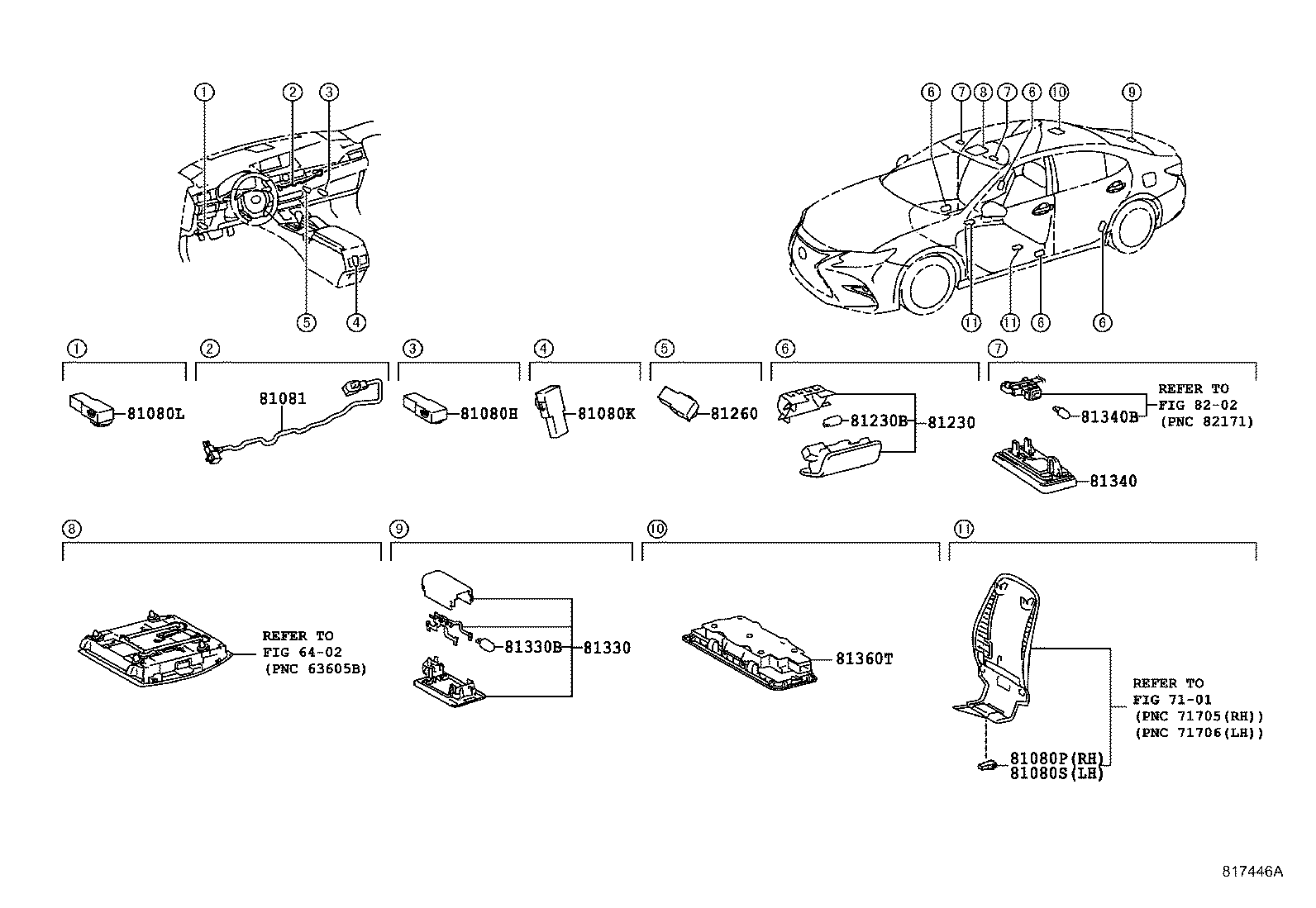

Interior Lamp
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81260 | Lamp Assy, Glove Box |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
| 81360U | Bulb, Spot Lamp |
| 81363 | Lens, Room Lamp, Outer |
| 81390B | Bulb, Spot Lamp |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
