Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

69 part groups · 16 illustrations

Illustrations

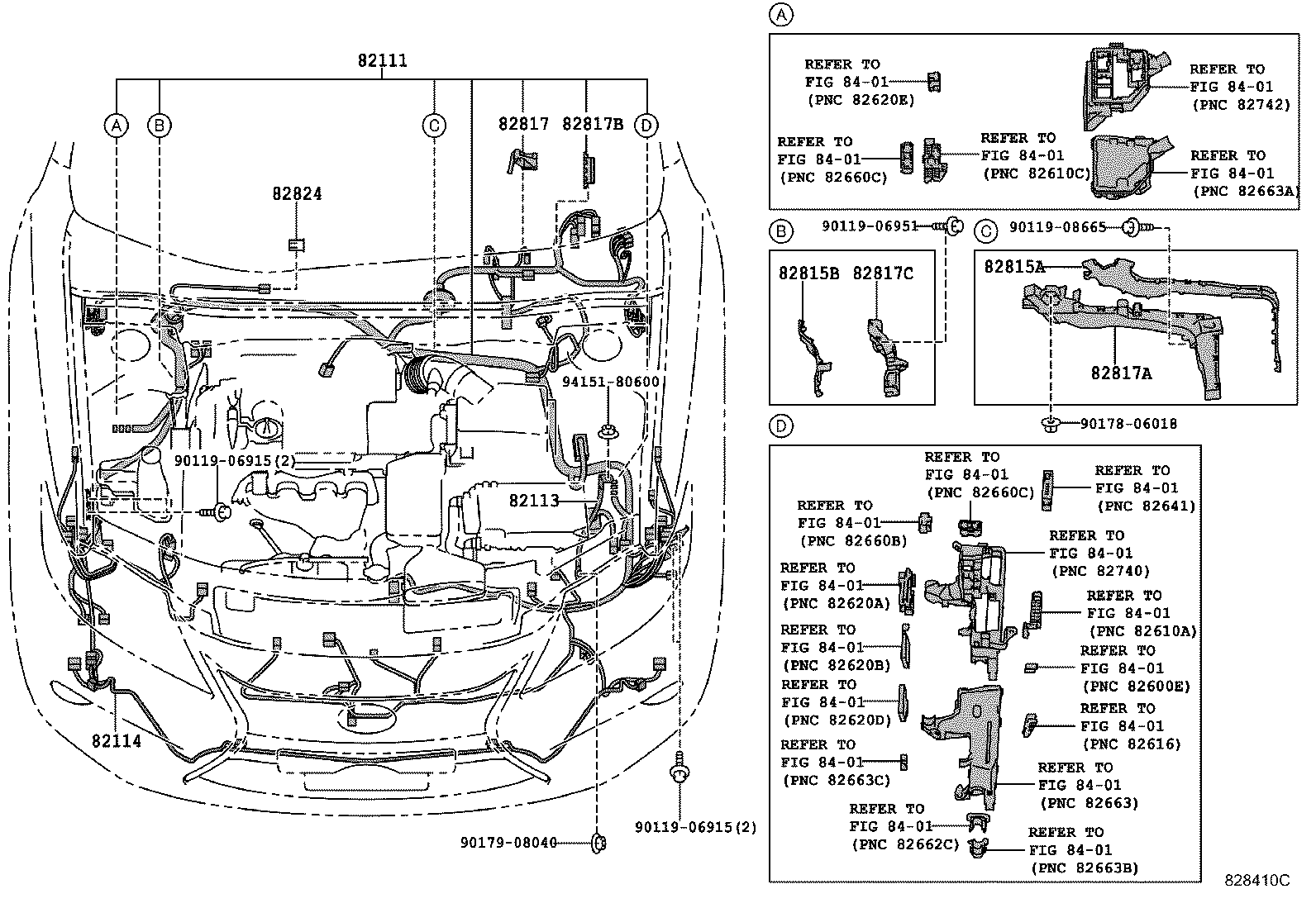

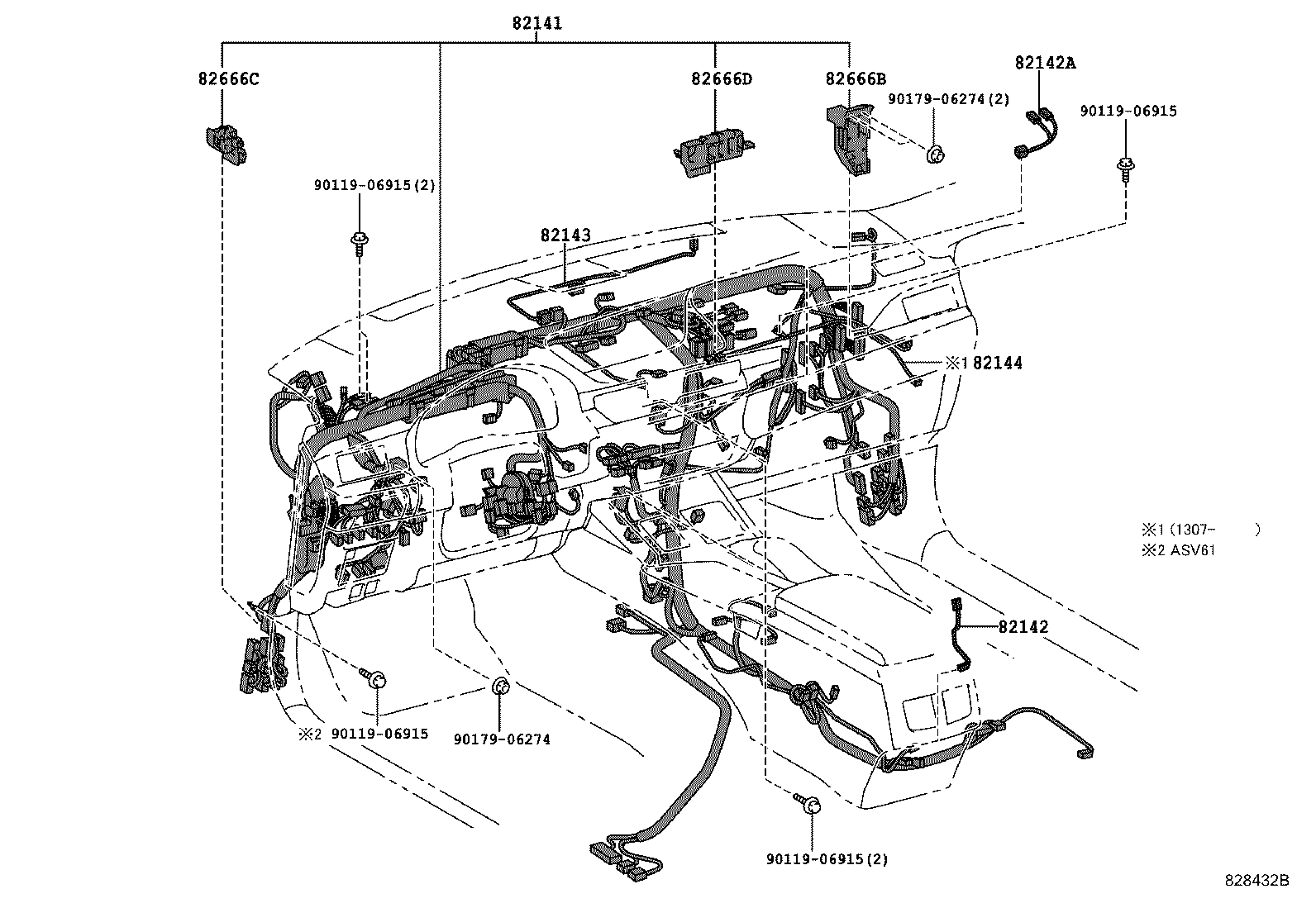

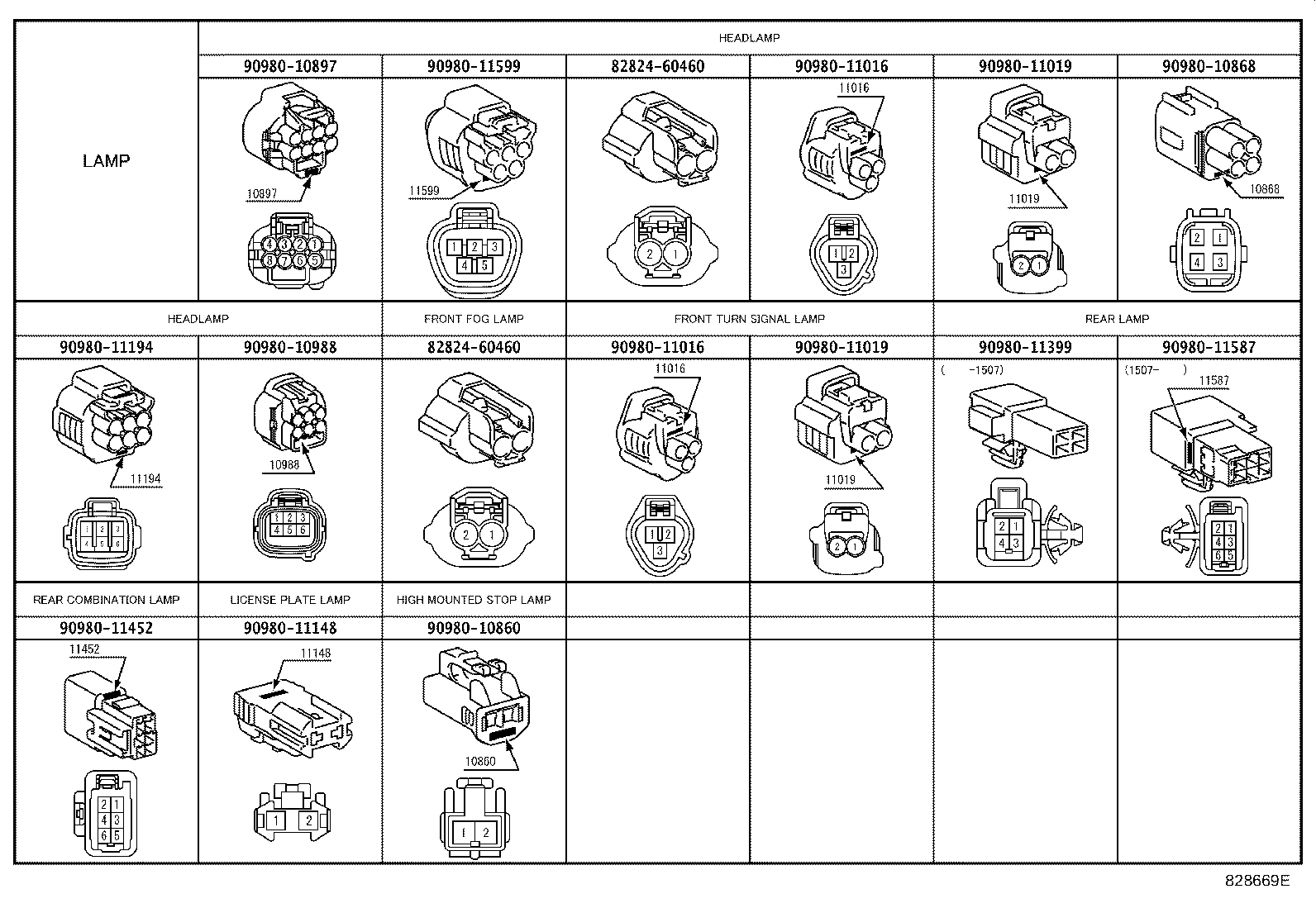

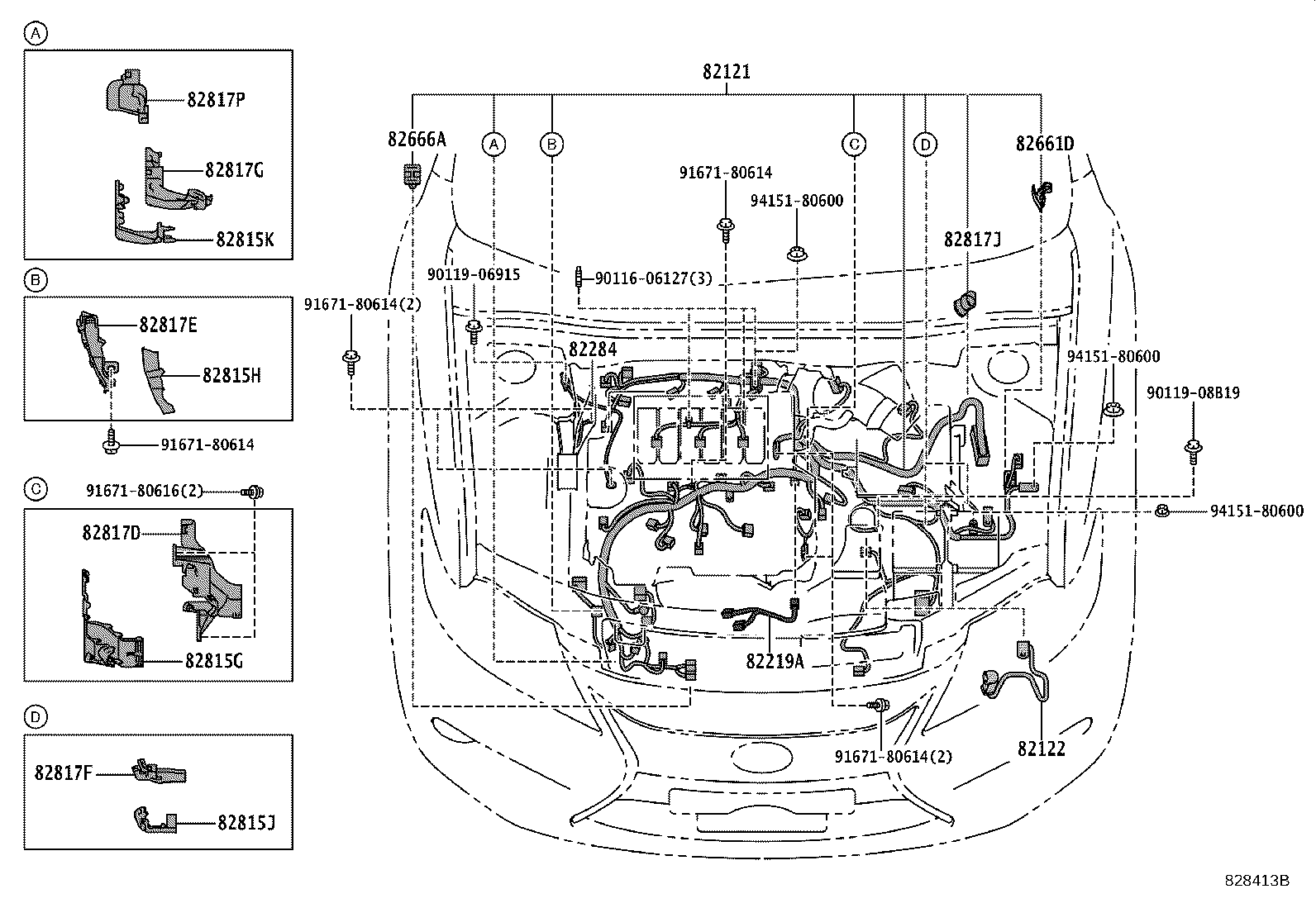

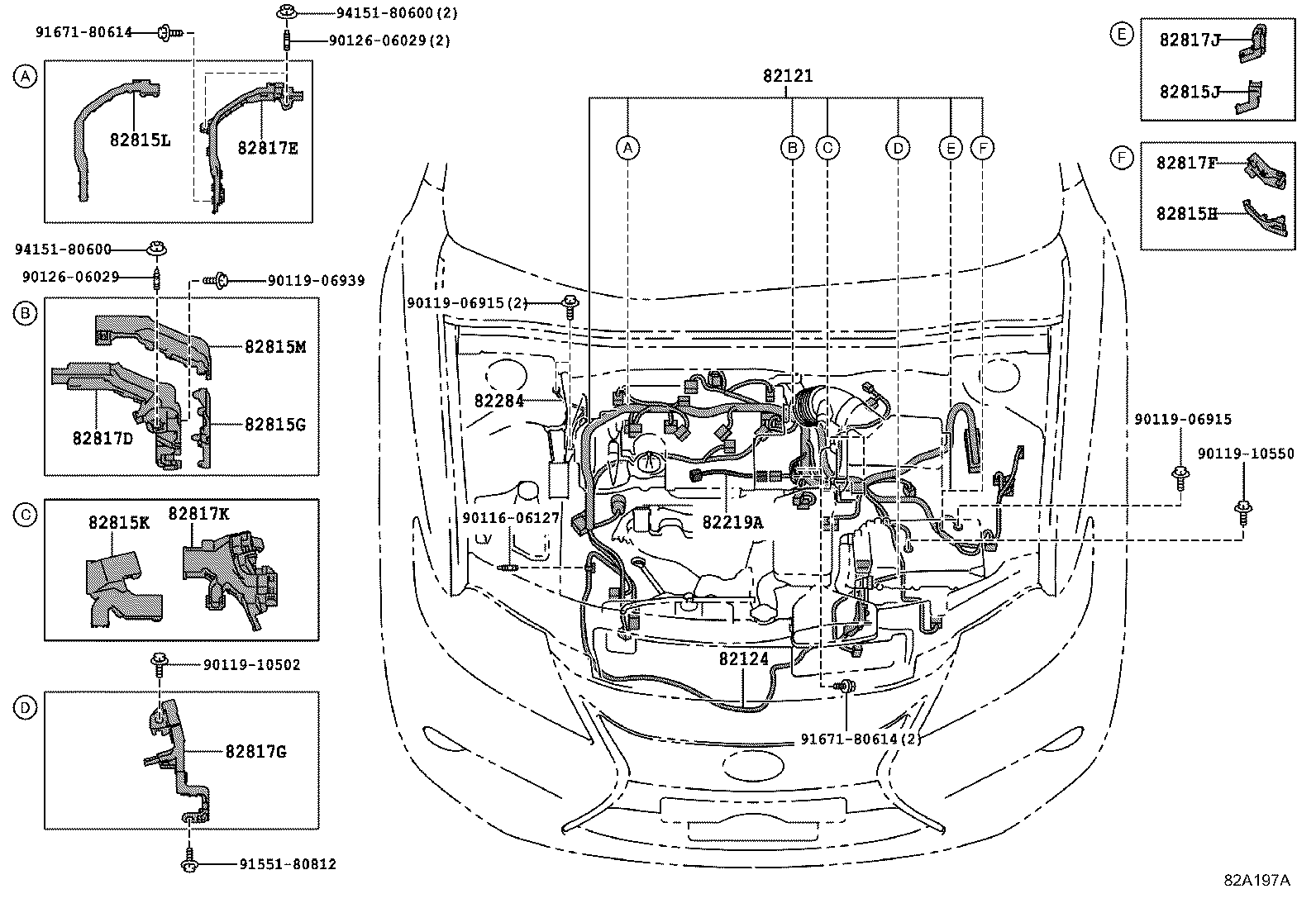

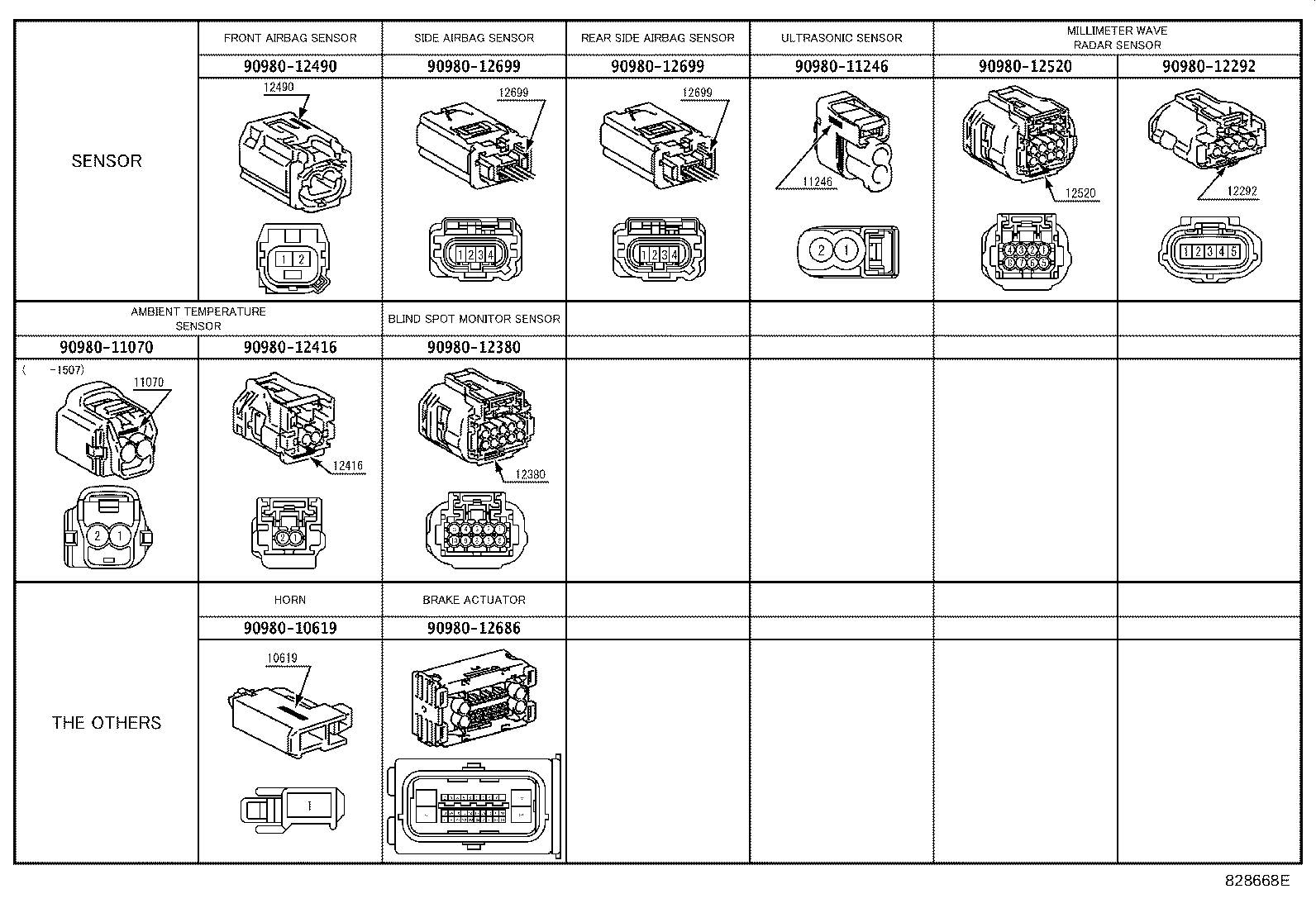

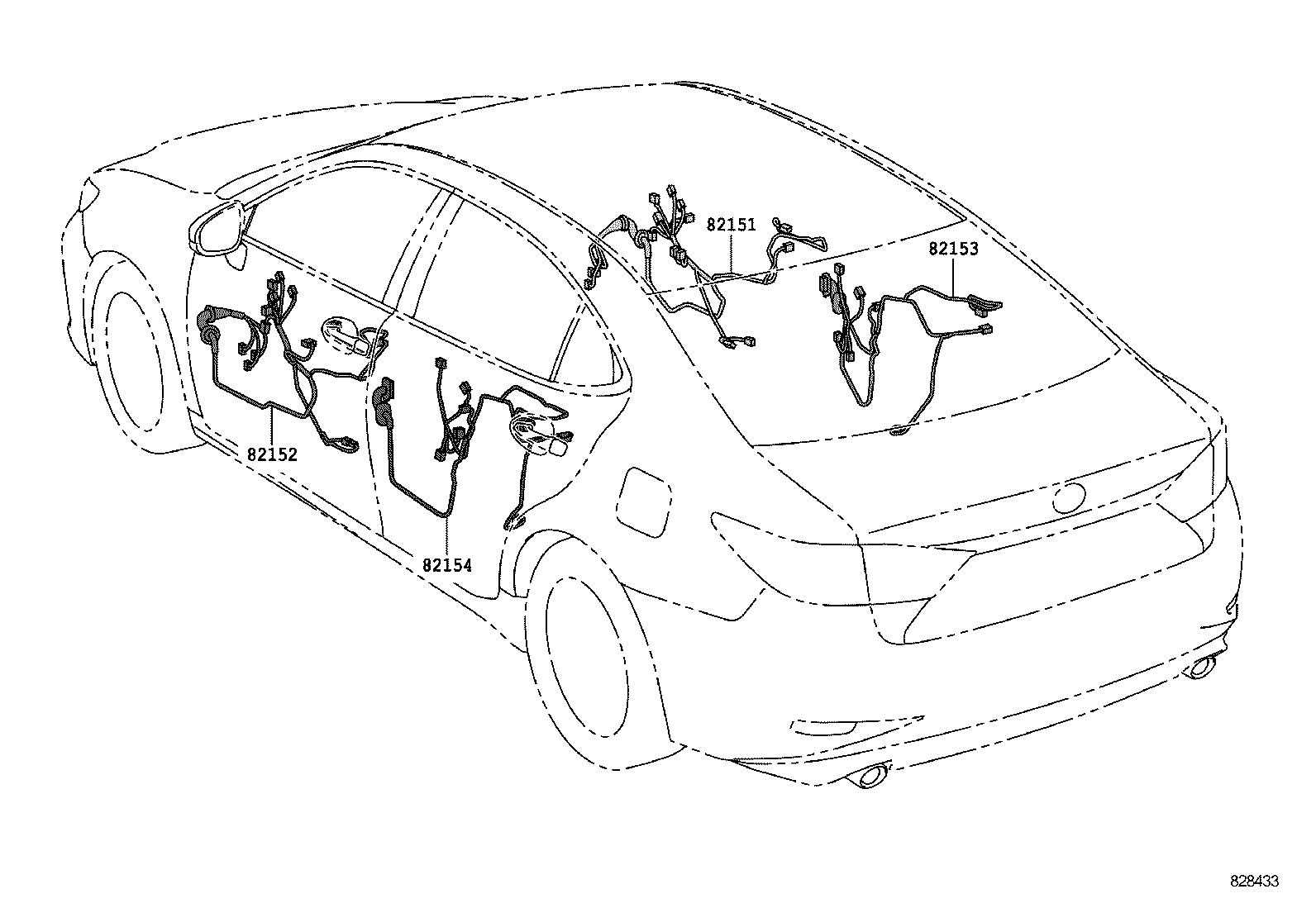

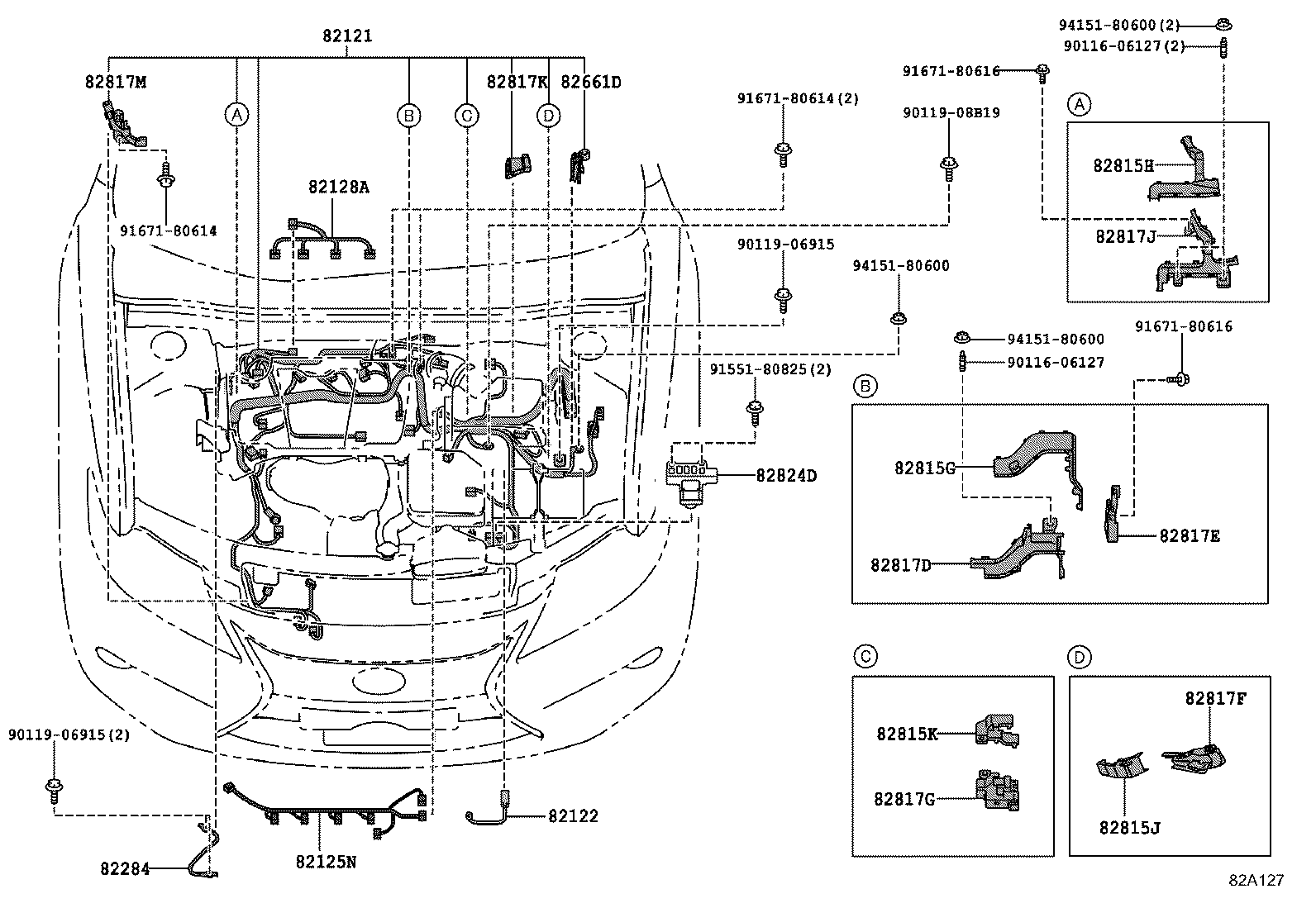

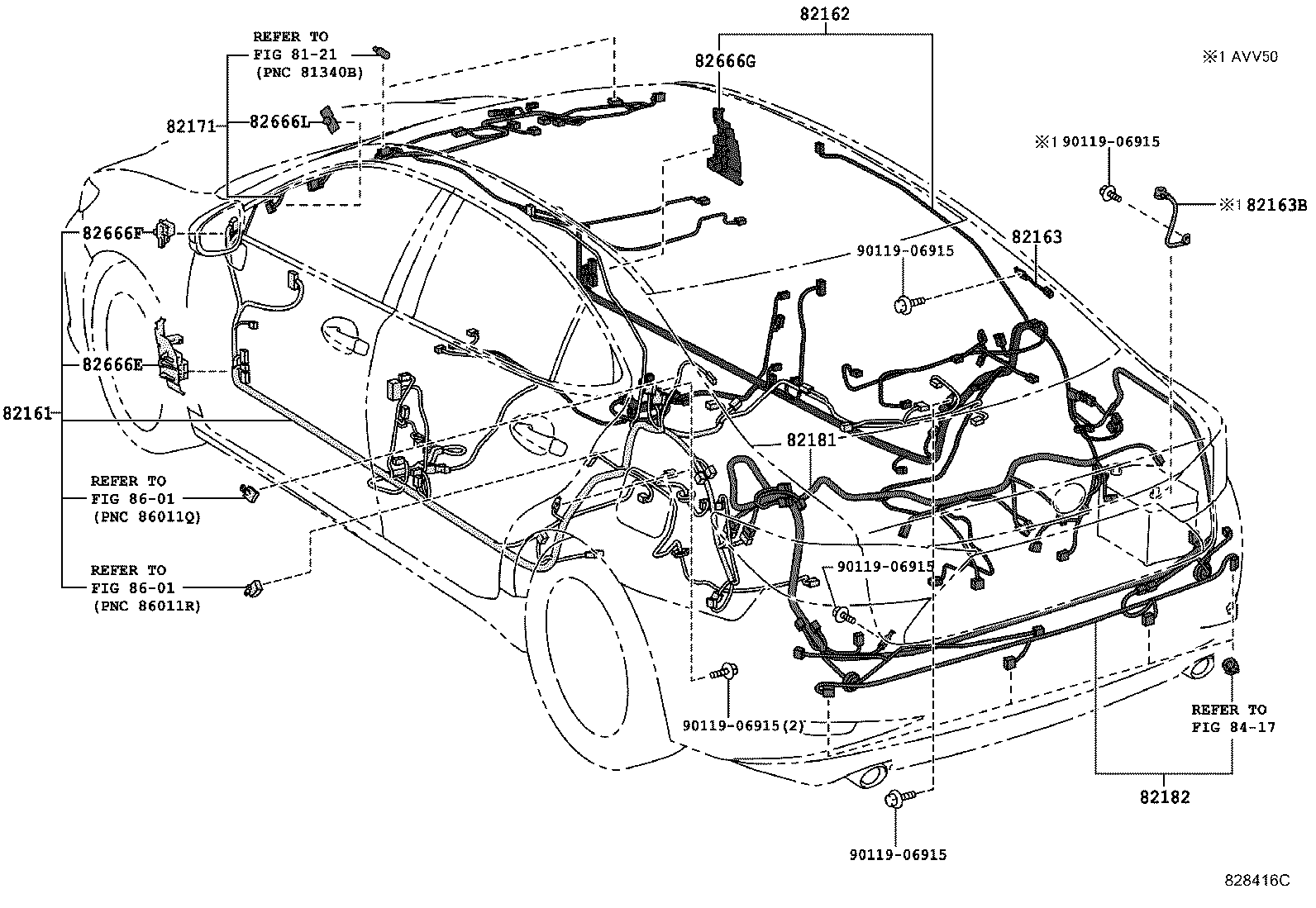

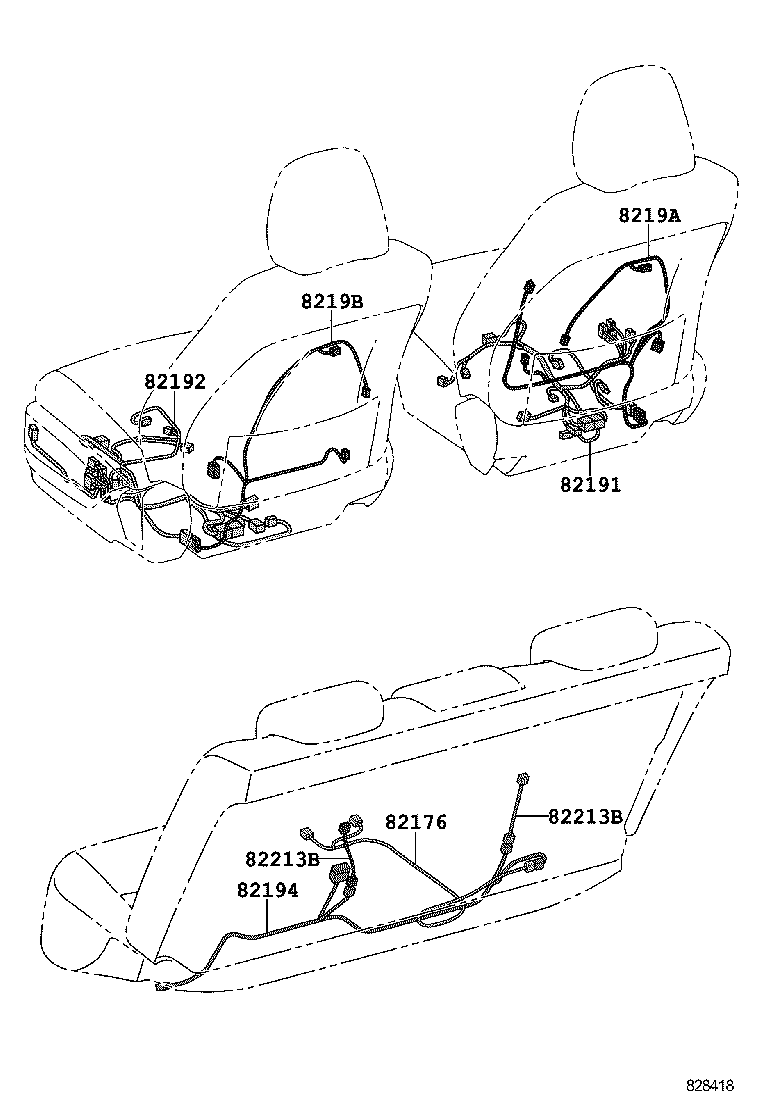

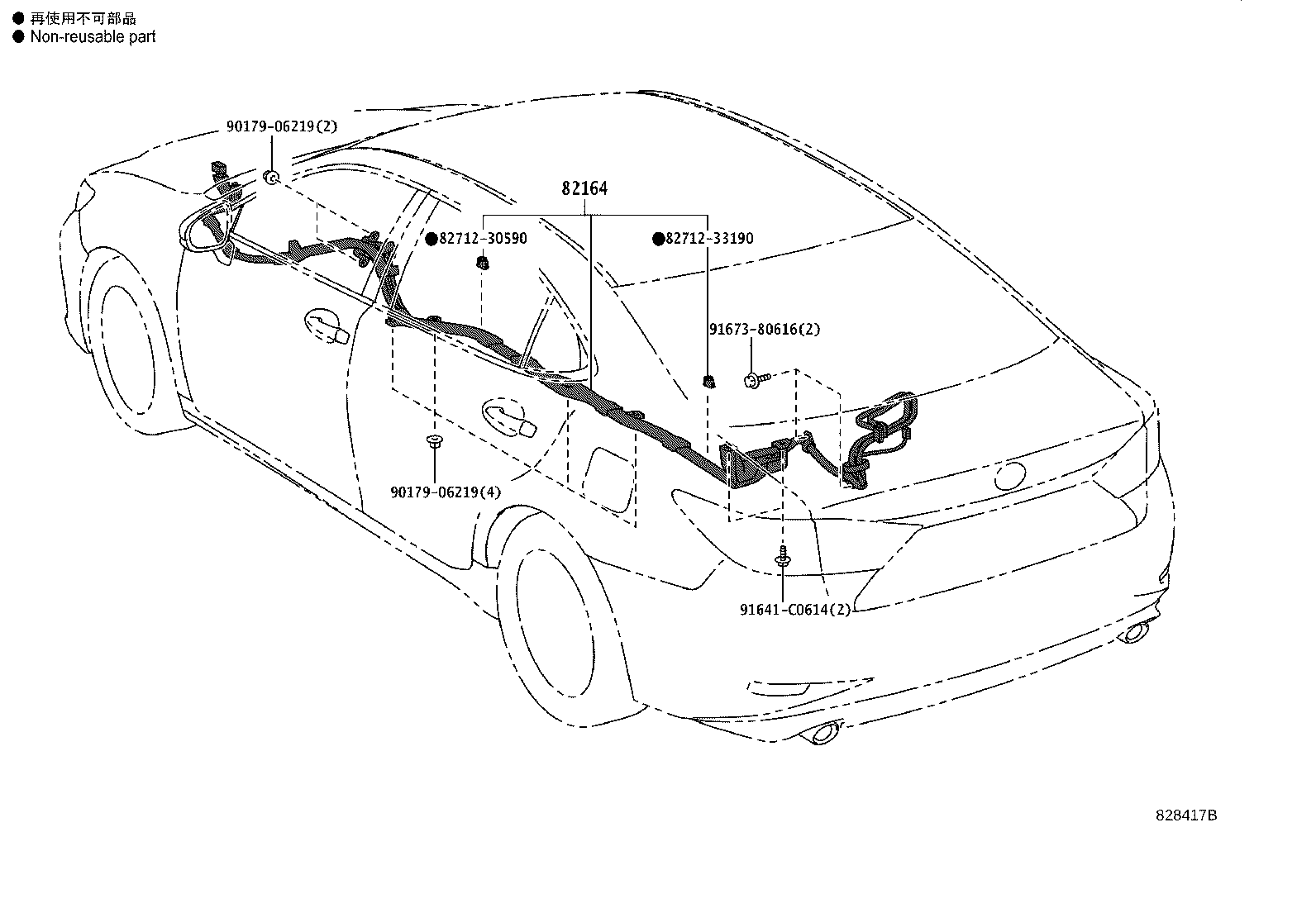

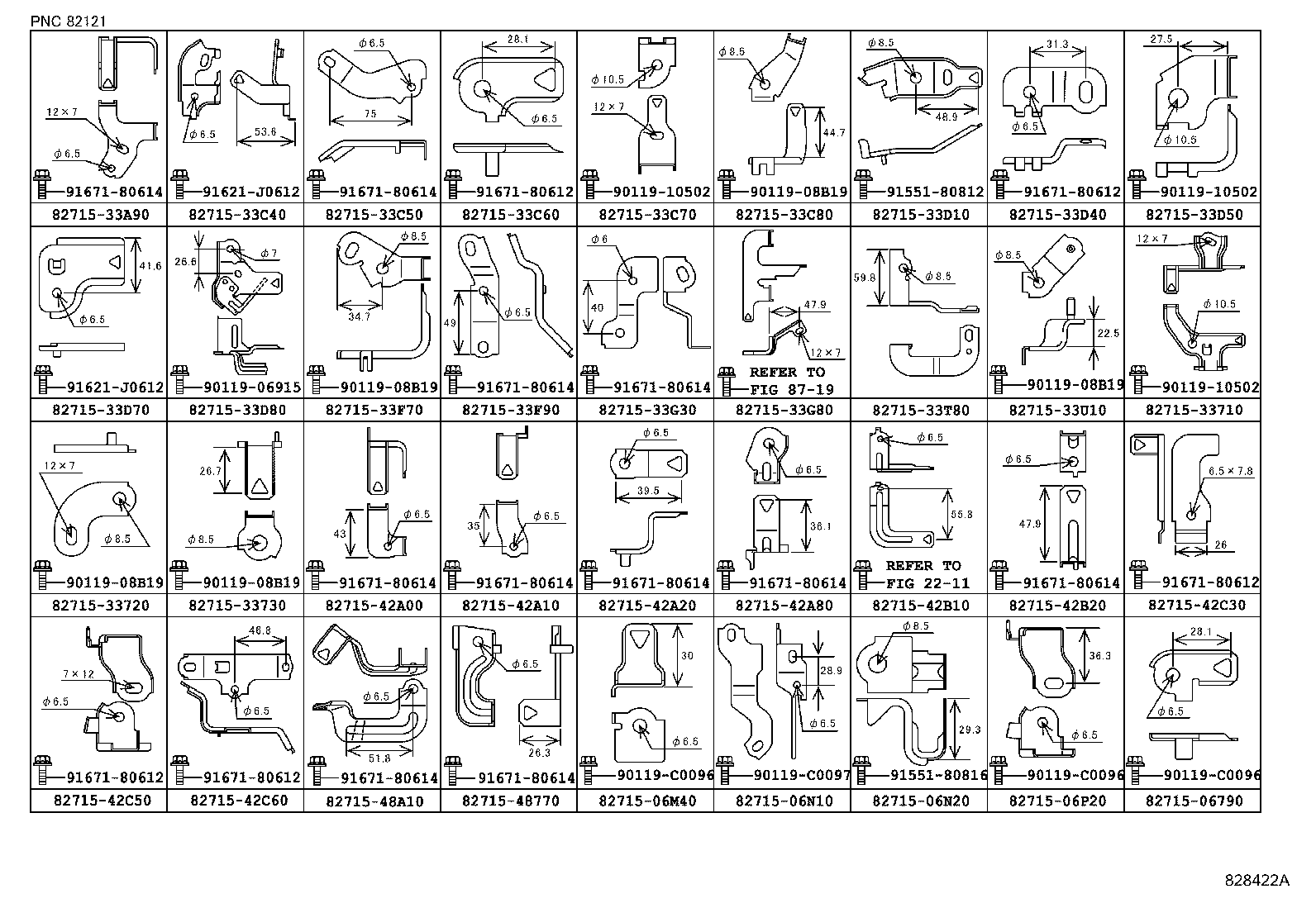

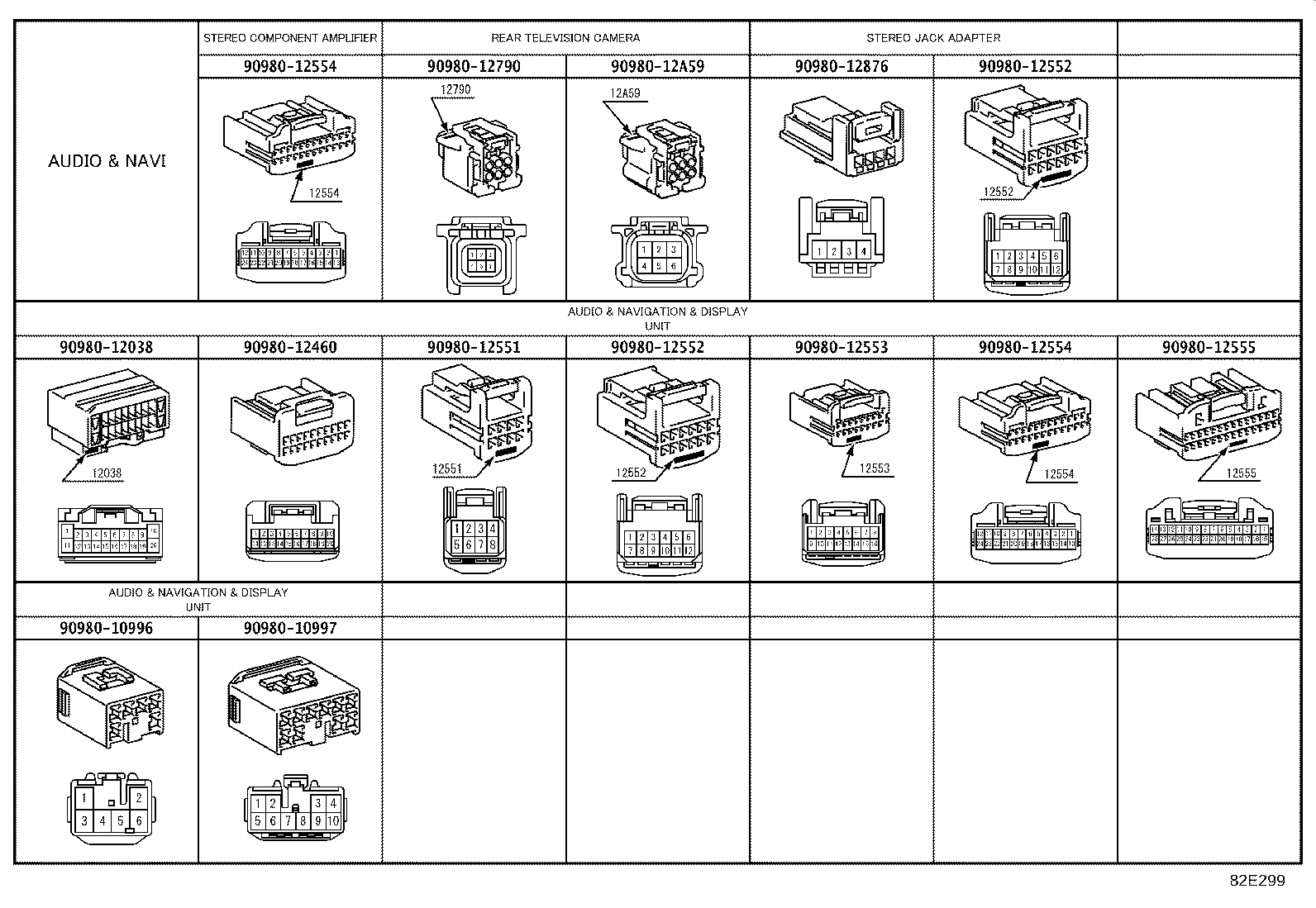

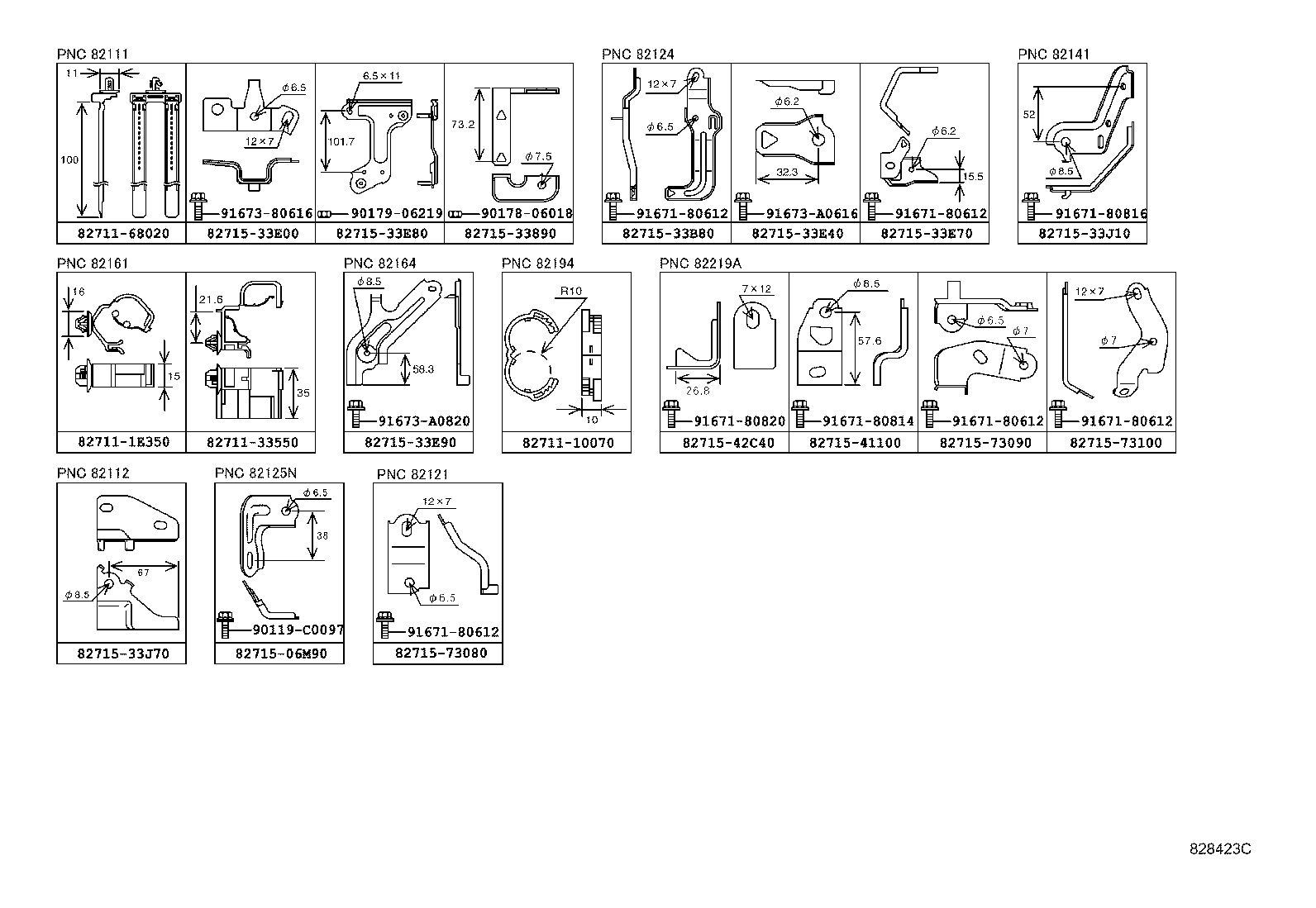

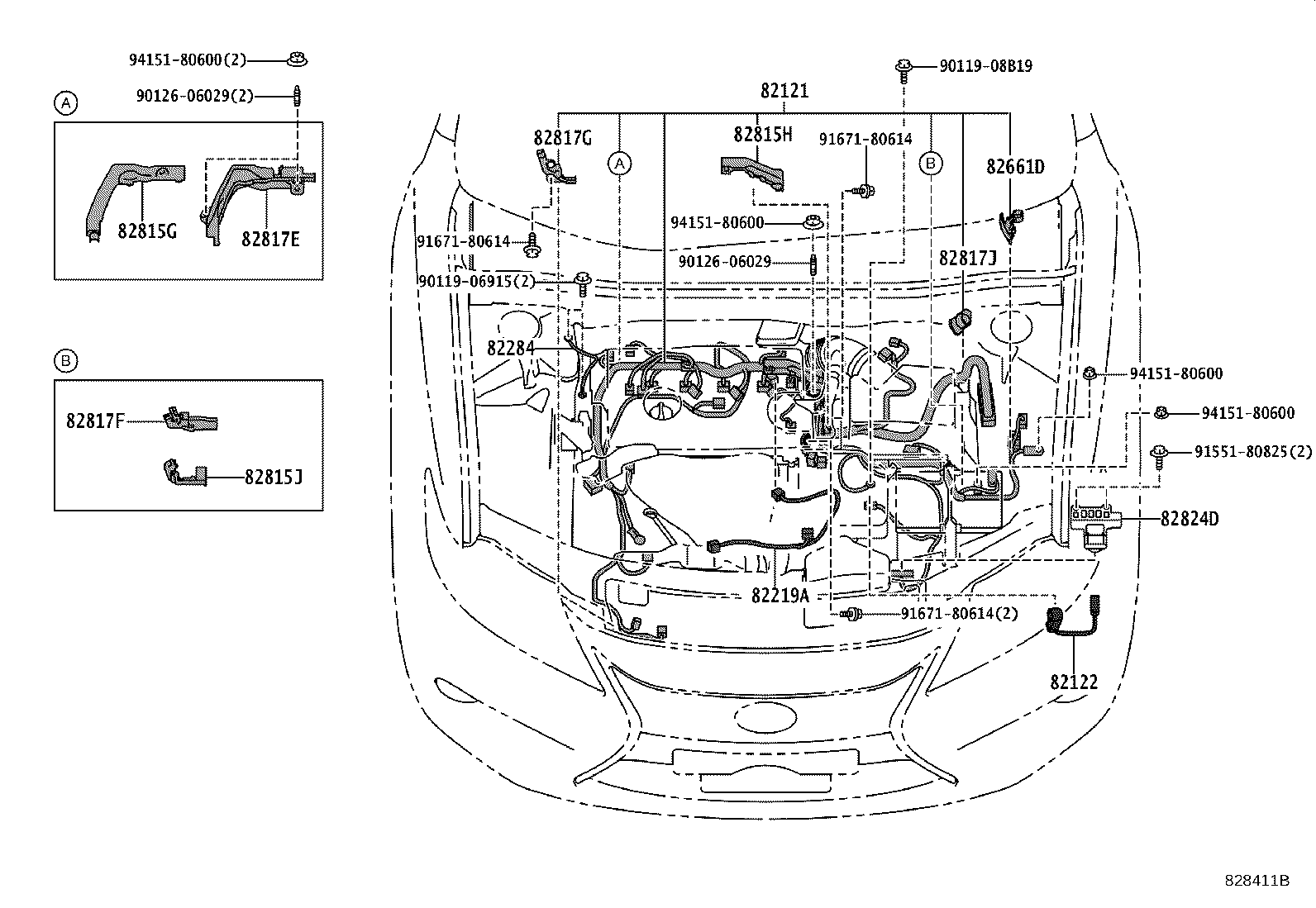

Figure 828409B 828409B 2012-06 → — Figure 828410C 828410C 2012-06 → — Figure 828411B 828411B 2012-06 → — Figure 82A197A 82A197A 2012-06 → — Figure 828413B 828413B 2012-06 → — Figure 82A127 82A127 2015-07 → — Figure 828432B 828432B 2012-06 → — Figure 828433 828433 2012-06 → — Figure 828416C 828416C 2012-06 → — Figure 828417B 828417B 2012-06 → — Figure 828418 828418 2012-06 → — Figure 828423C 828423C 2012-06 → — Figure 828422A 828422A 2012-06 → — Figure 828669E 828669E 2012-06 → — Figure 828668E 828668E 2012-06 → — Figure 82E299 82E299 2012-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164 Wire, Frame
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82213B Wire, Heater
82219A Wire, Sensor
82284 Wire, Earth
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82712B Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817P Protector, Wiring Harness, NO.14
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
