Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

133 part groups · 22 illustrations

Illustrations

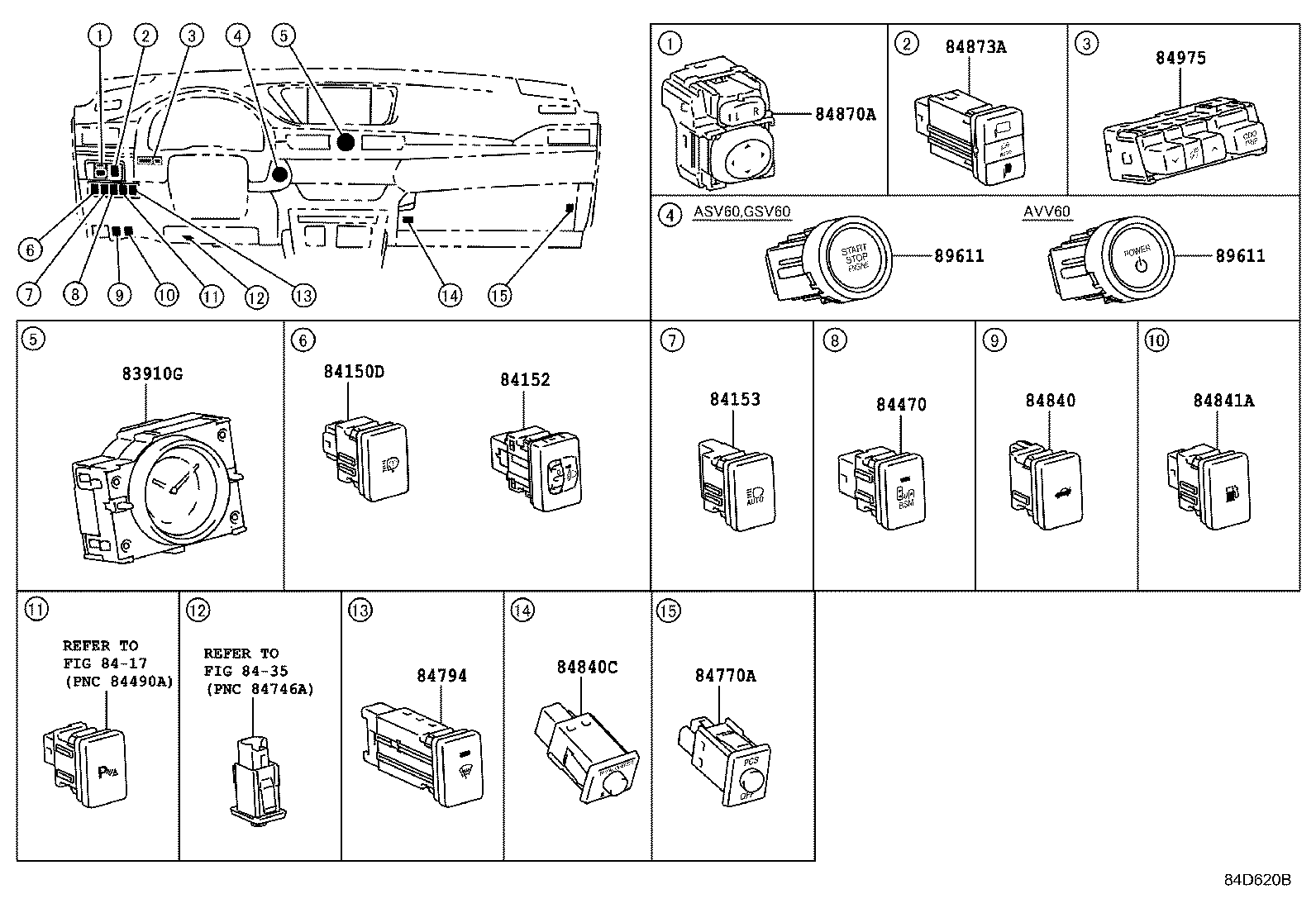

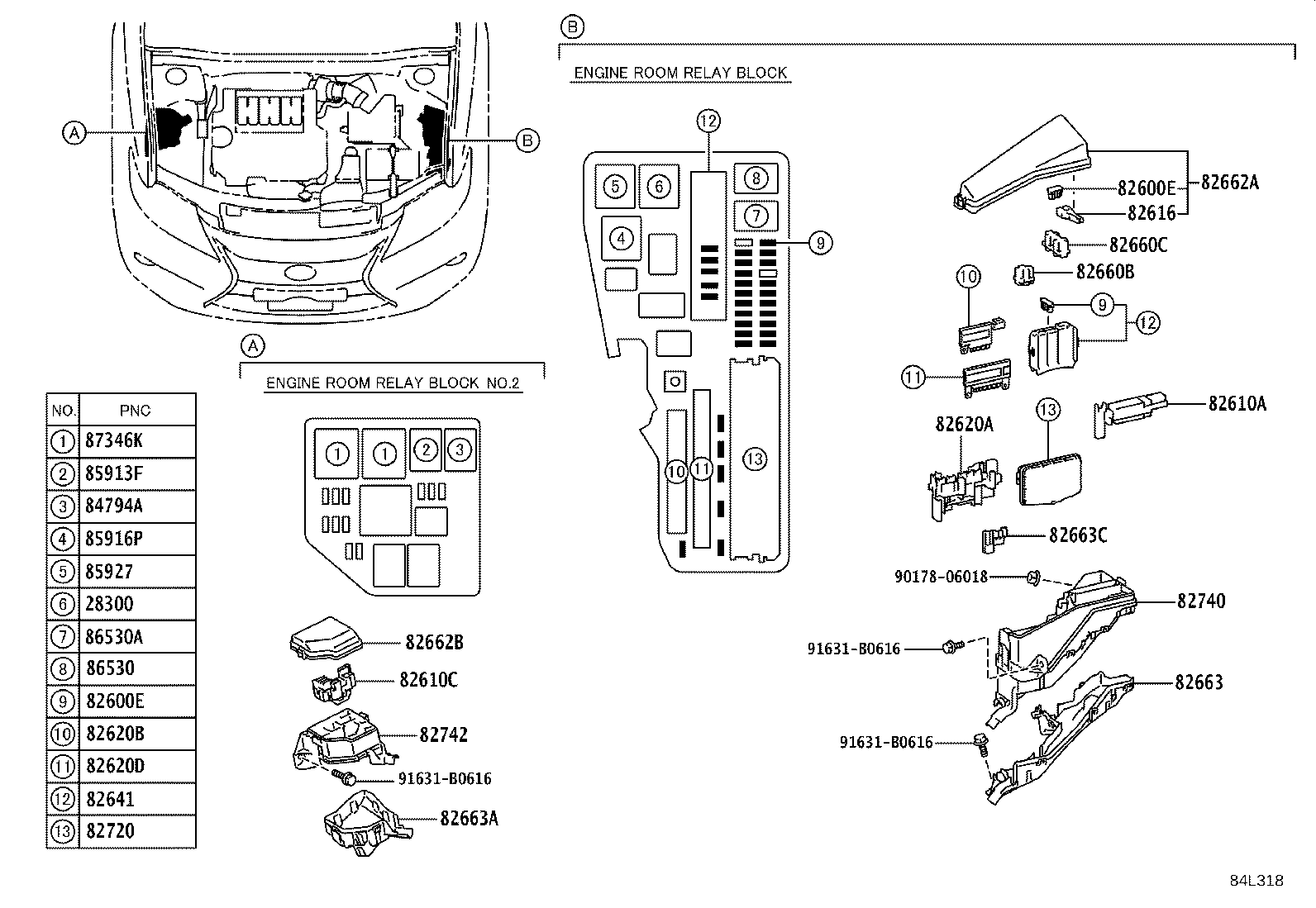

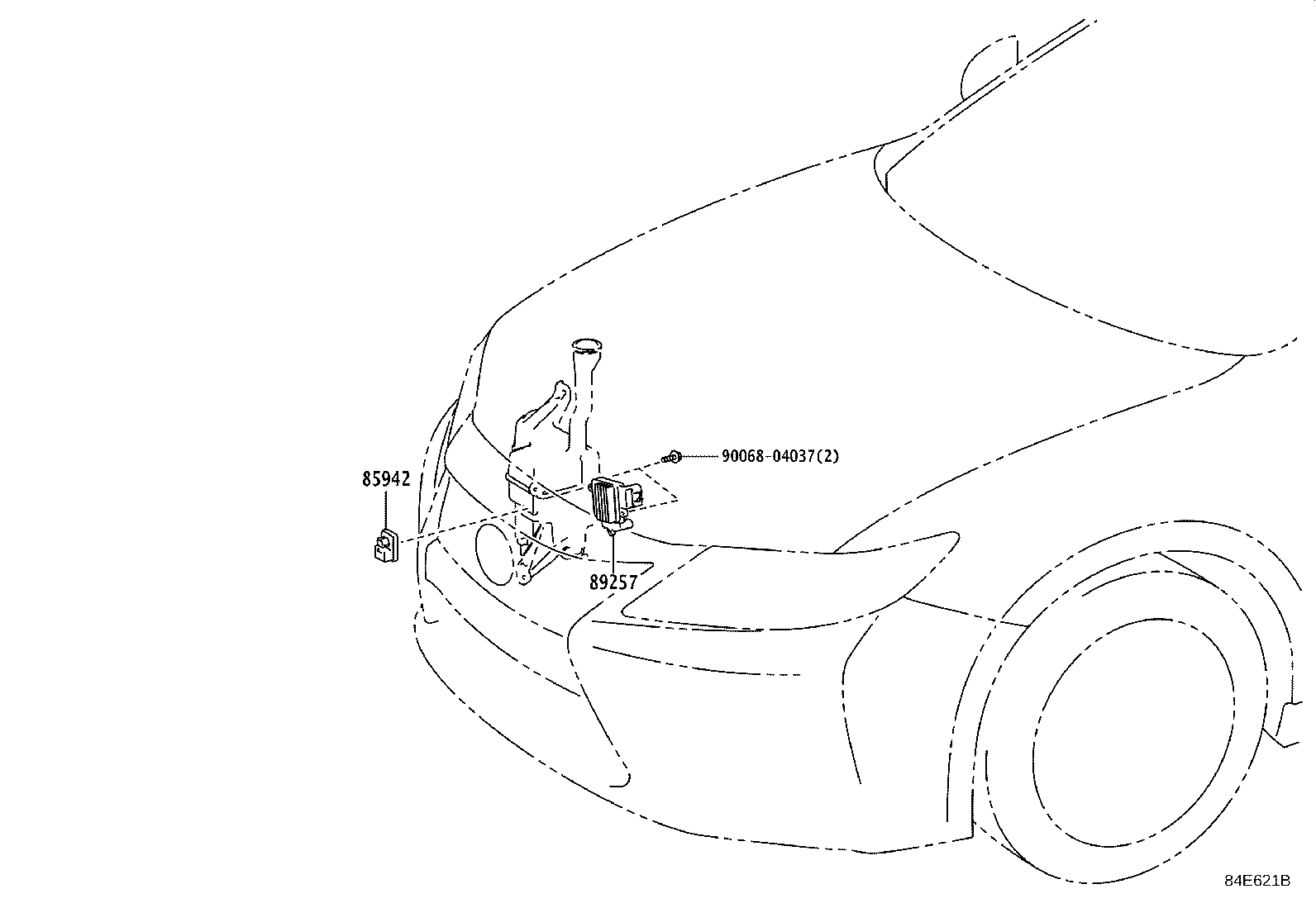

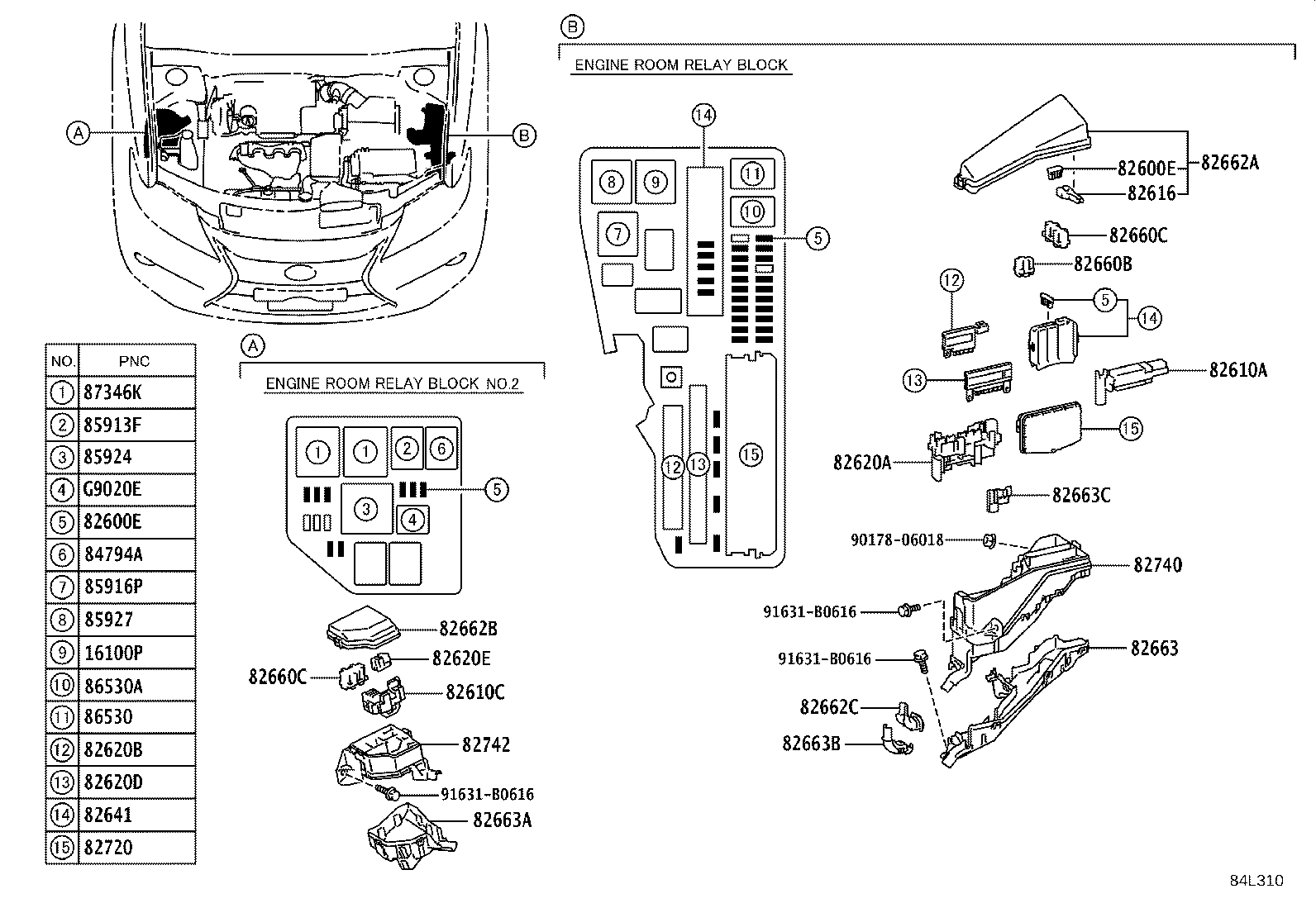

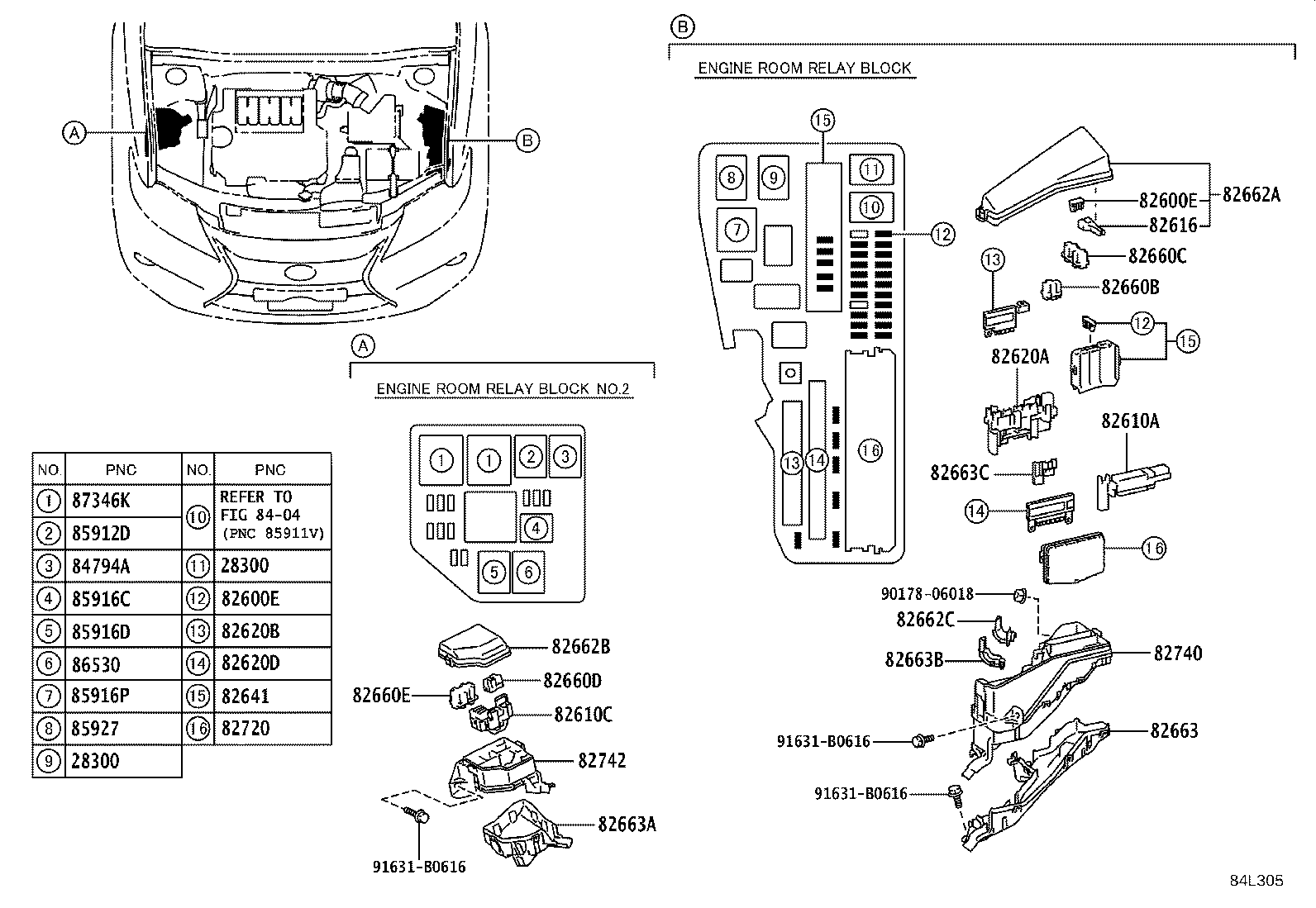

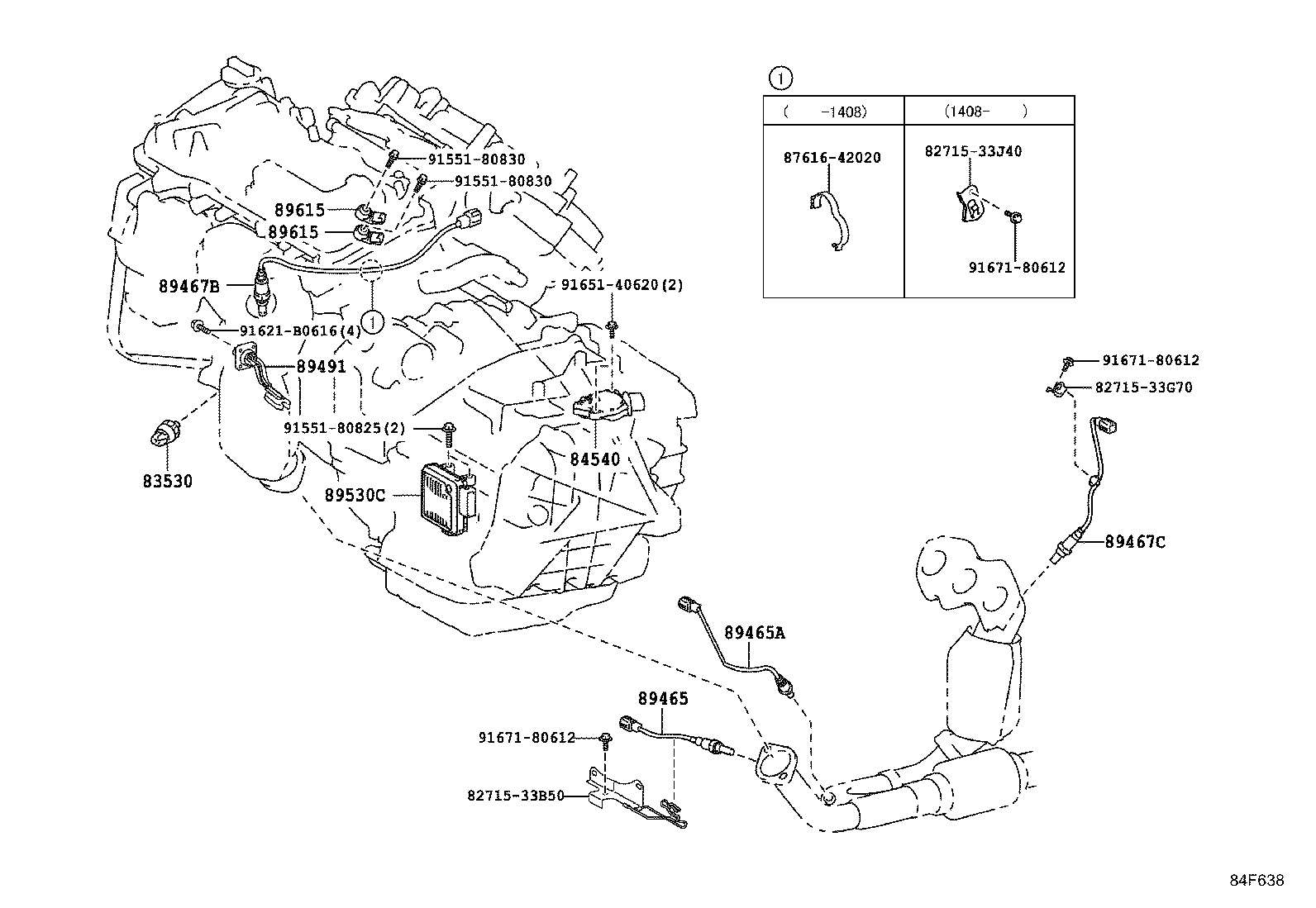

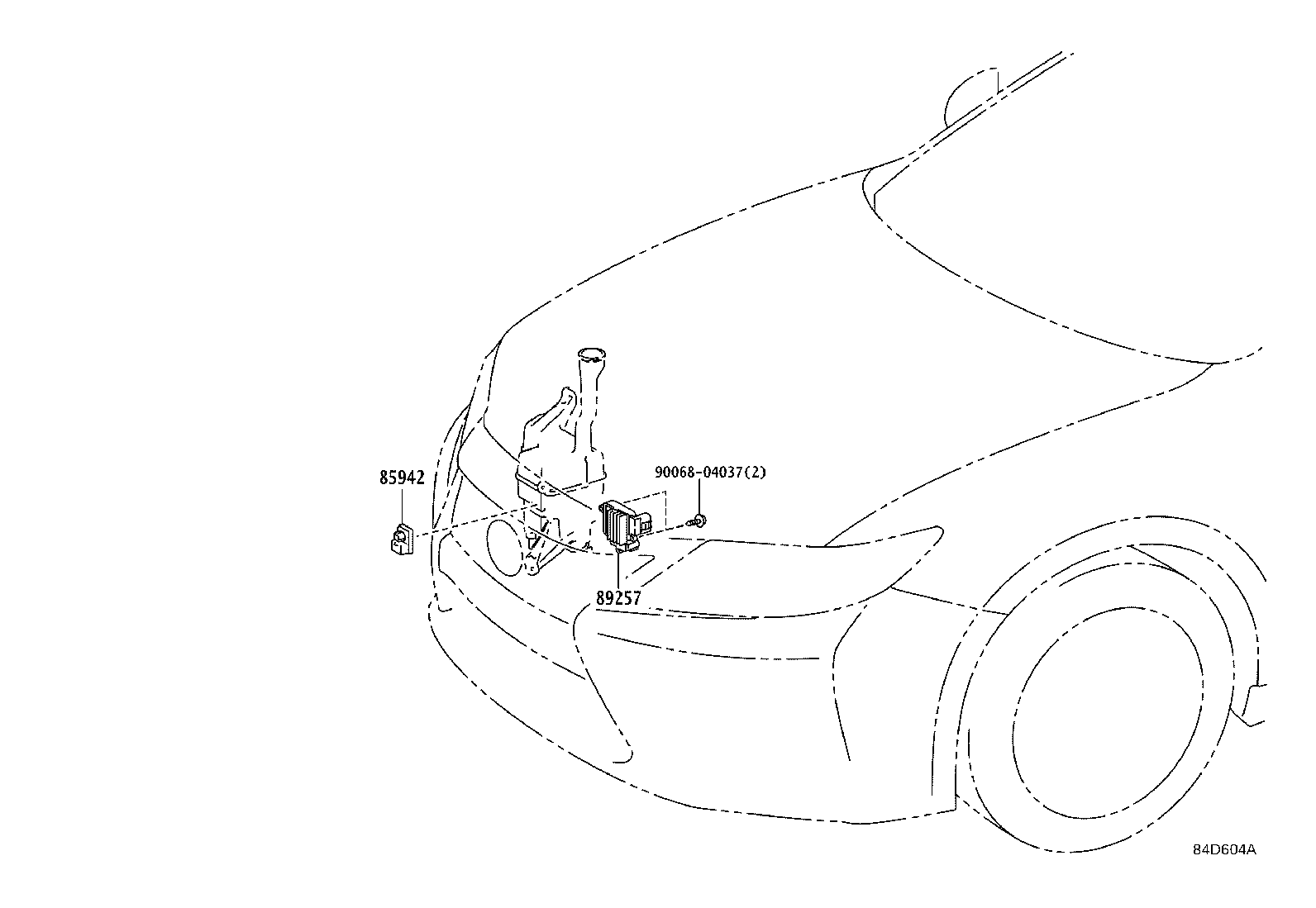

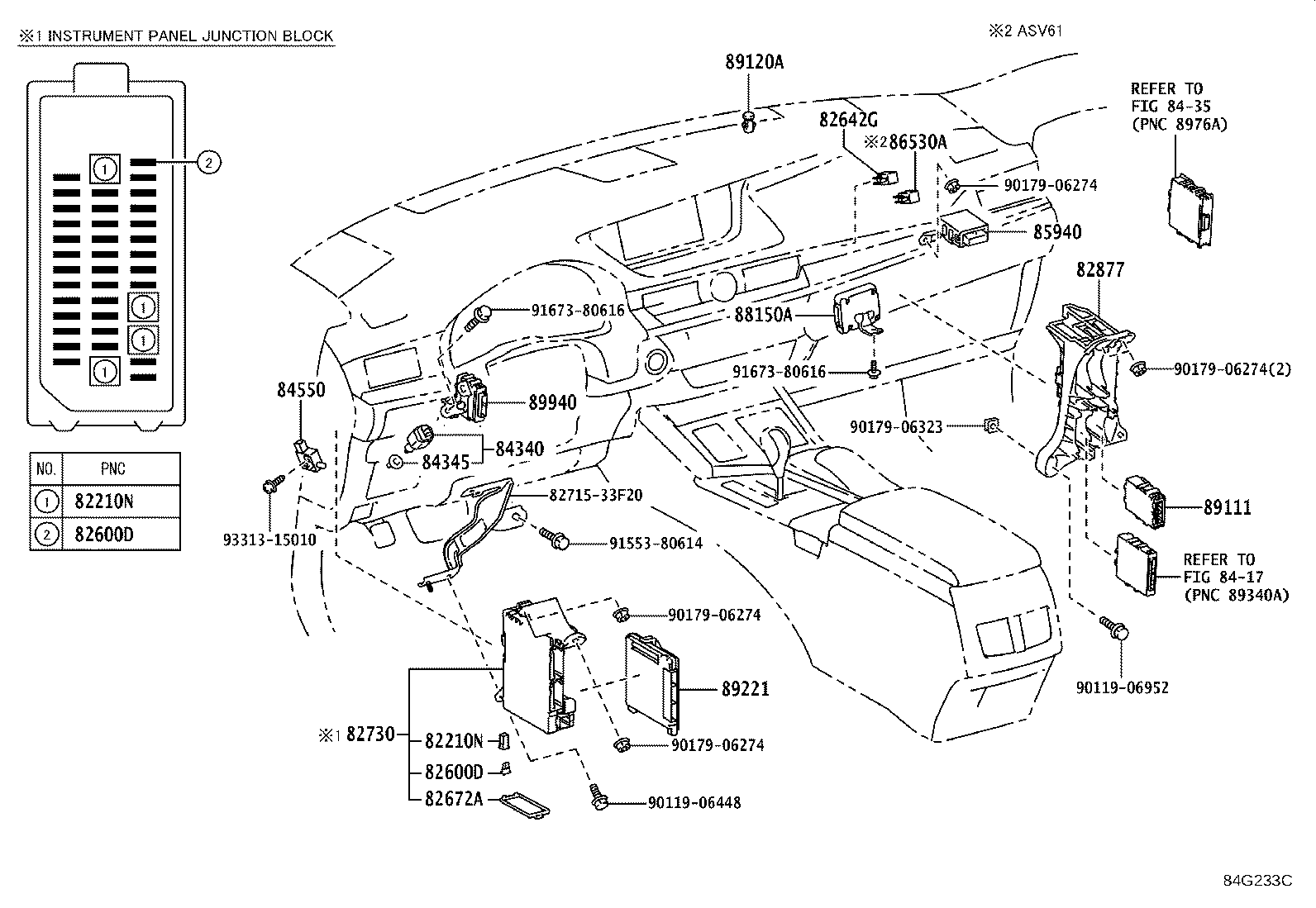

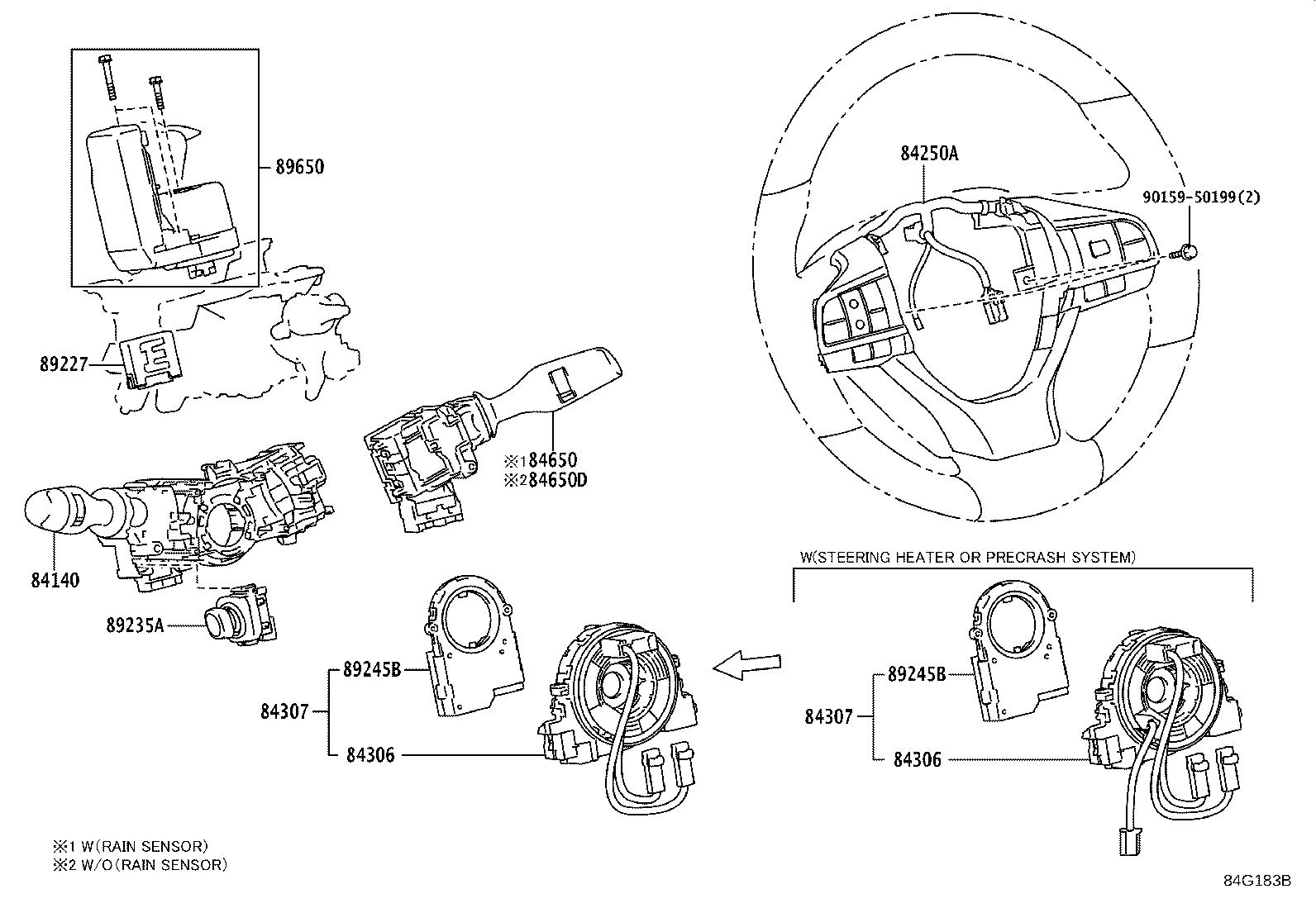

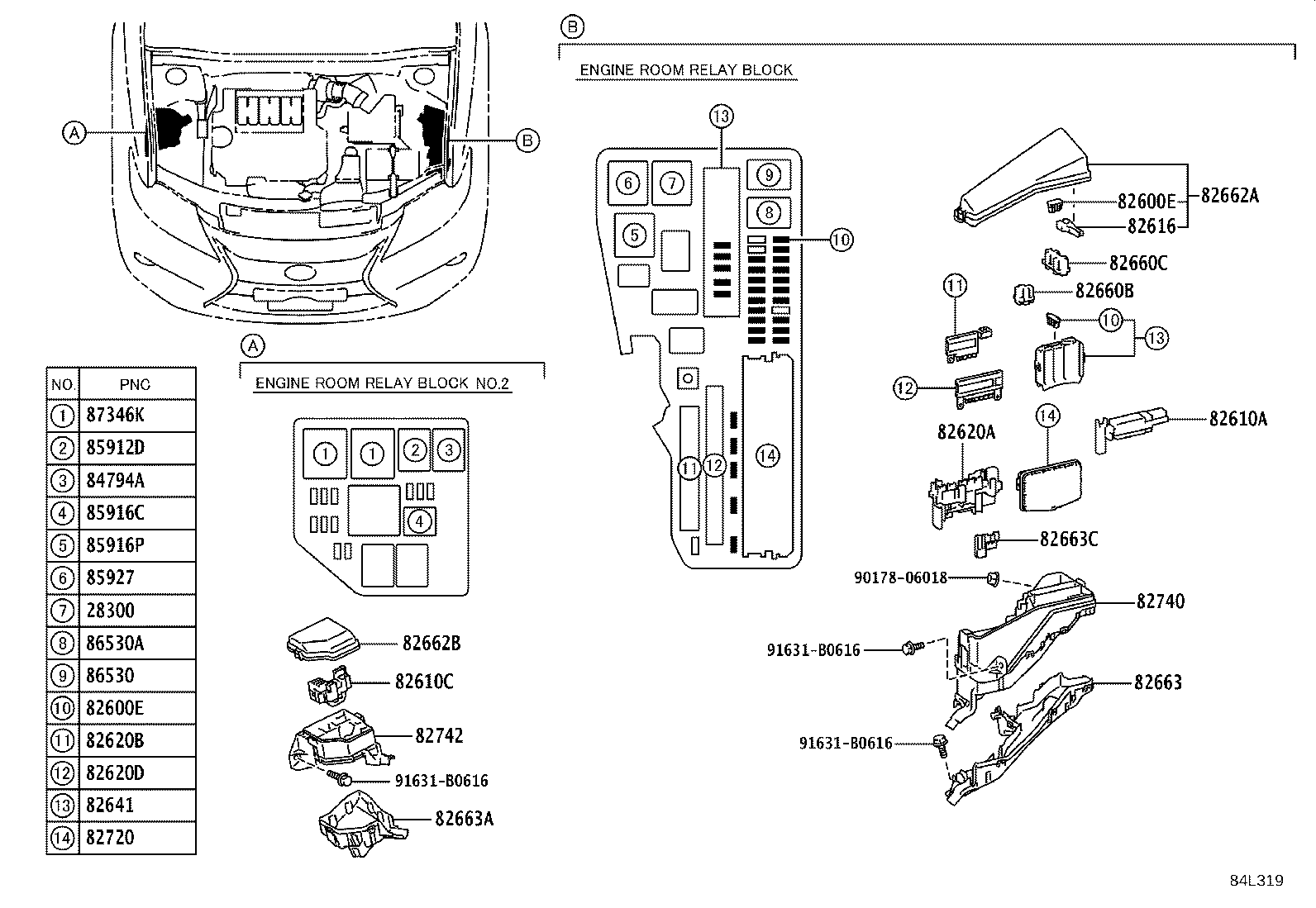

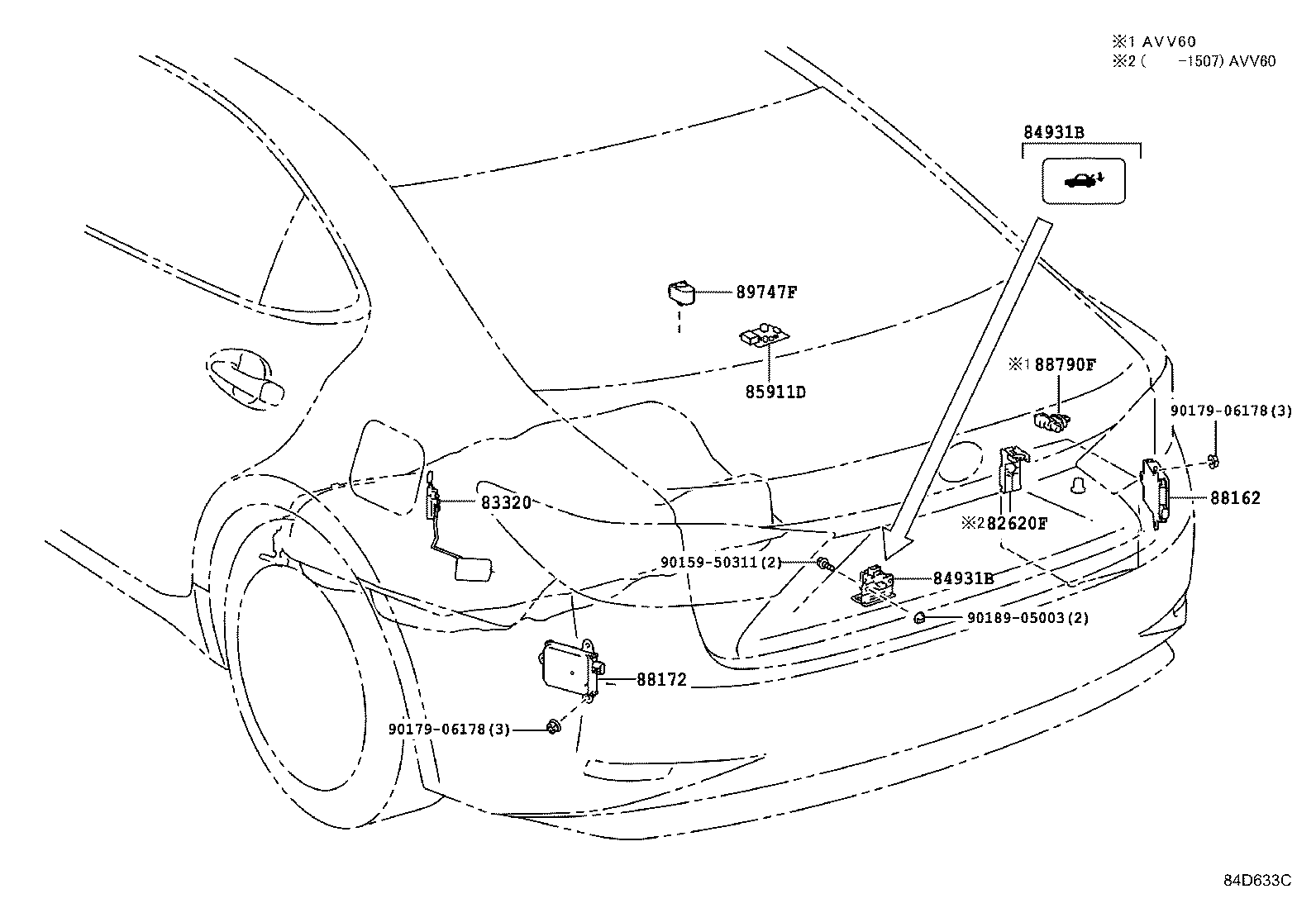

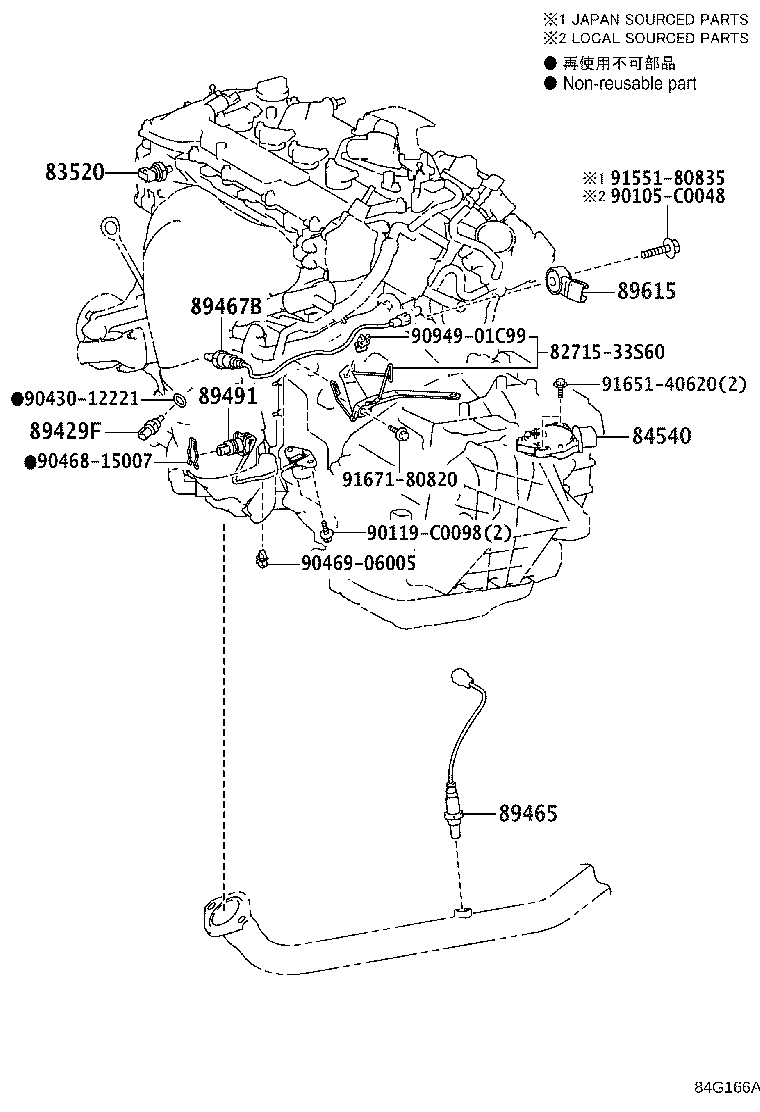

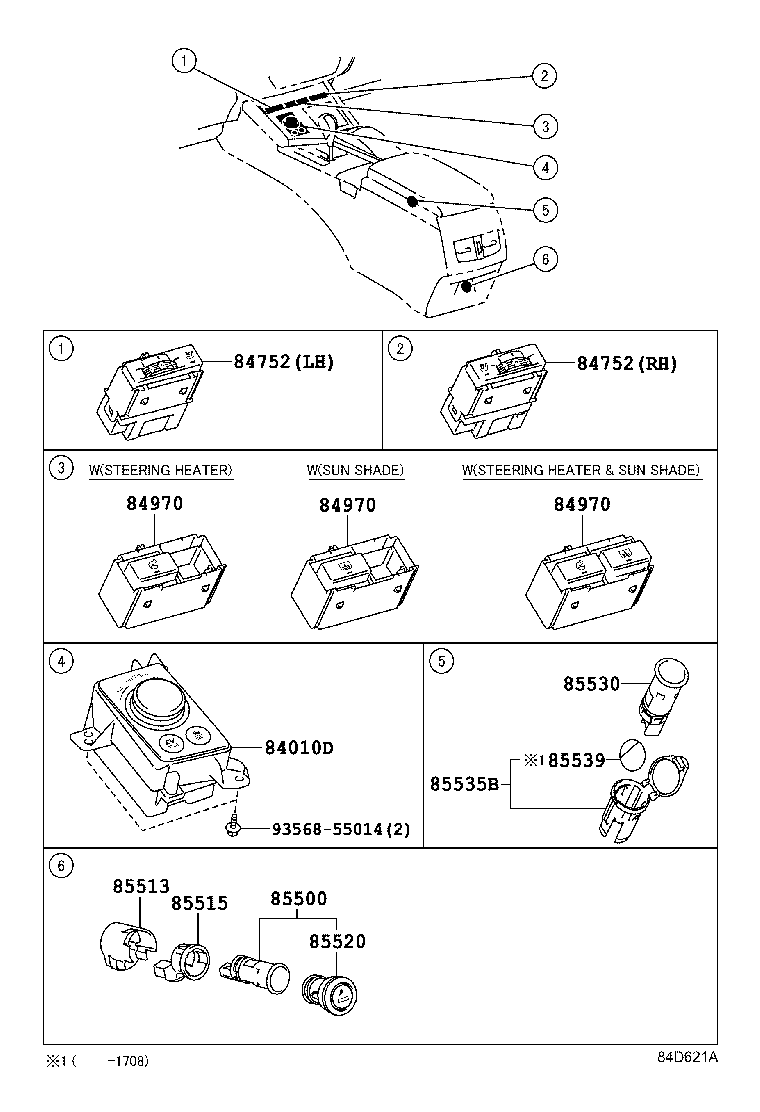

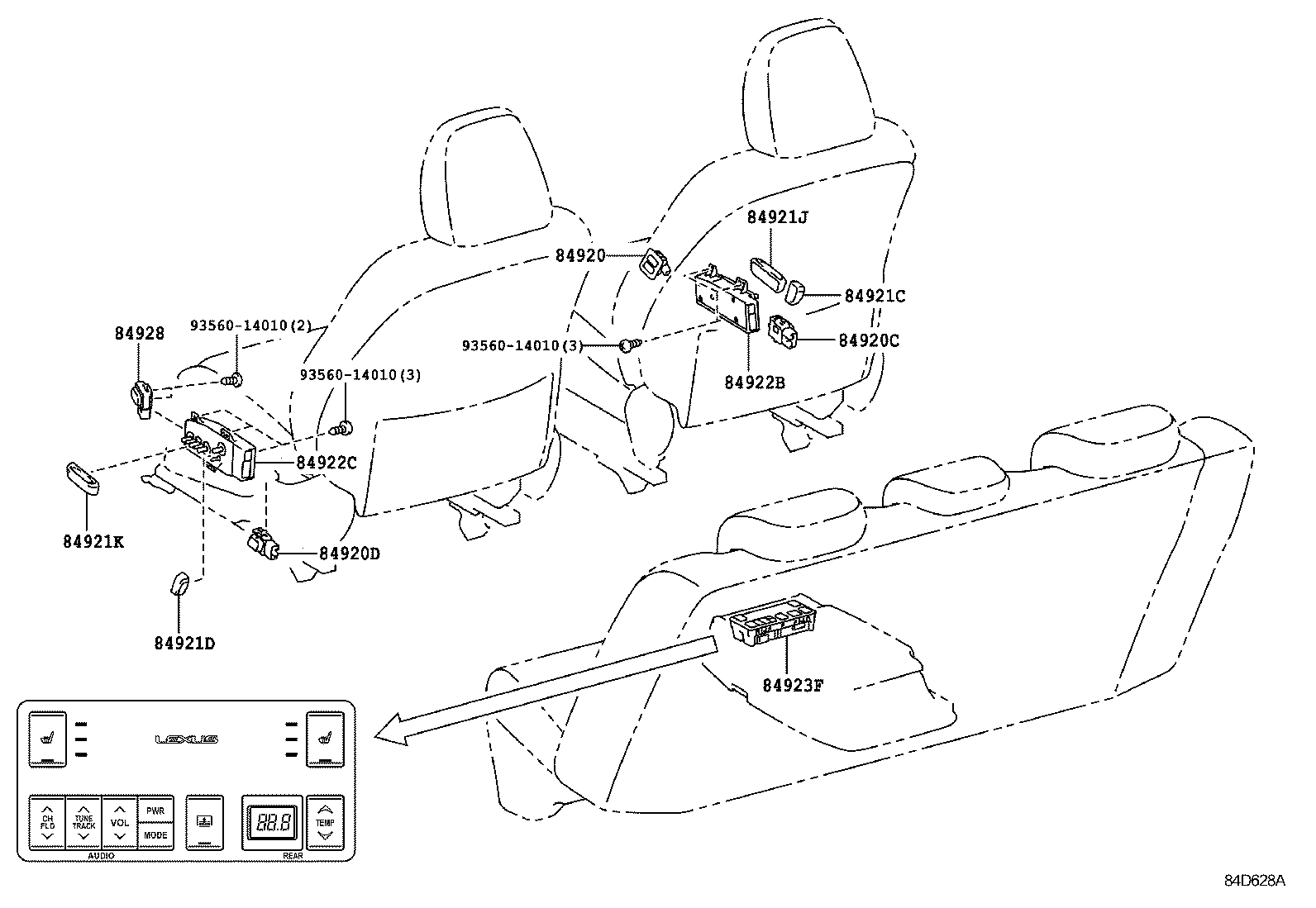

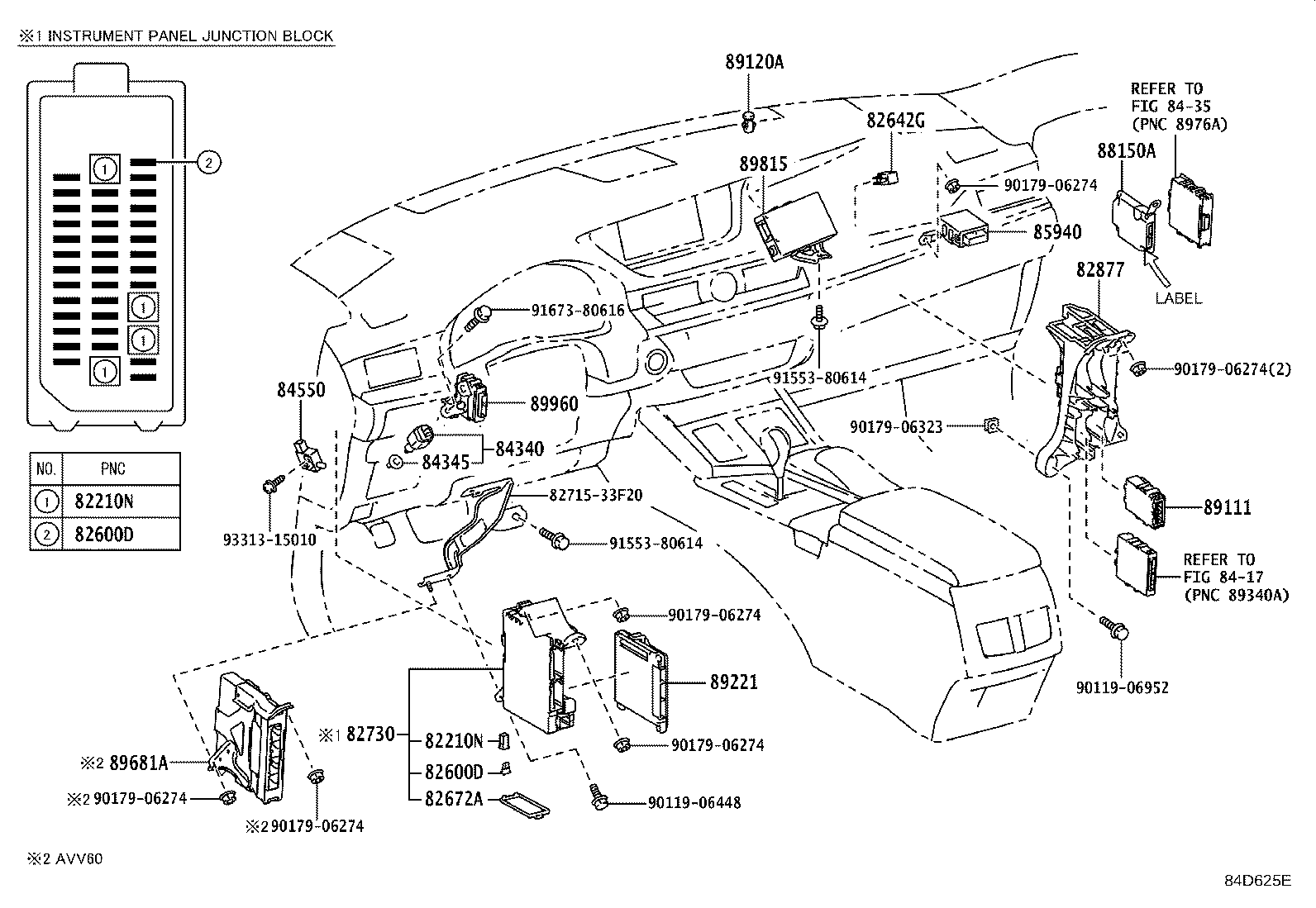

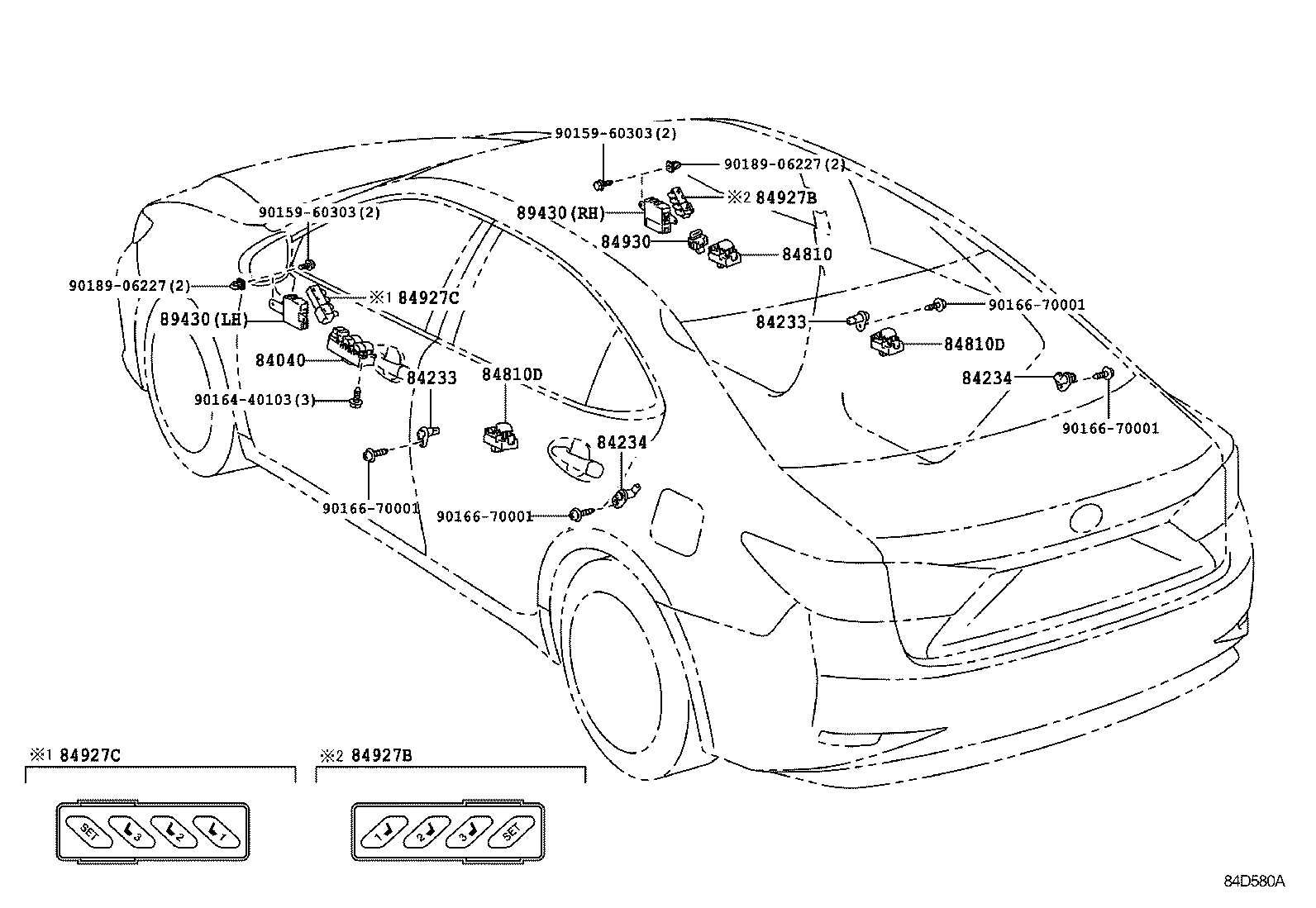

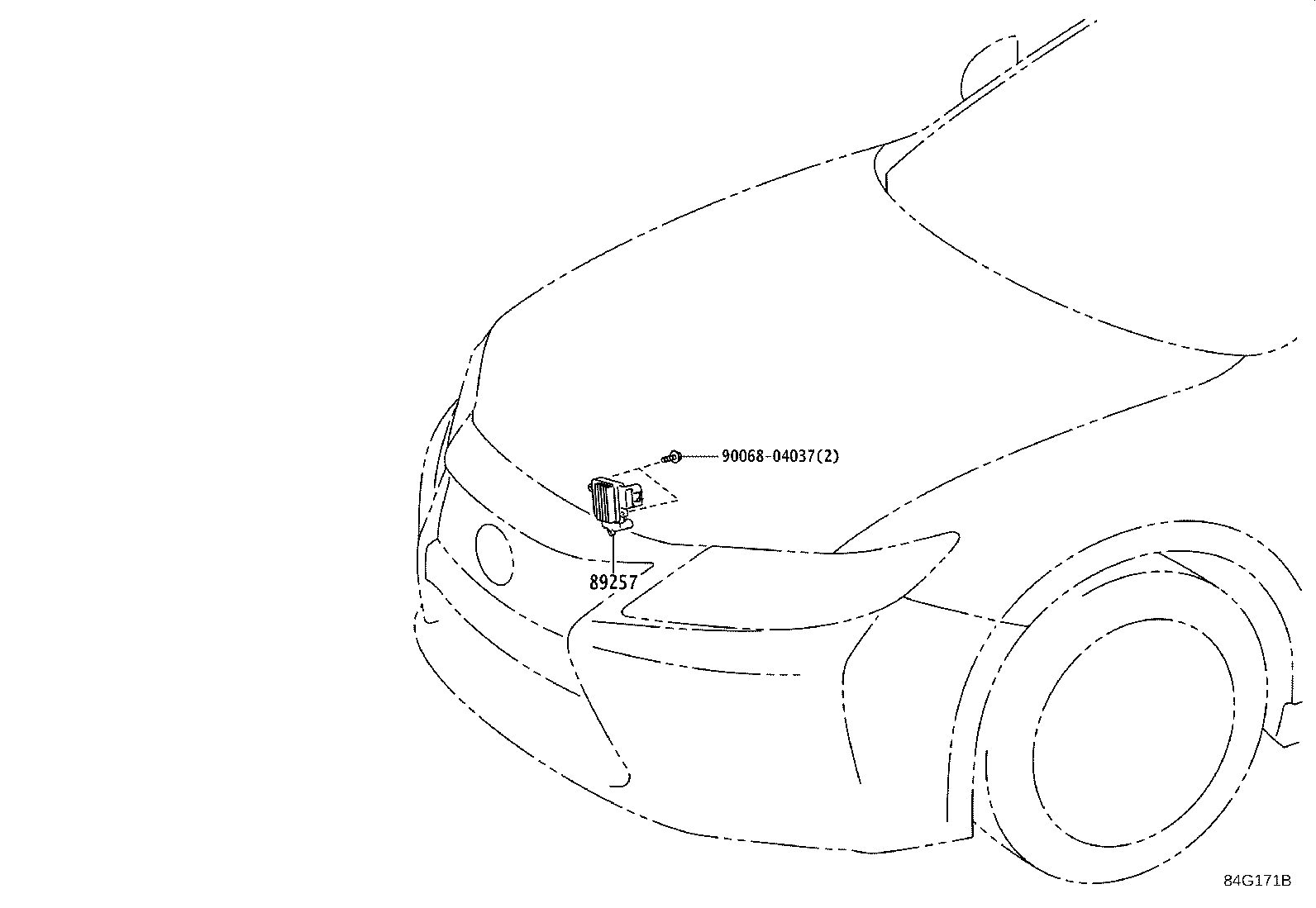

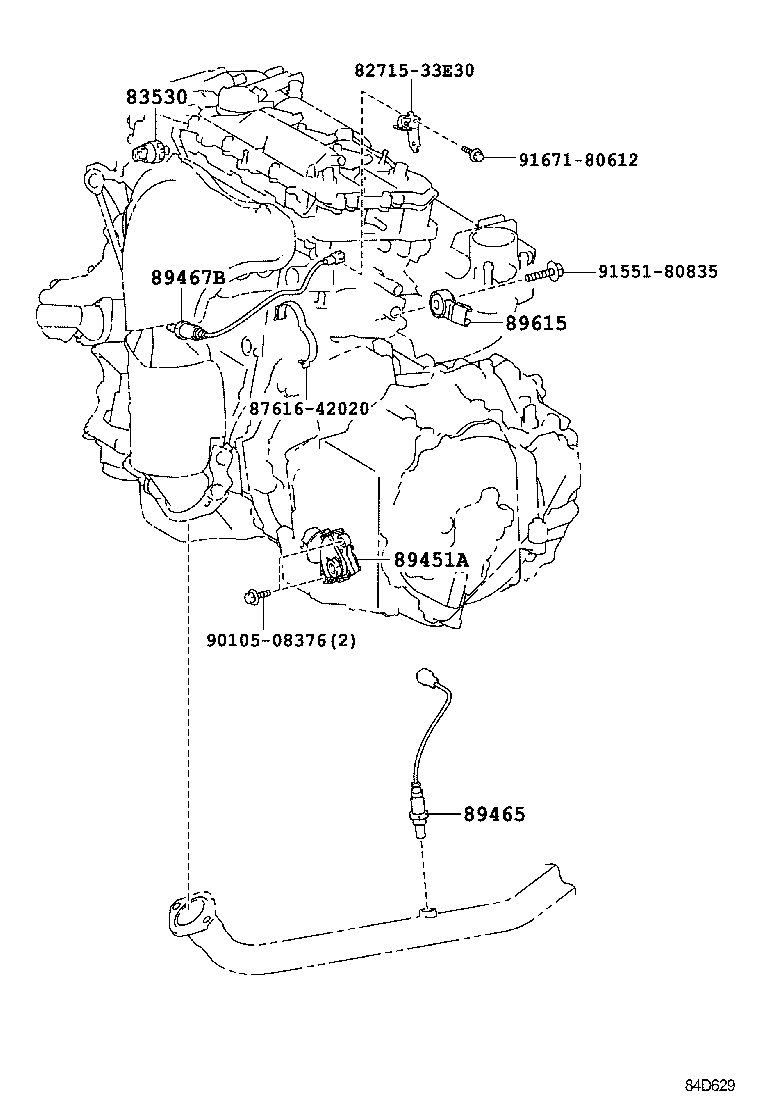

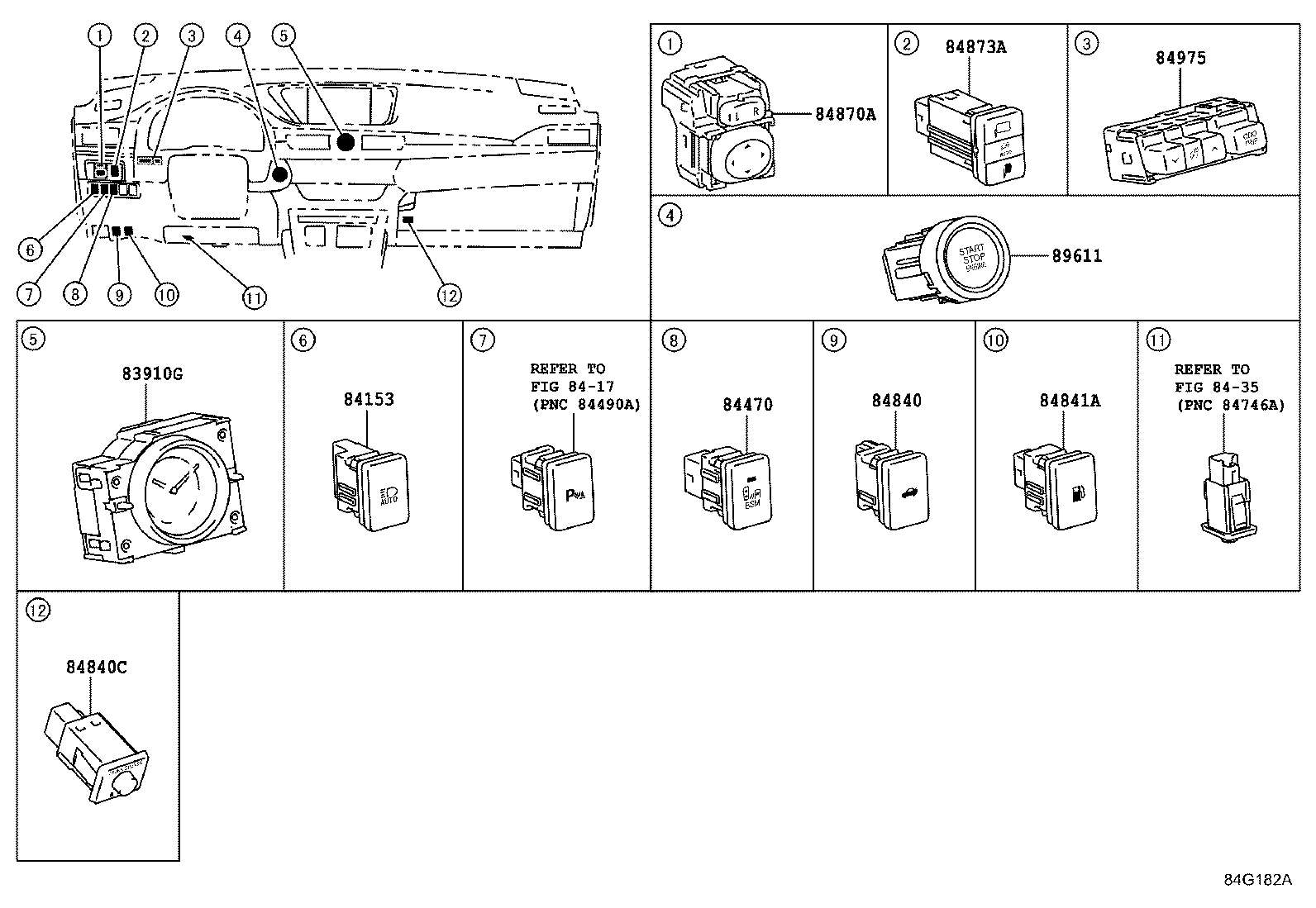

Figure 84D630A 84D630A 2012-06 → — Figure 84D629 84D629 2012-06 → — Figure 84F638 84F638 2012-06 → — Figure 84G166A 84G166A 2015-07 → — Figure 84E621B 84E621B 2012-06 → 2015-07 Figure 84G171B 84G171B 2015-07 → — Figure 84D604A 84D604A 2012-06 → 2015-07 Figure 84G175B 84G175B 2015-07 → — Figure 84L318 84L318 2012-06 → 2015-07 Figure 84L319 84L319 2015-07 → — Figure 84L305 84L305 2015-07 → — Figure 84L310 84L310 2012-06 → 2015-07 Figure 84D625E 84D625E 2012-06 → 2015-07 Figure 84G233C 84G233C 2015-07 → — Figure 84D620B 84D620B 2012-06 → 2015-07 Figure 84G182A 84G182A 2015-07 → — Figure 84D621A 84D621A 2012-06 → — Figure 84D626C 84D626C 2012-06 → 2015-07 Figure 84G183B 84G183B 2015-07 → — Figure 84D628A 84D628A 2012-06 → — Figure 84D580A 84D580A 2012-06 → — Figure 84D633C 84D633C 2012-06 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter

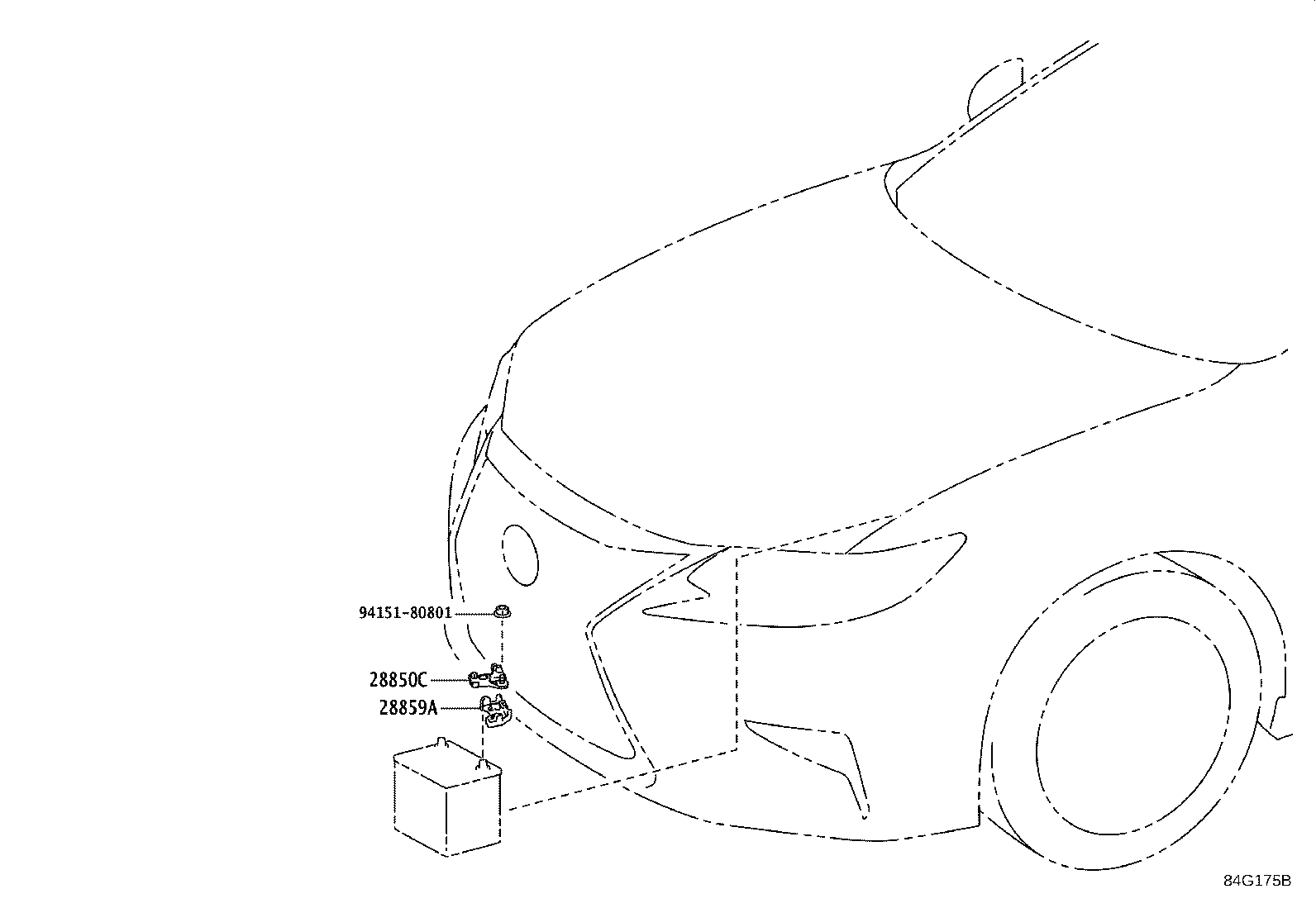

28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
82210N Instrument Panel Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82641 Relay, Integration NO.1
82642G Relay, Panel
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
84010D Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)

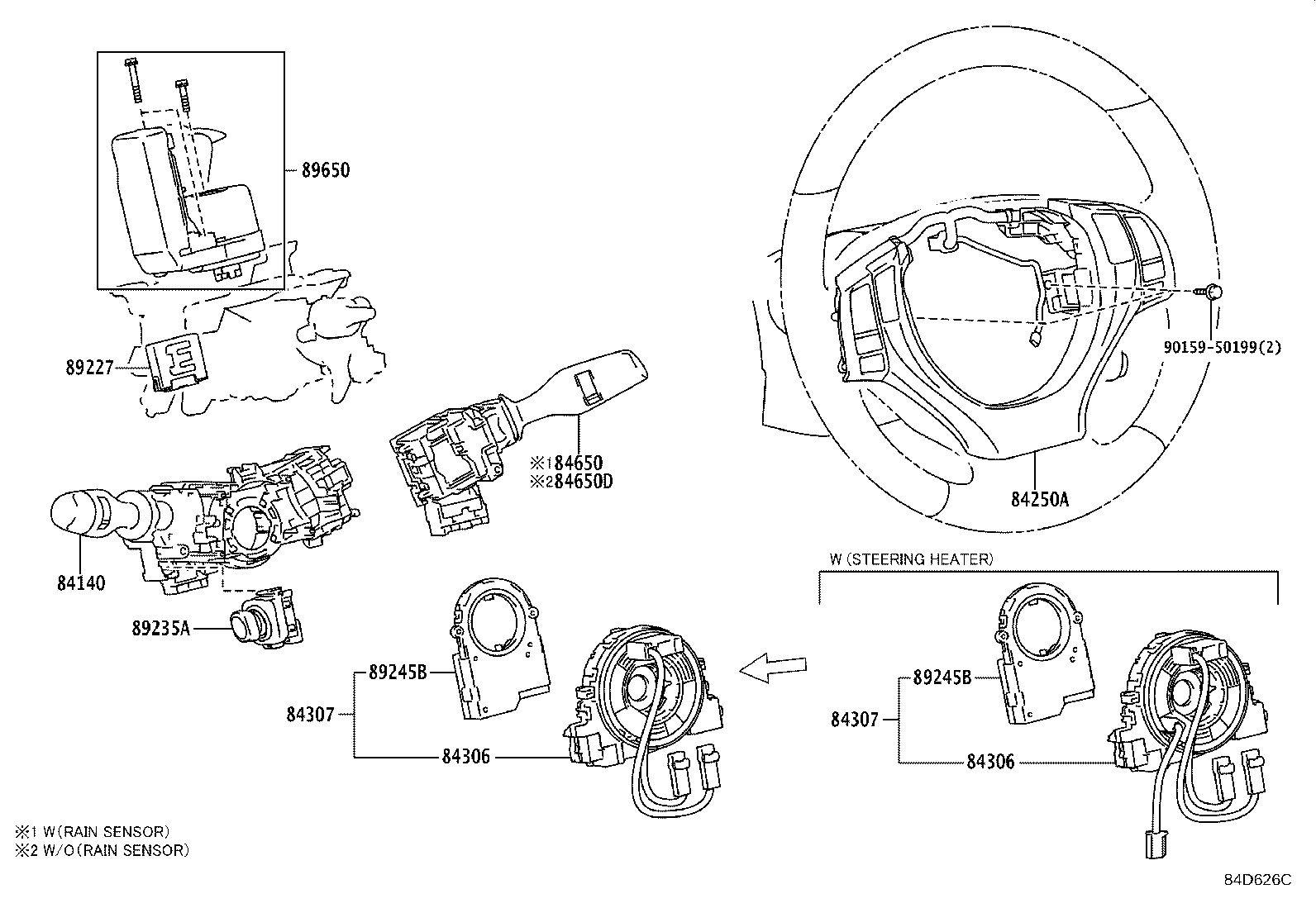

84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84470 Switch Assy, Warning Canceling
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84873A Switch, Retractable Outer Mirror
84920 Switch Assy, Power Seat
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923F Switch, Rear Control
84927B Switch, Seat Memory, RH
84927C Switch, Seat Memory, LH
84928 Switch, Seat Variable Cushion
84930 Switch Assy, Door Control
84931B Switch, Door Control
84970 Switch Assy, Combination
84975 Switch, Trip
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85539 Label, Power Outlet Notice
85911D Relay, Rear Sunshade
85912D Relay
85913F Relay, Steering Heater
85916C Relay, Back UP Lamp
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85927 Relay, Cooling Fan
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
86530 Relay Assy, Horn
86530A Relay, Horn
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89430 Computer Assy, Outer Mirror Control
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89747F Buzzer, Blind Spot Monitor
89815 Computer, Seat Belt Control
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
