Toyota Lexus ES2##/350/300H
2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe
Supported model
Data version 2018-12
Electronic Fuel Injection System

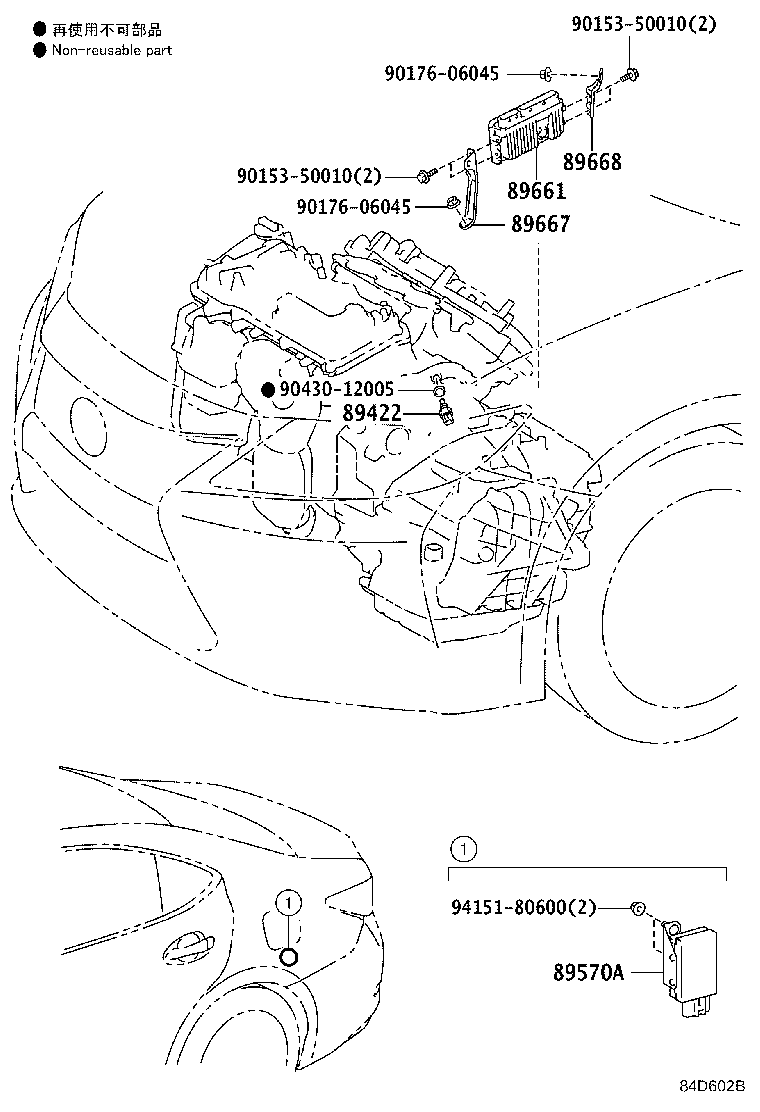

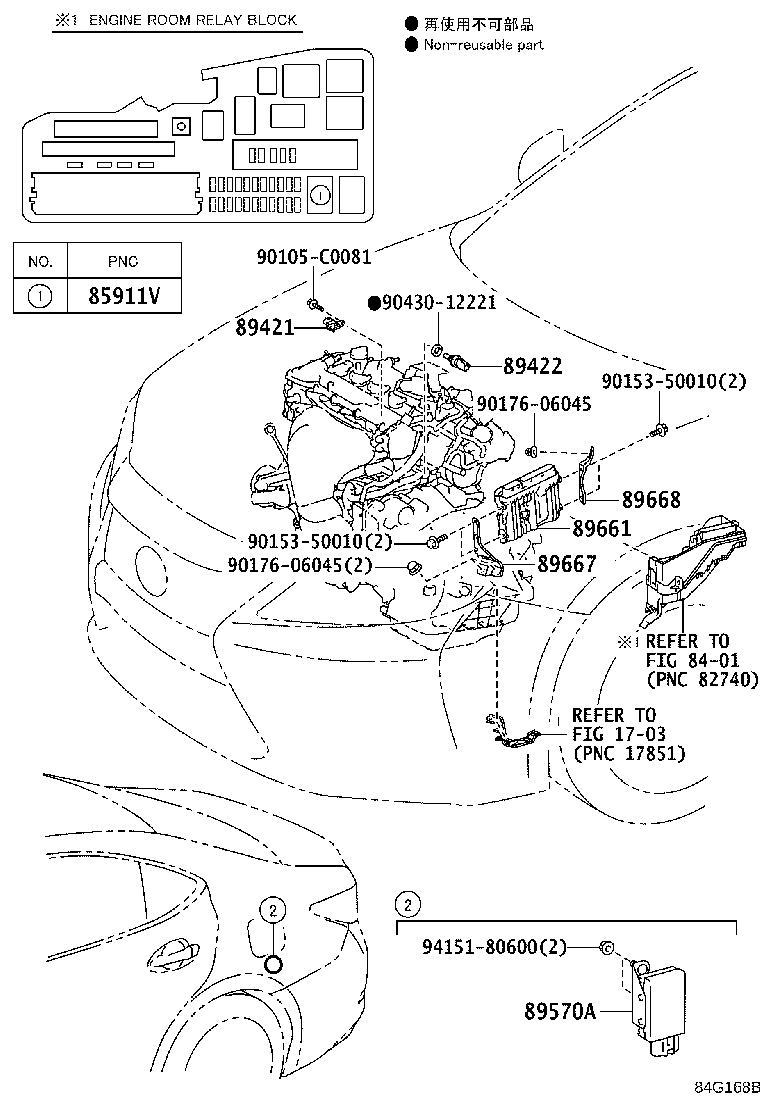

7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85911V | Relay, Electronic Driver Unit |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89570A | Computer Assy, Fuel Pump Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
