Toyota Lexus ES2##/350/300H

2012-06 → 2018-06 · chassis ASV6#,AVV60,GSV60 · catalogue 282590 · Europe

Supported model Data version 2018-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

6 part groups · 2 illustrations

Illustrations

Figure 865093A

865093A 2012-06 → 2014-08

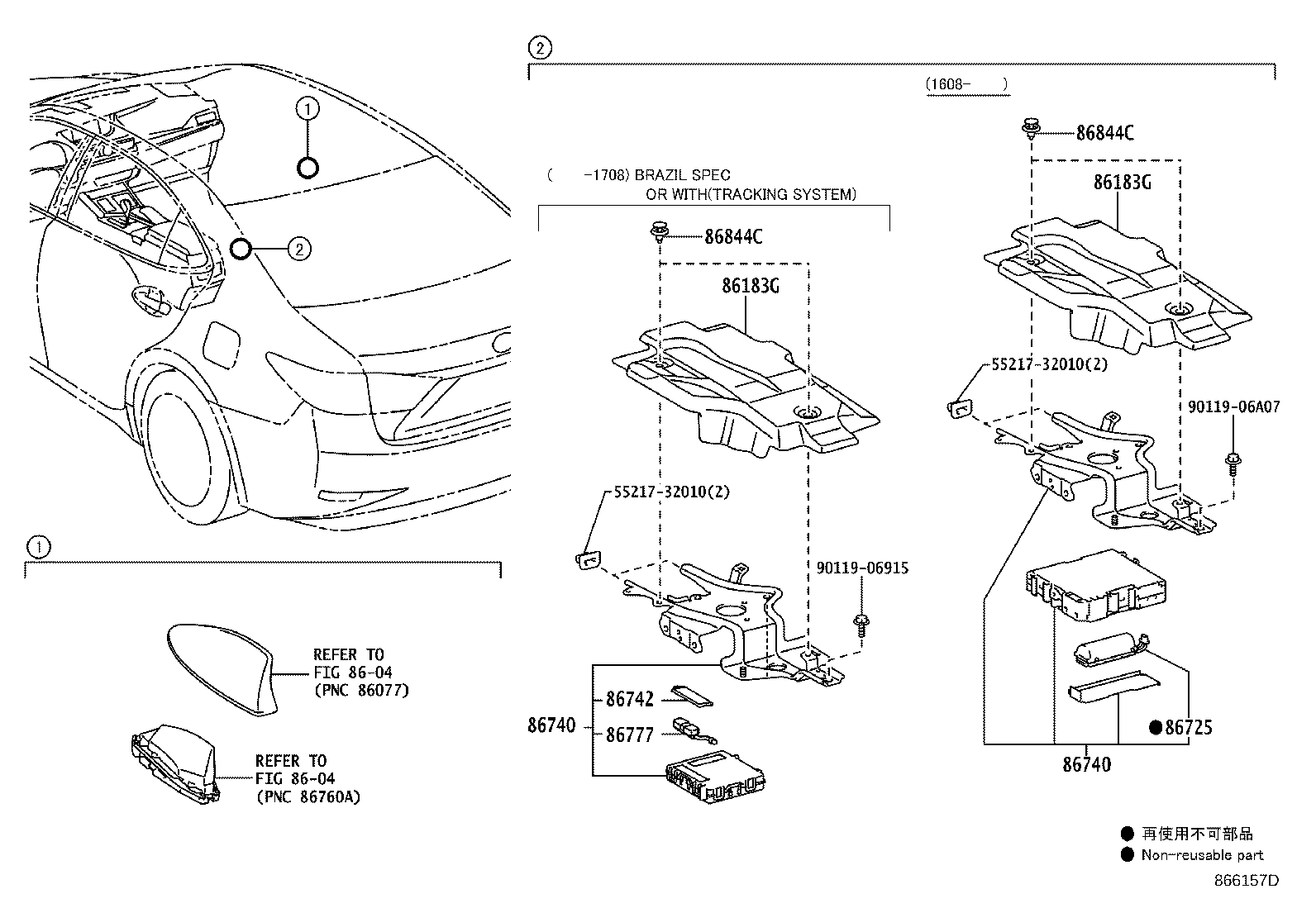

Figure 866157D

866157D 2014-08 → —

Part groups

PNC	Description
86183G	Cover, Audio Amplifier
86725	Battery, Mobilephone
86740	Transceiver Assy, Telephone
86742	Cover, Transceiver
86777	Battery, Mayday
86844C	Retainer, Computer Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
