Heating & Air Conditioning - Control & Air Duct

27 part groups · 3 illustrations

Illustrations

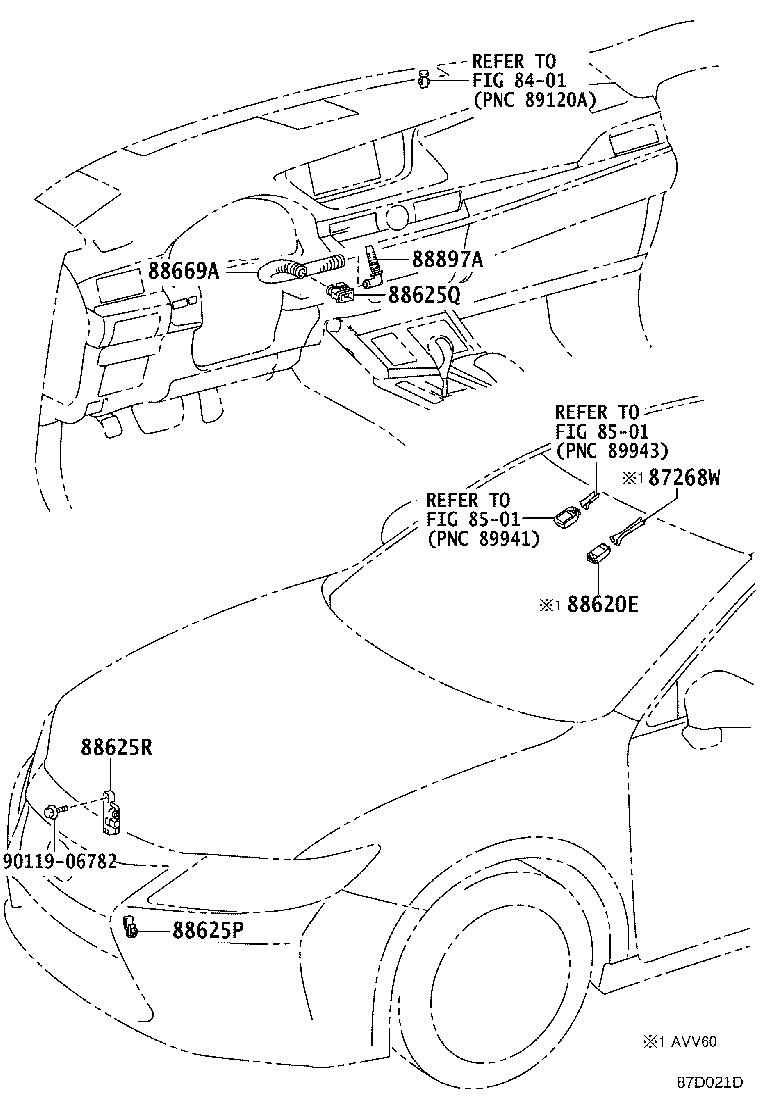

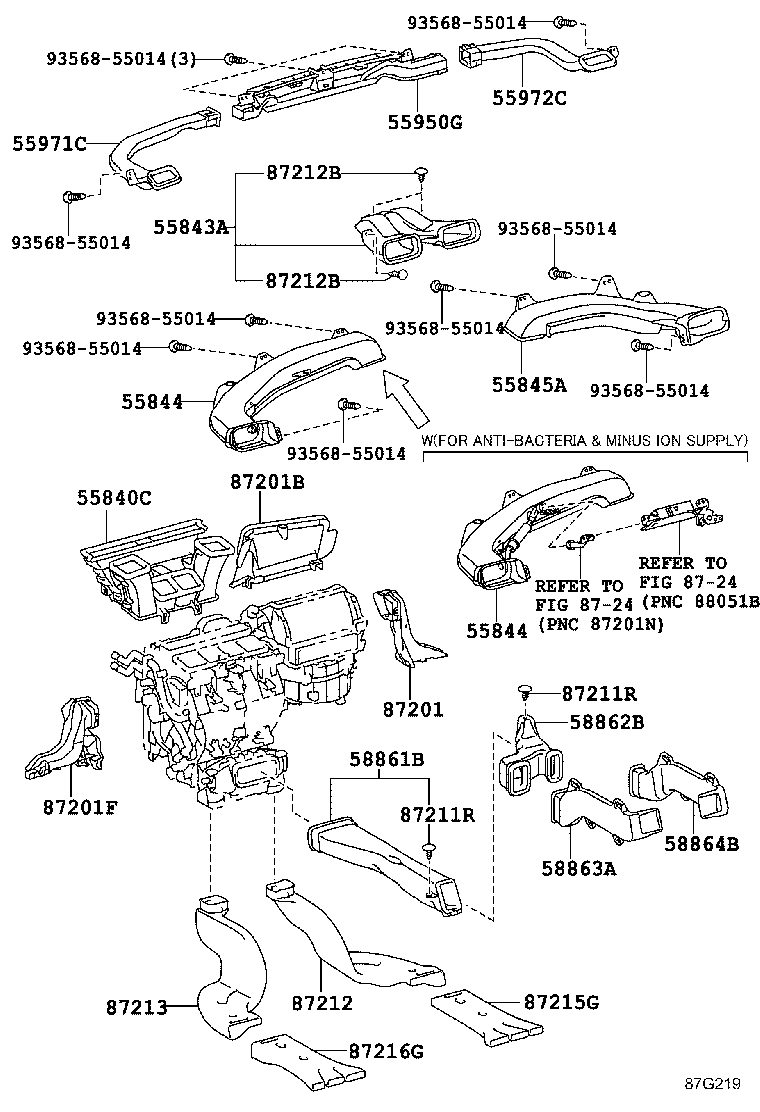

Figure 87D019C 87D019C 2012-06 → — Figure 87G219 87G219 2012-06 → — Figure 87D021D 87D021D 2012-06 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
58863A Duct, Console Box, NO.3
58864B Duct, Console Box, NO.4
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH
87268W Protector
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625R Thermistor, Cooler (SENSOR, SMOG VENTILATION)
88669A Hose (FOR COOLER THERMISTOR)
88897A Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
