Toyota Camry (WG)
1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe
Discontinued model
Data version 1997-03

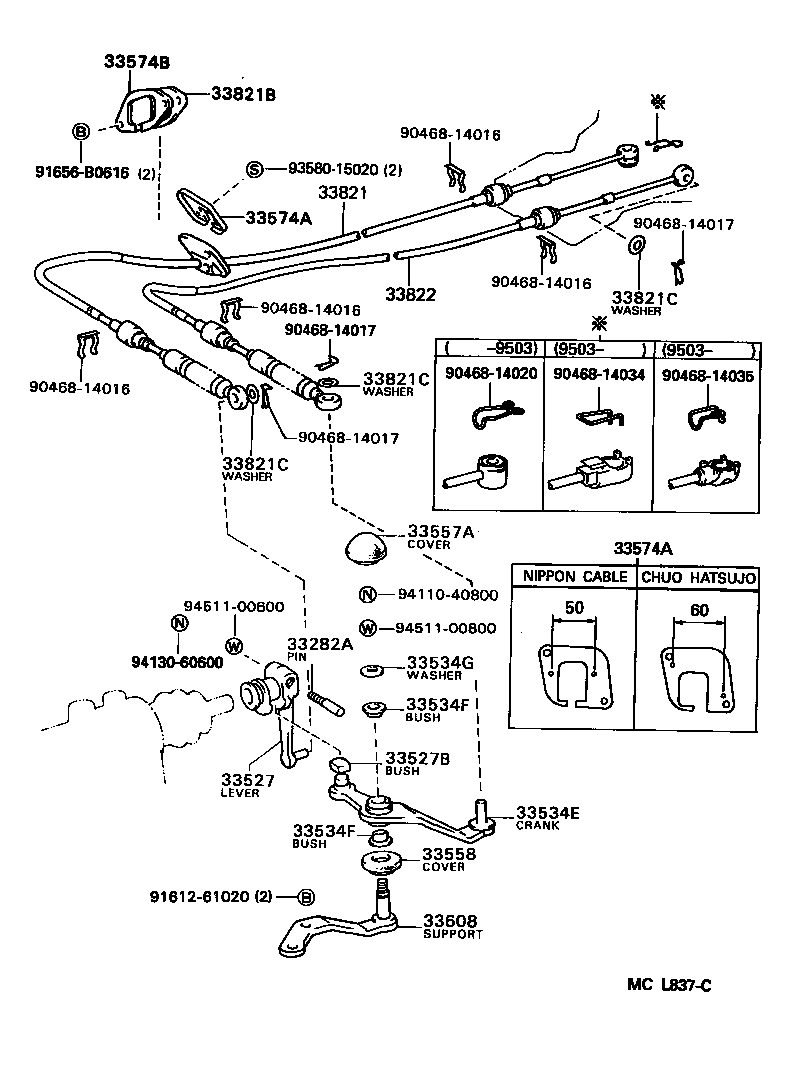

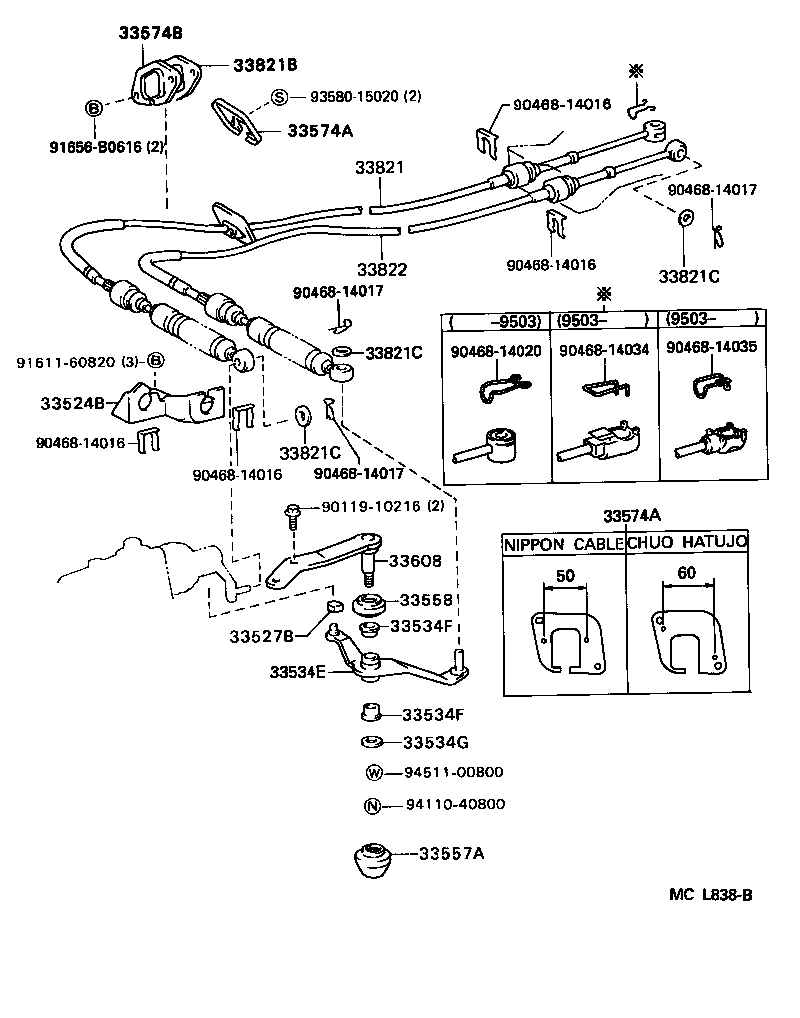

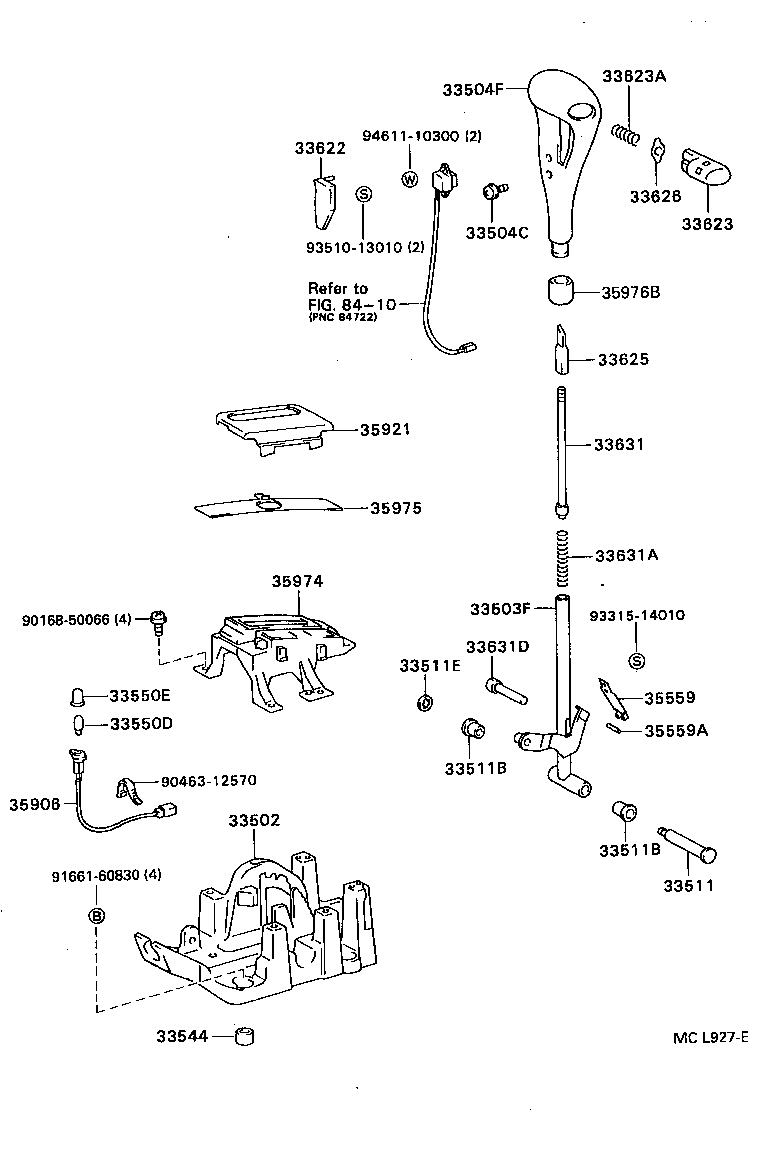

Shift Lever & Retainer
64 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 33282A | Pin, Lever Lock (FOR CONTROL SHIFT LEVER) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33509 | Crank Sub-assy, Selecting Bell, NO.1 |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511B | Bush (FOR CONTROL SHAFT) |
| 33511E | Ring, Snap (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33524B | Bracket, Control Cable |
| 33527 | Lever, Control Shift (FOR FLOOR SHIFT) |
| 33527B | Bush (FOR CONTROL SHIFT LEVER) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33534C | Bush (FOR SELECTING BELLCRANK NO.1) |
| 33534D | Spring, Torsion (FOR SELECTING BELLCRANK NO.1) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33534K | Washer, Wave (FOR SELECTING BELLCRANK NO.1) |
| 33534P | Washer, Plate (FOR SELECTING BELLCRANK NO.1) |
| 33534Q | Ring, E (FOR SELECTING BELLCRANK NO.1) |
| 33534R | Cushion (FOR SELECTING BELLCRANK NO.1) |
| 33539 | Cushion, Shift Lever Anti-rattle |
| 33544 | Insert, Shift Lever, NO.1 |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33556B | Bush (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33556H | Shim (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556J | Ring, Shaft Snap (FOR TRANSMISSION SHIFT LEVER SEAT) |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33565A | Bush, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE) |
| 33565B | Bush, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE) |
| 33574A | Retainer, Shift Cable Grommet, NO.1 |
| 33574B | Retainer, Shift Cable Grommet, NO.2 |
| 33575 | Retainer, Control Shift Lever (FOR FLOOR SHIFT) |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33622 | Cover, Shift Lever Knob, NO.1 |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33626 | Stopper, Shift Lever Button |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33695A | Cover, Shift Lever Ball |
| 33723Q | Nut (FOR CONNECTING ROD SWIVEL) |
| 33820B | Cable Assy, Transmission Control |
| 33821 | Cable Transmission Control Shift (FOR FLOOR SHIFT) |
| 33821B | Grommet, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33821E | Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33822 | Cable Transmission Control Select (FOR FLOOR SHIFT) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 35559 | Spring, Manual Detent |
| 35559A | Pin (FOR MANUAL DETENT SPRING) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
