Toyota Camry (WG)

1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

20 part groups · 3 illustrations

Illustrations

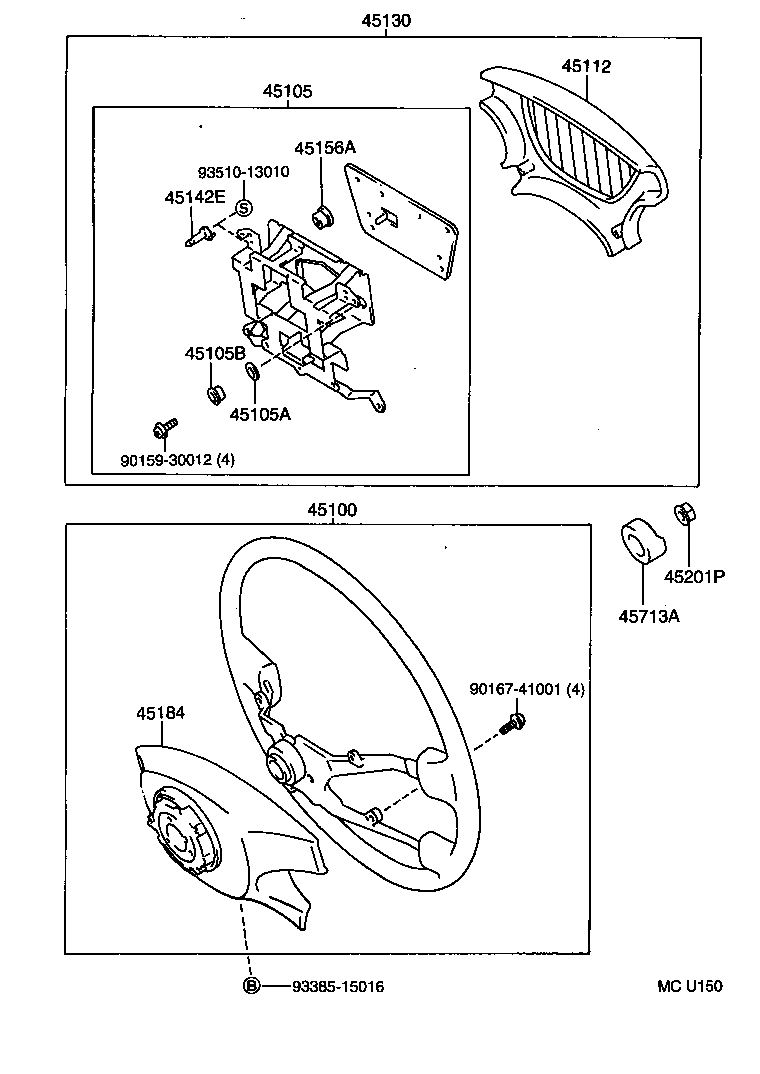

Figure MCL973 MCL973 1991-06 → — Figure MCU150 MCU150 1991-06 → — Figure MCU151 MCU151 1991-06 → —

Part groups

PNCDescription
45001 Airbag Kit, Sttering Wheel
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136F Plate, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45146 Spring, Horn Button Contact
45146B Spring, Horn Button Contact, NO.1
45156A Seat, Horn Contact Spring Set
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45197 Label, Airbag Caution
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
