Toyota Camry (WG)
1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe
Discontinued model
Data version 1997-03
Instrument Panel & Glove Compartment

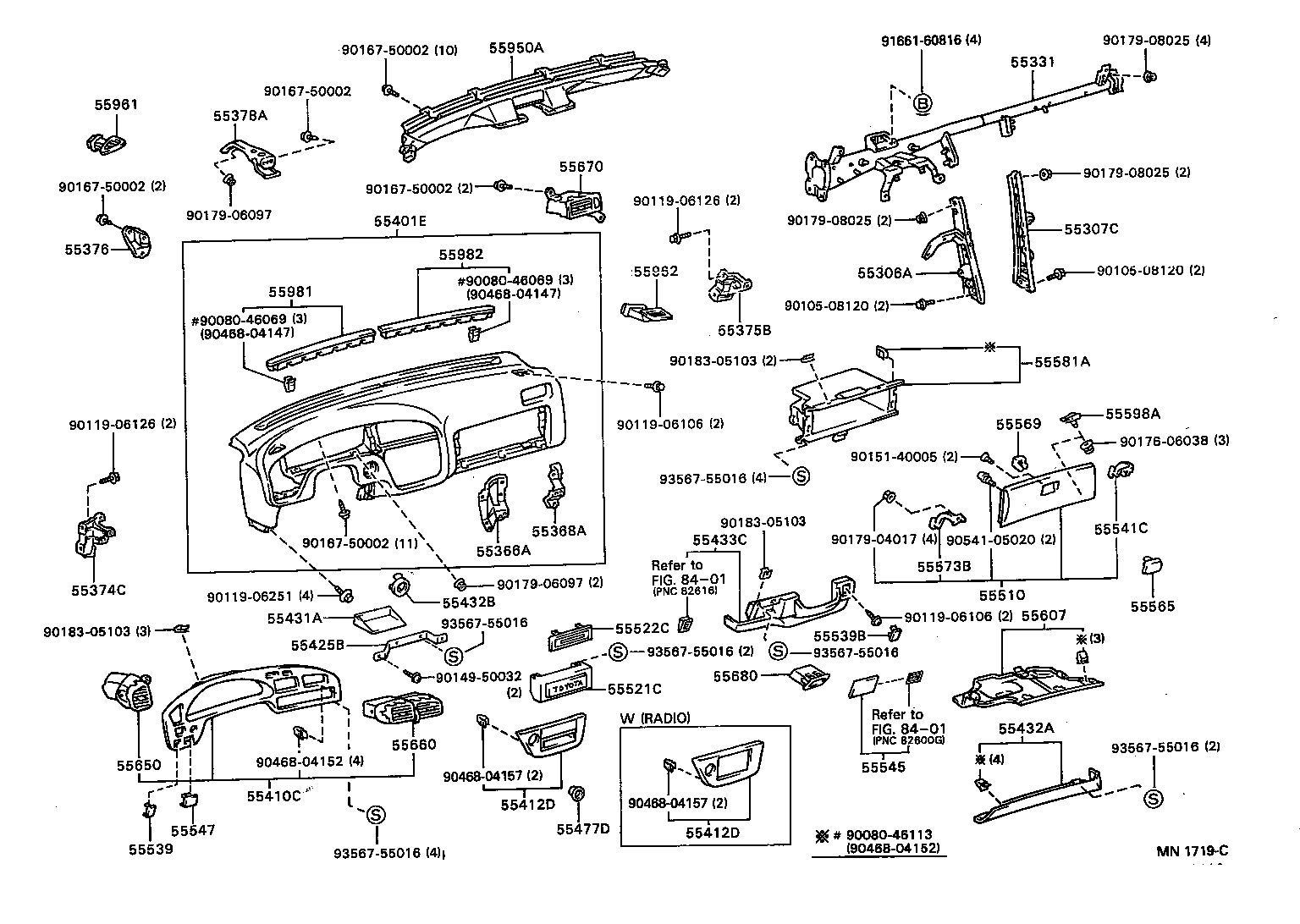

42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55425B | Reinforcement, Instrument Cluster Finish Panel |
| 55431A | Panel, Instrument Panel Finish |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55477D | Cover, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522C | Cover, Radio Receiver Opening |
| 55538D | Cover, Sunshine Sensor Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55541C | Arm, Glove Compartment Hinge, RH |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55573B | Arm, Glove Compartment Door Check, LH |
| 55581A | Compartment, Glove |
| 55598A | Bracket, Glove Compartment Door Hinge |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
