Toyota Camry (WG)

1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

17 part groups · 4 illustrations

Illustrations

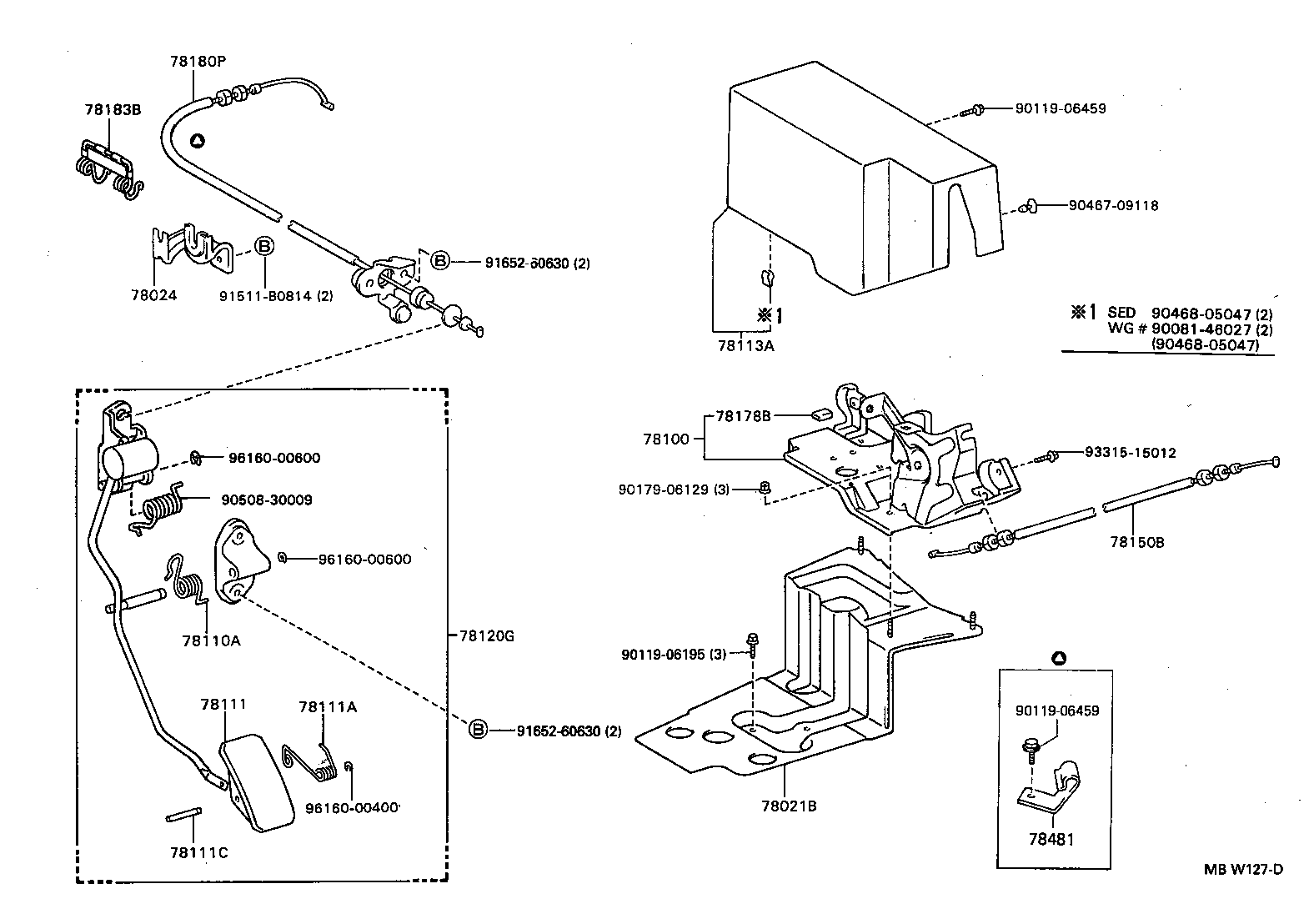

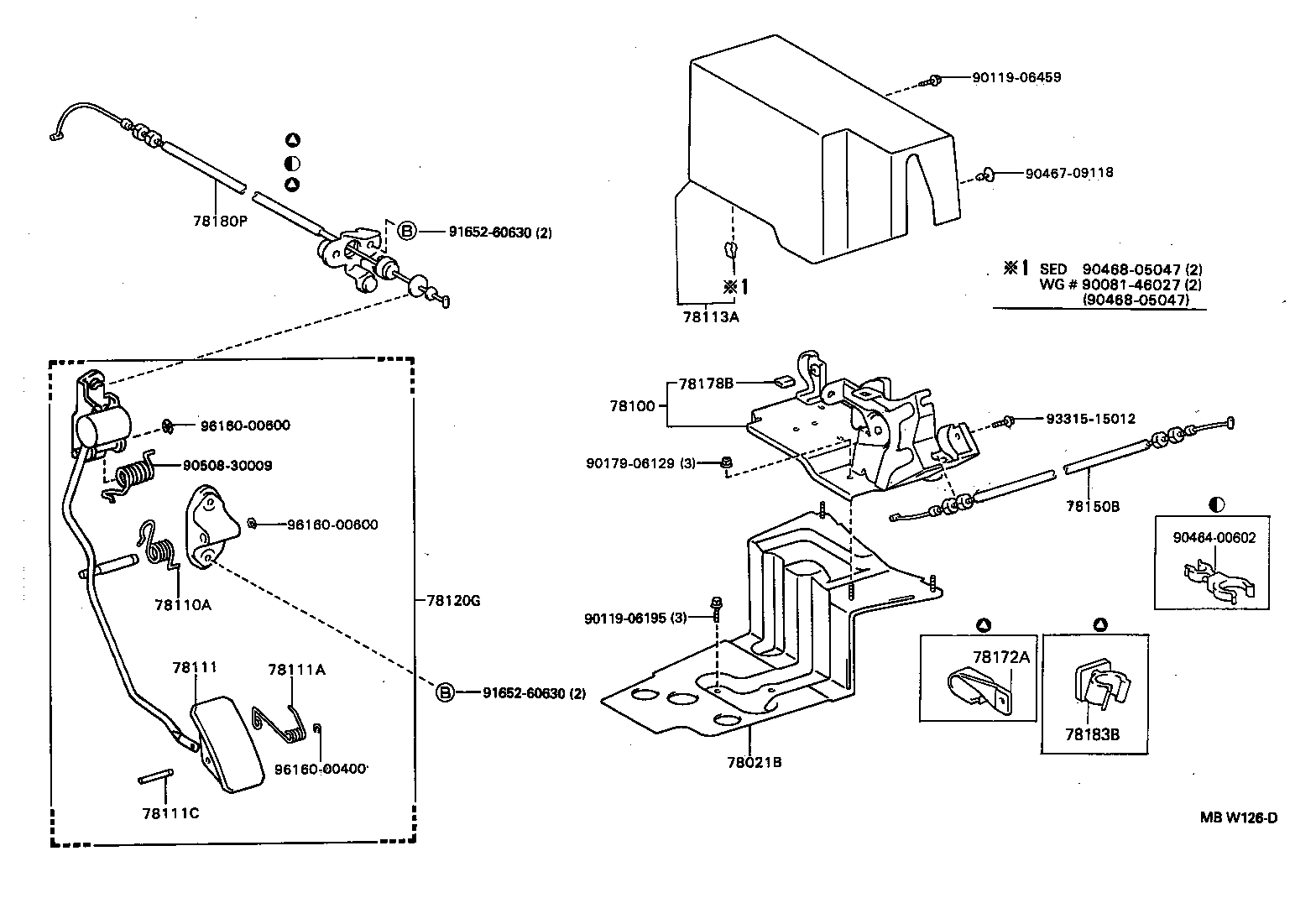

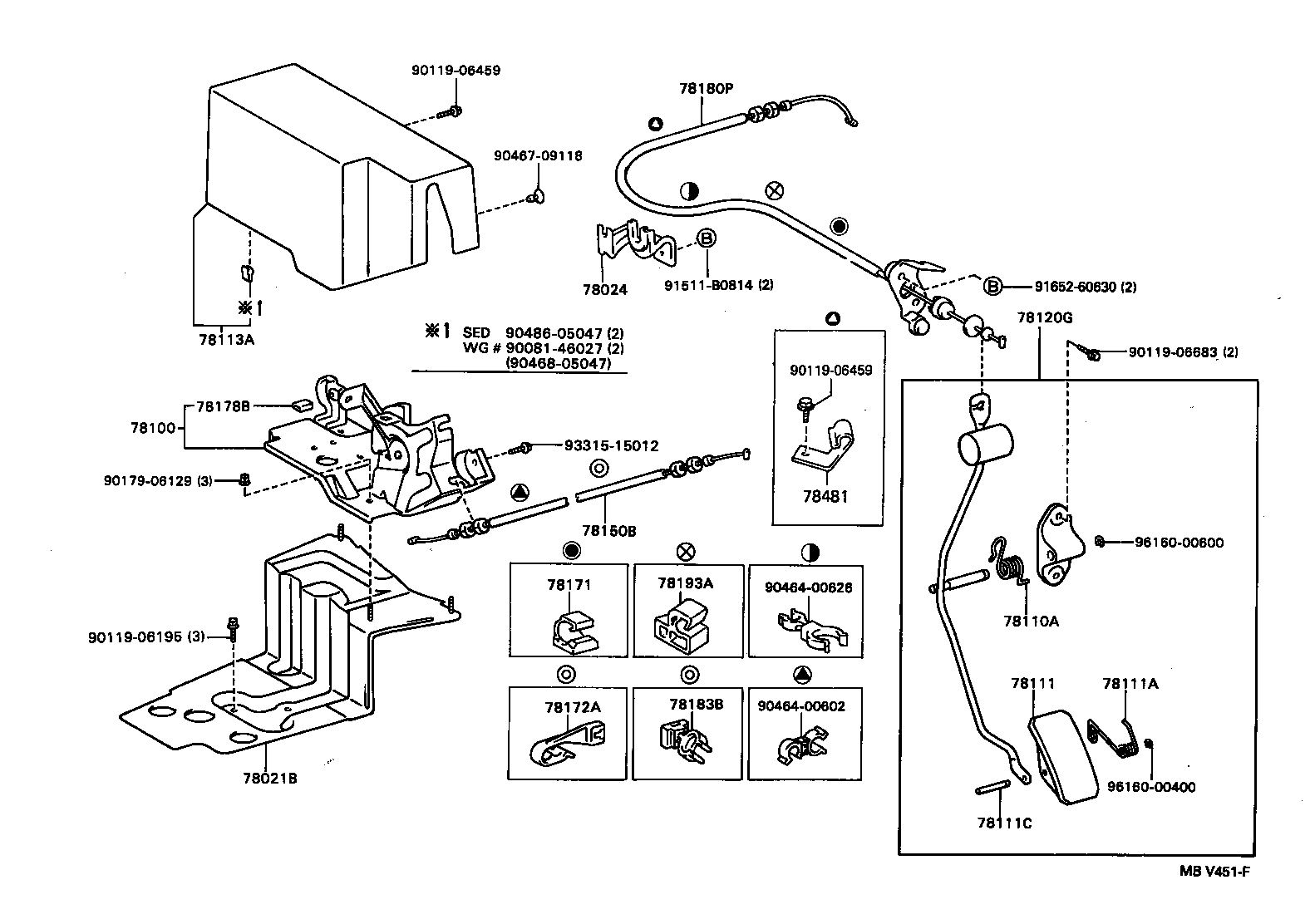

Figure MBW541C MBW541C 1991-06 → — Figure MBV451F MBV451F 1991-06 → — Figure MBW126D MBW126D 1991-06 → — Figure MBW127D MBW127D 1991-06 → —

Part groups

PNCDescription
78021B Bracket Sub-assy, Accel Control Bellcrank
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78113A Cover, Auto Drive Accelerator Link
78120G Rod Assy, Accelerator Pedal
78150B Cable Assy, Accelerator Auto Drive
78171 Bracket, Accelerator Control NO.2 Rod, RH
78172A Bracket, Accelerator Control NO.2 Rod, LH
78178B Damper, Accel Control NO.4 Rod Bracket
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78193A Support, Accelerator Control Cable, NO.3
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
