Toyota Camry (WG)

1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

18 part groups · 3 illustrations

Illustrations

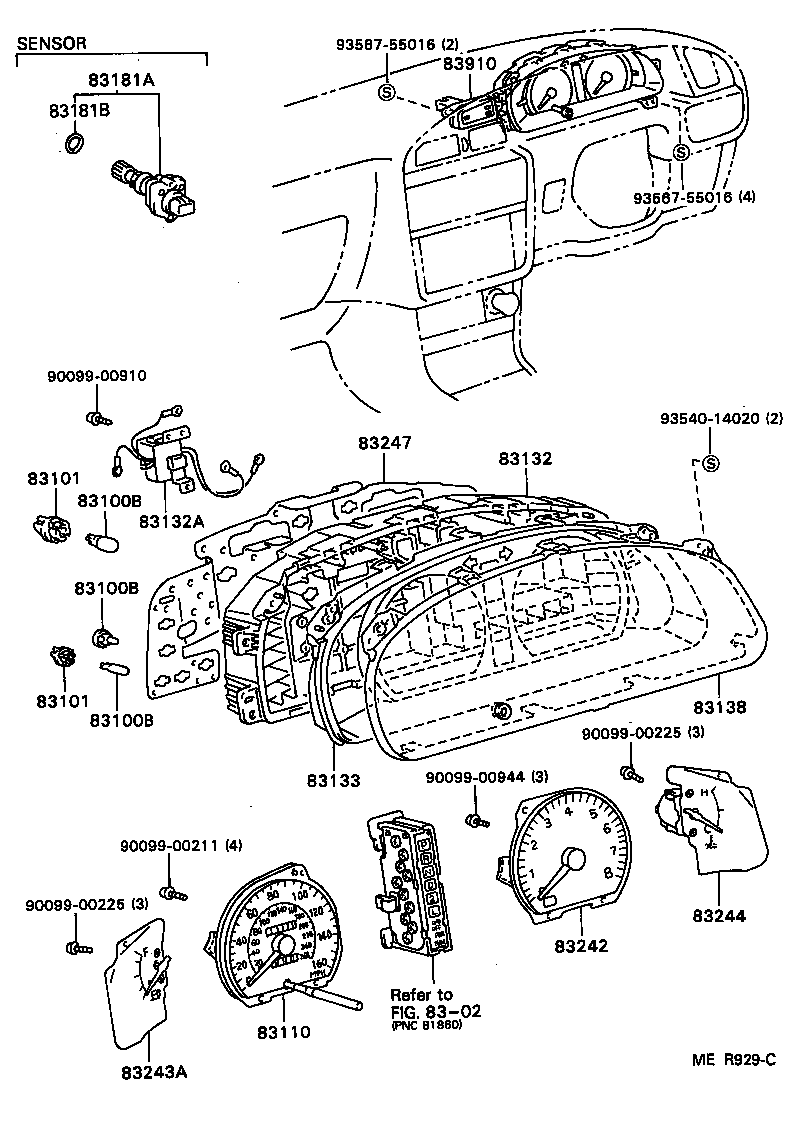

Figure MER928F MER928F 1991-06 → 1996-08 Figure MER929C MER929C 1991-06 → 1996-08 Figure NE1916 NE1916 1991-06 → 1996-08

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83132A Case, Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83390B Hose, Vacuum(FOR ECONOMETER)
83391D Switch, Vacuum
83399B Bracket, Vacuum Switch
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
