Toyota Camry (WG)
1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe
Discontinued model
Data version 1997-03

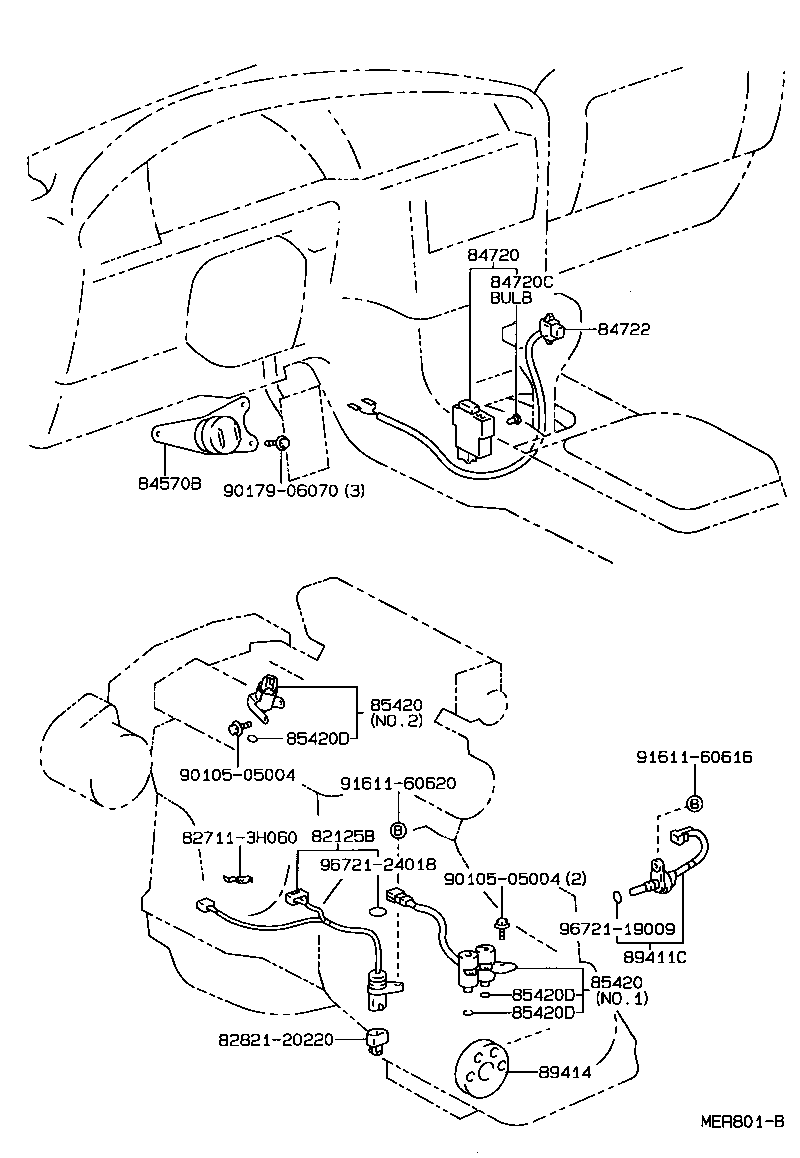

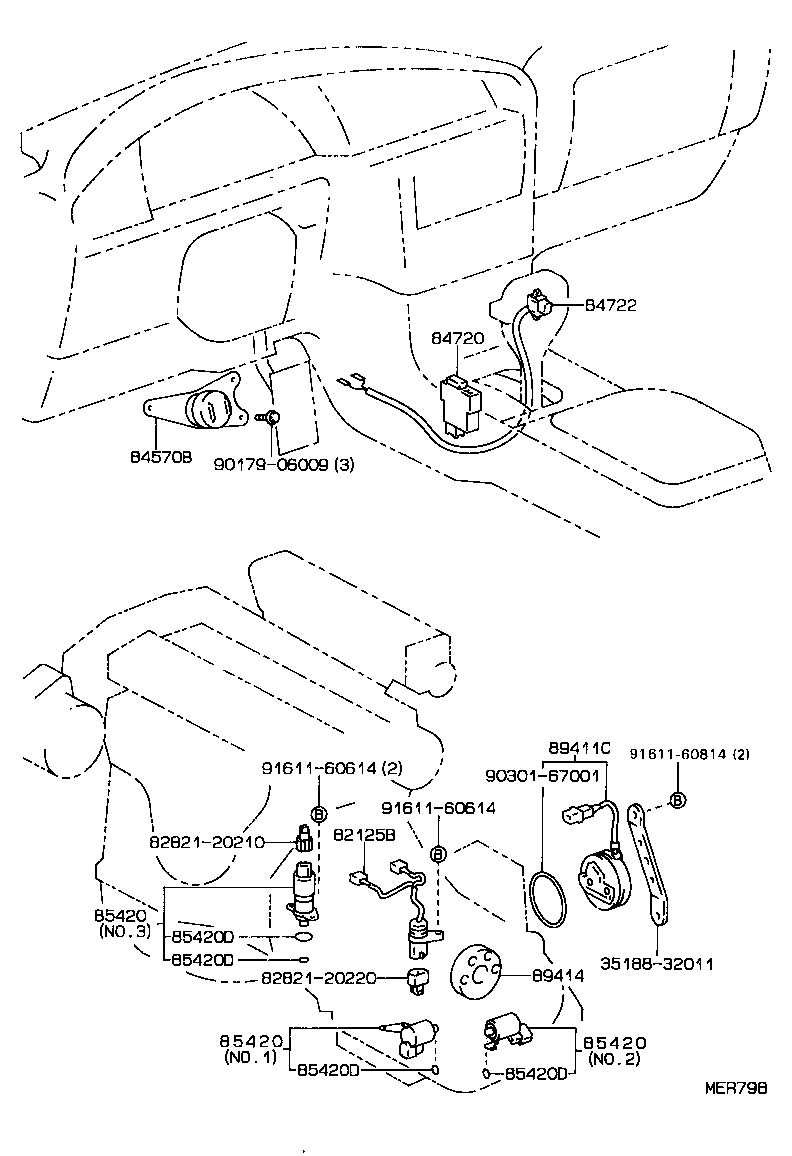

Overdrive & Electronic Controlled Transmission
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125B | Wire, Transmission |
| 84570B | Switch Assy, Kick Down |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
