Toyota Camry (WG)

1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

18 part groups · 2 illustrations

Illustrations

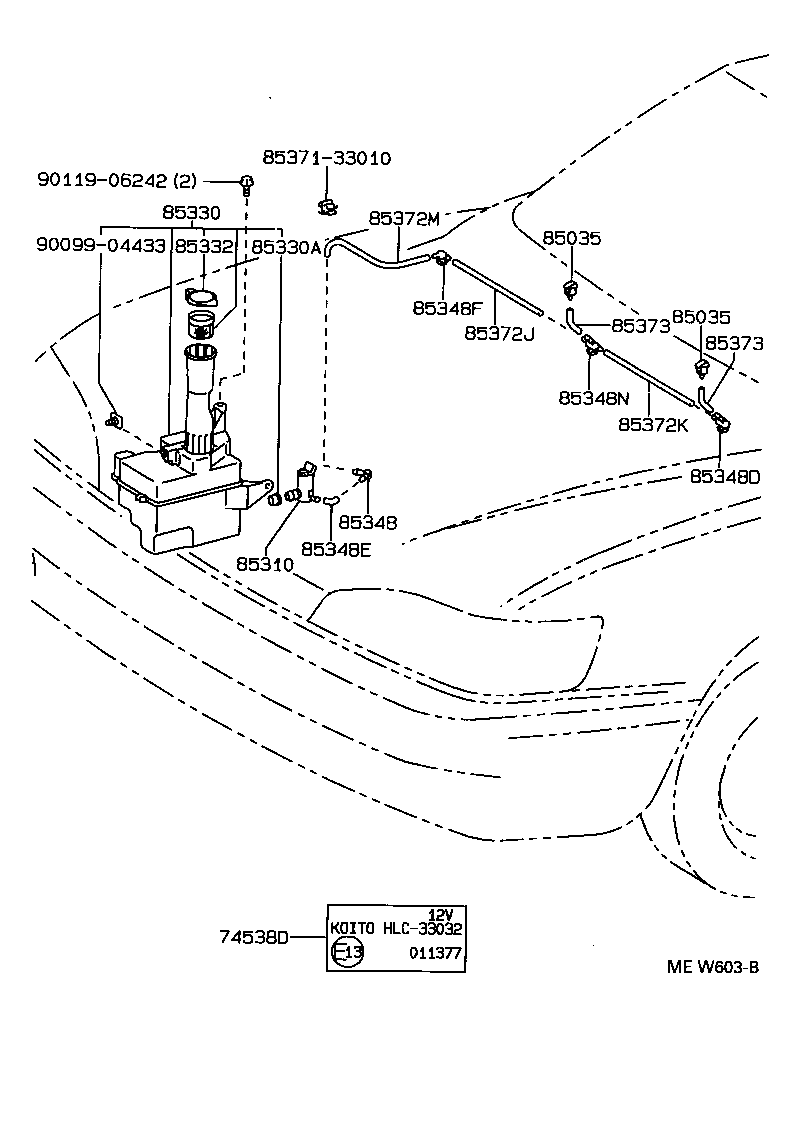

Figure 852090 852090 1991-06 → 1993-08 Figure MEW603B MEW603B 1993-08 → 1996-08

Part groups

PNCDescription
74538D Plate, Washer Cover Caution
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348F Joint, Windshield Washer Elbow, NO.3
85348N Joint, Windshield Washer Hose, NO.4
85361A Bracket, Windshield Washer, NO.1
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85372M Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
