Toyota Camry (WG)

1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

18 part groups · 2 illustrations

Illustrations

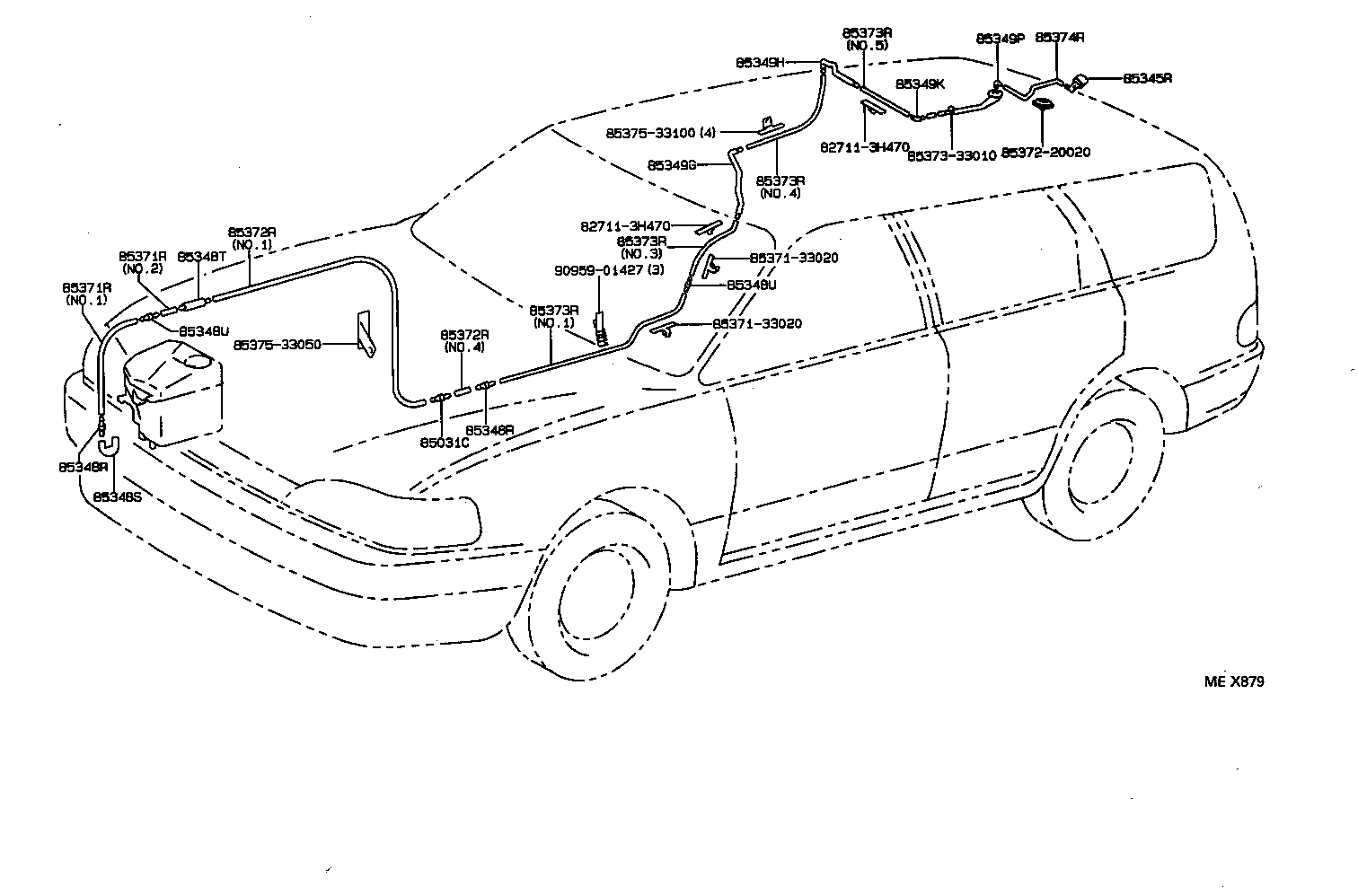

Figure MET588B MET588B 1992-03 → 1993-09 Figure MEX879 MEX879 1993-09 → 1996-07

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85349F Joint, Rear Washer Hose, NO.1
85349G Joint, Rear Washer Hose, NO.2
85349H Joint, Rear Washer Hose, NO.3
85349K Joint, Rear Washer Elbow, NO.2
85349P Joint, Rear Washer Elbow, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85372T Grommet, Washer
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85374R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85376C Spring, Washer Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
