Toyota Camry (WG)

1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

9 part groups · 5 illustrations

Illustrations

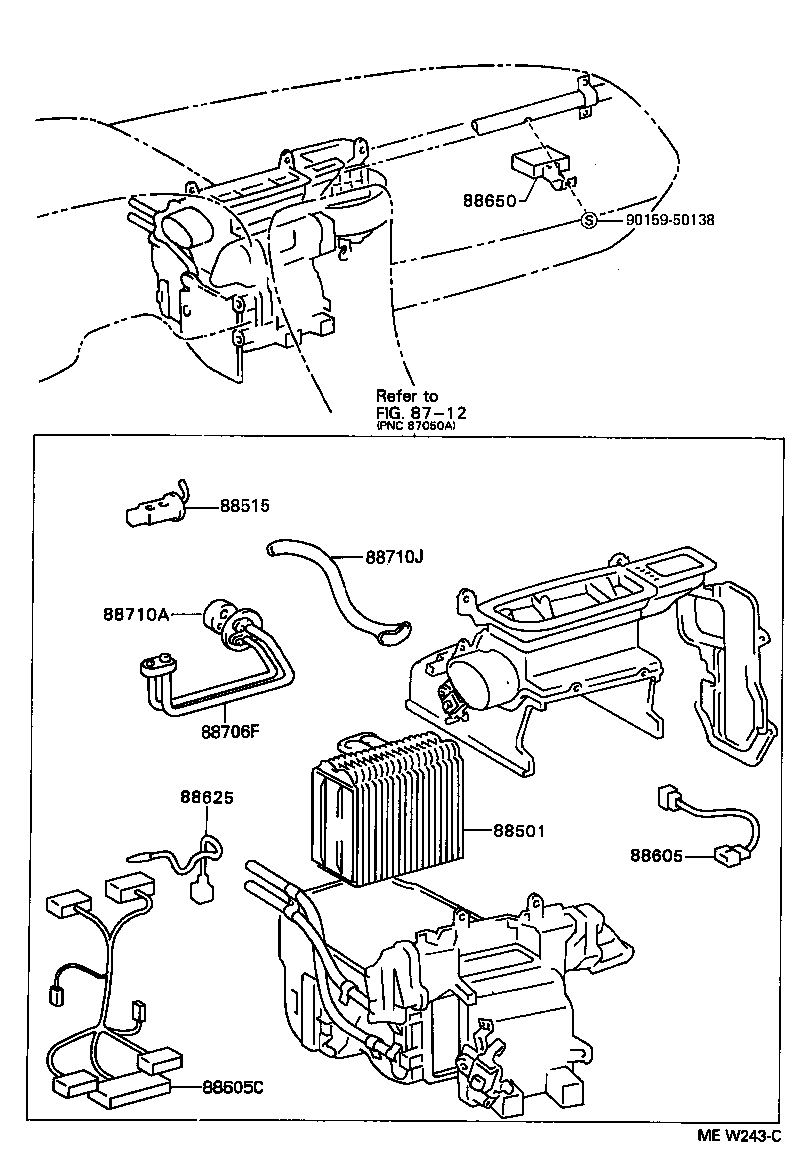

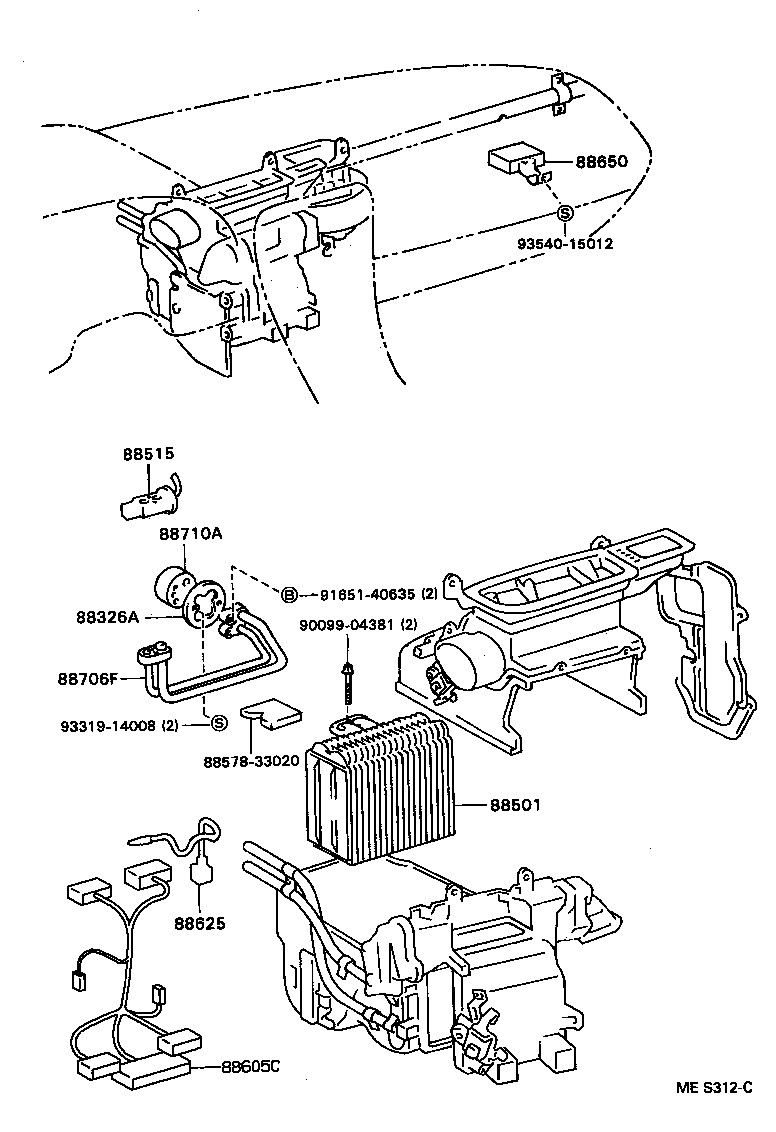

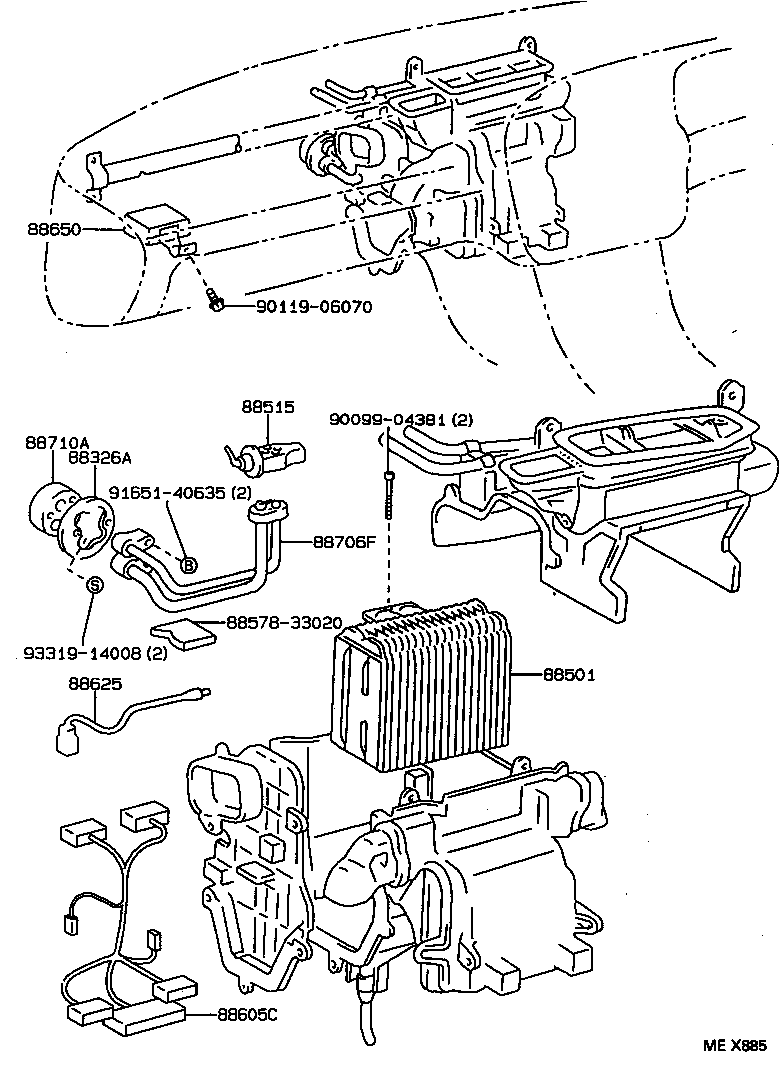

Figure MEW242B MEW242B 1991-06 → 1996-08 Figure MEW243C MEW243C 1991-06 → 1996-08 Figure MES312C MES312C 1991-06 → 1996-08 Figure MEX885 MEX885 1991-06 → 1996-08 Figure NE2452 NE2452 1991-06 → 1996-08

Part groups

PNCDescription
88326A Plate, Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88706F Tube Sub-assy, Liquid, F
88710A Tube Assy, Air Conditioner
88710J Tube, Air Conditioner Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
