Toyota Camry (WG)

1992-03 → 1996-07 · chassis SXV10,VCV10 · catalogue 283550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

23 part groups · 5 illustrations

Illustrations

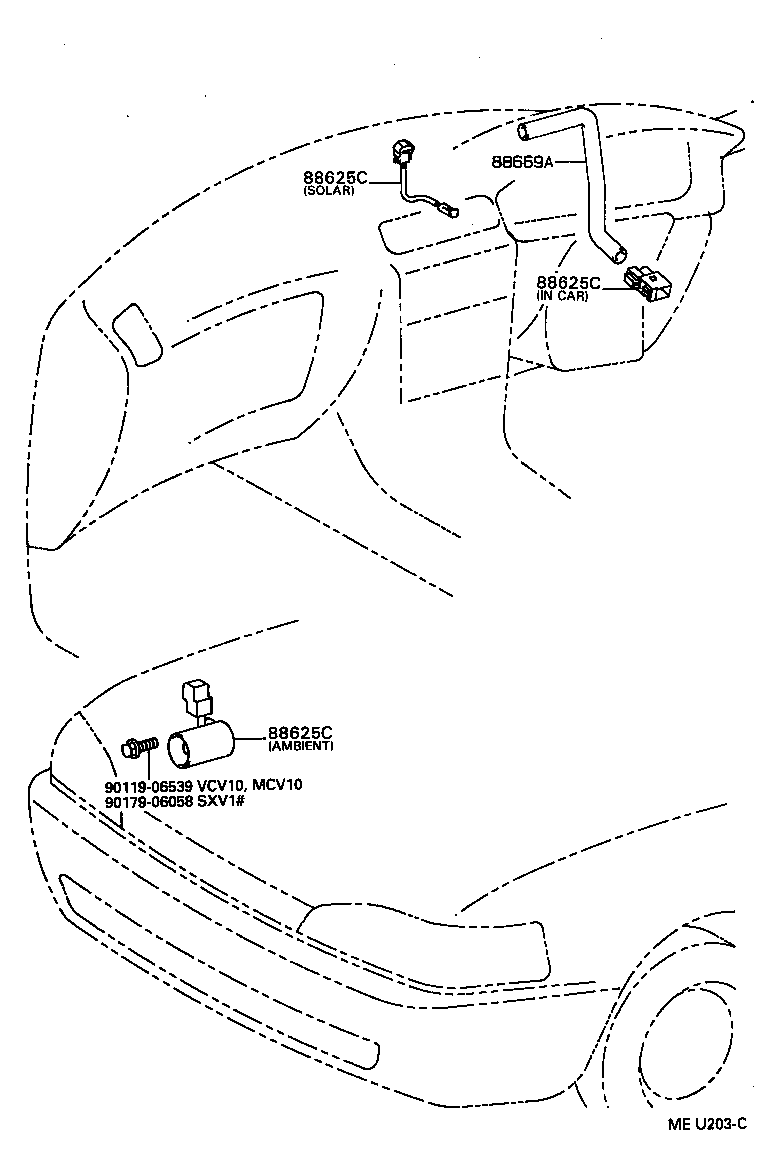

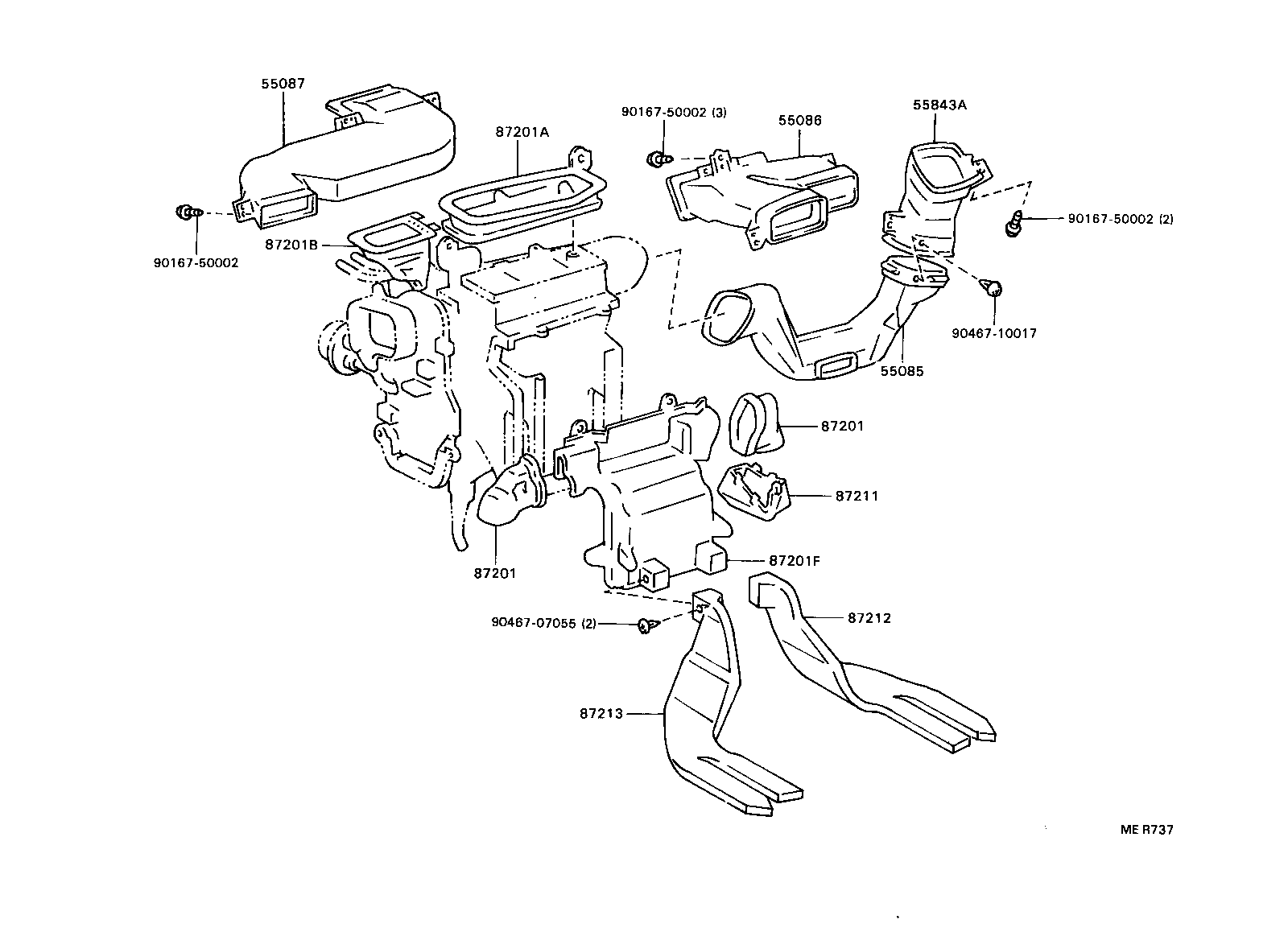

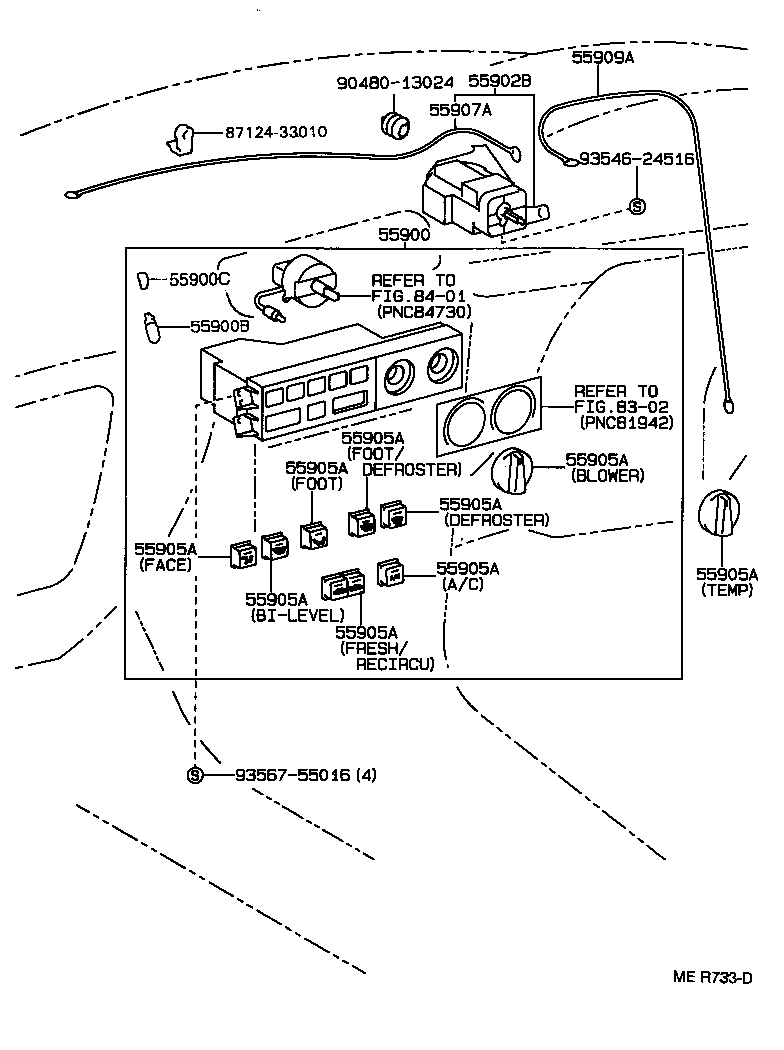

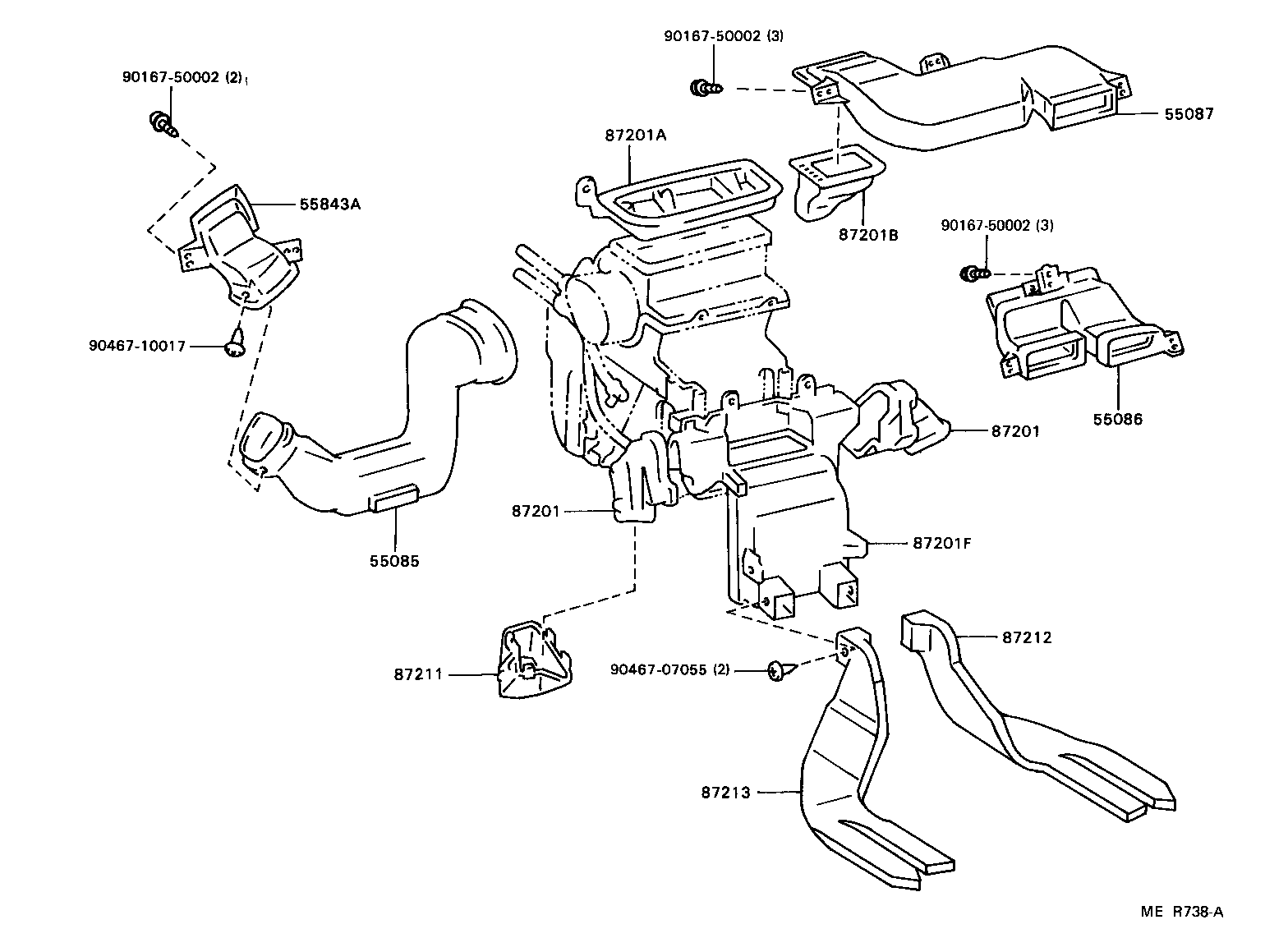

Figure MER732D MER732D 1991-06 → 1996-08 Figure MER733D MER733D 1991-06 → 1996-08 Figure MER737 MER737 1991-06 → 1996-08 Figure MER738A MER738A 1991-06 → 1996-08 Figure MEU203C MEU203C 1993-08 → 1996-08

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55538A Cover, Cooler Switch Hole
55843A Duct, Heater TO Register, NO.1
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55900C Cap, Air Conditioner Control Bulb
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
88625C Thermistor, Cooler
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
