Toyota Camry
2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe
Supported model
Data version 2024-06

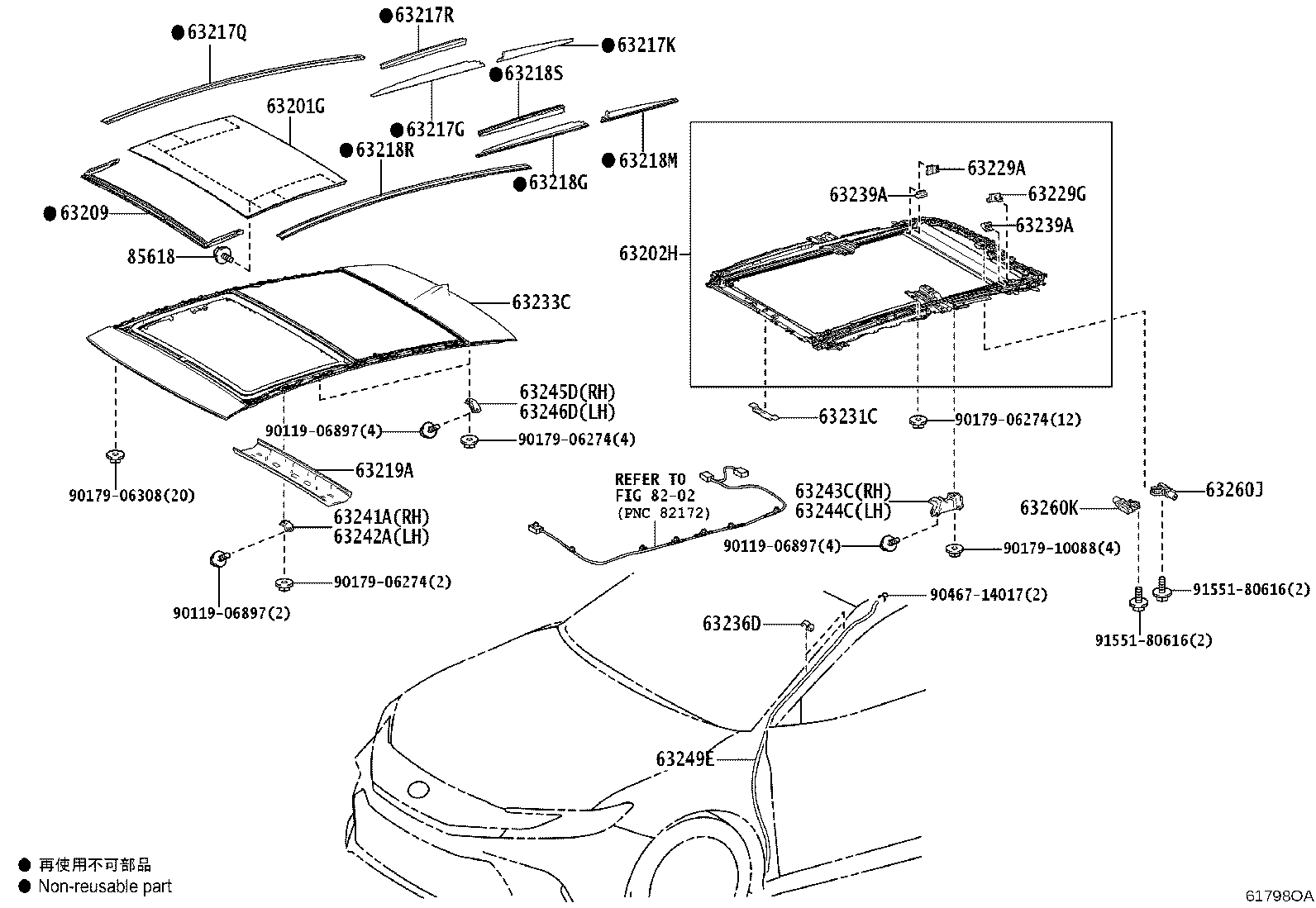

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-33300 |
Glass Sub-assy, Sliding Roof
2024-06 → —
|
AXVA80 N GCC | — | |
| 63201-33300 note |
Glass Sub-assy, Sliding Roof
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63201-33300 note |
Glass Sub-assy, Sliding Roof
2024-06 → —
|
AXVH80 N GCC | — | |
| 63201-33321 |
Glass Sub-assy, Sliding Roof
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63201-33321 |
Glass Sub-assy, Sliding Roof
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63201-33321 note |
Glass Sub-assy, Sliding Roof
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63201-33321 |
Glass Sub-assy, Sliding Roof
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63201-33321 |
Glass Sub-assy, Sliding Roof
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63201-33321 note |
Glass Sub-assy, Sliding Roof
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63201-33321 note |
Glass Sub-assy, Sliding Roof
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-06 → —
|
AXVH80 N GCC | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-06 → —
|
AXVA80,AXVH80 G GCC | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-06 → —
|
AXVH80 G ARL | — | |
| 63202-33151-C1 note |
Rail Sub-assy, Slide Roof
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-33170 |
Panel Sub-assy, Roof Wind Deflector
2024-06 → —
|
AXVA80 N GCC | — | |
| 63209-33170 note |
Panel Sub-assy, Roof Wind Deflector
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63209-33170 note |
Panel Sub-assy, Roof Wind Deflector
2024-06 → —
|
AXVH80 N GCC | — | |
| 63209-33181 note |
Panel Sub-assy, Roof Wind Deflector
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63209-33181 |
Panel Sub-assy, Roof Wind Deflector
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63209-33181 |
Panel Sub-assy, Roof Wind Deflector
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63209-33181 |
Panel Sub-assy, Roof Wind Deflector
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63209-33181 |
Panel Sub-assy, Roof Wind Deflector
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63209-33181 note |
Panel Sub-assy, Roof Wind Deflector
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63209-33181 note |
Panel Sub-assy, Roof Wind Deflector
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-33130 note |
Garnish, Sliding Roof Side, RH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63217-33130 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63217-33130 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-33130 note |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-33130 note |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33130 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33130 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 N GCC | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVA80 N GCC | — | |
| 63217K — Garnish, Sliding Roof Side, RH | ||||
| 63217-33140 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-33140 note |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33140 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33140 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33140 note |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-33140 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63217-33140 note |
Garnish, Sliding Roof Side, RH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63217Q — Garnish, Sliding Roof Side, RH | ||||
| 63217-33150 note |
Garnish, Sliding Roof Side, RH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63217-33150 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63217-33150 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-33150 note |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-33150 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33150 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33150 note |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217R — Garnish, Sliding Roof Side, RH | ||||
| 63217-33160 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63217-33160 note |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33160 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33160 |
Garnish, Sliding Roof Side, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63217-33160 |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-33160 note |
Garnish, Sliding Roof Side, RH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63217-33160 note |
Garnish, Sliding Roof Side, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63217-47020 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVA80 N GCC | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 N GCC | — | |
| 63218-33100 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33100 note |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33100 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33100 note |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218-33100 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218-33100 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63218-33100 note |
Garnish, Sliding Roof Side, LH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63218M — Garnish, Sliding Roof Side, LH | ||||
| 63218-33110 note |
Garnish, Sliding Roof Side, LH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63218-33110 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63218-33110 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218-33110 note |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218-33110 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33110 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33110 note |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218R — Garnish, Sliding Roof Side, LH | ||||
| 63218-33120 note |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33120 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33120 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33120 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218-33120 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63218-33120 note |
Garnish, Sliding Roof Side, LH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63218-33120 note |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218S — Garnish, Sliding Roof Side, LH | ||||
| 63218-33130 note |
Garnish, Sliding Roof Side, LH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63218-33130 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63218-33130 |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218-33130 note |
Garnish, Sliding Roof Side, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63218-33130 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33130 |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63218-33130 note |
Garnish, Sliding Roof Side, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-33050 note |
Garnish, Sliding Roof, Rear
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63219-33050 note |
Garnish, Sliding Roof, Rear
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63219-33050 |
Garnish, Sliding Roof, Rear
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63219-33050 |
Garnish, Sliding Roof, Rear
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63219-33050 |
Garnish, Sliding Roof, Rear
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63219-33050 |
Garnish, Sliding Roof, Rear
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63219-33050 note |
Garnish, Sliding Roof, Rear
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63229A — Stopper, Sliding Roof Sunshade | ||||
| 63229-33050 note |
Stopper, Sliding Roof Sunshade
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63229-33050 |
Stopper, Sliding Roof Sunshade
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63229-33050 |
Stopper, Sliding Roof Sunshade
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63229-33050 note |
Stopper, Sliding Roof Sunshade
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63229-33050 |
Stopper, Sliding Roof Sunshade
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63229-33050 |
Stopper, Sliding Roof Sunshade
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63229-33050 note |
Stopper, Sliding Roof Sunshade
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63229G — Stopper, Sliding Roof Sunshade | ||||
| 63229-33060 note |
Stopper, Sliding Roof Sunshade
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63229-33060 |
Stopper, Sliding Roof Sunshade
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63229-33060 |
Stopper, Sliding Roof Sunshade
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63229-33060 |
Stopper, Sliding Roof Sunshade
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63229-33060 |
Stopper, Sliding Roof Sunshade
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63229-33060 note |
Stopper, Sliding Roof Sunshade
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63229-33060 note |
Stopper, Sliding Roof Sunshade
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63231C — Bracket, Room Lamp | ||||
| 63231-33110 note |
Bracket, Room Lamp
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63231-33110 |
Bracket, Room Lamp
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63231-33110 |
Bracket, Room Lamp
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63231-33110 note |
Bracket, Room Lamp
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63231-33110 |
Bracket, Room Lamp
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63231-33110 |
Bracket, Room Lamp
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63231-33110 note |
Bracket, Room Lamp
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63233C — Panel, Sliding Roof Housing | ||||
| 63233-33110 note |
Panel, Sliding Roof Housing
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63233-33110 note |
Panel, Sliding Roof Housing
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63233-33110 |
Panel, Sliding Roof Housing
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63233-33110 |
Panel, Sliding Roof Housing
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63233-33110 note |
Panel, Sliding Roof Housing
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63233-33110 |
Panel, Sliding Roof Housing
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63233-33110 |
Panel, Sliding Roof Housing
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63236D — Clamp, Sliding Roof Drain Hose | ||||
| 63236-42010 |
Clamp, Sliding Roof Drain Hose
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63236-42010 note |
Clamp, Sliding Roof Drain Hose
2024-06 → —
|
AXVH80 N GCC | — | |
| 63236-42010 note |
Clamp, Sliding Roof Drain Hose
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63236-42010 note |
Clamp, Sliding Roof Drain Hose
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63236-42010 |
Clamp, Sliding Roof Drain Hose
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63236-42010 note |
Clamp, Sliding Roof Drain Hose
2024-06 → —
|
AXVA80 N GCC | — | |
| 63236-42010 note |
Clamp, Sliding Roof Drain Hose
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63236-42010 |
Clamp, Sliding Roof Drain Hose
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63239A — Spacer, Sliding Roof Housing | ||||
| 63239-33060 note |
Spacer, Sliding Roof Housing
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63239-33060 |
Spacer, Sliding Roof Housing
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63239-33060 |
Spacer, Sliding Roof Housing
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63239-33060 note |
Spacer, Sliding Roof Housing
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63239-33060 |
Spacer, Sliding Roof Housing
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63239-33060 |
Spacer, Sliding Roof Housing
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63239-33060 note |
Spacer, Sliding Roof Housing
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-33140 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63241-33140 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63241-33140 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63242A — Bracket, Sliding Roof Housing Front Mounting, LH | ||||
| 63241-33140 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, LH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63241-33140 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63241-33140 |
Bracket, Sliding Roof Housing Front Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63241-33140 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-33160 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63243-33160 |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63243-33160 |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63243-33160 |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63243-33160 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63243-33160 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63243-33160 |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-33130 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63244-33130 |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63244-33130 |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63244-33130 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63244-33130 |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63244-33130 |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63244-33130 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63245D — Bracket, Sliding Roof Housing Rear Mounting, RH | ||||
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63245-33110 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, RH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63245-33110 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, RH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, RH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63245-33110 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63246D — Bracket, Sliding Roof Housing Rear Mounting, LH | ||||
| 63245-33110 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, LH
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63245-33110 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63245-33110 |
Bracket, Sliding Roof Housing Rear Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63245-33110 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63249E — Hose, Sliding Roof Drain | ||||
| 63249-33200 note |
Hose, Sliding Roof Drain
2024-06 → —
|
AXVH80 N GCC | — | |
| 63249-33200 note |
Hose, Sliding Roof Drain
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63249-33200 |
Hose, Sliding Roof Drain
2024-06 → —
|
AXVA80 N GCC | — | |
| 63249-33210 note |
Hose, Sliding Roof Drain
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63249-33210 |
Hose, Sliding Roof Drain
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63249-33210 |
Hose, Sliding Roof Drain
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63249-33210 note |
Hose, Sliding Roof Drain
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63249-33210 |
Hose, Sliding Roof Drain
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63260J — Gear Assy, Sliding Roof Drive | ||||
| 63260-33240 |
Gear Assy, Sliding Roof Drive
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63260-33240 note |
Gear Assy, Sliding Roof Drive
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63260-33240 |
Gear Assy, Sliding Roof Drive
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63260-33240 |
Gear Assy, Sliding Roof Drive
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63260-33240 note |
Gear Assy, Sliding Roof Drive
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63260-33240 |
Gear Assy, Sliding Roof Drive
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 63260-33240 note |
Gear Assy, Sliding Roof Drive
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63260K — Gear Assy, Sliding Roof Drive | ||||
| 63260-33250 note |
Gear Assy, Sliding Roof Drive
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 63260-33250 note |
Gear Assy, Sliding Roof Drive
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63260-33250 |
Gear Assy, Sliding Roof Drive
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63260-33250 |
Gear Assy, Sliding Roof Drive
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 63260-33250 note |
Gear Assy, Sliding Roof Drive
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63260-33250 |
Gear Assy, Sliding Roof Drive
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 63260-33250 |
Gear Assy, Sliding Roof Drive
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 85618 — Screw, Slide Roof Motor Thrust | ||||
| 85618-21010 note |
Screw, Slide Roof Motor Thrust
2024-06 → 2024-12
ended
|
AXVH80 RHD EUR | — | |
| 85618-21010 |
Screw, Slide Roof Motor Thrust
2024-06 → —
|
AXVA80 G GCC;AXVH80 G +3 | — | |
| 85618-21010 |
Screw, Slide Roof Motor Thrust
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 85618-21010 note |
Screw, Slide Roof Motor Thrust
2024-06 → —
|
AXVH80 LHD G EUR | — | |
| 85618-21010 |
Screw, Slide Roof Motor Thrust
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 85618-21010 |
Screw, Slide Roof Motor Thrust
2024-12 → —
|
AXVH80 RHD EUR | — | |
| 85618-21010 note |
Screw, Slide Roof Motor Thrust
2024-12 → —
|
AXVH80 RHD EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
