Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

16 part groups · 3 illustrations

Illustrations

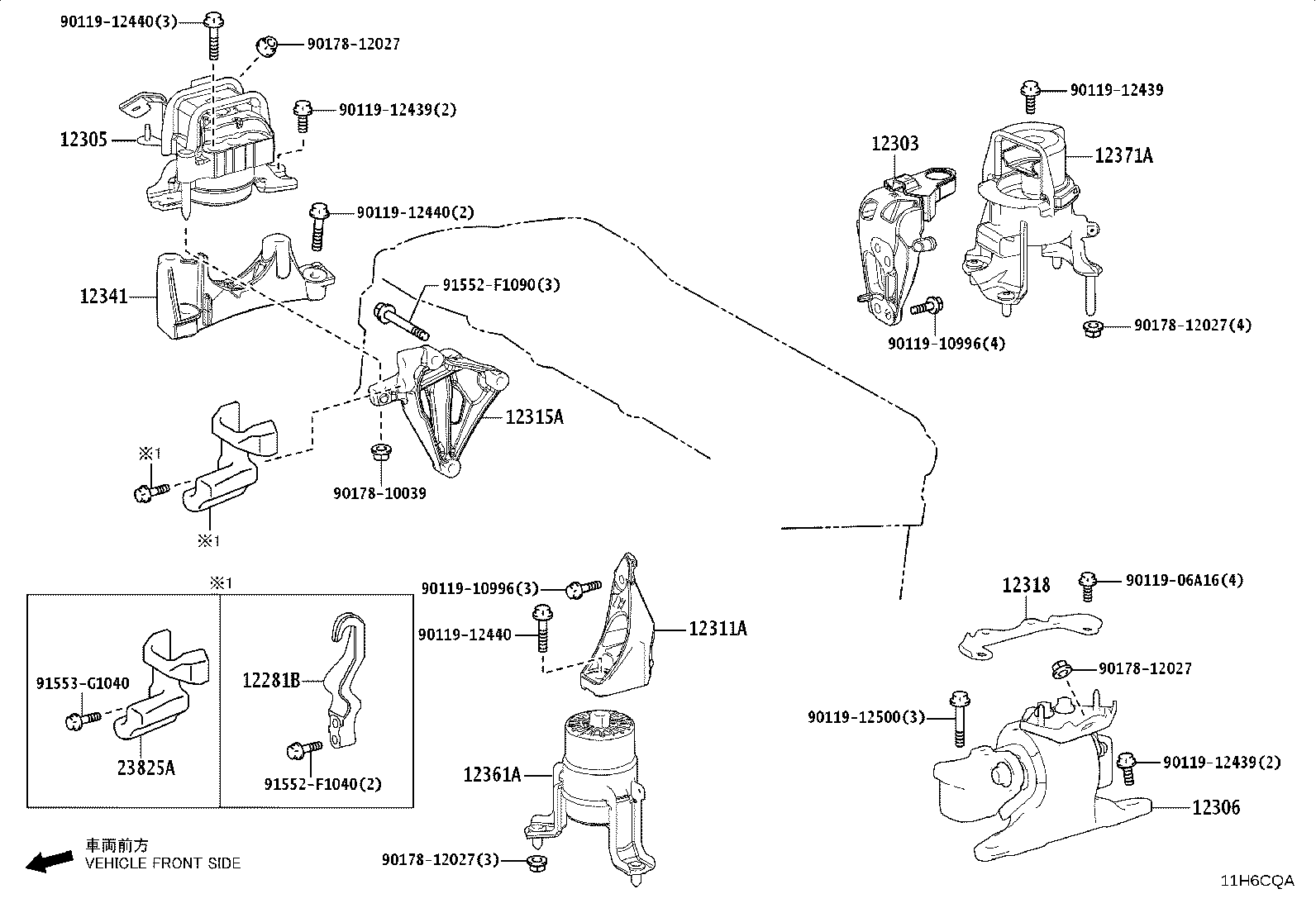

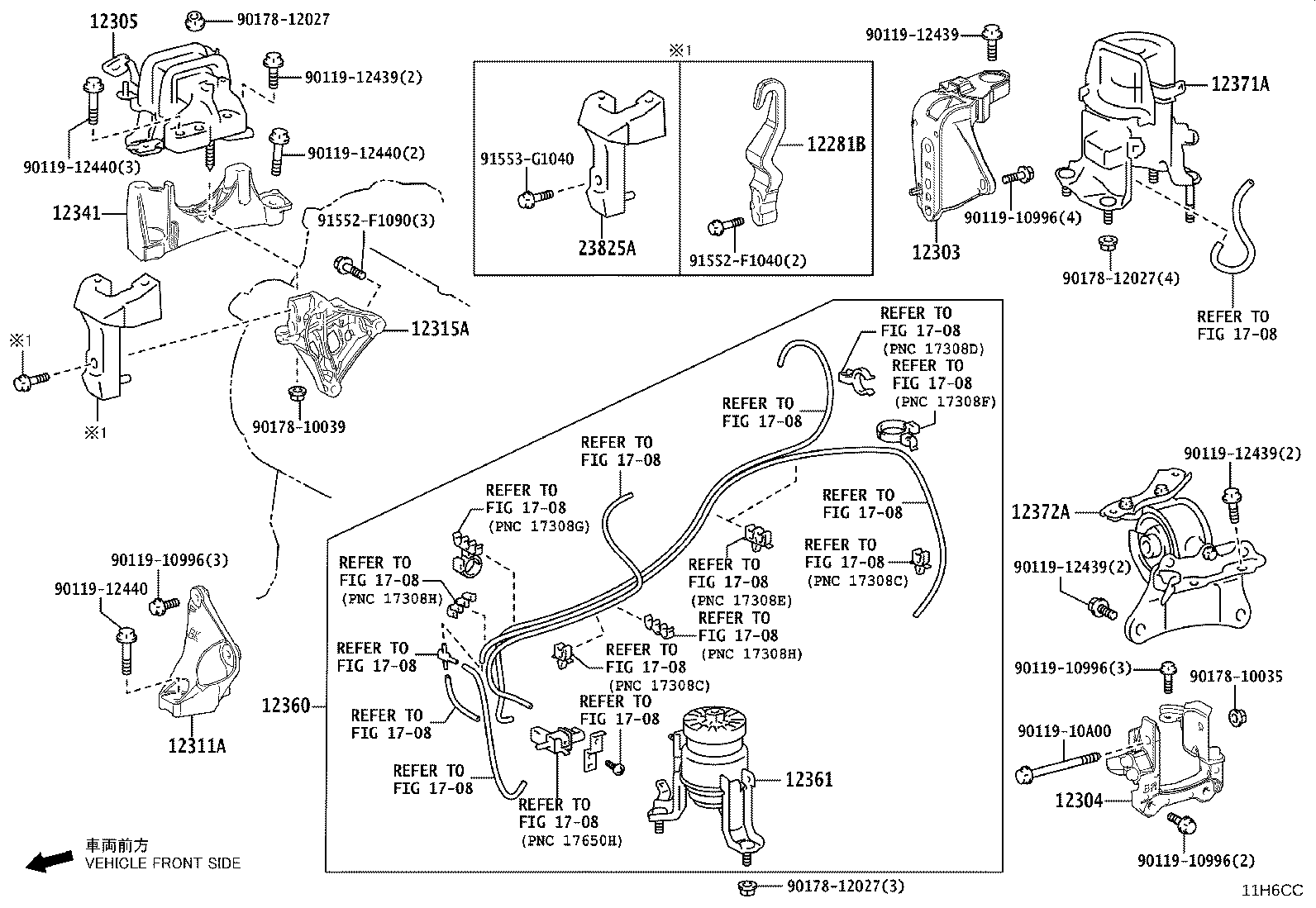

Figure 11H6CP 11H6CP 2024-06 → — Figure 11H6CQA 11H6CQA 2024-06 → — Figure 11H6CC 11H6CC 2024-06 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12303 Bracket Sub-assy, Engine Mounting, Rear
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12341 Spacer, Engine Mounting
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
23825A Guard, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
