Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

4 part groups · 3 illustrations

Illustrations

Figure 12168I

12168I 2024-06 → —

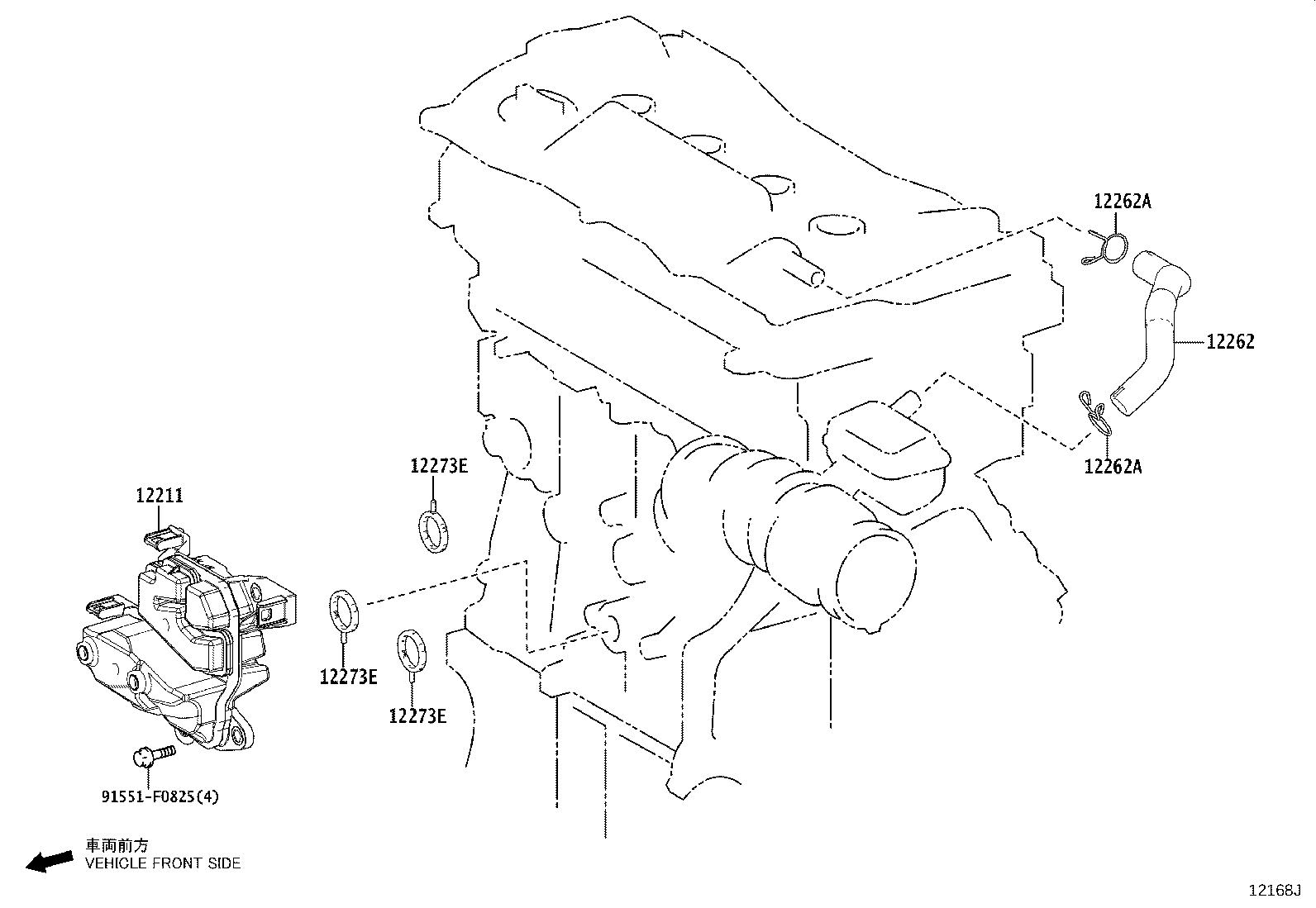

Figure 12168J

12168J 2024-06 → —

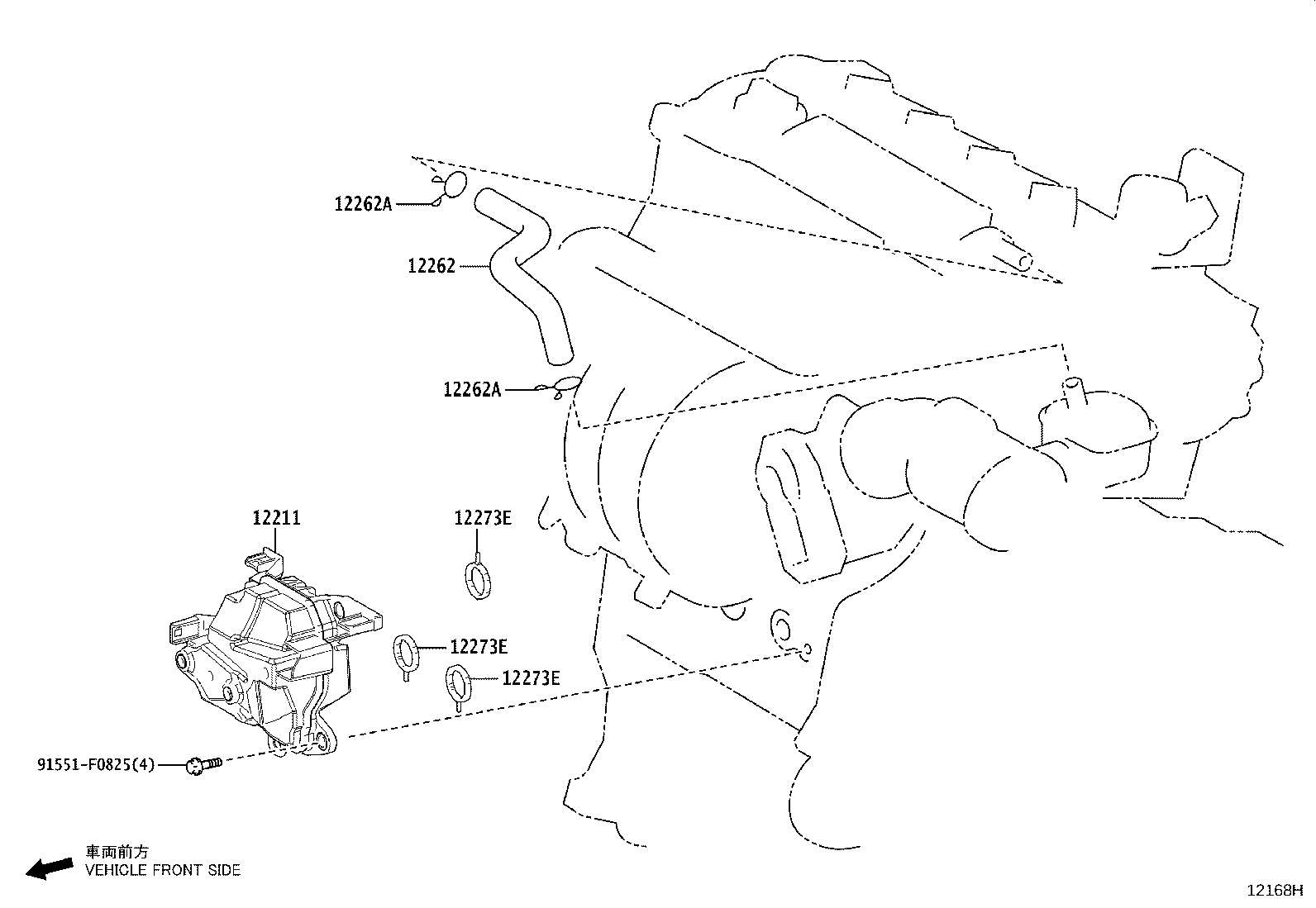

Figure 12168H

12168H 2024-06 → —

Part groups

PNC	Description
12211	Case, Ventilation, NO.1
12262	Hose, Ventilation, NO.2
12262A	Clip(FOR VENTILATION HOSE NO.2)
12273E	Gasket(FOR VENTILATION CASE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
