Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

10 part groups · 4 illustrations

Illustrations

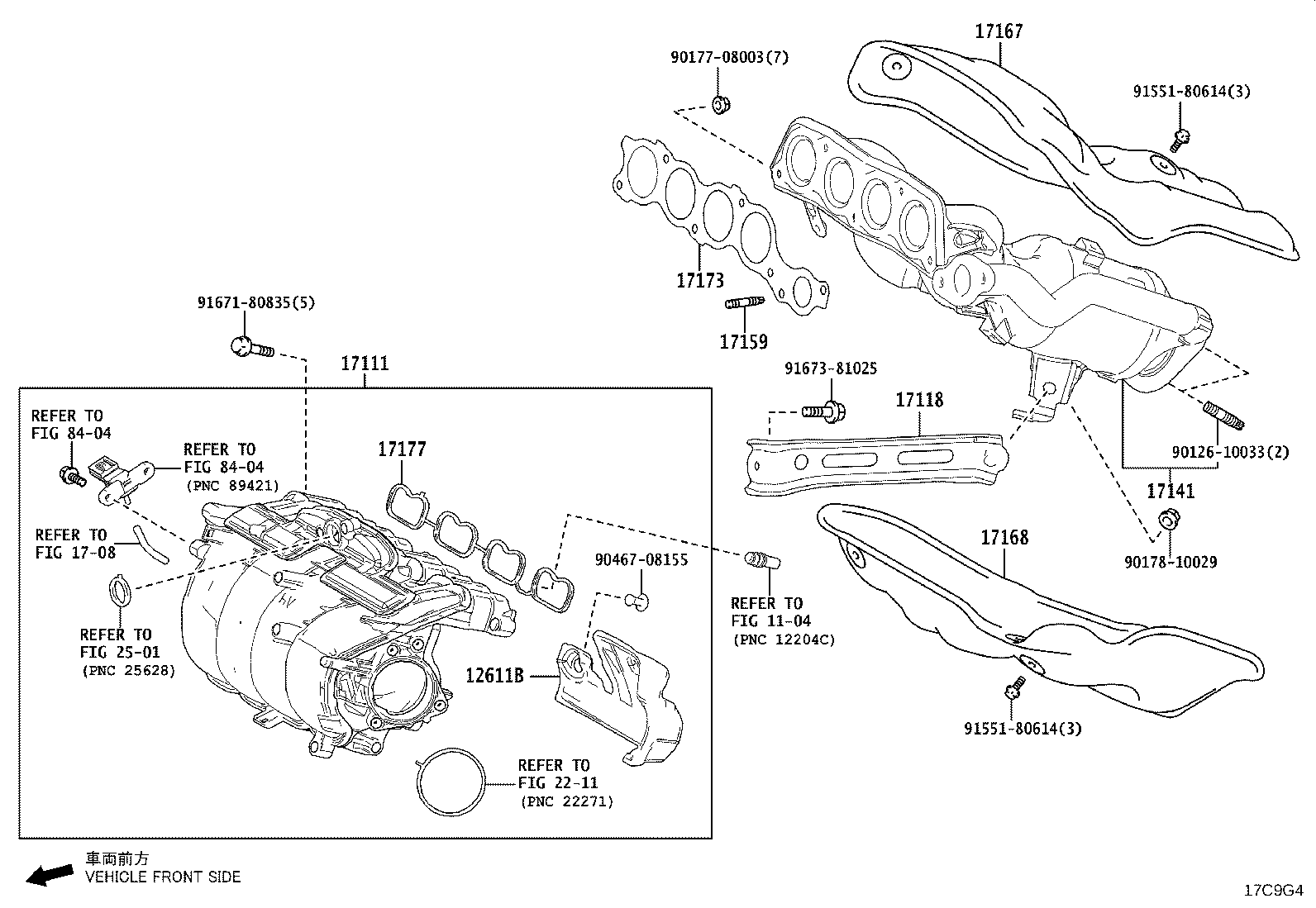

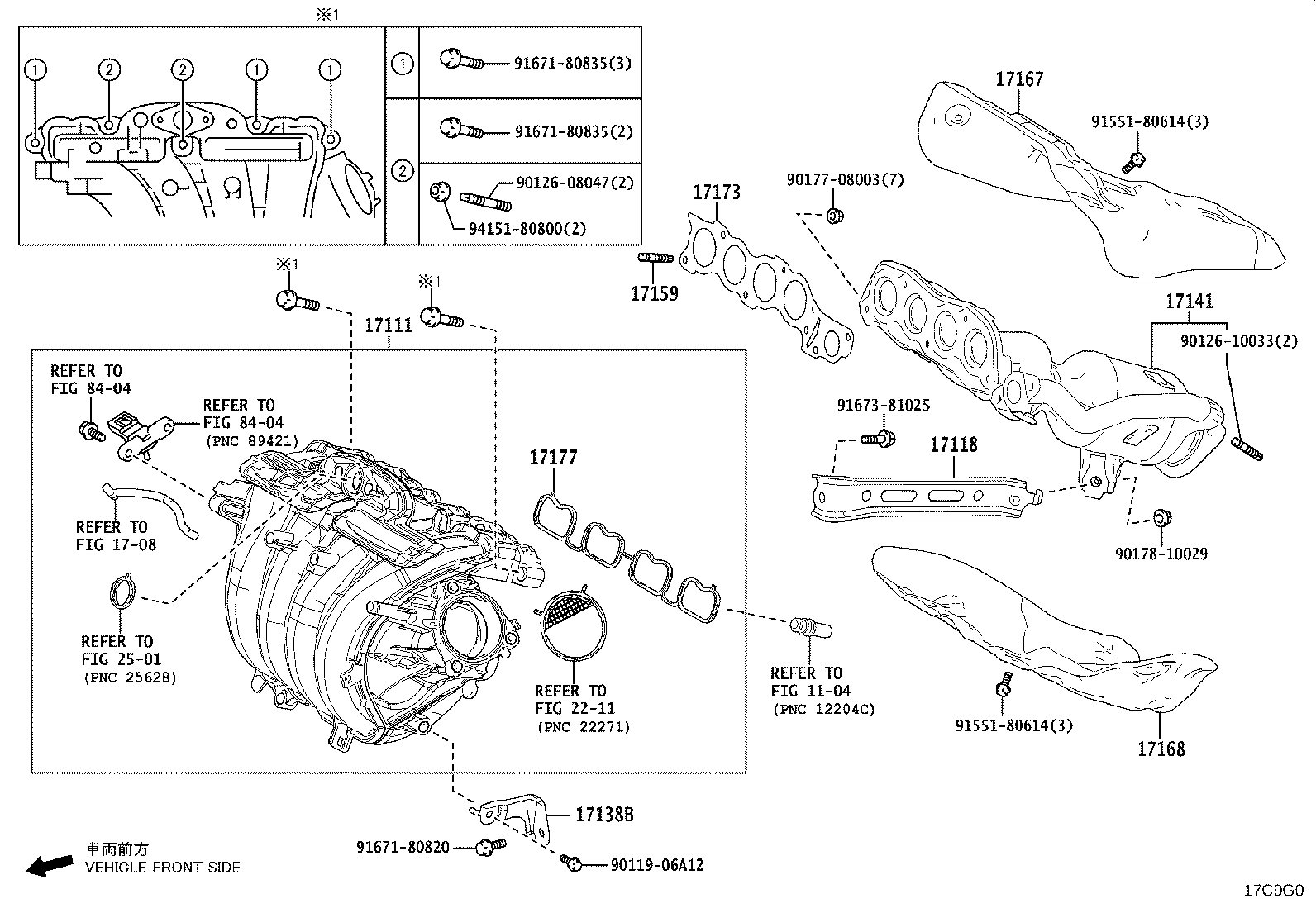

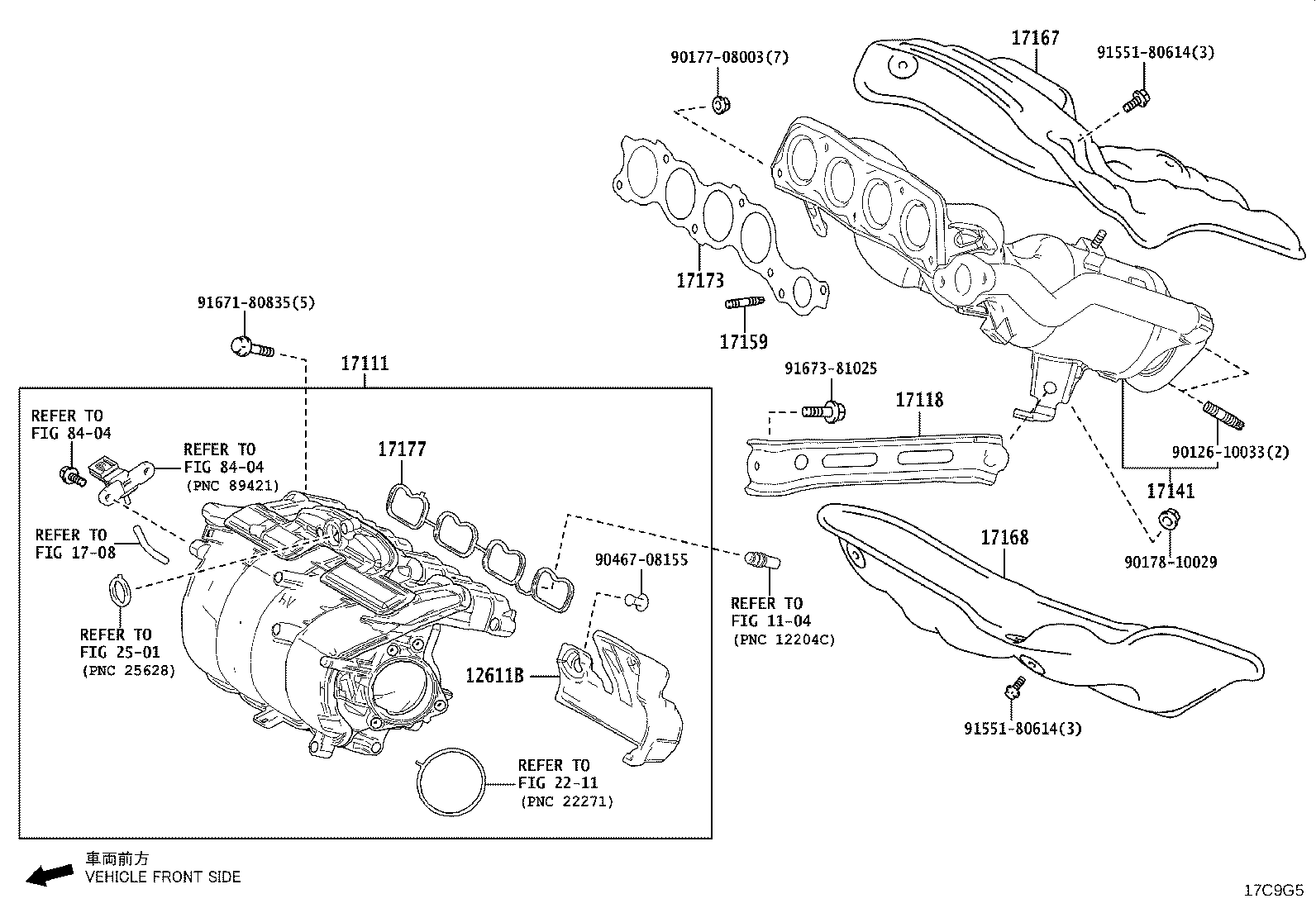

Figure 17C9G3 17C9G3 2024-06 → — Figure 17C9G4 17C9G4 2024-06 → — Figure 17C9G5 17C9G5 2024-06 → — Figure 17C9G0 17C9G0 2024-06 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
